Toyota Liteace

1988-08 → 1998-04 · chassis KM3#,YM3#,4#,CM36 · catalogue 631340 · General

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

14 part groups · 3 illustrations

Illustrations

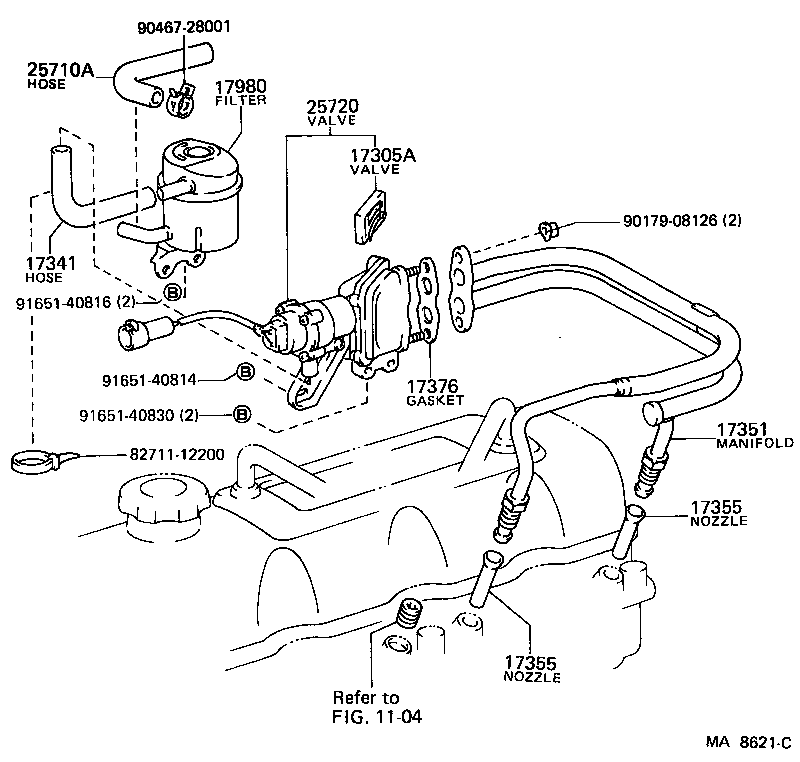

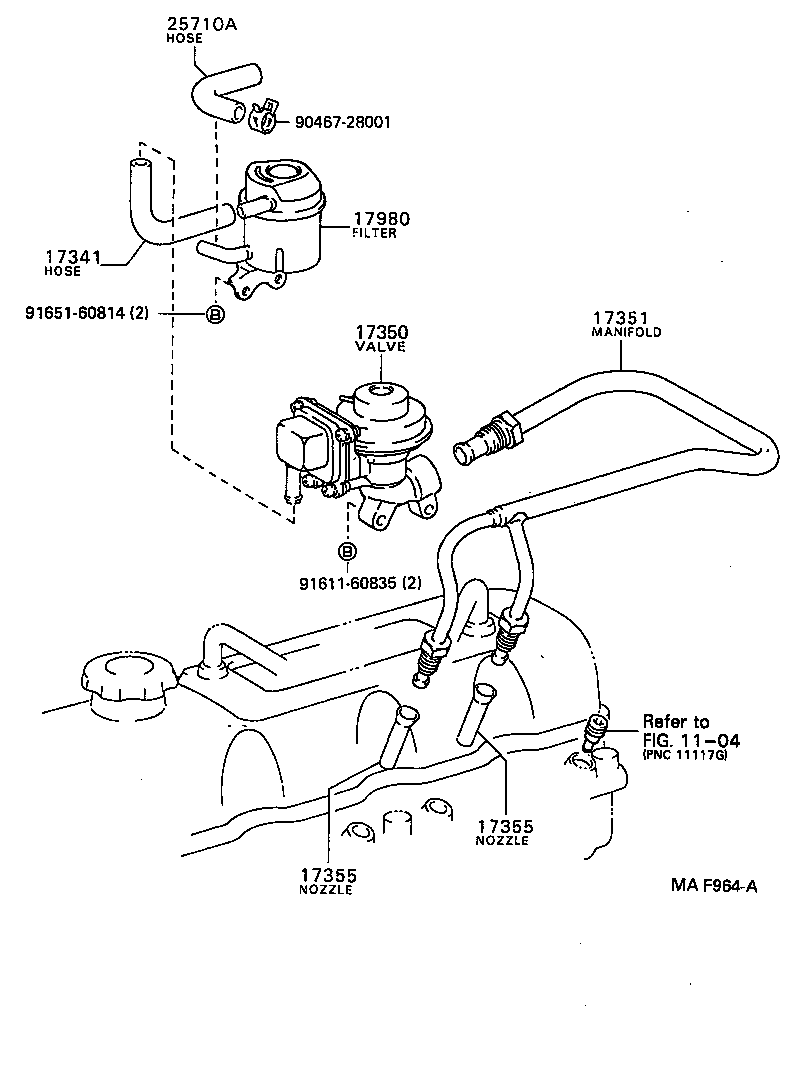

Figure MAB598 MAB598 1988-08 → — Figure MA8621C MA8621C 1988-08 → — Figure MAF964A MAF964A 1992-09 → —

Part groups

PNCDescription
17301B Silencer Sub-assy, Air Suction
17305A Valve Sub-assy, Reed
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17350 Valve Assy, Reed
17351 Manifold, Air Injection
17355 Nozzle, Air Injection
17361 Tube, Air
17376 Gasket, Air Tube, NO.1
17980 Filter Assy, Air Suction
25710A Hose(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)
25720 Valve Assy, Electric Air Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
