Toyota Liteace

1988-08 → 1998-04 · chassis KM3#,YM3#,4#,CM36 · catalogue 631340 · General

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

21 part groups · 8 illustrations

Illustrations

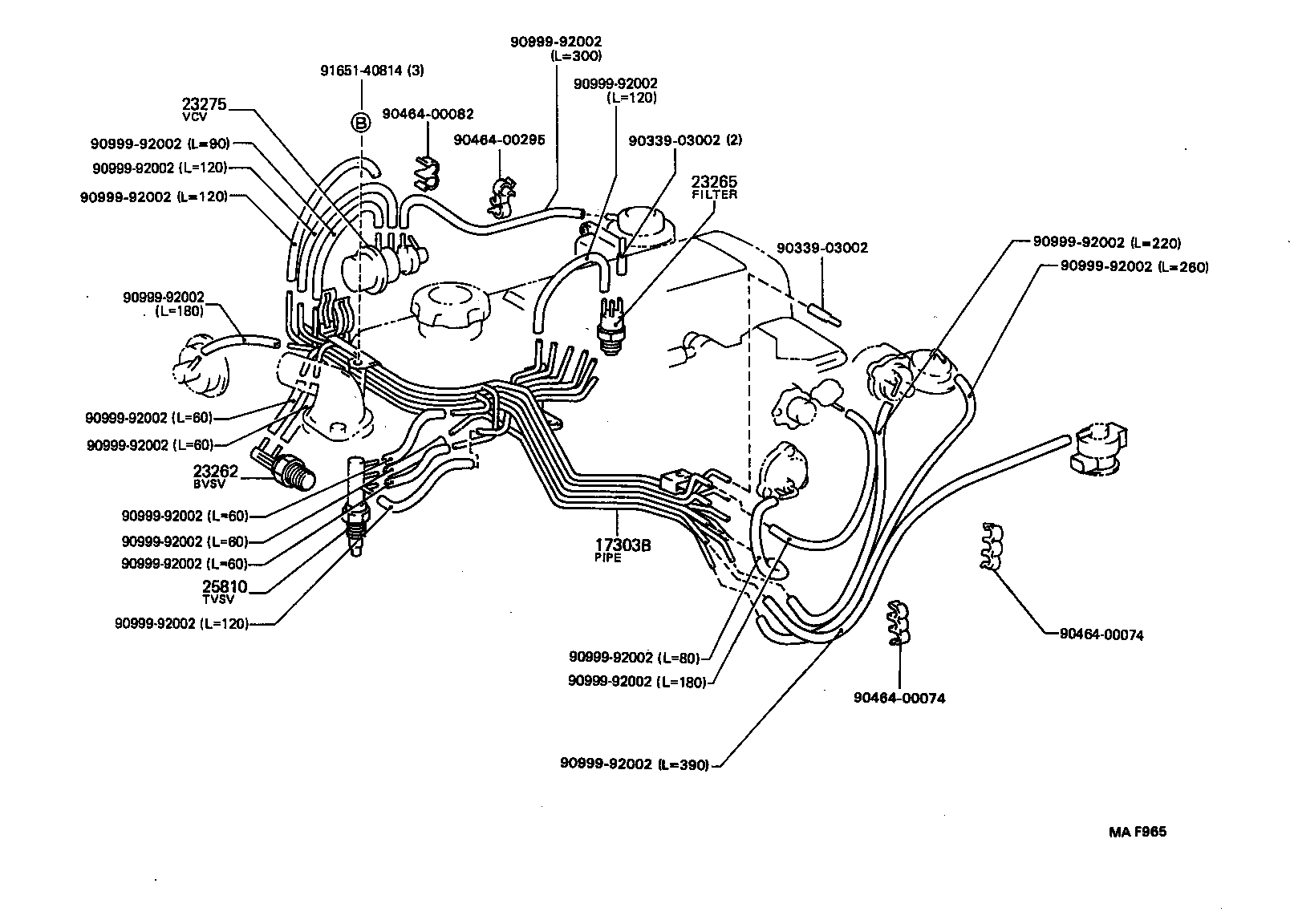

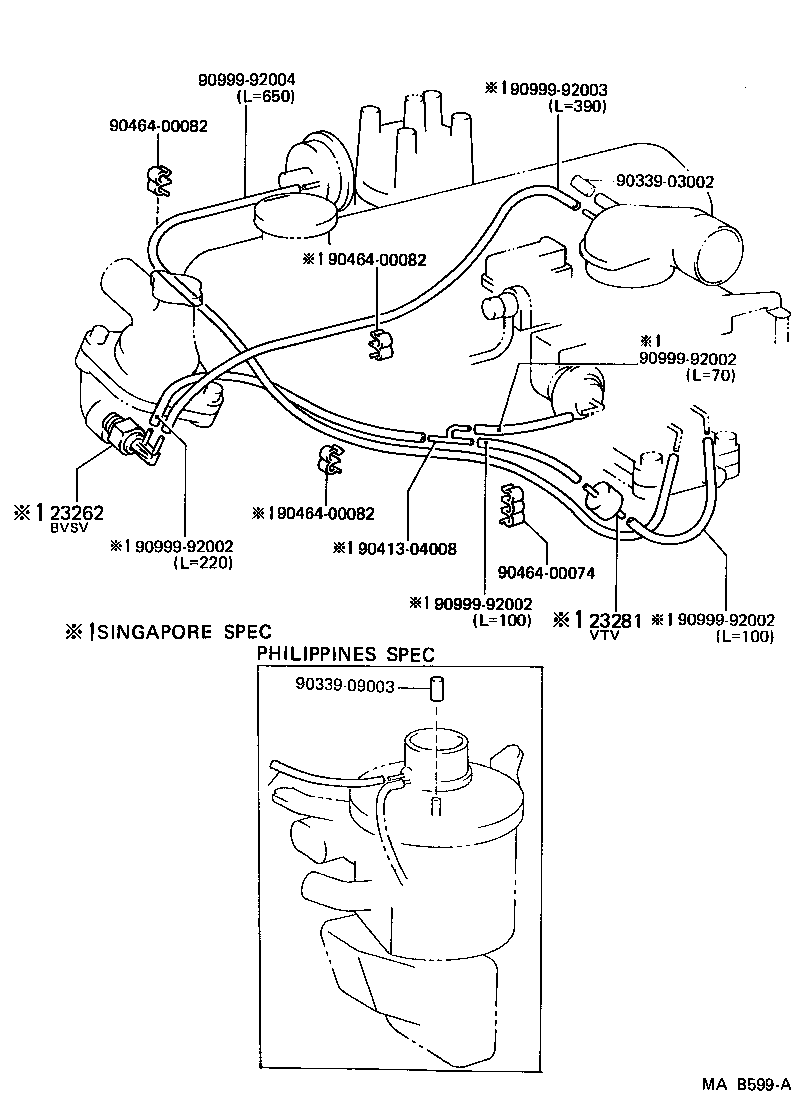

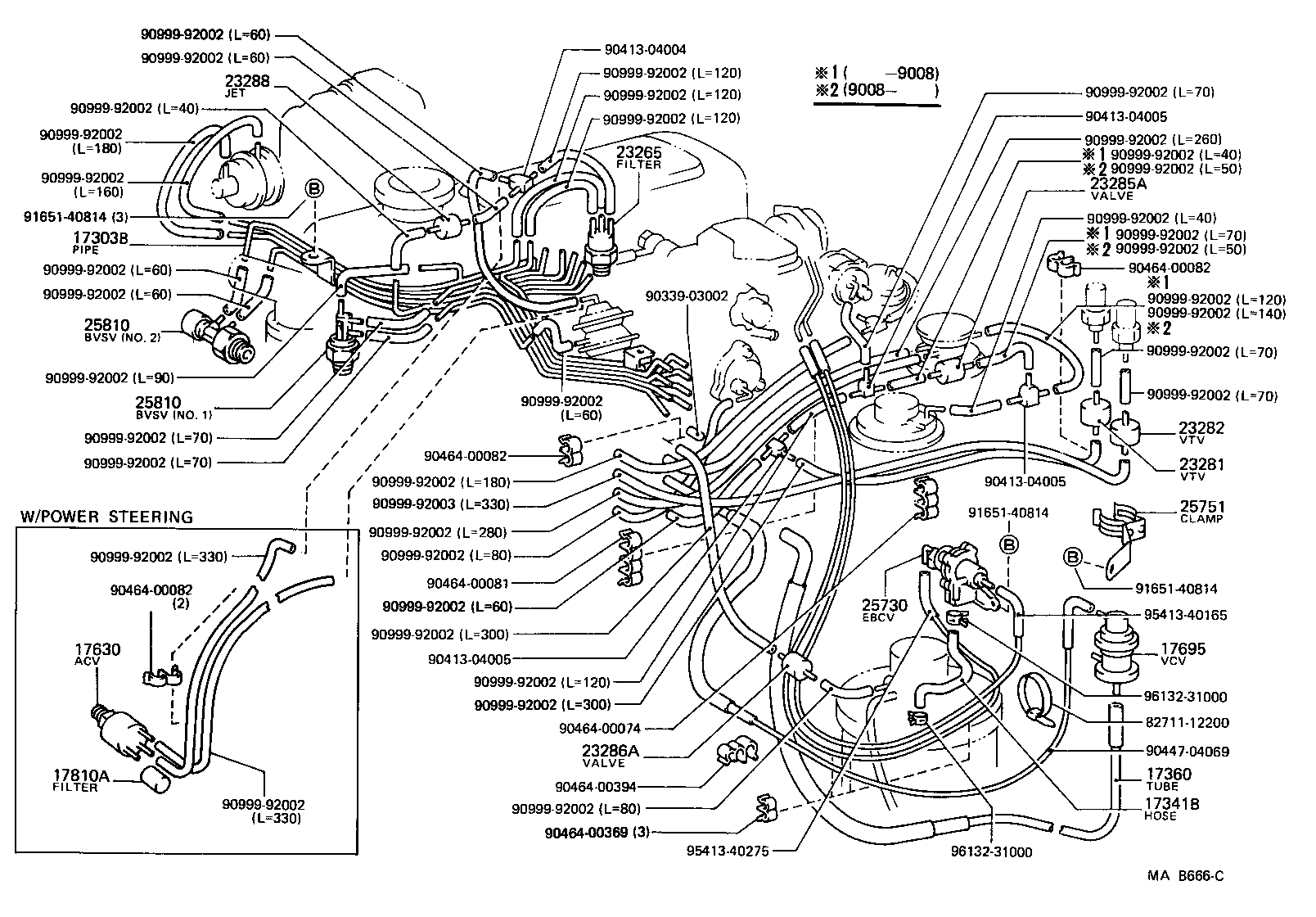

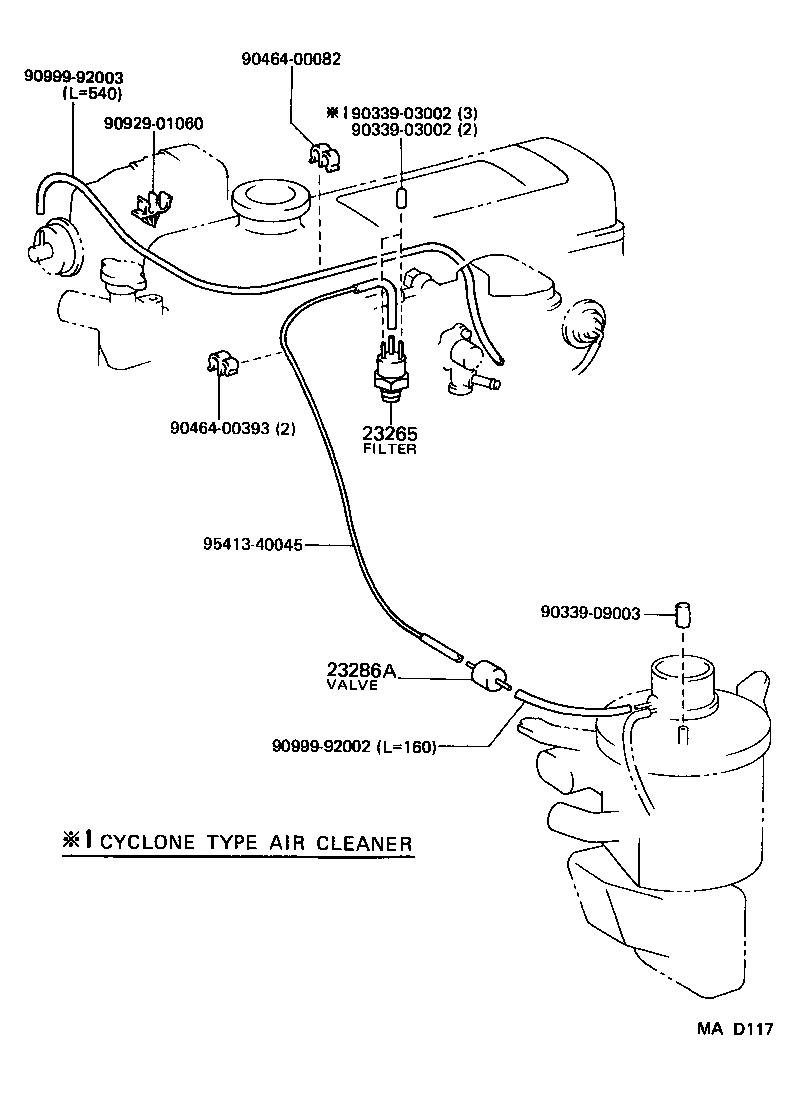

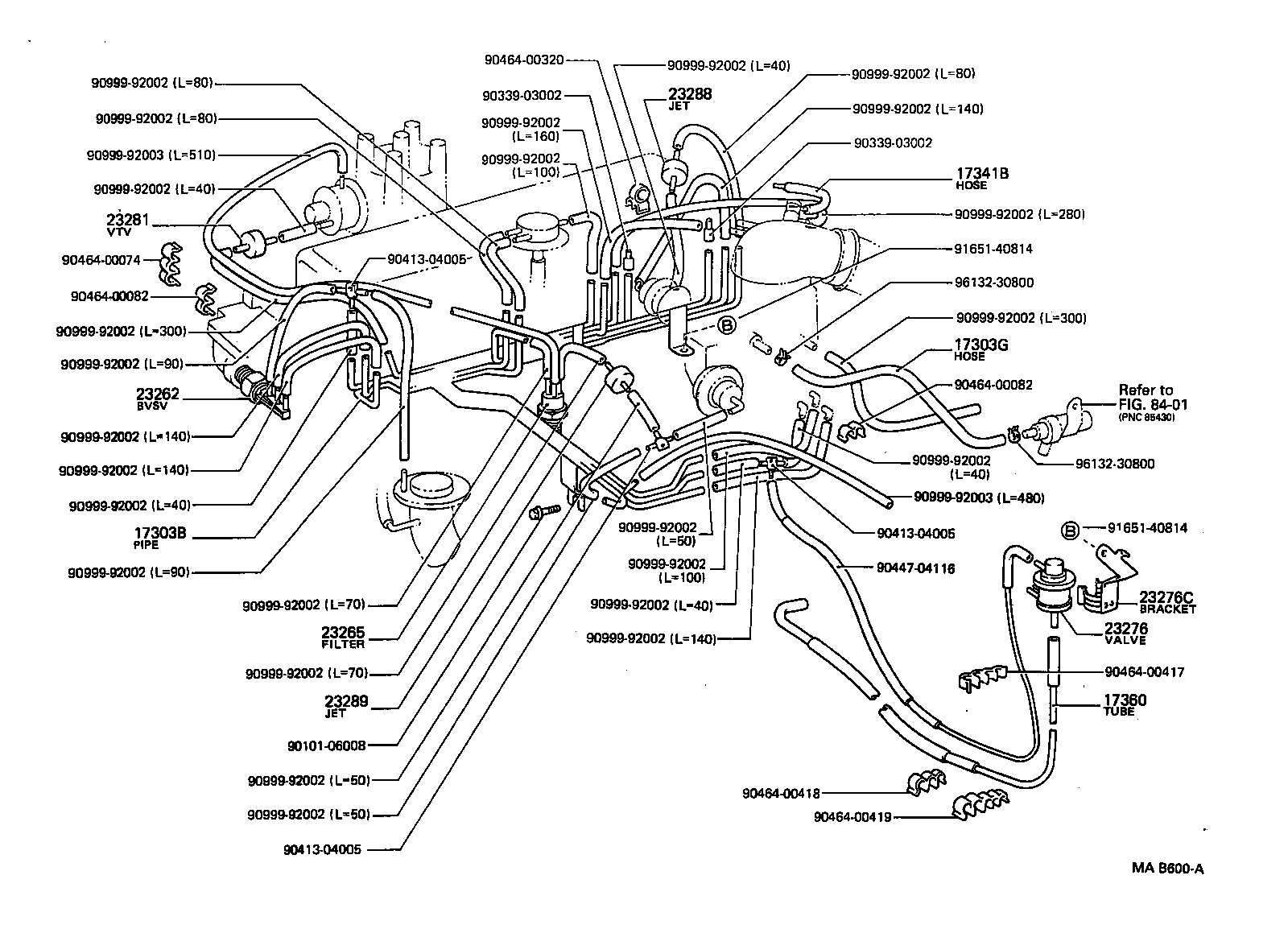

Figure MA9504B MA9504B 1988-08 → — Figure MAB599A MAB599A 1988-08 → — Figure MAB600A MAB600A 1988-08 → — Figure MA9504B MA9504B 1988-08 → — Figure MAD117 MAD117 1989-05 → 1992-09 Figure MAD117 MAD117 1992-09 → — Figure MAF965 MAF965 1992-09 → — Figure MAB666C MAB666C 1988-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303G Hose, NO.3(FOR AIR PIPE)
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17360 Tube Assy, Air
17630 Valve Assy, Air Control
17695 Valve Assy, Vacuum Control
17810A Filter Assy, Air
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23276C Bracket, Vacuum Control Valve, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23288 Jet, NO.1
23289 Jet, NO.2
25730 Valve Assy, Electric Bleed Air Control
25751 Clamp, Vacuum Control Valve, NO.1
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
