Toyota Liteace
1988-08 → 1998-04 · chassis KM3#,YM3#,4#,CM36 · catalogue 631340 · General
Discontinued model
Data version 1998-11

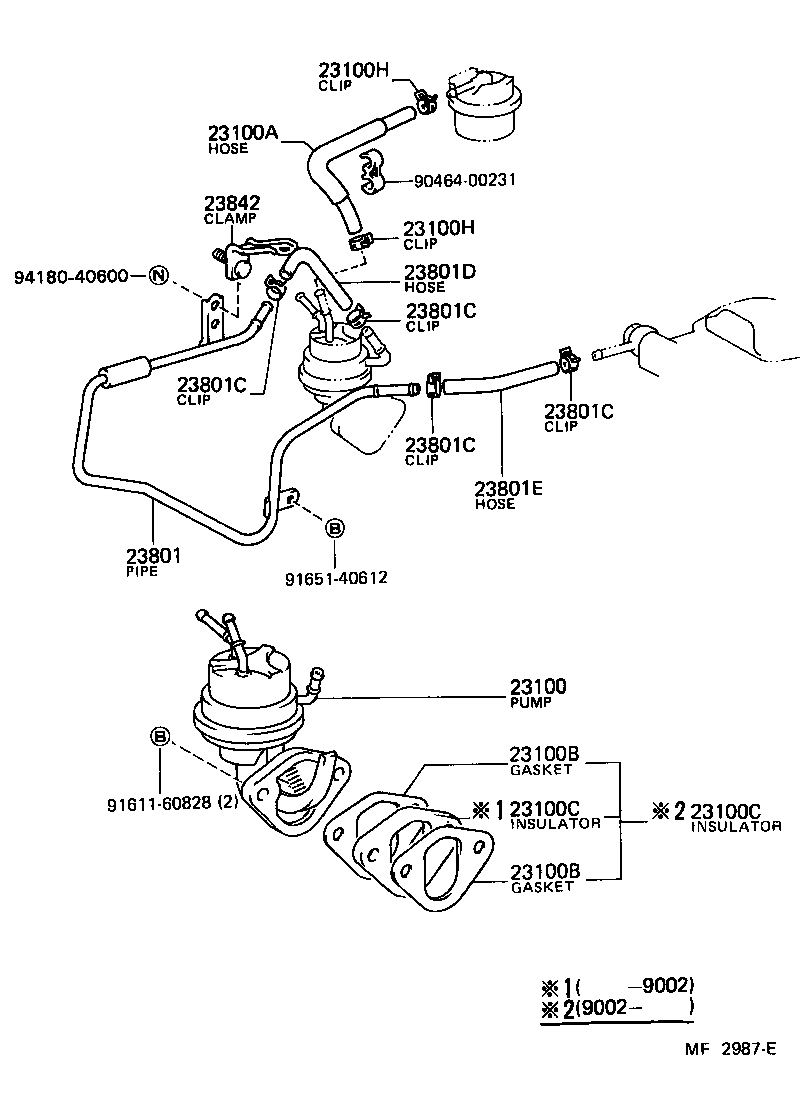

Fuel Pump & Pipe
13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 21100E | Bolt, Carburetor TO Carburetor Hose Union |
| 21100F | Gasket, Carburetor TO Carburetor Hose Union Bolt |
| 23100 | Pump Assy, Fuel |
| 23100A | Hose, Fuel |
| 23100B | Gasket, Fuel Pump |
| 23100C | Insulator, Fuel Pump |
| 23100H | Clip(FOR FUEL HOSE) |
| 23801 | Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1 |
| 23801C | Clip(FOR CARBURETOR FUEL HOSE) |
| 23801D | Hose, Fuel Pipe, NO.1 |
| 23801E | Hose, Fuel Pipe, NO.2 |
| 23841 | Clamp, Fuel Pipe(HOSE), NO.1 |
| 23842 | Clamp, Fuel Pipe(HOSE), NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
