Toyota Liteace
1988-08 → 1998-04 · chassis KM3#,YM3#,4#,CM36 · catalogue 631340 · General
Discontinued model
Data version 1998-11
Front Bumper & Bumper Stay

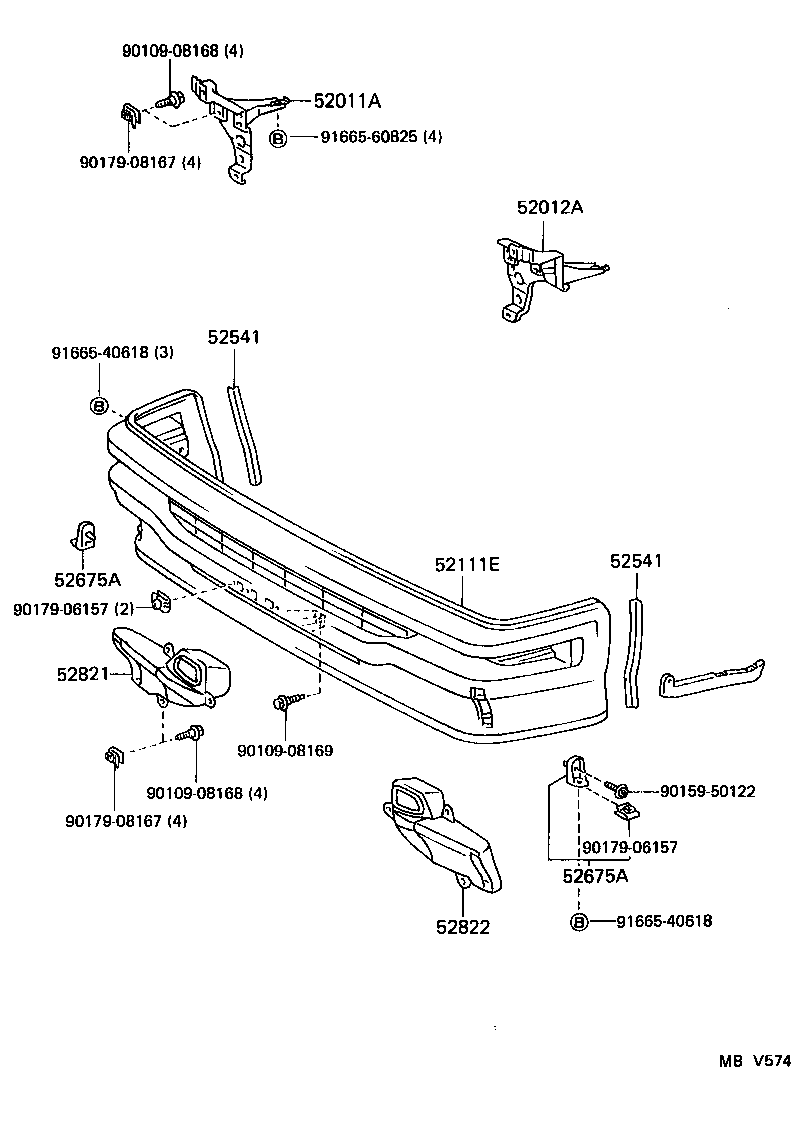

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52011A | Arm Sub-assy, Front Bumper, RH |
| 52012A | Arm Sub-assy, Front Bumper, LH |
| 52111E | Bar, Front Bumper |
| 52147B | Bracket, Front Bumper Mounting |
| 52541 | Protector, Front Bumper |
| 52675A | Support, Front Bumper Side, NO.1 |
| 52821 | Duct, Air Intake, RH |
| 52822 | Duct, Air Intake, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
