Toyota Liteace

1988-08 → 1998-04 · chassis KM3#,YM3#,4#,CM36 · catalogue 631340 · General

Discontinued model Data version 1998-11

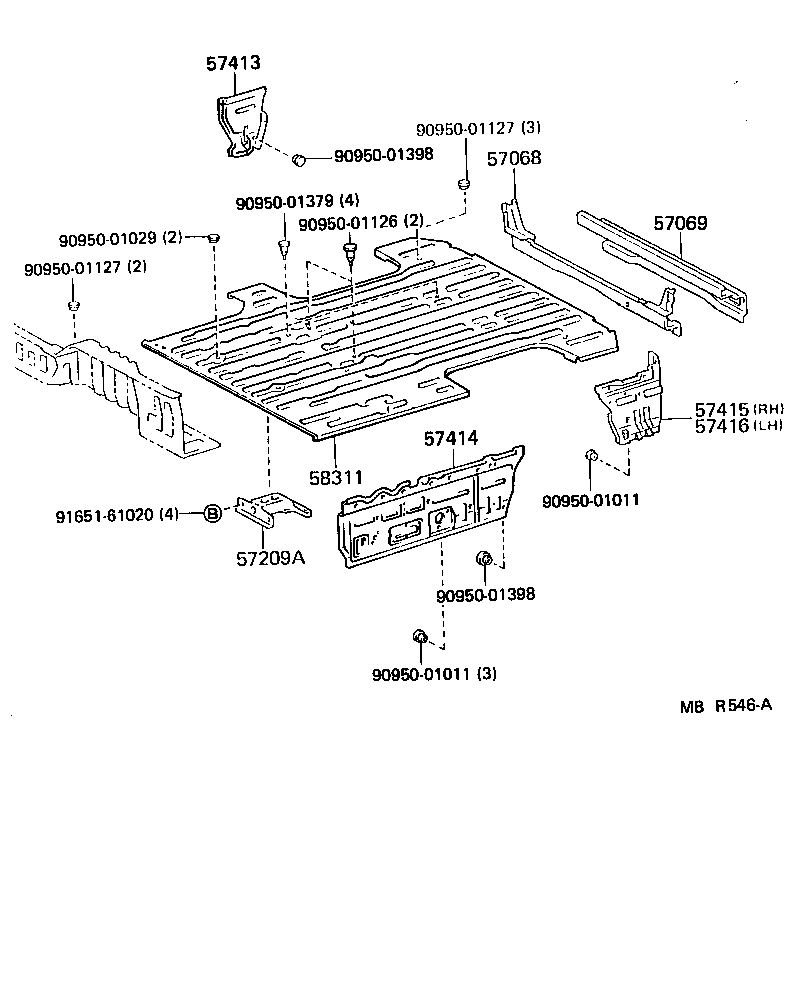

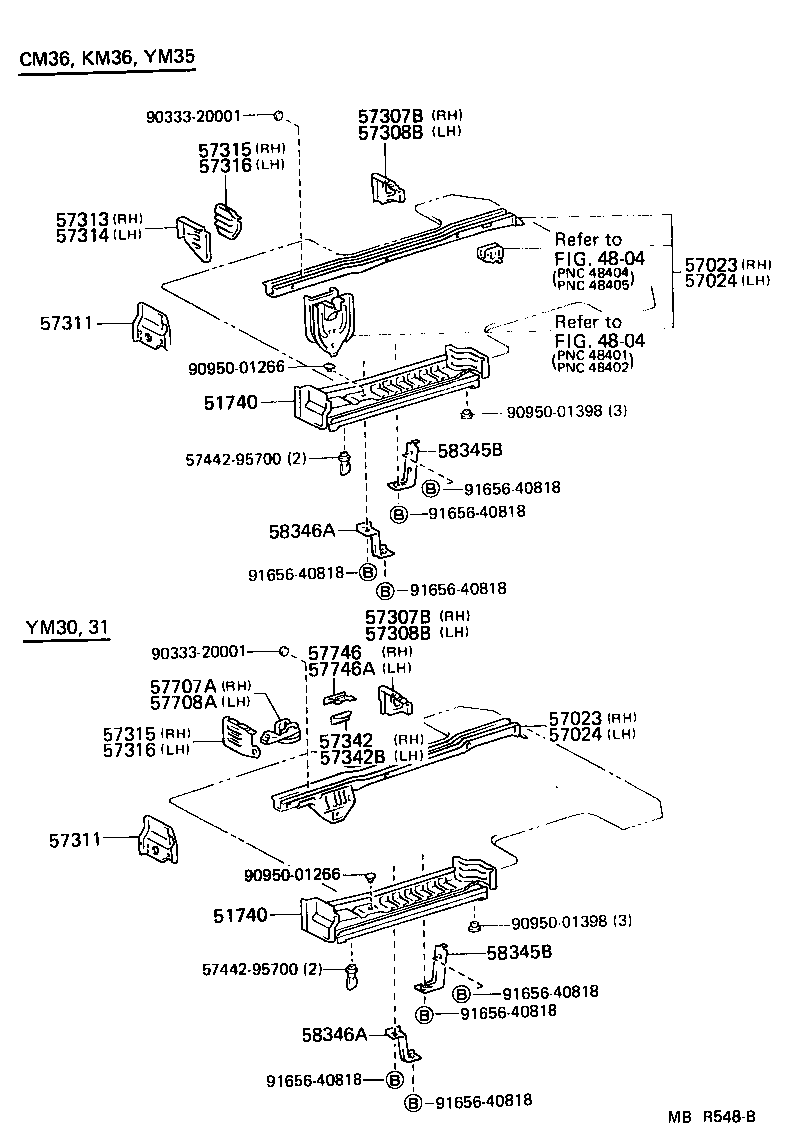

Rear Floor Panel & Rear Floor Member

41 part groups · 6 illustrations

PNC	Description
51730	Step Assy, Rear Floor, RH
51740	Step Assy, Rear Floor, LH
53792	Cover, Cooler Air Inlet
53792A	Cover, Cooler Air Inlet NO.1
53792B	Cover, Cooler Air Inlet NO.2
57023	Member Sub-assy, Rear Side, RH
57024	Member Sub-assy, Rear Side, LH
57068	Member Sub-assy, Rear Floor Rear Cross, Inner
57069	Member Sub-assy, Rear Floor Rear Cross, Outer
57209A	Member Sub-assy, Engine Rear Mounting
57307B	Outrigger Sub-assy, NO.4 RH
57308B	Outrigger Sub-assy, NO.4 LH
57311	Outrigger, NO.1 RH
57312	Outrigger, NO.1 LH
57313	Outrigger, NO.2 RH
57314	Outrigger, NO.2 LH
57315	Outrigger, NO.3 RH
57316	Outrigger, NO.3 LH
57342	Patch, Outrigger, NO.2
57342B	Patch, Outrigger, NO.2 LH
57413	Rail, Floor Side, Center RH
57414	Rail, Floor Side, Center LH
57415	Rail, Floor Side, Rear RH
57416	Rail, Floor Side, Rear LH
57439A	Strength, Upper Rear Floor, NO.5
57488	Reinforcement, Floor Side Member, NO.2 RH
57489	Reinforcement, Floor Side Member, NO.2 LH
57491A	Retainer, Floor Member Reinforcement
57495A	Patch, Upper Rear Floor Strength
57707A	Plate Sub-assy, Rear Spring, RH
57708A	Plate Sub-assy, Rear Spring, LH
57746	Bracket, Lwr Control Link
57746A	Bracket, Lower Control Link, LH
58311	Pan, Rear Floor
58345B	Bracket, Rear Floor Heat Insulator, NO.1
58346A	Bracket, Rear Floor Heat Insulator, NO.2
58346B	Bracket, Rear Floor Heat Insulator, NO.3
58363B	Balancer, Rear Floor, NO.1
58689A	Weight, Rear Floor
58717	Packing, Cooler Air Inlet Cover
66311B	Hook, Rope

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
