Toyota Liteace
1988-08 → 1998-04 · chassis KM3#,YM3#,4#,CM36 · catalogue 631340 · General
Discontinued model
Data version 1998-11
Seat & Seat Track
165 part groups · 16 illustrations

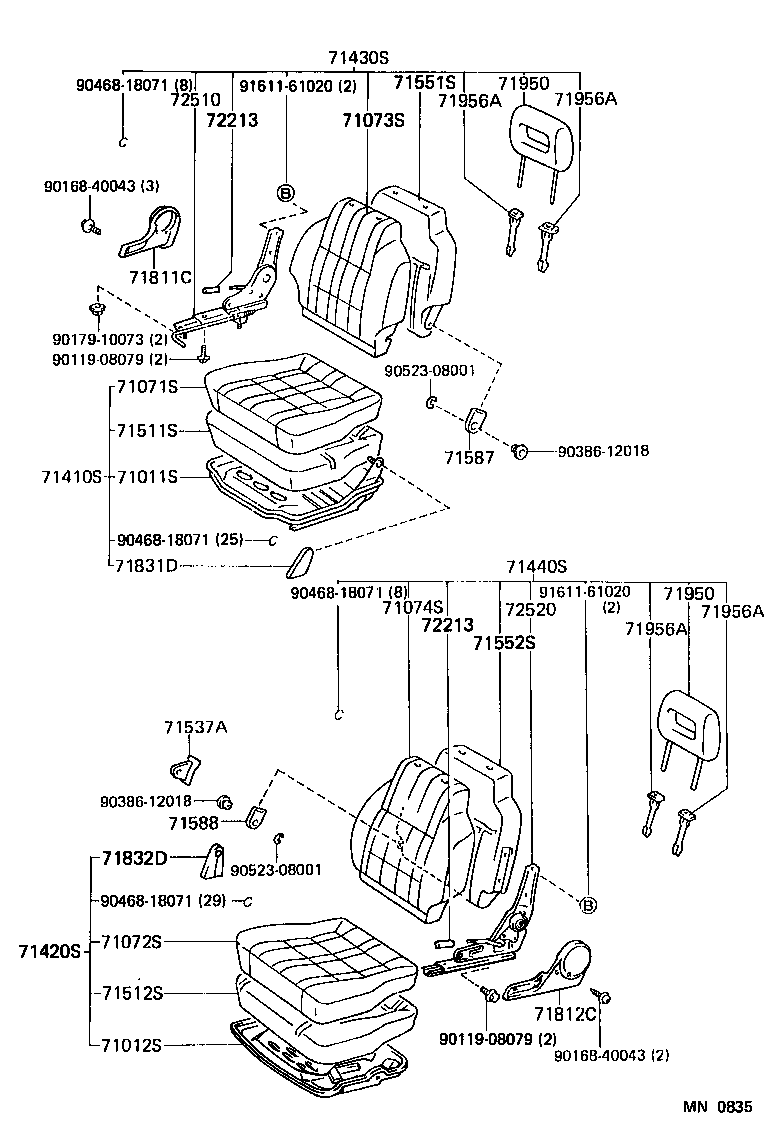

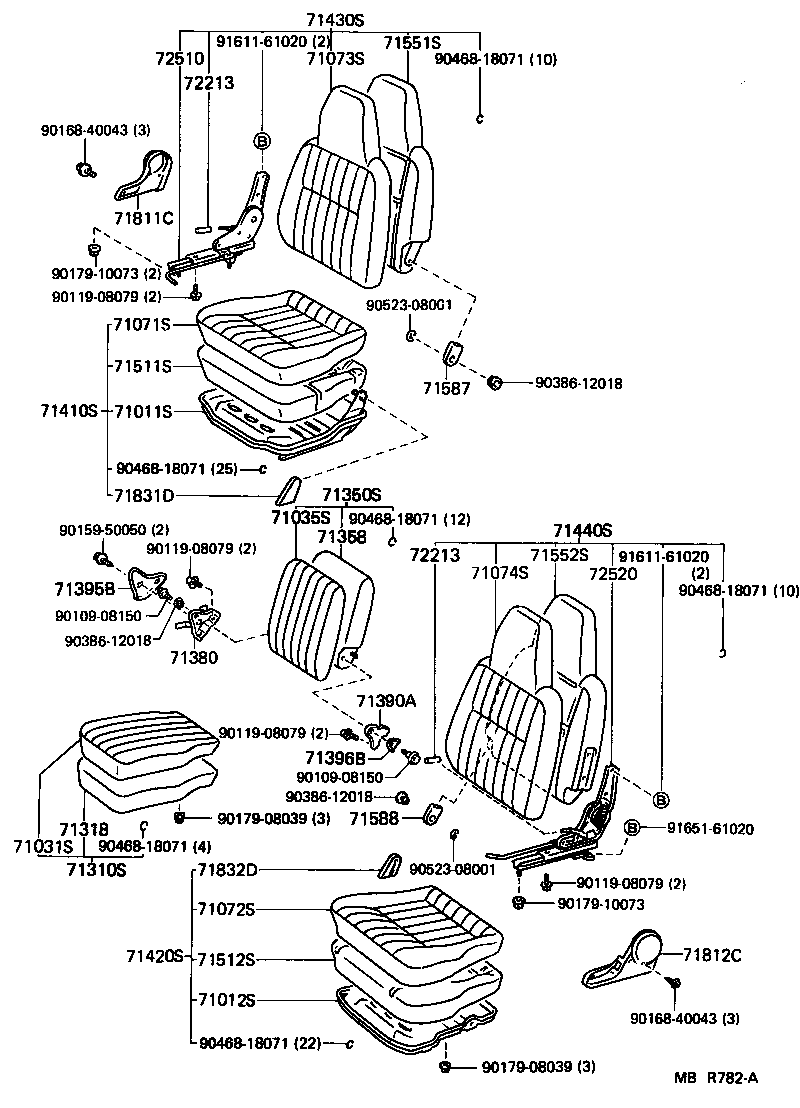

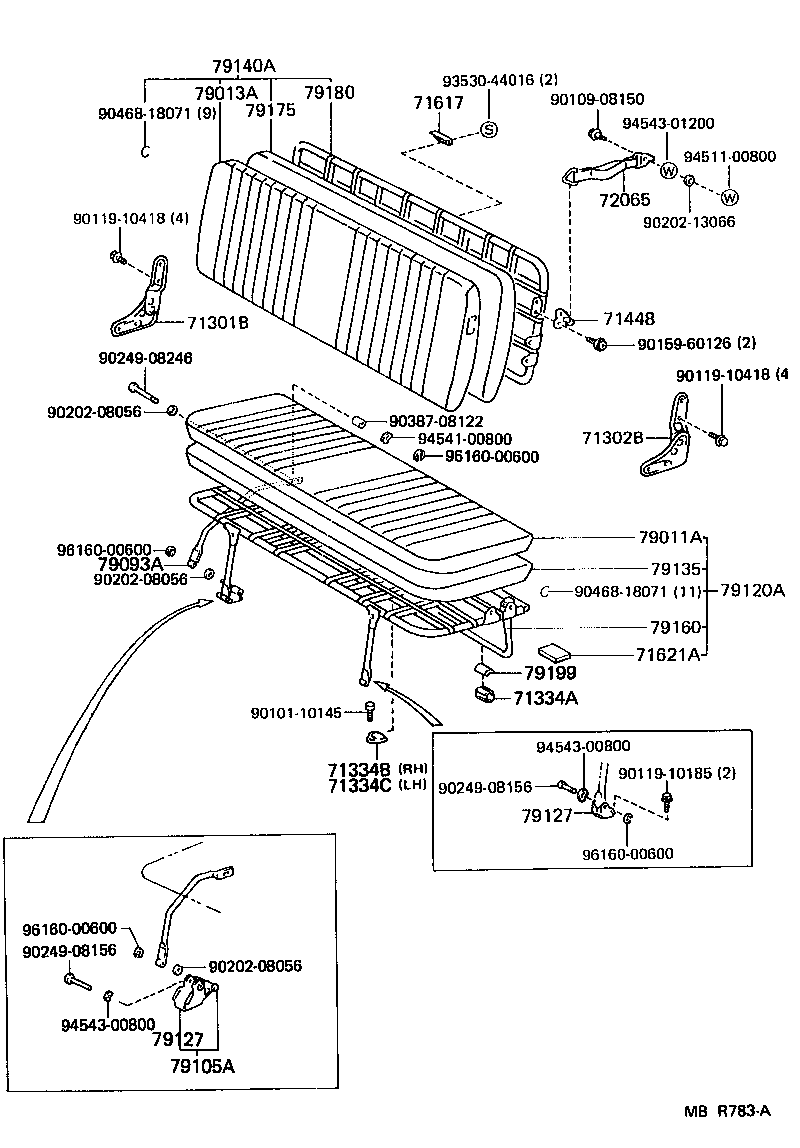

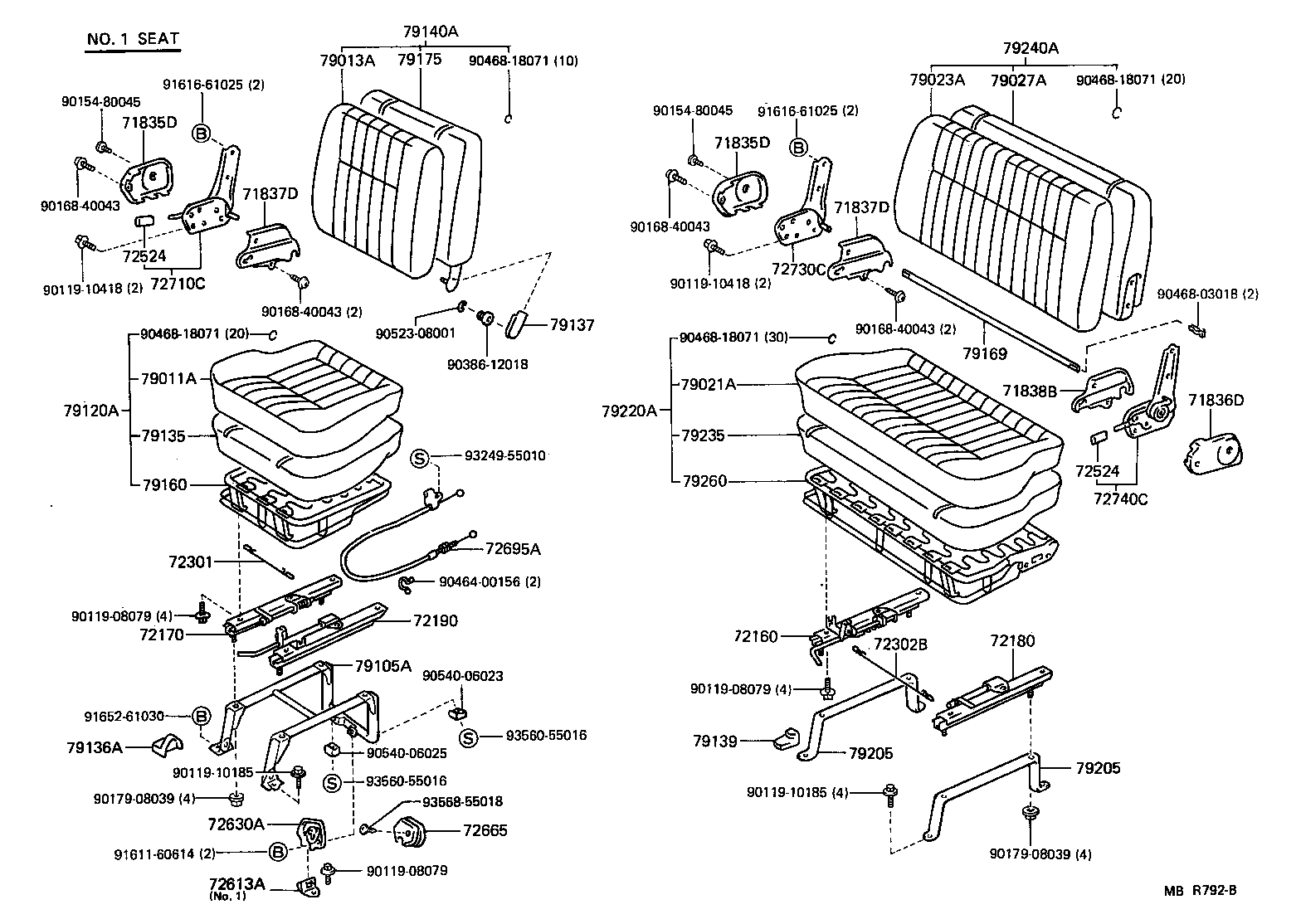

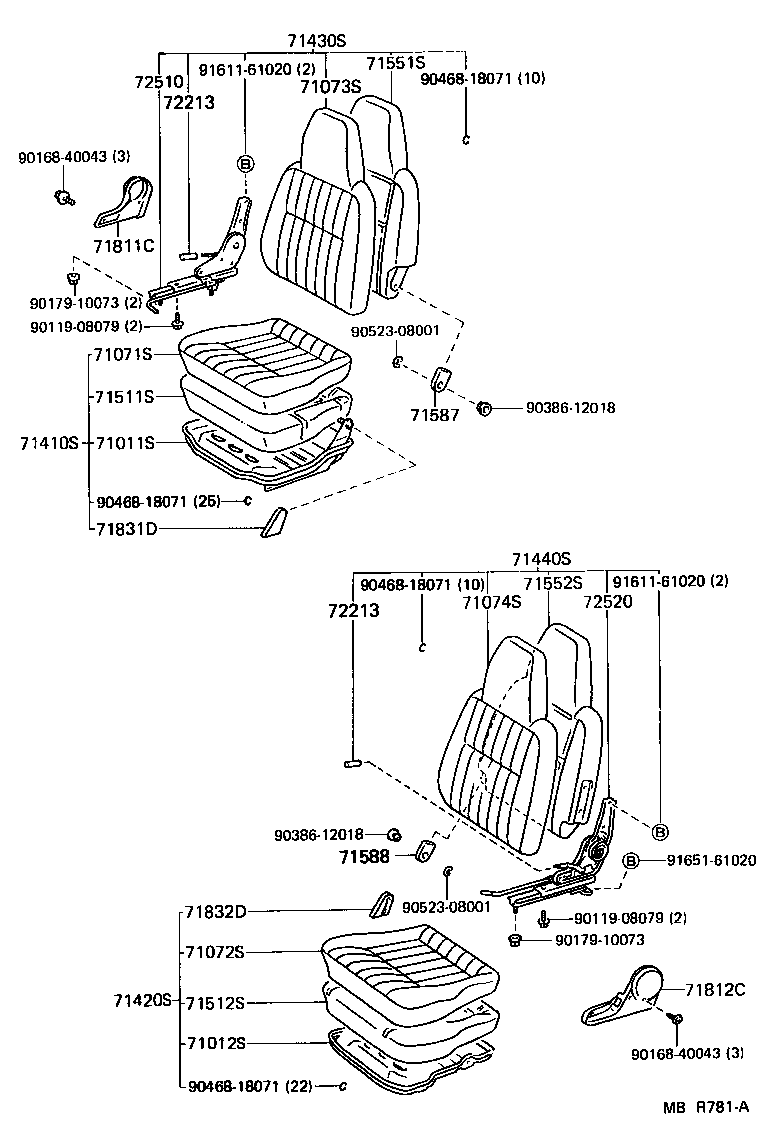

Illustrations
Part groups

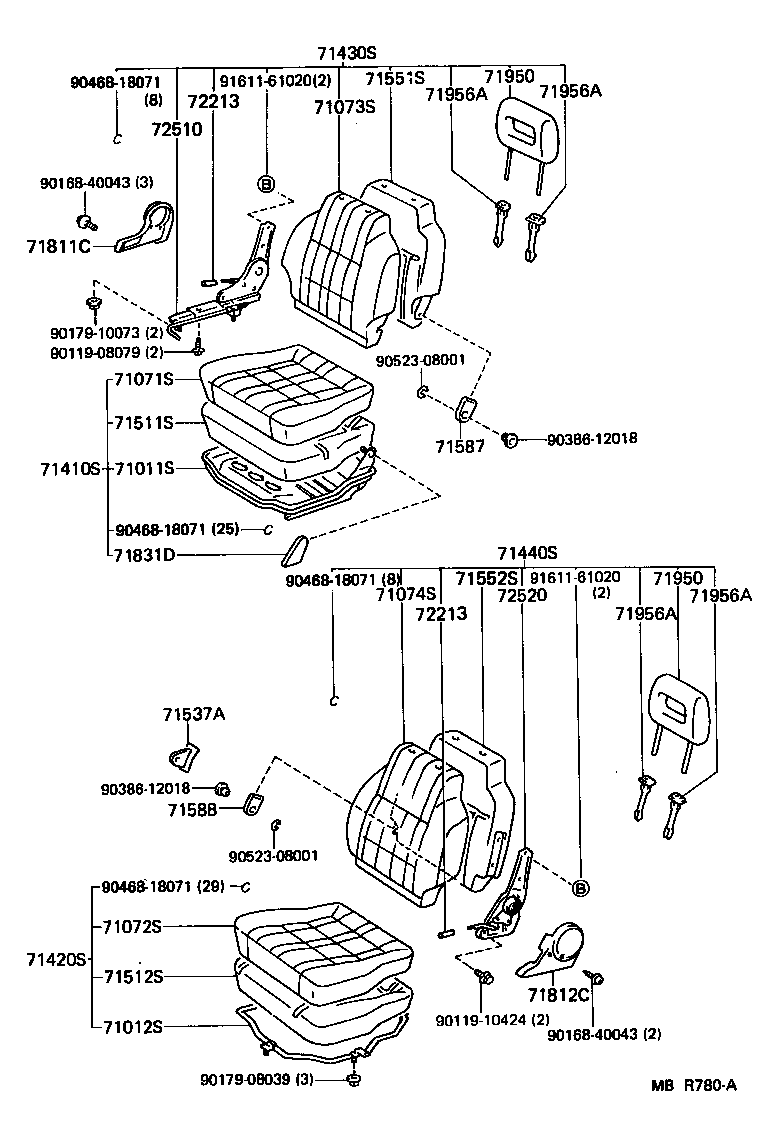

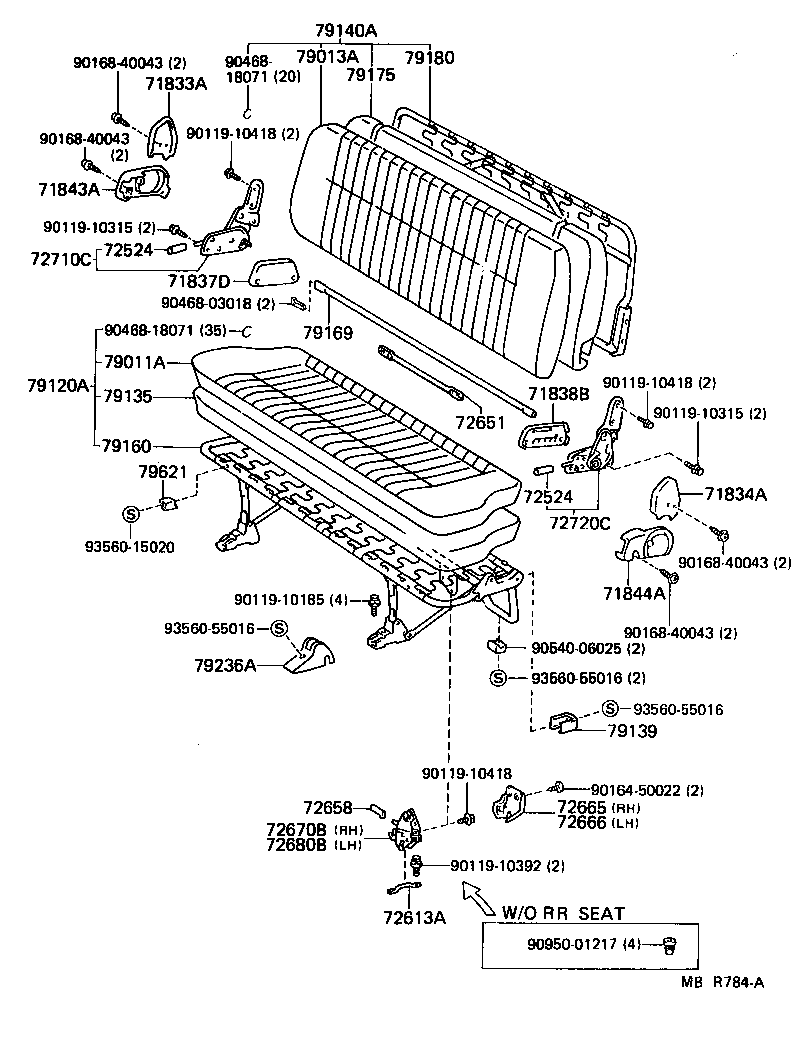

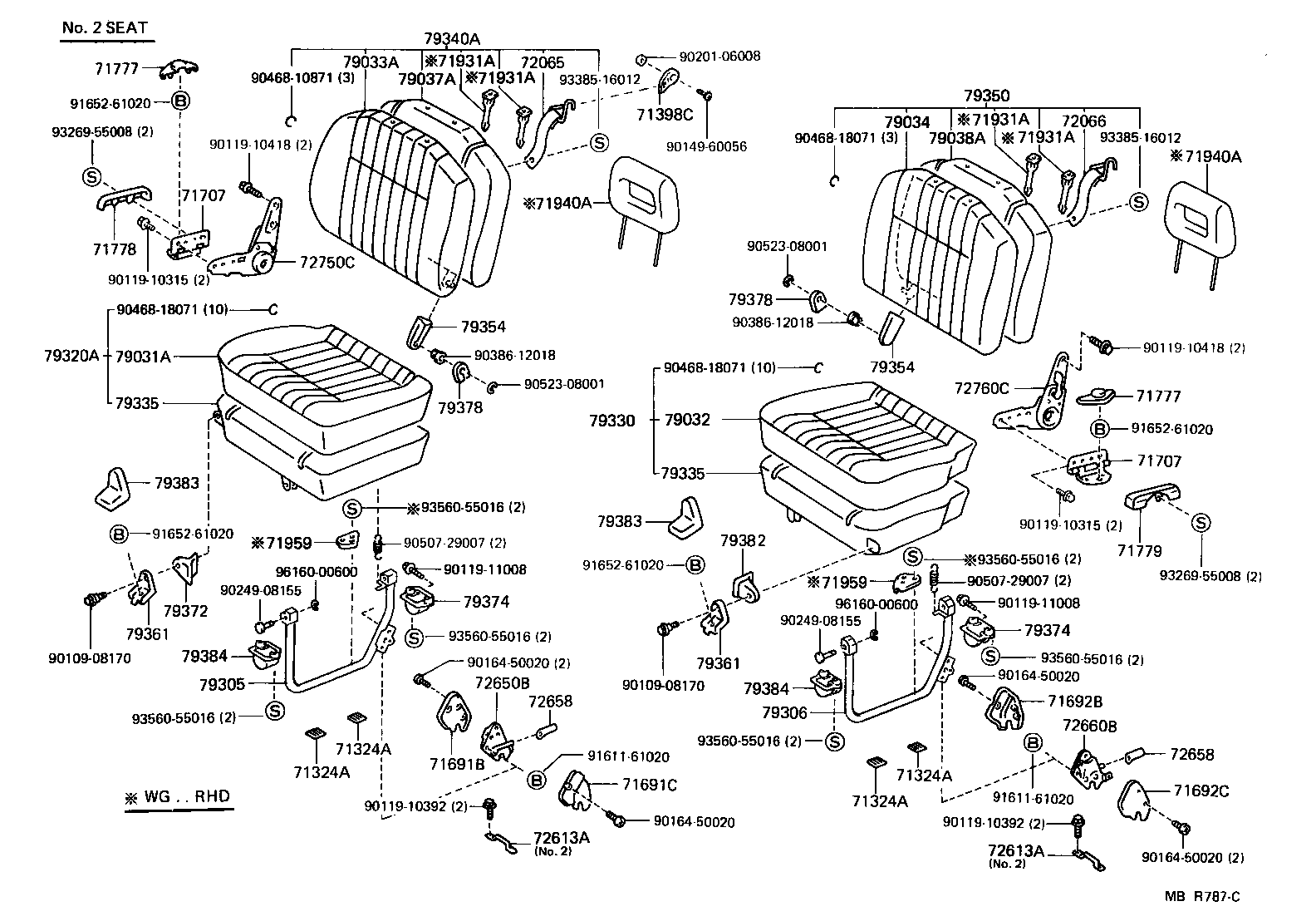

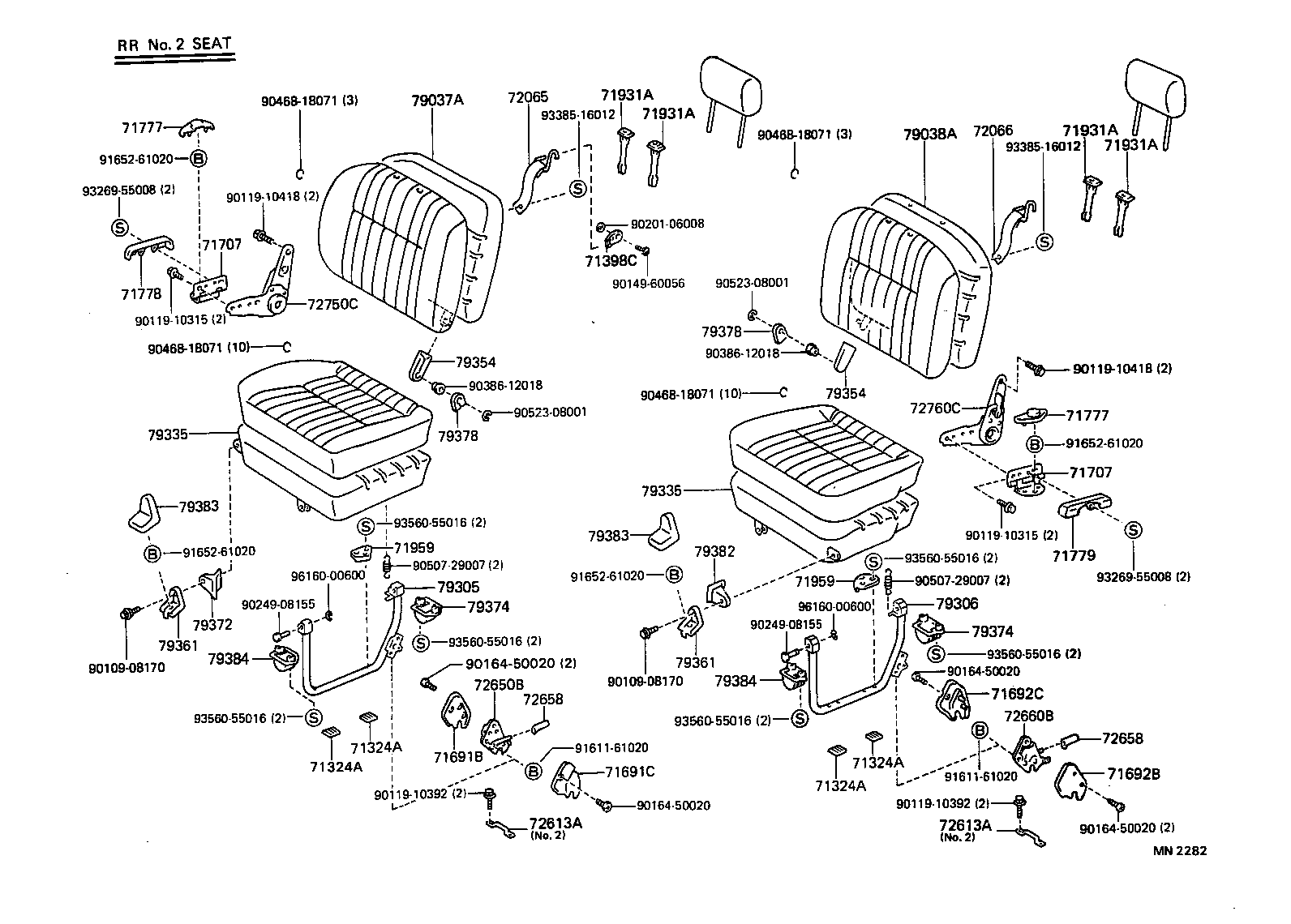

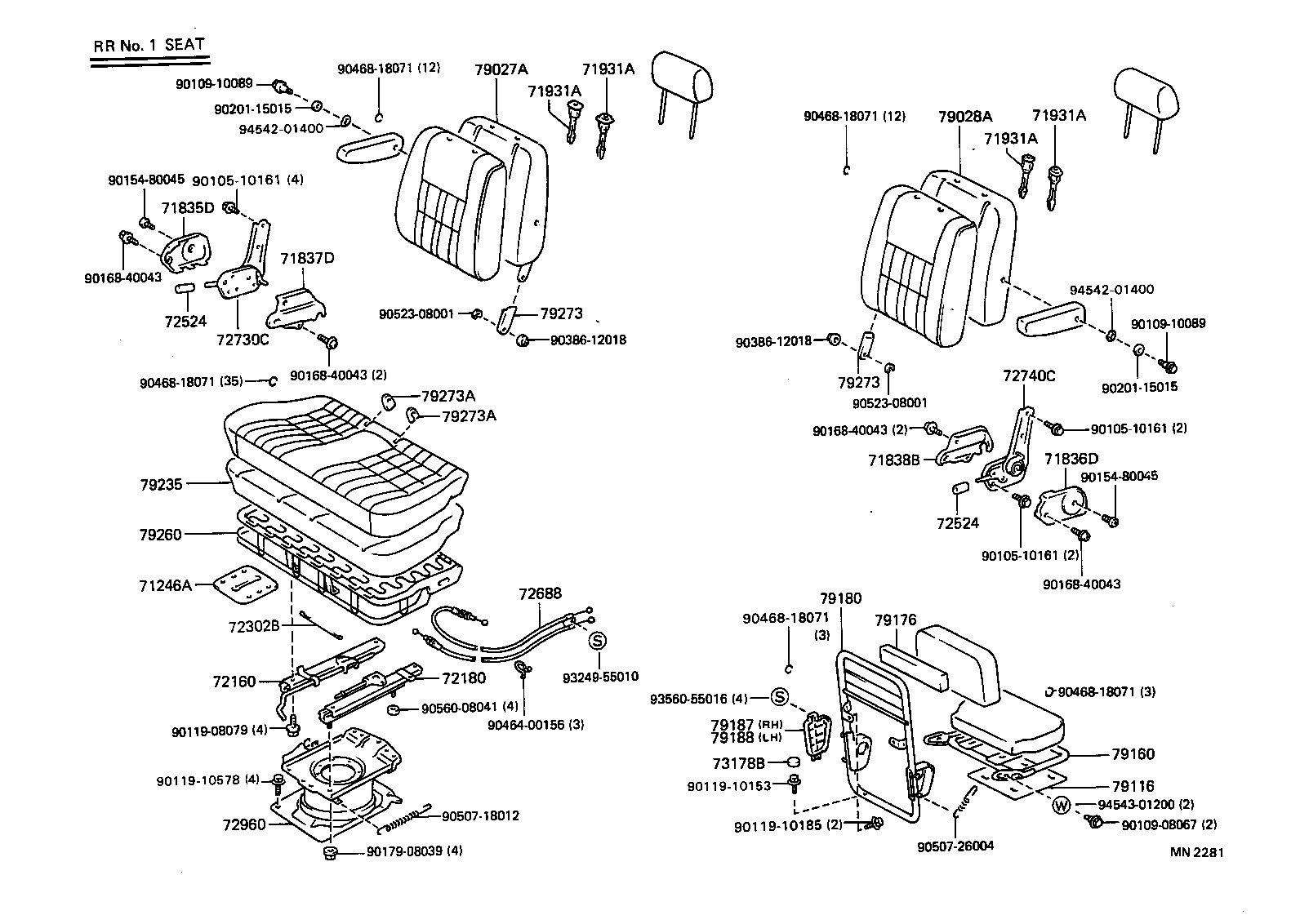

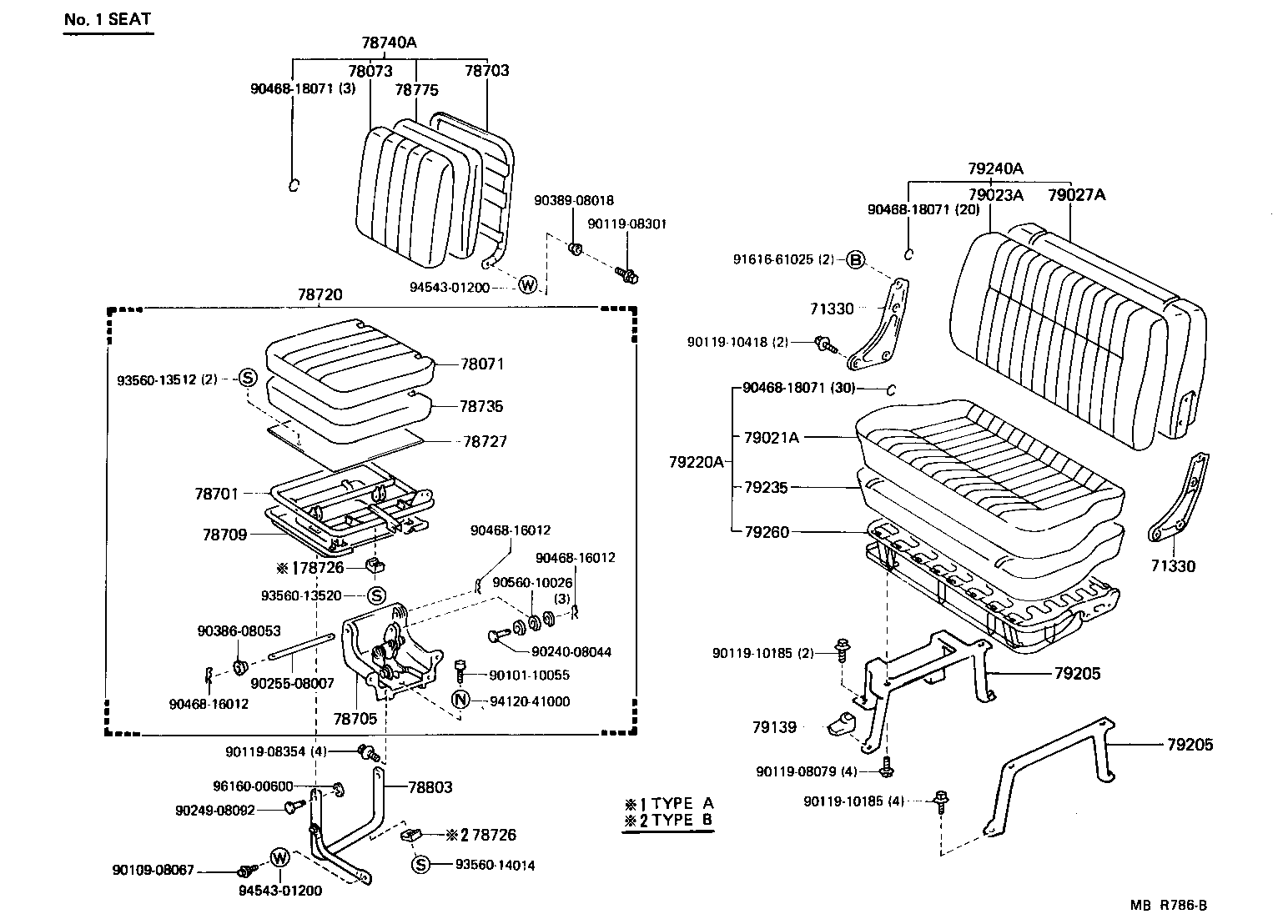

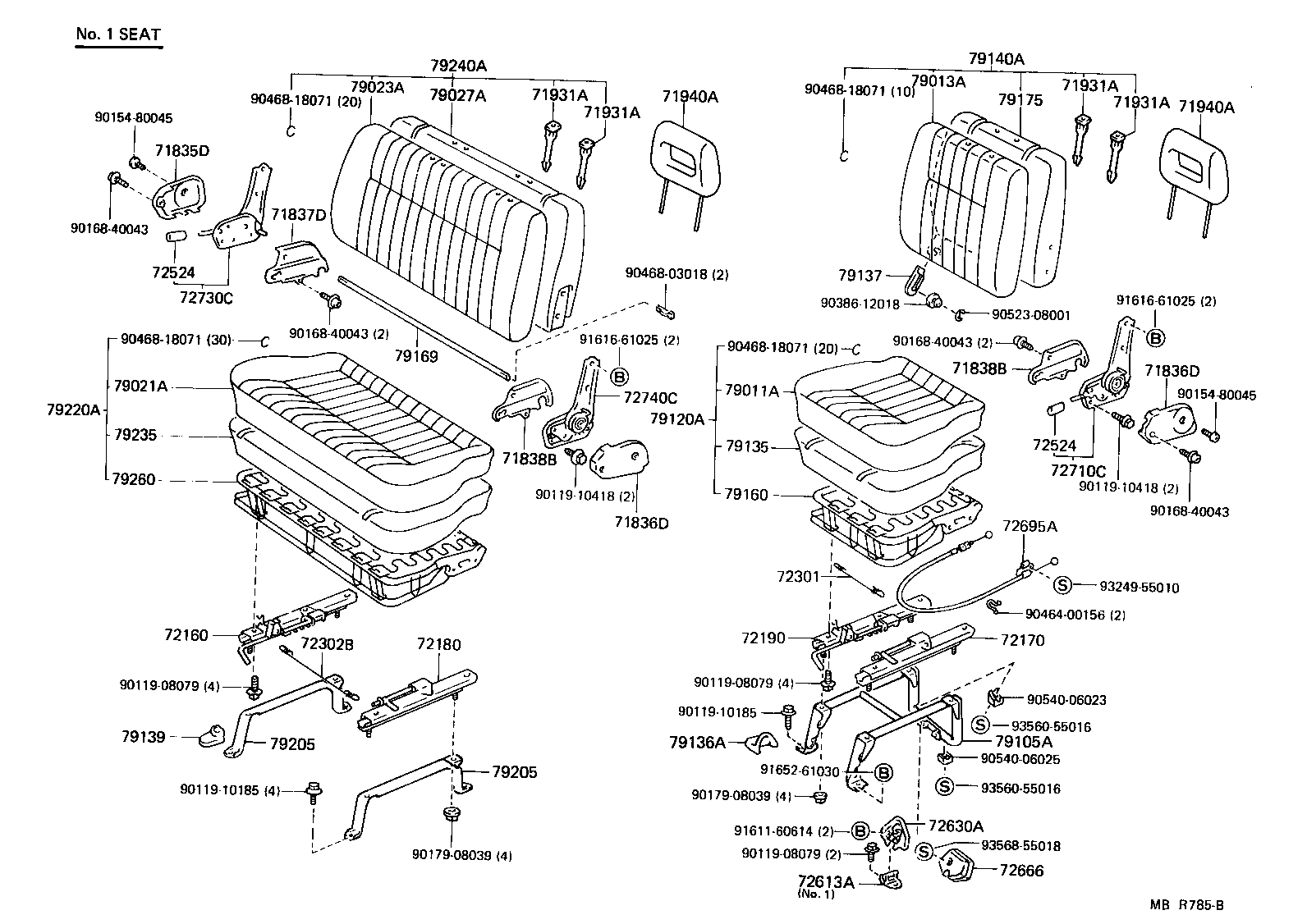

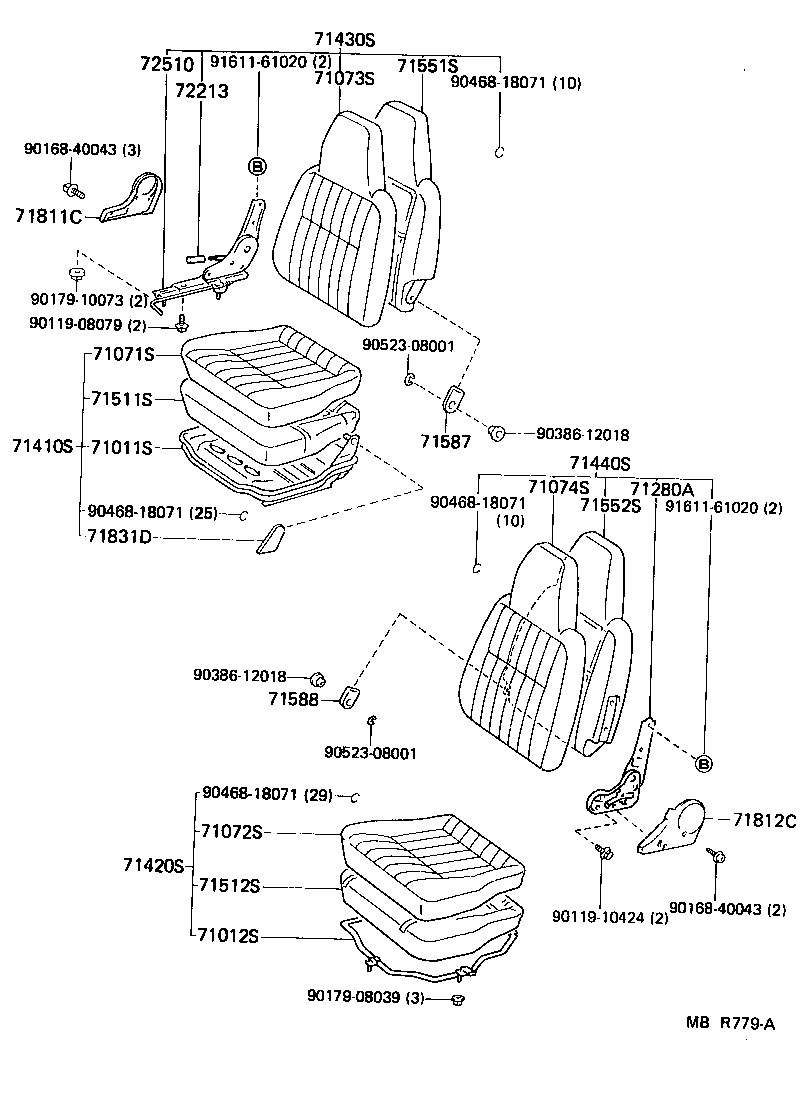

| PNC | Description |
|---|---|
| 58936A | Band, Engine Service Hole Cover Support |
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71031S | Cover Sub-assy, Center Seat Cushion |
| 71035S | Cover, Front Seatback, Center |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71246A | Plate, Rear Seat Cushion Set |
| 71280A | Hinge Assy, Front Seatback, LH |
| 71301B | Hinge Sub-assy, Rear NO.1 Seat, RH |
| 71302B | Hinge Sub-assy, Rear NO.1 Seat, LH |
| 71310S | Cushion Assy, Front Seat, Center |
| 71318 | Pad, Center Seat Cushion |
| 71324A | Cushion, Rear Seat |
| 71330 | Hinge Assy, Rear Seat Cushion |
| 71334A | Stopper, Rear Seat Leg |
| 71334B | Stopper, Rear Seat Leg, RH |
| 71334C | Stopper, Rear Seat Leg, LH |
| 71350S | Back Assy, Front Seat, Center |
| 71358 | Pad, Center Seatback |
| 71380 | Hinge Assy, Center Seat, RH |
| 71390A | Hinge Assy, Center Seat, LH |
| 71395B | Cover, Center Seat Hinge, RH |
| 71396B | Cover, Center Seat Hinge, LH |
| 71398C | Holder, Rear Seatback |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71448 | Stopper, Rear Seatback |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71588 | Protector, Front Seatback Edge, NO.2 |
| 71617 | Protector, Rear Seatback |
| 71621A | Pad, Rear Seat Cushion Silencer, A |
| 71691B | Cover, Rear Seat Lock, Outer RH |
| 71691C | Cover, Rear Seat Lock, Inner RH |
| 71692B | Cover, Rear Seat Lock, Outer LH |
| 71692C | Cover, Rear Seat Lock, Inner LH |
| 71707 | Hinge Sub-assy, Rear Seat Side |
| 71777 | Cover, Rear Seat Side Hinge Female |
| 71778 | Cover, Rear Seat Side Hinge Male, RH |
| 71779 | Cover, Rear Seat Side Hinge Male, LH |
| 71811C | Cover, Reclining Adjuster, RH |
| 71812C | Cover, Reclining Adjuster, LH |
| 71831D | Cover, Front Seat Hinge, RH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71833A | Cover, Rear Seat Reclining, NO.1 RH |
| 71834A | Cover, Rear Seat Reclining, NO.1 LH |
| 71835D | Cover, Rear Seat Reclining, Lower RH |
| 71836D | Cover, Rear Seat Reclining, Lower LH |
| 71837D | Cover, Rear Seat Reclining, Inner RH |
| 71838B | Cover, Rear Seat Reclining, Inner LH |
| 71843A | Cover, Rear Seat Reclining, NO.2 RH |
| 71844A | Cover, Rear Seat Reclining, NO.2 LH |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71950 | Headrest Assy, Front Seat |
| 71956A | Support, Front Seat Headrest |
| 71959 | Holder, Rear Seat Headrest |
| 72065 | Belt Sub-assy, Rear Seat Hook, RH |
| 72066 | Belt Sub-assy, Rear Seat Hook, LH |
| 72160 | Track Assy, Rear Seat, Outer RH |
| 72170 | Track Assy, Rear Seat, Outer LH |
| 72180 | Track Assy, Rear Seat, Inner RH |
| 72190 | Track Assy, Rear Seat Inner, LH |
| 72213 | Knob, Seat Track Adjusting Handle |
| 72301 | Wire Sub-assy, Seat Track Equalizing |
| 72302B | Wire Sub-assy, Rear Seat Track Equalizing |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72520 | Adjuster Assy, Reclining Seatback, LH |
| 72524 | Handle, Reclining Adjuster Release |
| 72613A | Striker, Front Seat Lock |
| 72630A | Lock Assy, Rear NO.1 Seat |
| 72650B | Lock Assy, Rear NO.3 Seat, RH |
| 72651 | Rod, Rear Seatback Lock |
| 72658 | Knob, Rear Seat Handle |
| 72660B | Lock Assy, Rear NO.3 Seat, LH |
| 72665 | Cover, Rear Seatback Lock, RH |
| 72666 | Cover, Rear Seatback Lock, LH |
| 72670B | Lock Assy, Rear Seat Cushion, RH |
| 72680B | Lock Assy, Rear Seat Cushion, LH |
| 72688 | Cable, Rear Seat Track & Turn Control |
| 72695A | Cable, Rear Seat Lock Control |
| 72710C | Adjuster Assy, NO.1 Seat Reclining, RH |
| 72720C | Adjuster Assy, NO.1 Seat Reclining, LH |
| 72730C | Adjuster Assy, NO.2 Seat Reclining, RH |
| 72740C | Adjuster Assy, NO.2 Seat Reclining, LH |
| 72750C | Adjuster Assy, NO.3 Seat Reclining, RH |
| 72760C | Adjuster Assy, NO.3 Seat Reclining, LH |
| 72960 | Table Assy, Rear Seat Turn |
| 73178B | Cap, Seat Belt Anchor Cover |
| 78071 | Cover Sub-assy, Sub Seat Cushion, RH |
| 78073 | Cover Sub-assy, Sub Seatback, RH |
| 78701 | Frame Sub-assy, Sub Seat Cushion, RH |
| 78703 | Frame Sub-assy, Sub Seatback |
| 78705 | Bracket Sub-assy, Sub Seat Cushion |
| 78709 | Panel Sub-assy, Sub Seat Cushion |
| 78720 | Cushion Assy, Sub Seat, RH |
| 78726 | Cushion, Sub Seat Cushion Frame |
| 78727 | Board, Sub Seat Cushion |
| 78735 | Pad, Sub Seat Cushion |
| 78740A | Back Assy, Sub Seat, RH |
| 78775 | Pad, Sub Seatback |
| 78803 | Leg Sub-assy, Sub Seat |
| 79011A | Cover Sub-assy, NO.1 Seat Cushion |
| 79013A | Cover Sub-assy, NO.1 Seatback |
| 79021A | Cover Sub-assy, NO.2 Seat Cushion |
| 79023A | Cover Sub-assy, NO.2 Seatback |
| 79027A | Pad Sub-assy, NO.2 Seatback, RH |
| 79028A | Pad Sub-assy, NO.2 Seatback, LH |
| 79031A | Cover Sub-assy, NO.3 Seat Cushion |
| 79032 | Cover Sub-assy, NO.3 Seat Cushion, LH |
| 79033A | Cover Sub-assy, NO.3 Seatback |
| 79034 | Cover Sub-assy, NO.3 Seatback, LH |
| 79037A | Pad Sub-assy, NO.3 Seatback, RH |
| 79038A | Pad Sub-assy, NO.3 Seatback, LH |
| 79093A | Stay Sub-assy, Seat Leg, NO.1 |
| 79105A | Leg Sub-assy, NO.1 Seat |
| 79116 | Board, NO.1 Seat Cushion |
| 79120A | Cushion Assy, NO.1 Seat |
| 79127 | Bracket, NO.1 Seat Leg, Lower |
| 79135 | Pad, NO.1 Seat Cushion |
| 79136A | Cover, NO.1 Seat Leg, A |
| 79137 | Cover, NO.1 Seat Hinge |
| 79139 | Cover, Rear Seat Leg |
| 79140A | Back Assy, NO.1 Seat |
| 79160 | Spring Assy, NO.1 Seat Cushion |
| 79169 | Rod, Rear Seat Hinge Connector |
| 79175 | Pad, NO.1 Seatback |
| 79176 | Pad, NO.1 Seatback, NO.2 |
| 79180 | Spring Assy, NO.1 Seatback |
| 79187 | Cover, NO.1 Seat Inner Bracket |
| 79188 | Cover, NO.1 Seat Outer Bracket |
| 79199 | Holder, NO.1 Seat Leg Stopper |
| 79205 | Leg Sub-assy, NO.2 Seat |
| 79220A | Cushion Assy, NO.2 Seat |
| 79235 | Pad, NO.2 Seat Cushion |
| 79236A | Cover, NO.2 Seat Leg |
| 79240A | Back Assy, NO.2 Seat |
| 79260 | Spring Assy, NO.2 Seat Cushion |
| 79273 | Cover, NO.2 Seat Hinge |
| 79273A | Cover, NO.2 Seat Hinge, NO.2 |
| 79305 | Leg Sub-assy, NO.3 Seat |
| 79306 | Leg Sub Assy, NO.3 Seat, LH |
| 79320A | Cushion Assy, NO.3 Seat |
| 79330 | Cushion Assy, NO.3 Seat, LH |
| 79335 | Pad, NO.3 Seat Cushion |
| 79340A | Back Assy, NO.3 Seat |
| 79350 | Back Assy, NO.3 Seat, LH |
| 79354 | Cover, NO.3 Seatback Hinge |
| 79361 | Bracket, NO.3 Seat Support |
| 79372 | Cover, NO.3 Seat Front Bracket, RH |
| 79374 | Cover, NO.3 Seat Leg, Rear RH |
| 79378 | Cover, NO.3 Seat Cushion Hinge |
| 79382 | Cover, NO.3 Seat Front Bracket, LH |
| 79383 | Cover, NO.3 Seat Bracket Support |
| 79384 | Cover, NO.3 Seat Leg, Rear LH |
| 79621 | Stopper, NO.2 Seat Cushion |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
