Toyota Liteace

1988-08 → 1998-04 · chassis KM3#,YM3#,4#,CM36 · catalogue 631340 · General

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spoiler & Side Mudguard

8 part groups · 2 illustrations

Illustrations

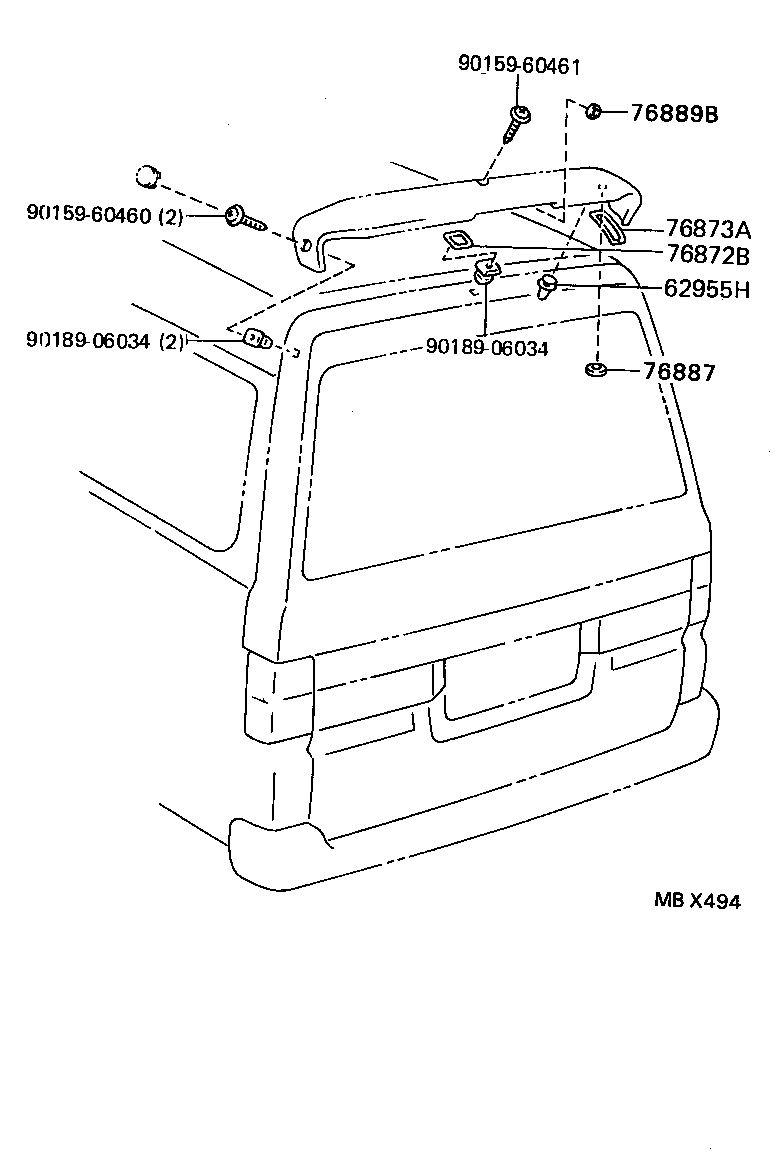

Figure MBR866A MBR866A 1988-08 → — Figure MBX494 MBX494 1993-04 → —

Part groups

PNCDescription
62955H Retainer, Rear Spoiler
76851 Cover, Front Spoiler
76857 Retainer, Front Spoiler Side, RH
76858 Retainer, Front Spoiler Side, LH
76872B Protector, Rear Spoiler, Center
76873A Protector, Rear Spoiler, RH
76887 Seal, Rear Spoiler
76889B Seal, Rear Spoiler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
