Toyota Liteace
1988-08 → 1998-04 · chassis KM3#,YM3#,4#,CM36 · catalogue 631340 · General
Discontinued model
Data version 1998-11
Rear Combination Lamp
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81553 | Bracket, Rear Combination Lamp, NO.1 RH |
| 81554 | Gasket, Rear Combination Lamp Body, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81563 | Bracket, Rear Combination Lamp, NO.1 LH |
| 81564 | Gasket, Rear Combination Lamp Body, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |

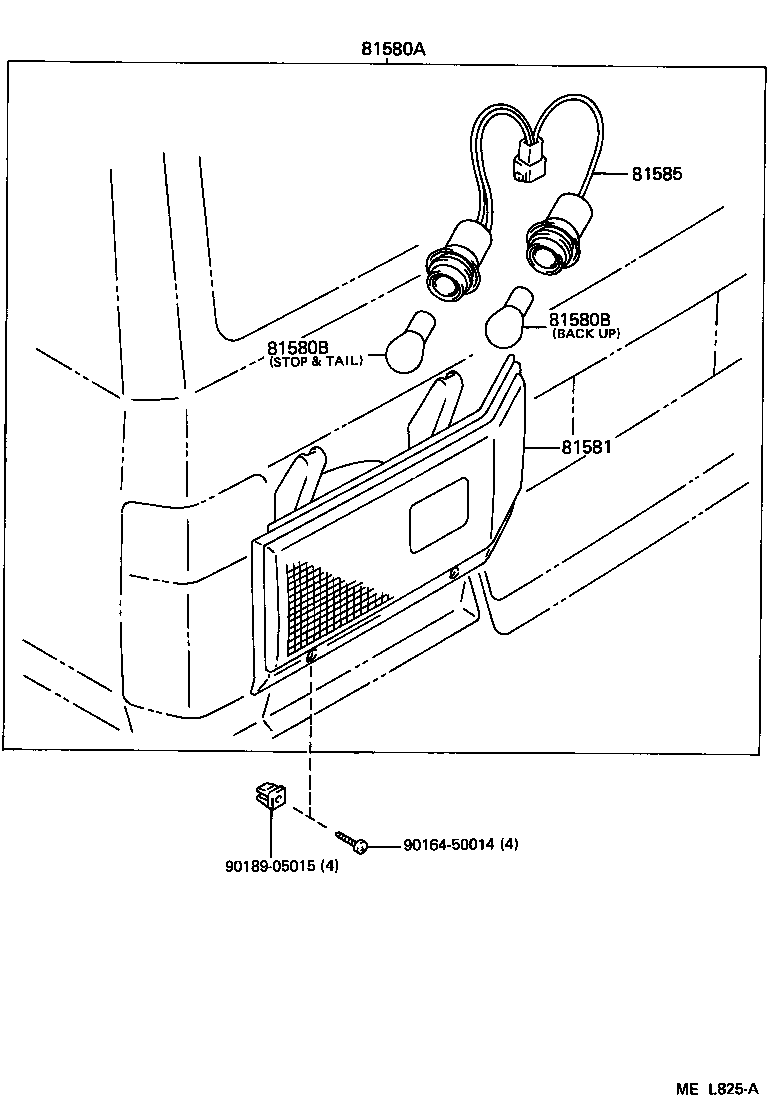

| 81580A | Lamp Assy, Rear |
| 81580B | Bulb (FOR REAR LAMP) |
| 81581 | Lens, Rear Lamp |
| 81585 | Socket & Wire, Rear Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
