Toyota Liteace

1988-08 → 1998-04 · chassis KM3#,YM3#,4#,CM36 · catalogue 631340 · General

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

27 part groups · 4 illustrations

Illustrations

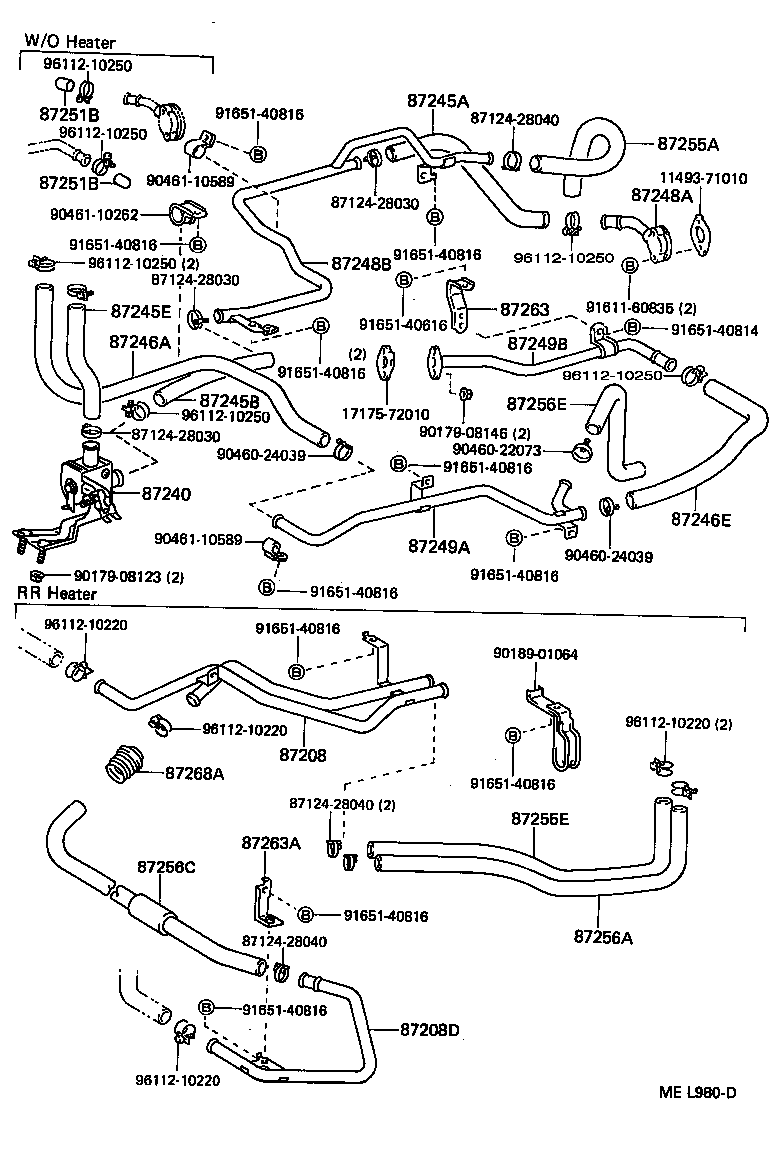

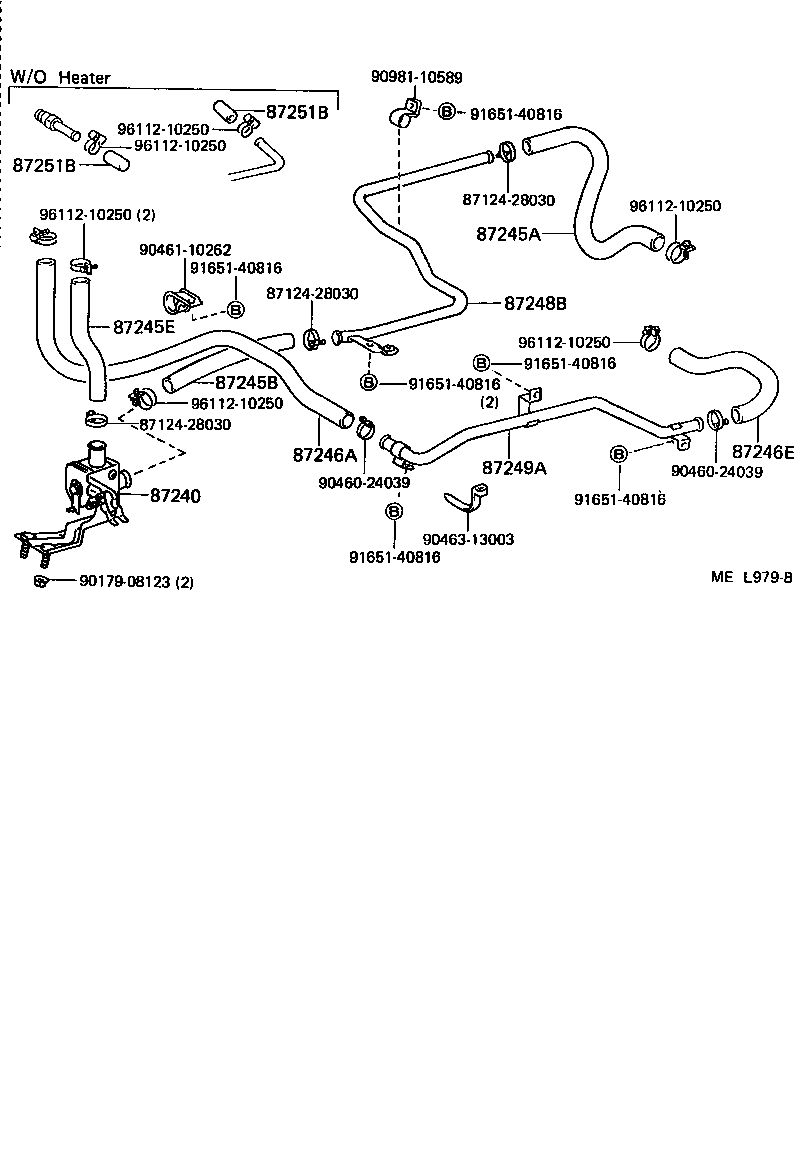

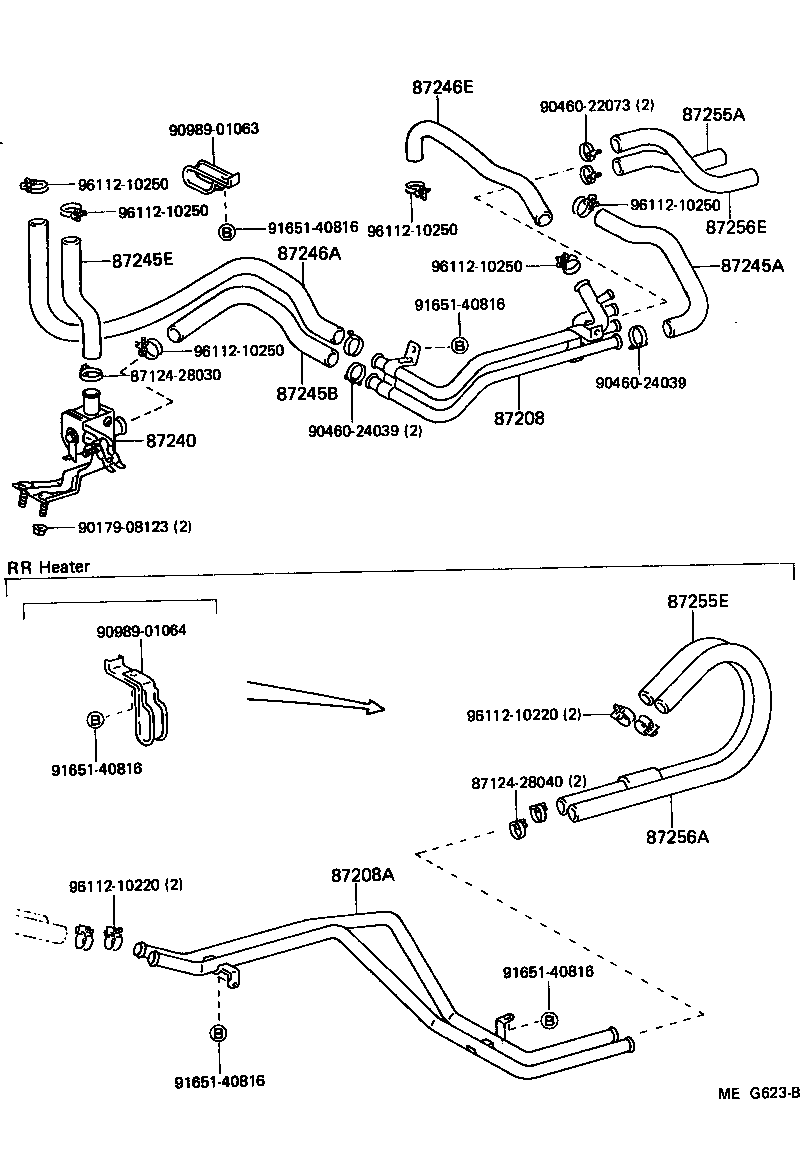

Figure MEG622B MEG622B 1988-08 → — Figure MEG623B MEG623B 1988-08 → — Figure MEL979B MEL979B 1988-08 → — Figure MEL980D MEL980D 1988-08 → —

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87208C Pipe Sub-assy, Heater Water, C
87208D Pipe Sub-assy, Heater Water, D
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87251B Plug, Heater Water
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87263 Bracket, Heater Water Pipe, NO.1
87263A Bracket, Heater Water Pipe, NO.2
87268A Protector, Rear Heater Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
