Toyota Liteace
1988-08 → 1998-04 · chassis KM3#,YM3#,4#,CM36 · catalogue 631340 · General
Discontinued model
Data version 1998-11
Heating & Air Conditioning - Cooler Piping

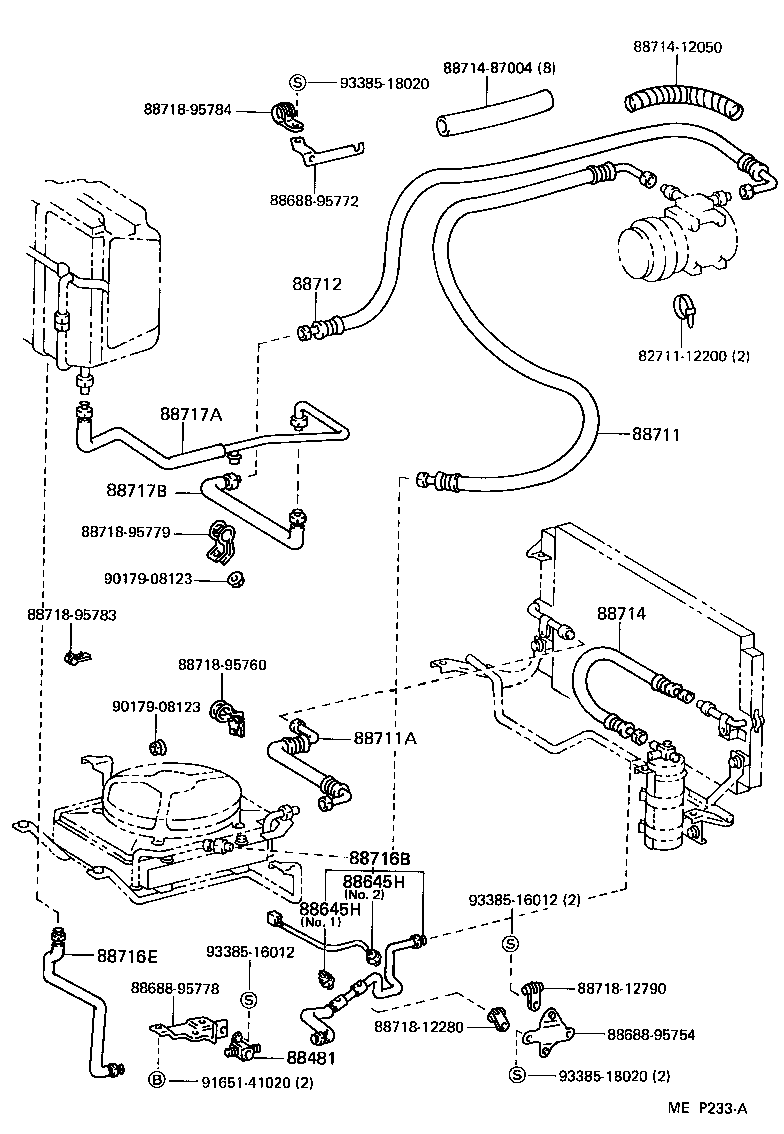

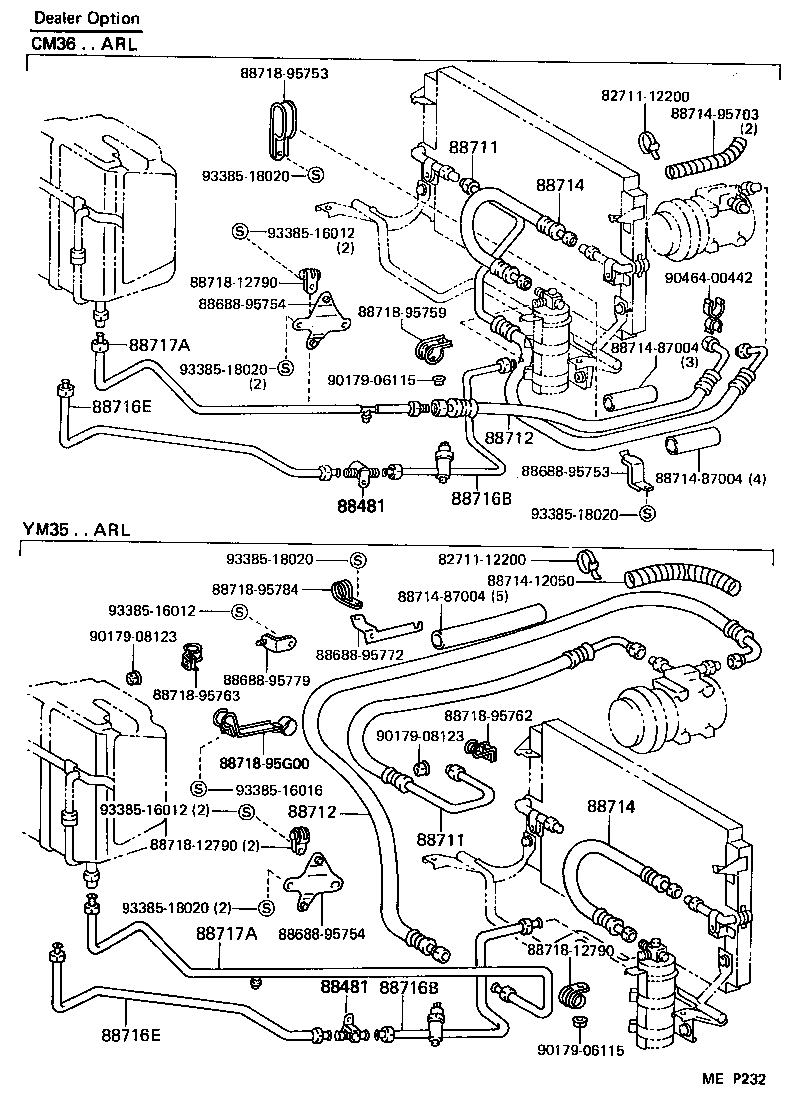

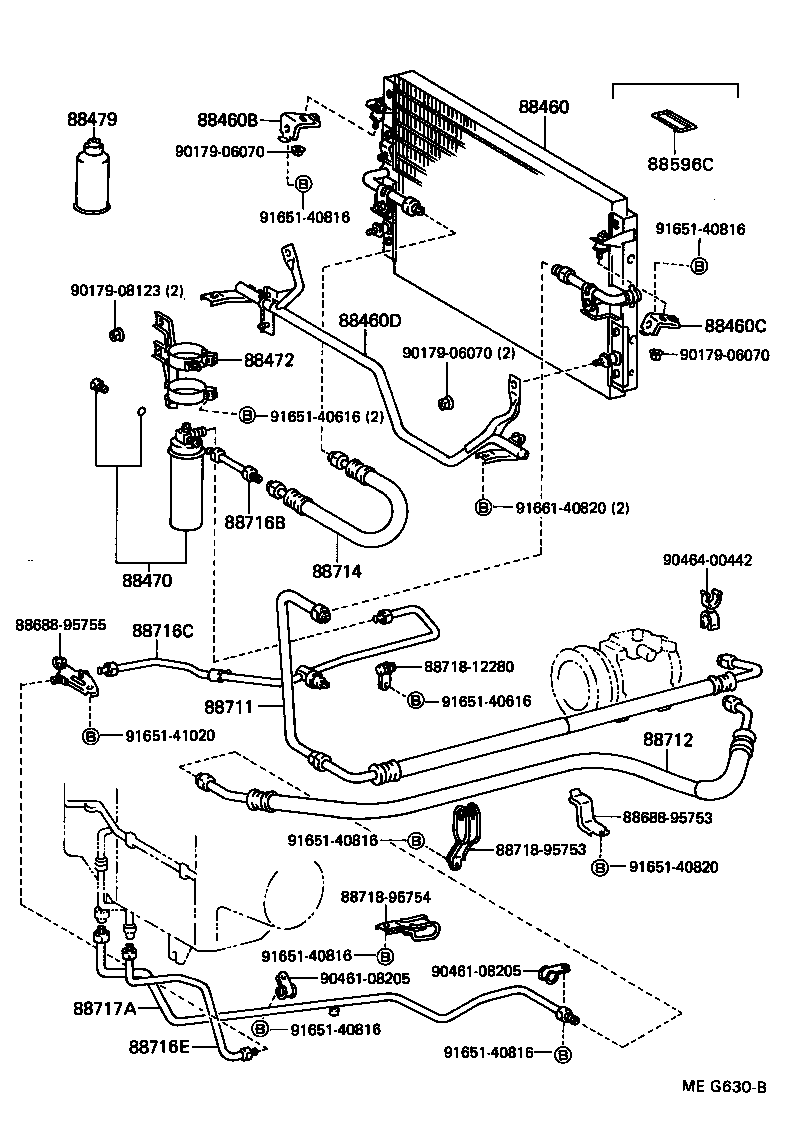

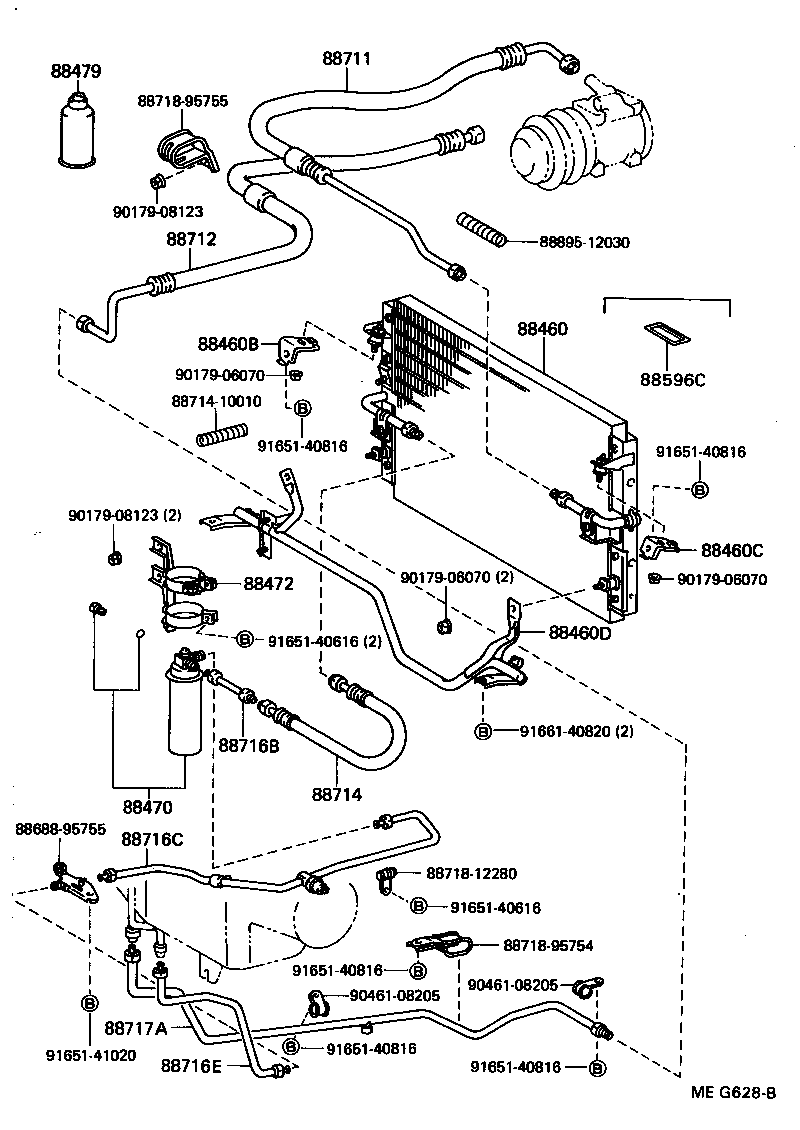

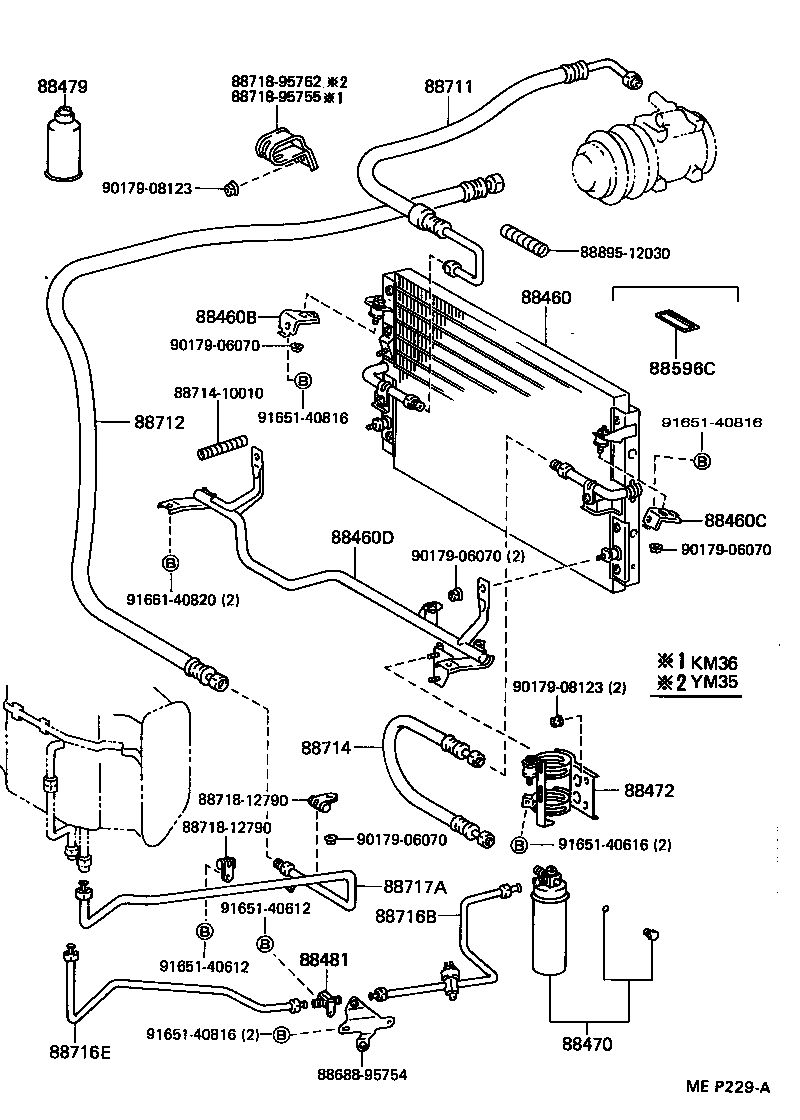

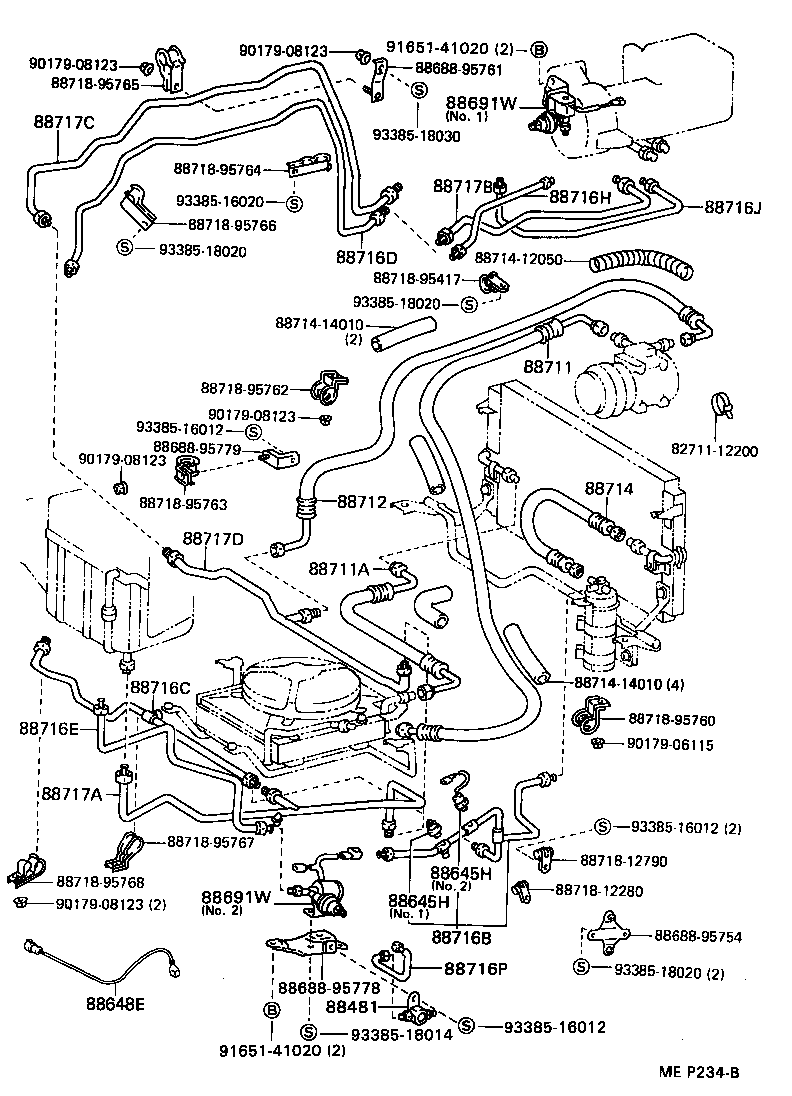

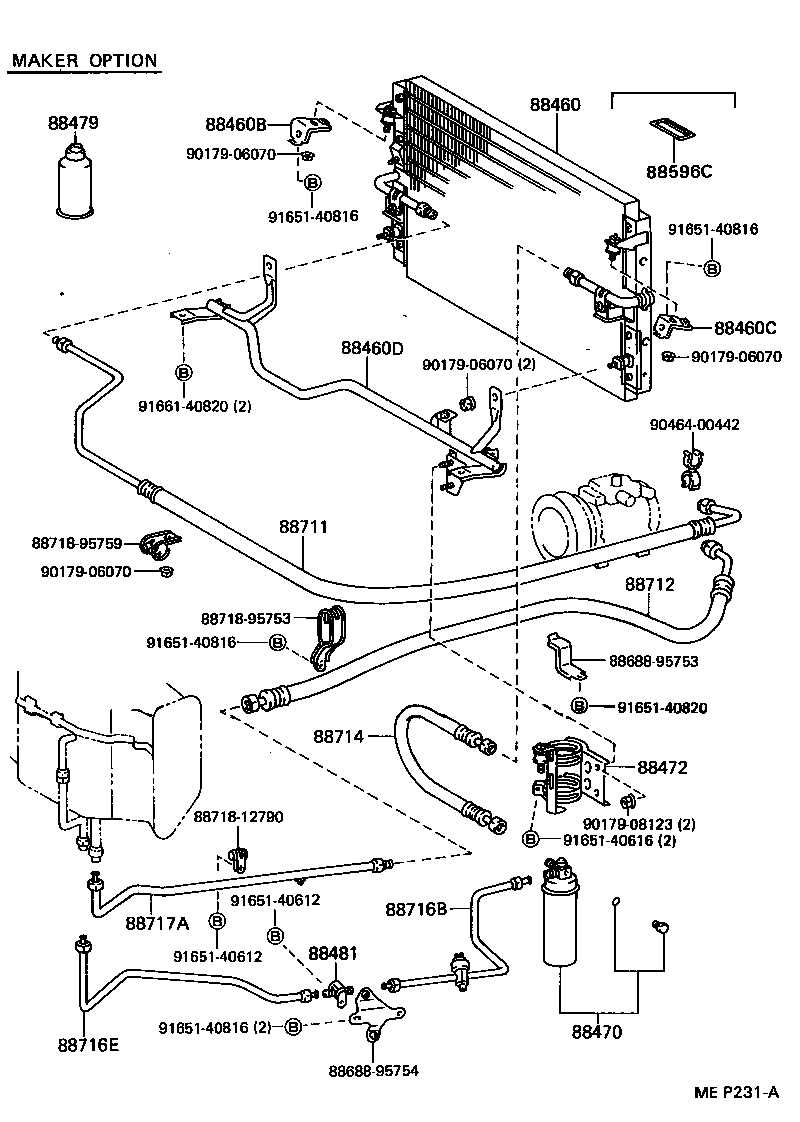

31 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88460 | Condenser Assy, Cooler |
| 88460B | Bracket, Cooler Condenser, NO.1 |
| 88460C | Bracket, Cooler Condenser, NO.2 |
| 88460D | Bracket, Cooler Condenser, NO.3 |
| 88460F | Bracket, Cooler Condenser, NO.4 |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88481 | Glass, Sight |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88596C | Plate, Caution, NO.2 |
| 88635A | Resistor, Blower (FOR COOLER CONDENSER MOTOR) |
| 88645H | Switch, Pressure NO.1 |
| 88648E | Wiring, Cooler |
| 88691W | Valve, Magnet |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88711A | Hose, Cooler Refrigerant Discharge, NO.2 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88714 | Hose, Cooler Refrigerant Liquid, NO.1 |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88716D | Pipe, Cooler Refrigerant Liquid, D |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88716H | Pipe, Cooler Refrigerant Liquid, H |
| 88716J | Pipe, Cooler Refrigerant Liquid, J |
| 88716P | Pipe, Cooler Refrigerant Liquid, P |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88717B | Pipe, Cooler Refrigerant Suction, B |
| 88717C | Pipe, Cooler Refrigerant Suction, C |
| 88717D | Pipe, Cooler Refrigerant Suction, D |
PNC is the six-character part-group number the factory catalogue files
