Cylinder Block

22 part groups · 2 illustrations

Illustrations

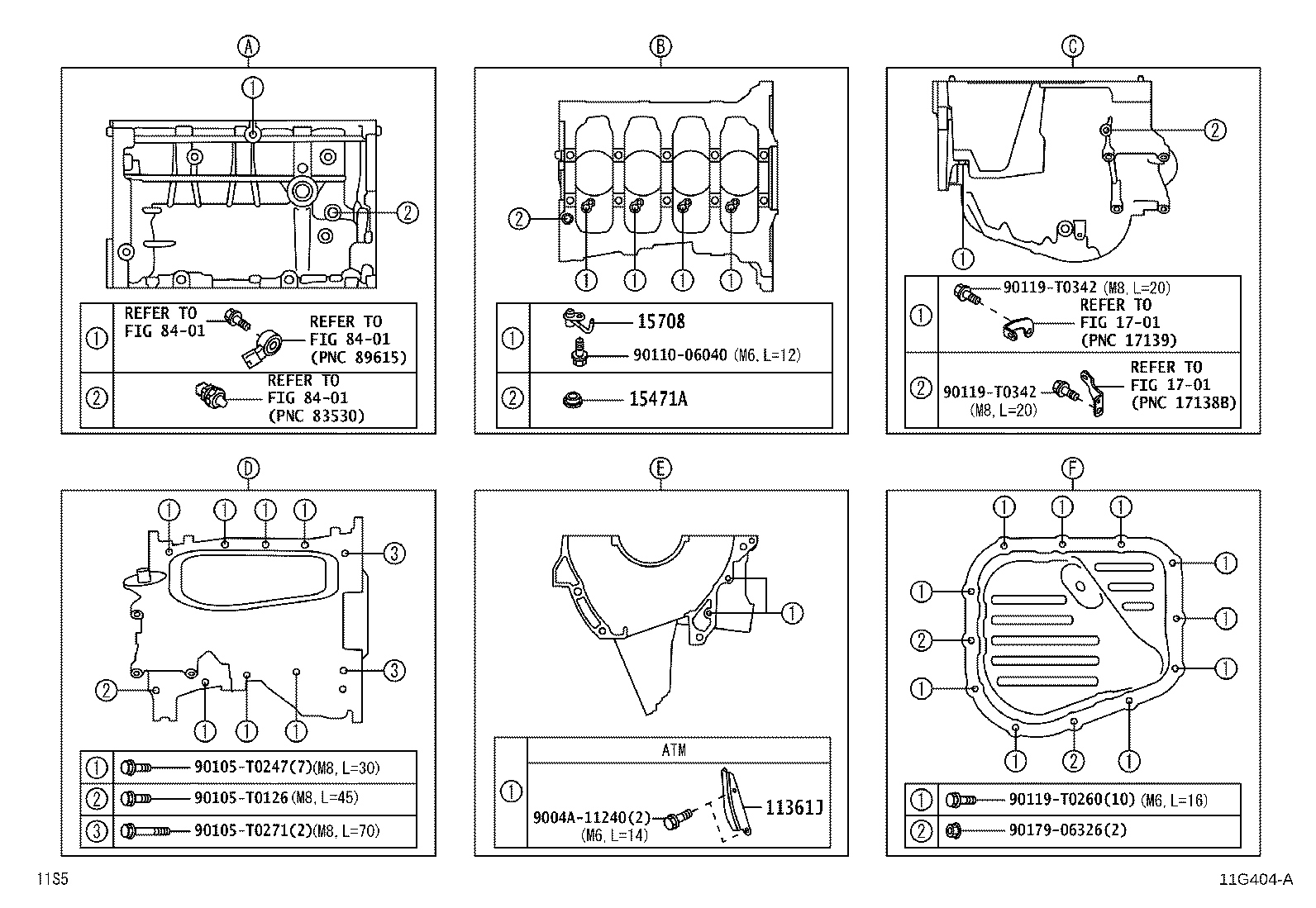

Figure 11G403A 11G403A 2022-05 → — Figure 11G404A 11G404A 2022-05 → —

Part groups

PNCDescription
11361J Cover, Flywheel Housing Under
11401 Block Sub-assy, Cylinder
11401L Seal, Engine Rear Oil
11411A Pin, Ring(FOR CYLINDER BLOCK NO.1 )
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434Y Pin, Straight(FOR OIL PAN)
11444A Ring, O
11445 Spacer, Cylinder Block Water Jacket
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11459 Support, Oil Level Gage Guide
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12101C Ring, O(FOR OIL PAN)
12102A Pan Sub-assy, Oil, NO.2
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15471A Gasket(FOR CLYINDER BLOCK)
15708 Nozzle Sub-assy, Oil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
