Toyota Liteace
2022-05 → present · chassis S403 · catalogue 641230 · General
Supported model
Data version 2022-04

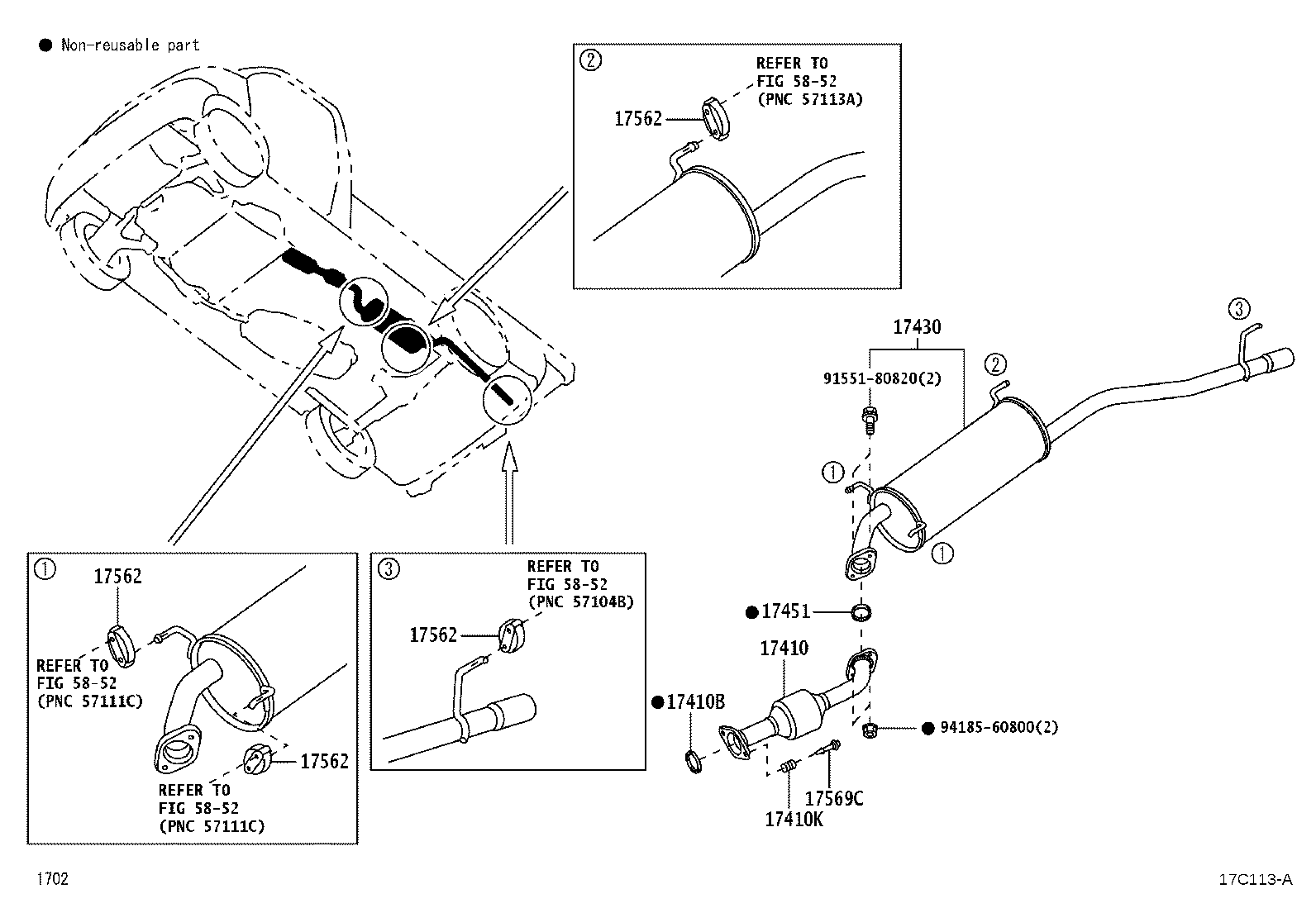

Exhaust Pipe
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17410K | Spring, Exhaust Pipe |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17569C | Bolt, Exhaust Pipe Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
