Toyota Liteace
2022-05 → present · chassis S403 · catalogue 641230 · General
Supported model
Data version 2022-04

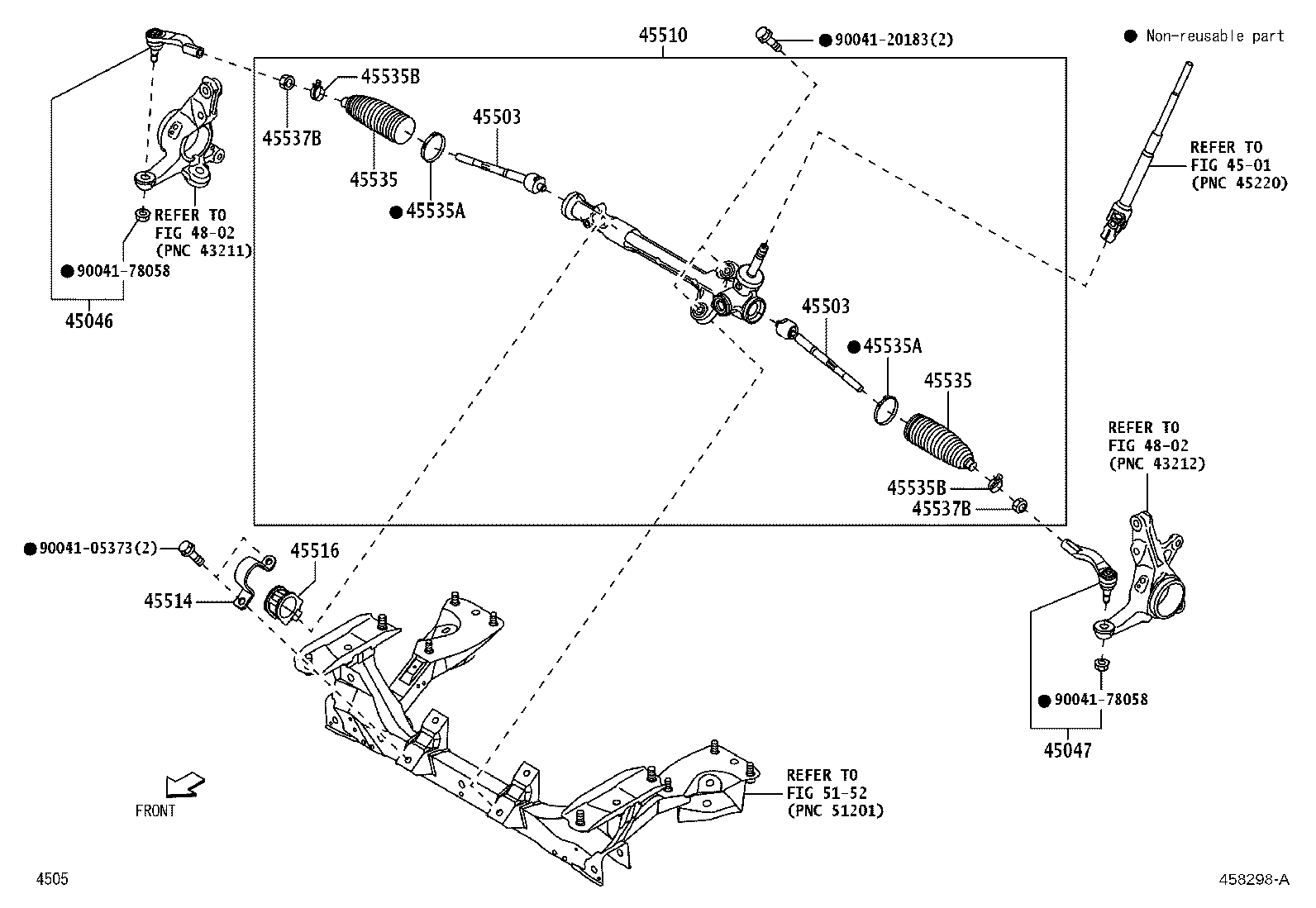

Front Steering Gear & Link
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45046 | End Sub-assy, Tie Rod, RH |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45503 | End Sub-assy, Steering Rack |
| 45510 | Gear Assy, Steering |
| 45514 | Bracket, Steering Rack Housing, NO.1 |
| 45516 | Grommet, Steering Rack Housing, NO.1 |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535A | Clamp(FOR STEERING RACK BOOT) |
| 45535B | Clip(FOR STEERING RACK BOOT) |
| 45537B | Nut, Rack End Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
