Toyota Liteace

2022-05 → present · chassis S403 · catalogue 641230 · General

Supported model Data version 2022-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

17 part groups · 2 illustrations

Illustrations

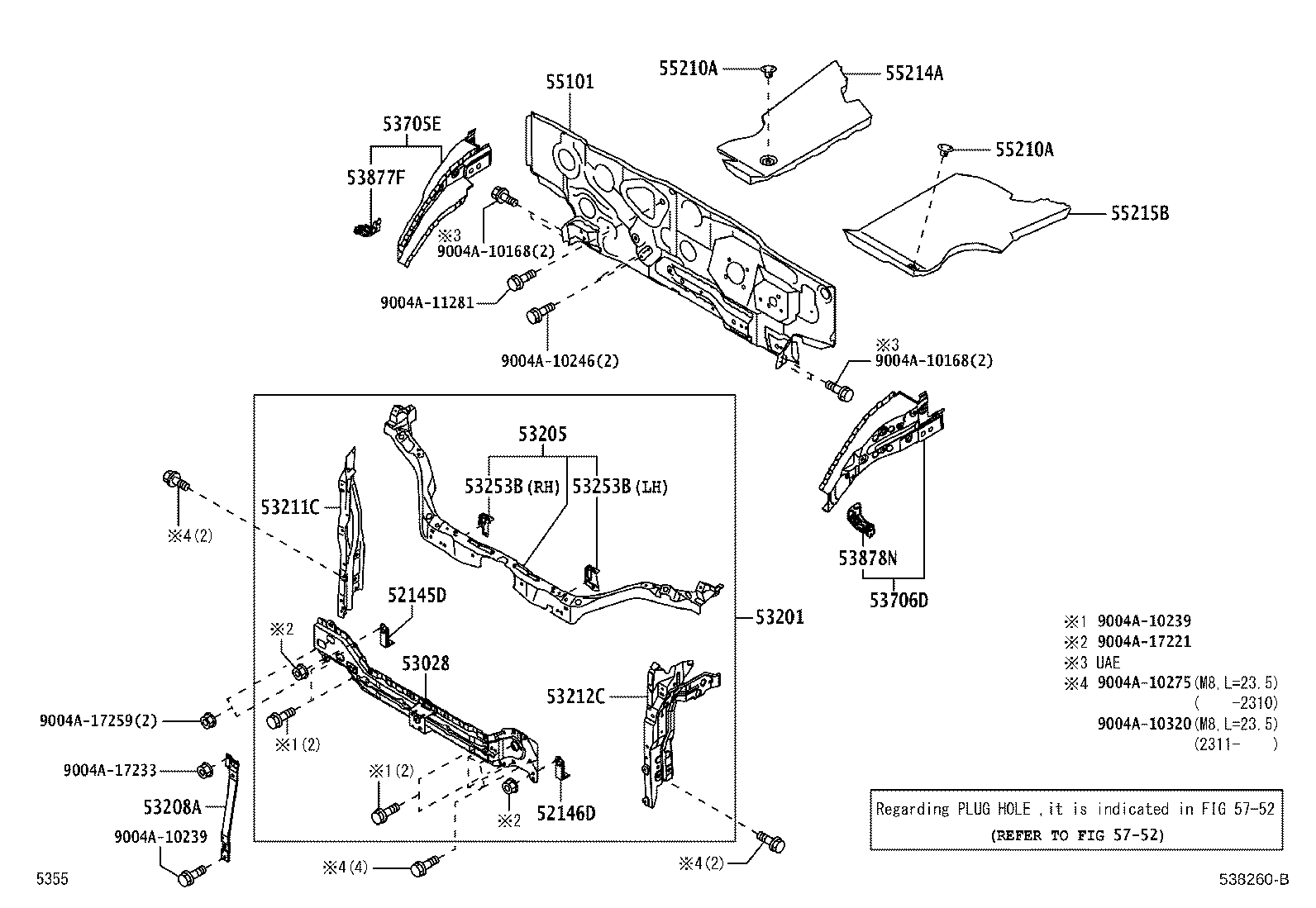

Figure 538259A 538259A 2022-05 → — Figure 538260B 538260B 2022-05 → —

Part groups

PNCDescription
52145D Bracket, Front Bumper Side Mounting, RH
52146D Bracket, Front Bumper Side Mounting, LH
53028 Support Sub-assy, Radiator, Lower
53201 Support Sub-assy, Radiator
53205 Support Sub-assy, Radiator, Upper
53208A Support Sub-assy, Hood Lock
53211C Support, Radiator, RH
53212C Support, Radiator, LH
53253B Bracket, Radiator Mounting, Upper
53705E Member Sub-assy, Front Apron TO Cowl Side, RH
53706D Member Sub-assy, Front Apron TO Cowl Side, LH
53877F Bracket, Front Fender Liner, RH
53878N Bracket, Front Fender Liner, LH
55101 Panel Sub-assy, Dash
55210A Clip
55214A Pad, Dash Panel Insulator, NO.2
55215B Pad, Dash Panel Insulator, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
