Toyota Liteace

2022-05 → present · chassis S403 · catalogue 641230 · General

Supported model Data version 2022-04

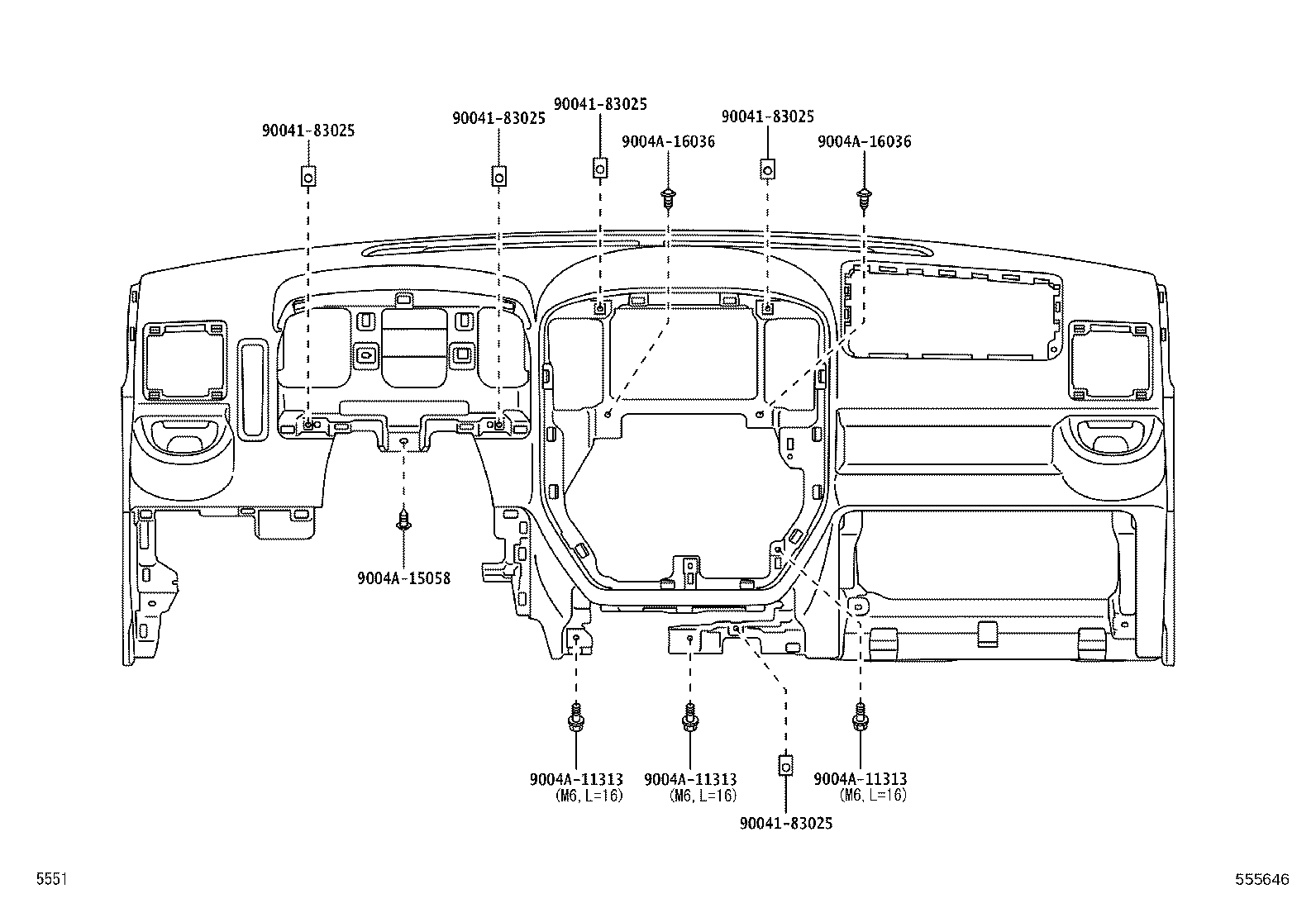

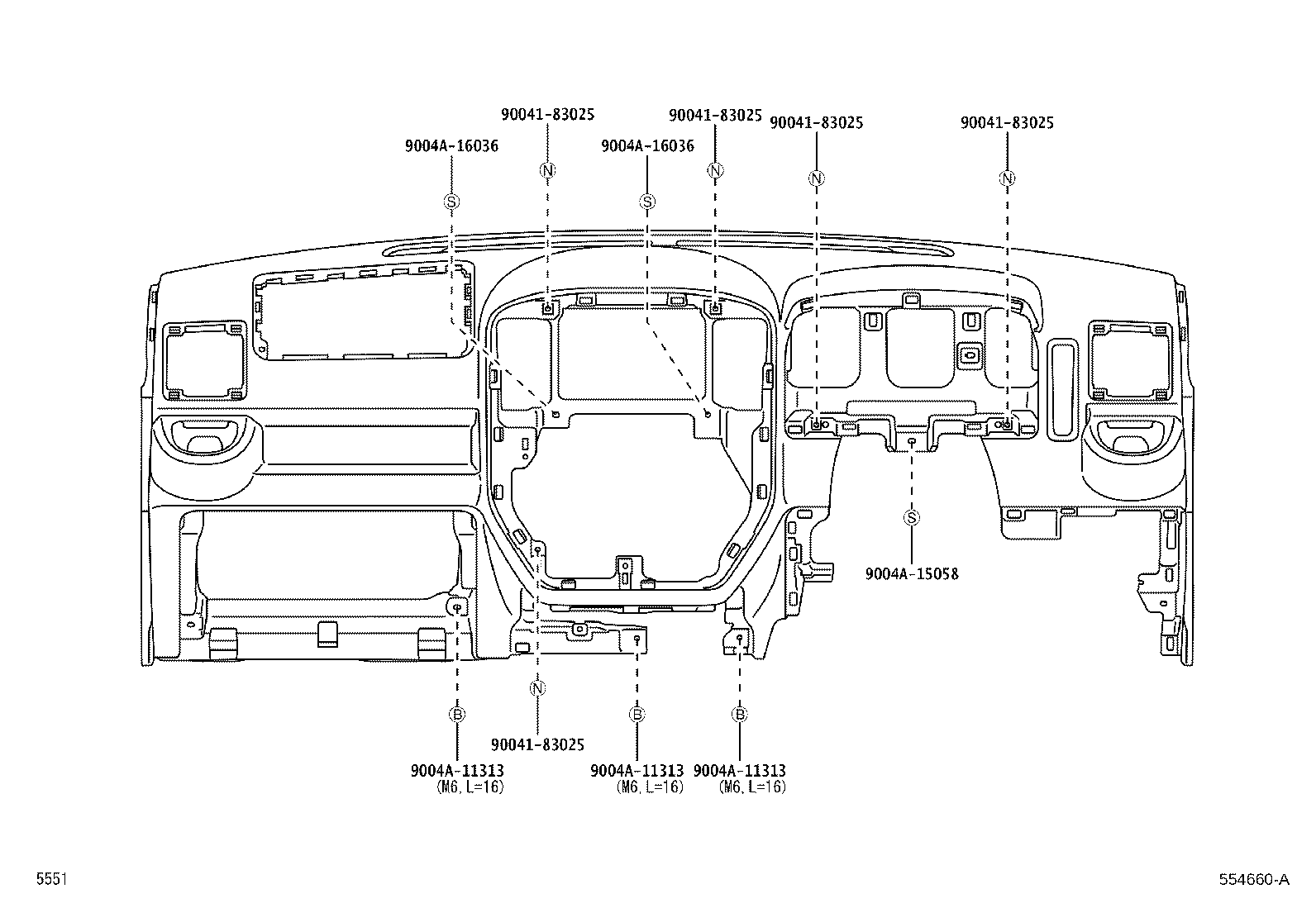

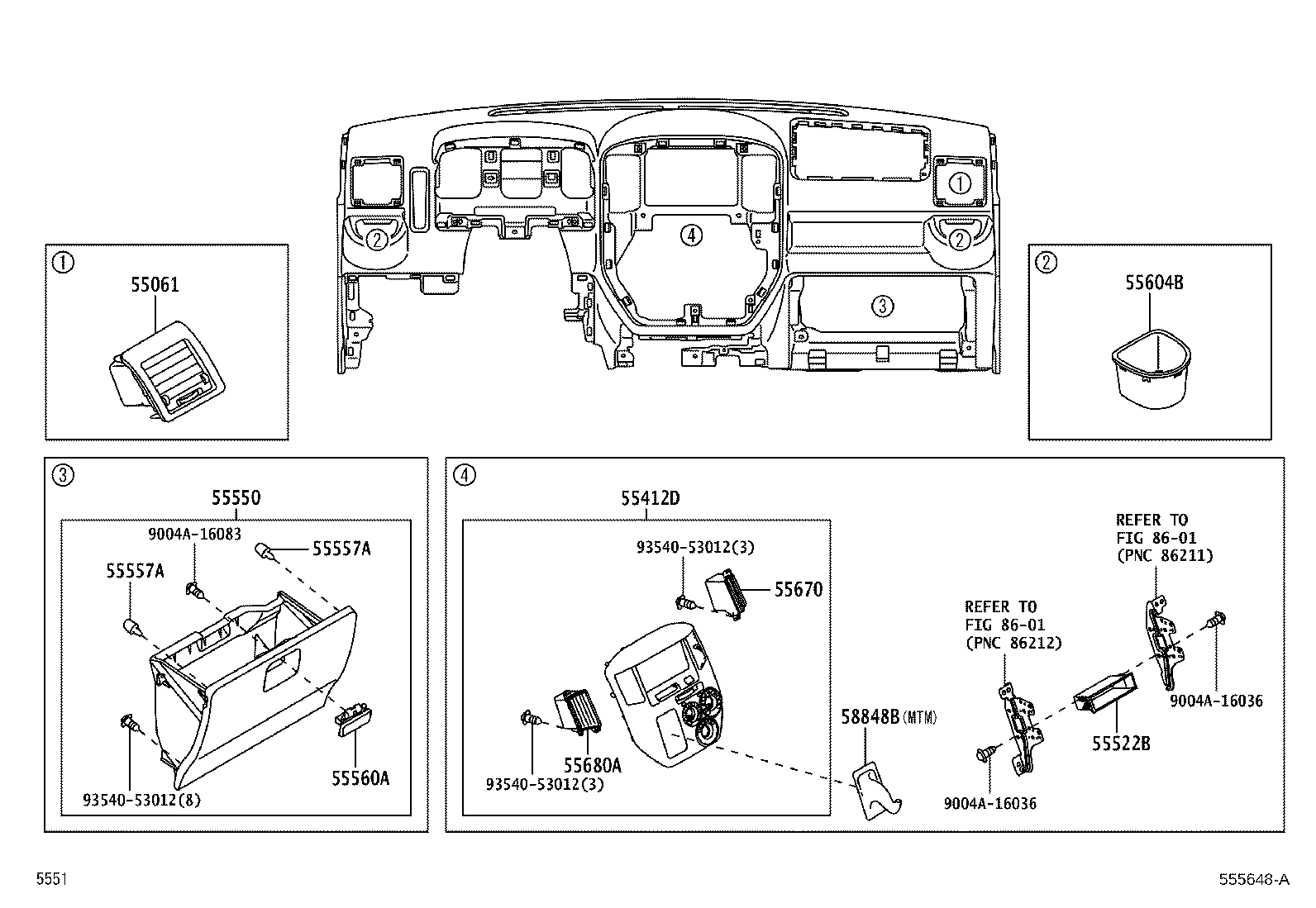

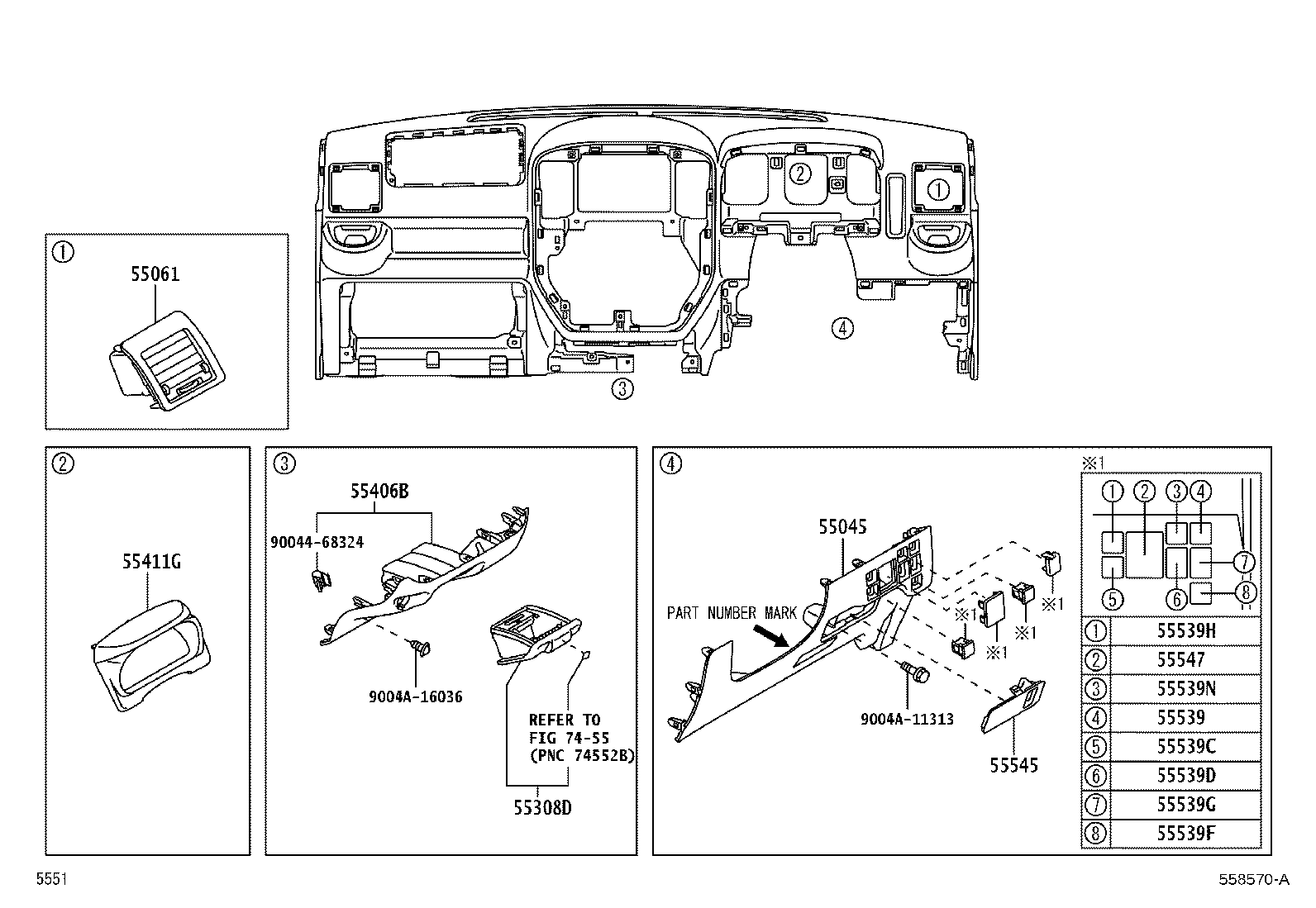

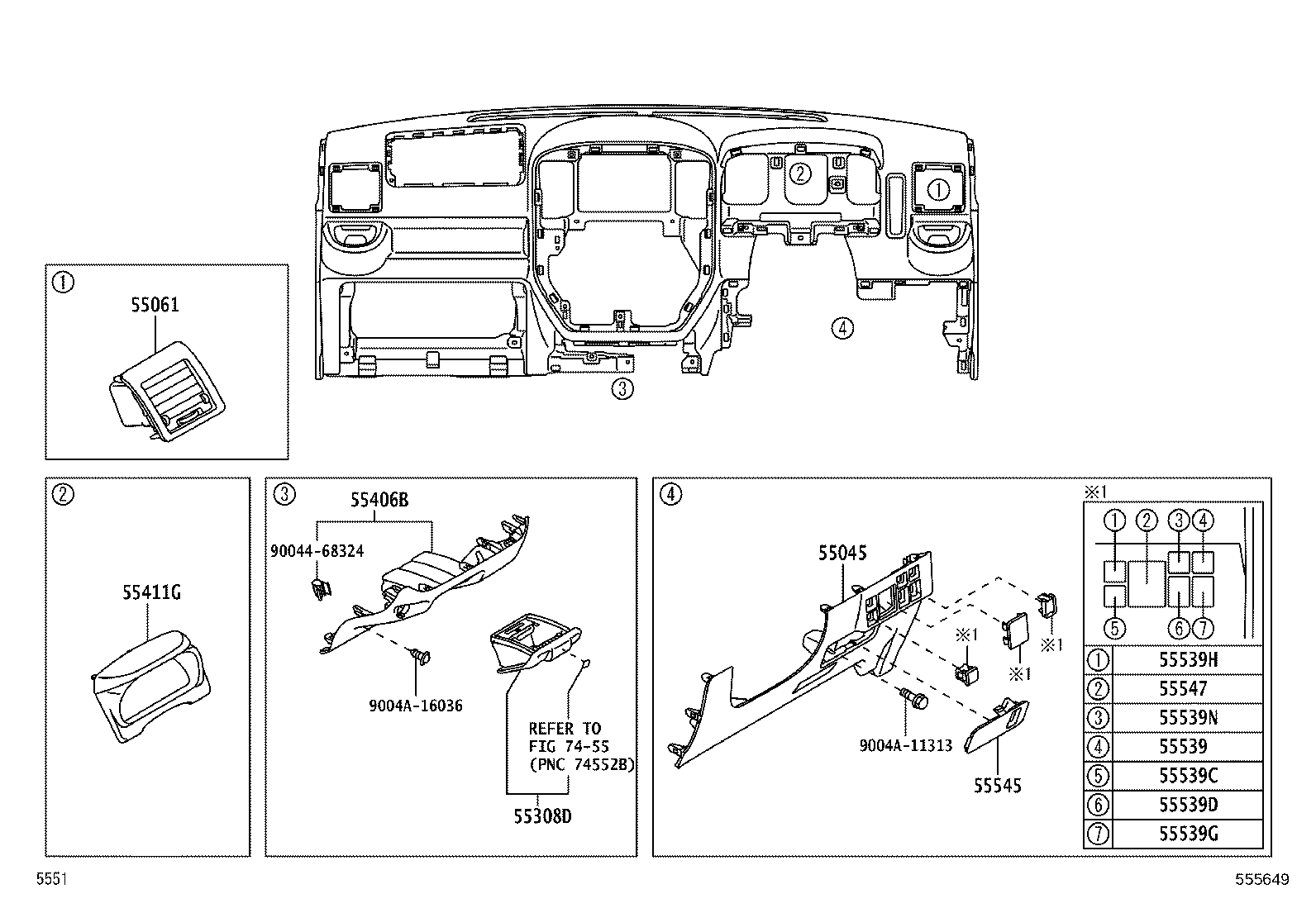

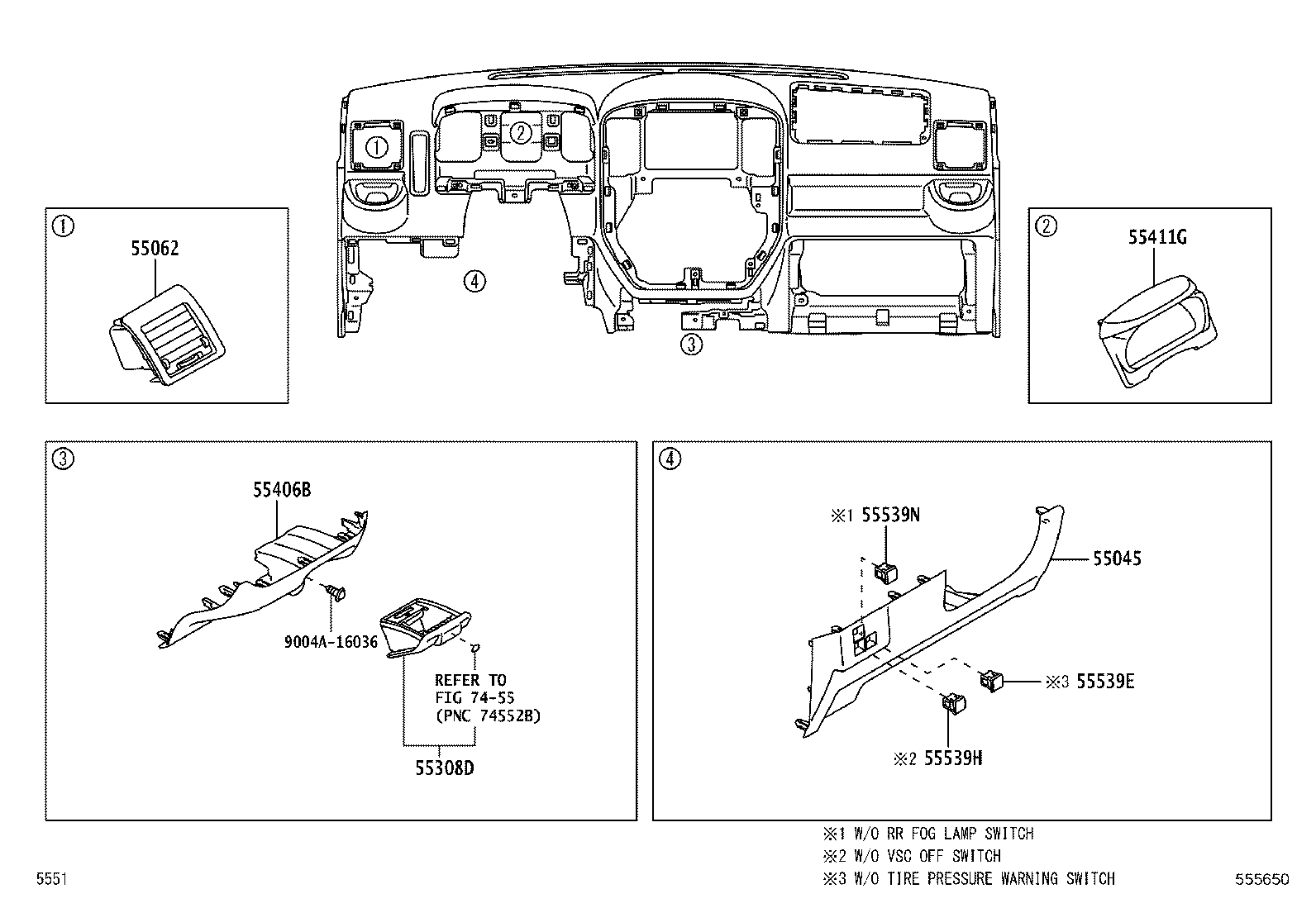

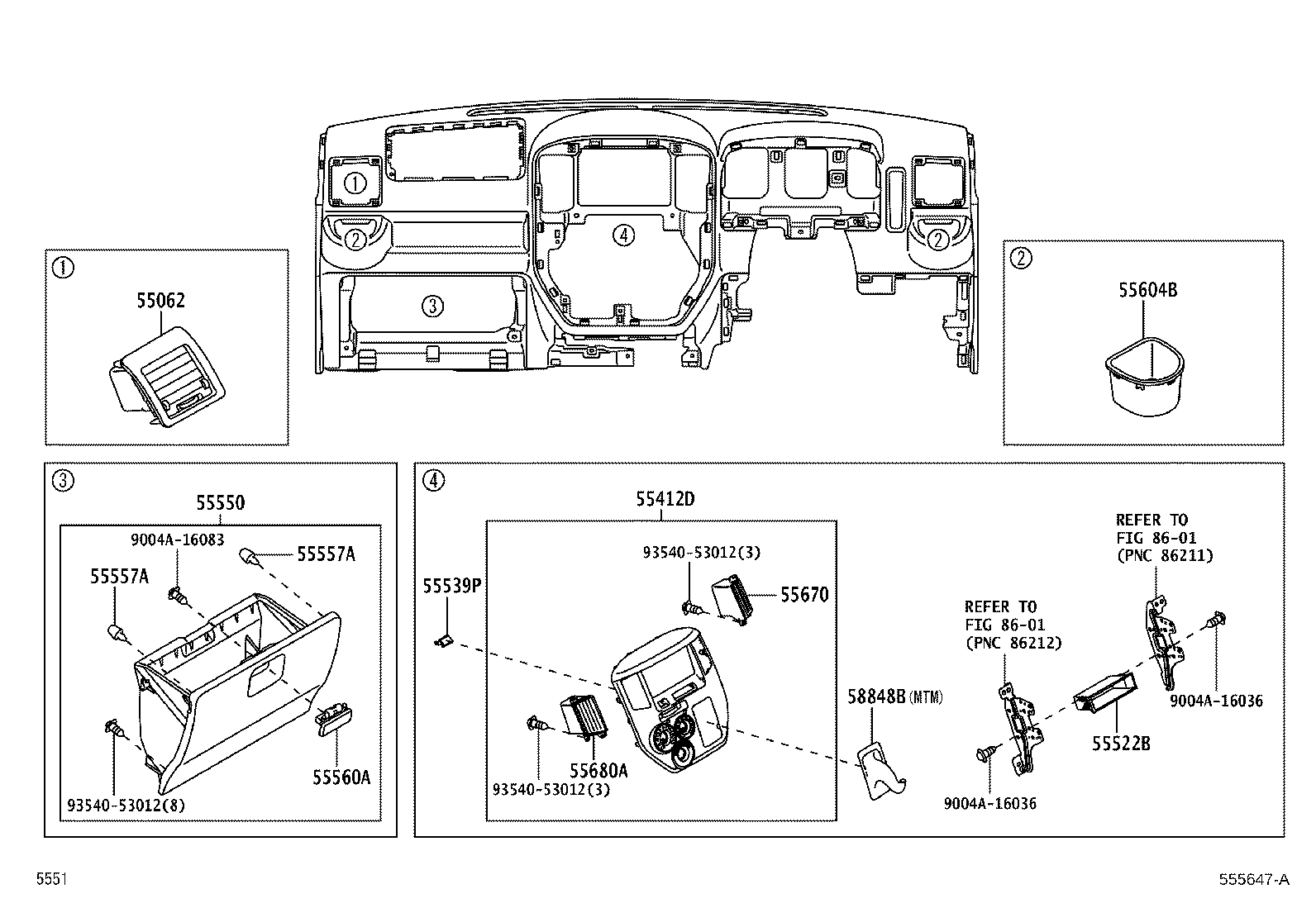

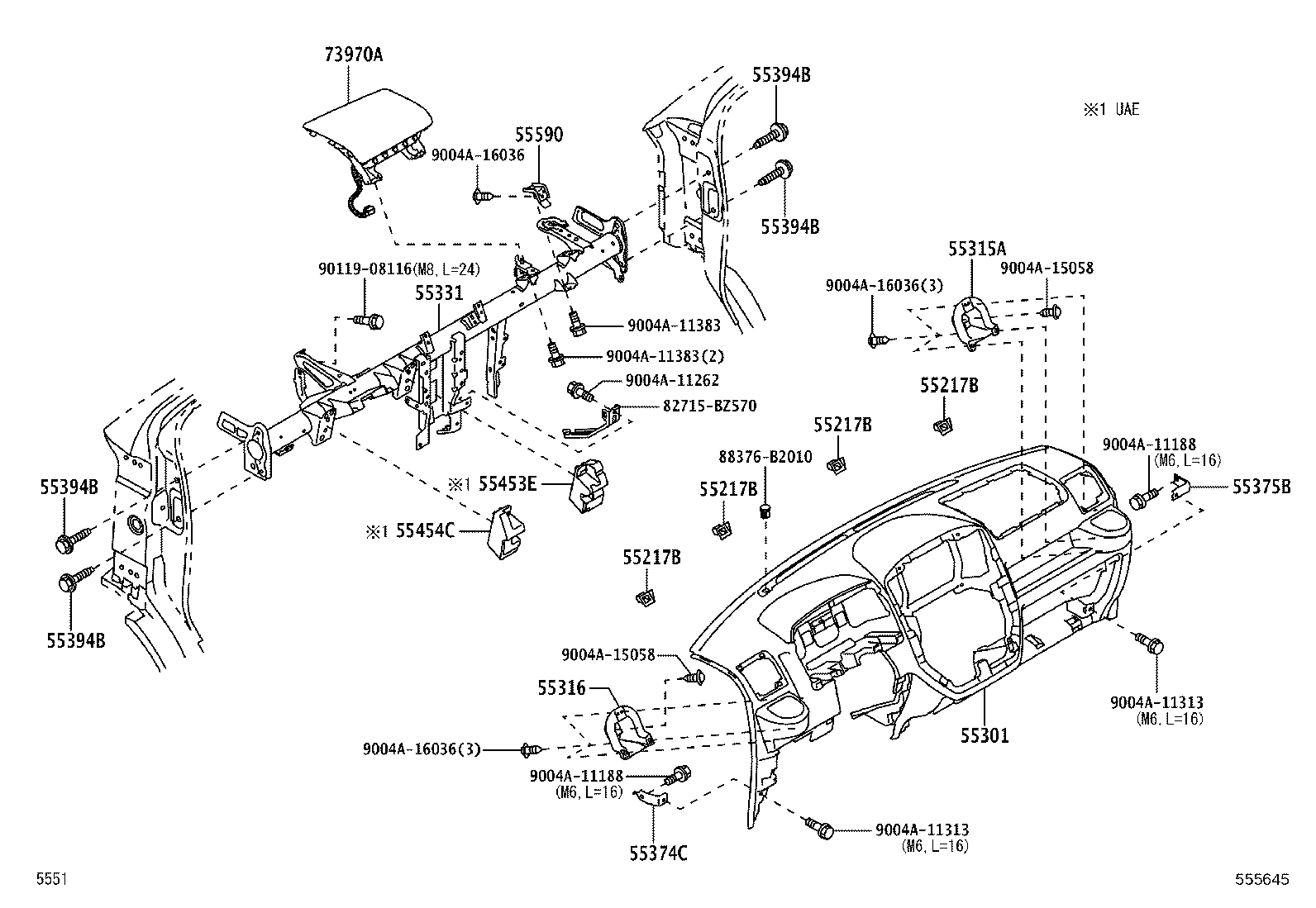

Instrument Panel & Glove Compartment

37 part groups · 9 illustrations

PNC	Description
55045	Panel Sub-assy, Instrument Panel Finish, Lower
55061	Register Sub-assy, Instrument Panel, NO.1
55062	Register Sub-assy, Instrument Panel, N0.2
55217B	Retainer, Dash Panel Silencer
55301	Panel Sub-assy, Instrument
55308D	Box Sub-assy, Instrument Panel, Center
55315A	Spacer, Instrument Panel, NO.1
55316	Spacer, Instrument Panel, NO.2
55331	Reinforcement, Instrument Panel
55374C	Bracket, Instrument Panel Lower Mounting, NO.1
55375B	Bracket, Instrument Panel Lower Mounting, NO.2
55394B	Bolt, Instrument Panel
55406B	Panel Sub-assy, Instrument Cluster Finish, Lower Center
55411G	Panel, Instrument Cluster Finish, NO.1
55412D	Panel, Instrument Cluster Finish, Center
55453E	Pad, Instrument, Lower RH
55454C	Pad, Instrument, Lower LH
55522B	Cover, Radio Tuner Opening
55539	Cover, Spare Switch Hole
55539C	Cover, Spare Switch Hole
55539D	Cover, Spare Switch Hole
55539E	Cover, Spare Switch Hole
55539G	Cover, Spare Switch Hole
55539H	Cover, Spare Switch Hole
55539N	Cover, Spare Switch Hole
55539P	Cover, Spare Switch Hole
55545	Cover, Fuse Box Opening
55547	Cover, Remote Control Mirror Hole
55550	Door Assy, Glove Compartment
55557A	Cushion, Glove Compartment Door Check
55560A	Lock Assy, Glove Compartment Door
55590	Plate Assy, Grove Compartment Door Lock Striker
55604B	Holder Sub-assy, Instrument Panel Cup
55670	Register Assy, Instrument Panel, NO.3
55680A	Register Assy, Instrument Panel, NO.4
58848B	Cover, Shift Lever Hole
73970A	Airbag Assy, Instrument Panel Passenger

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
