Toyota Liteace

2022-05 → present · chassis S403 · catalogue 641230 · General

Supported model Data version 2022-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

80 part groups · 3 illustrations

Illustrations

617402A 2022-05 → —

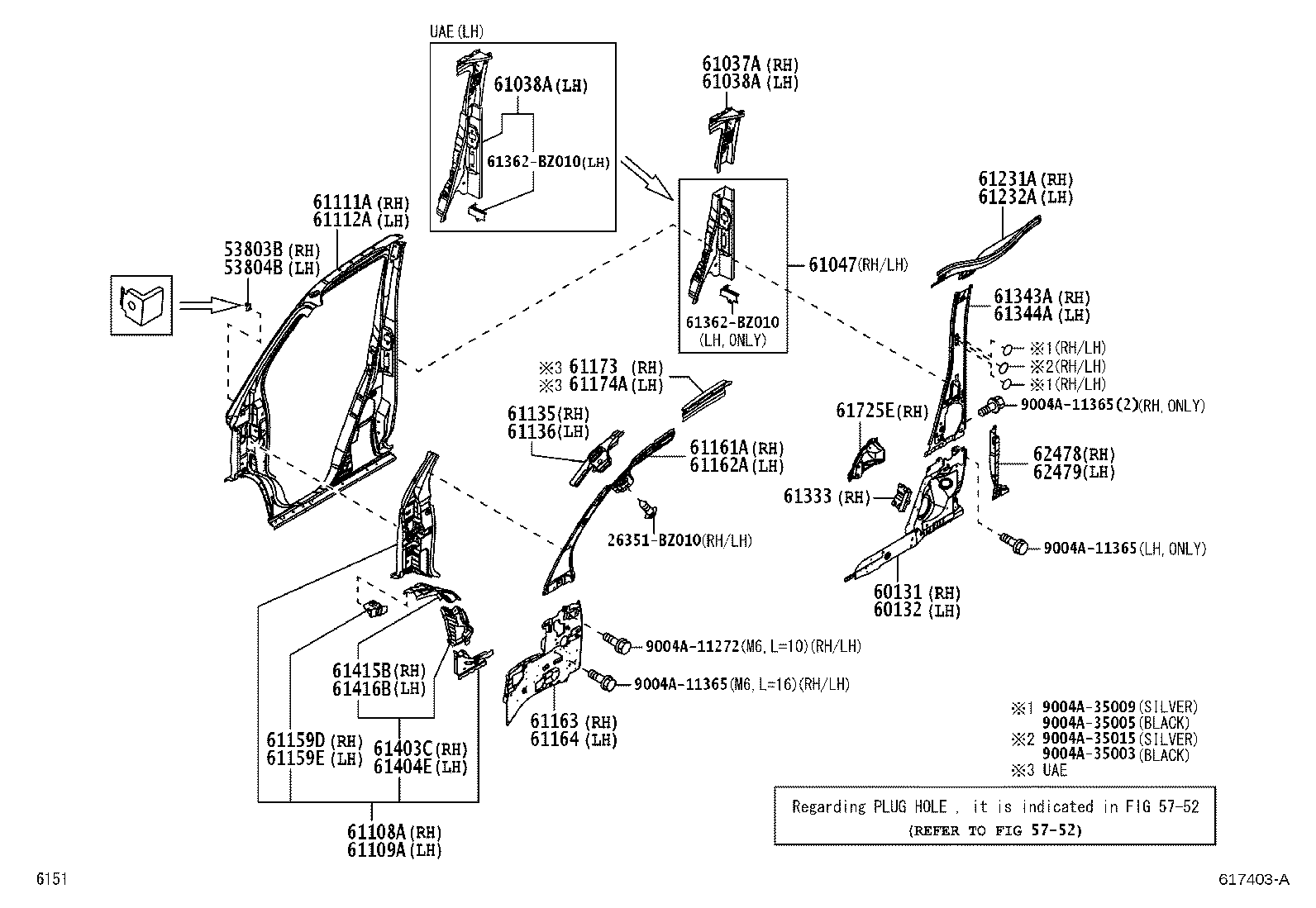

617403A 2022-05 → —

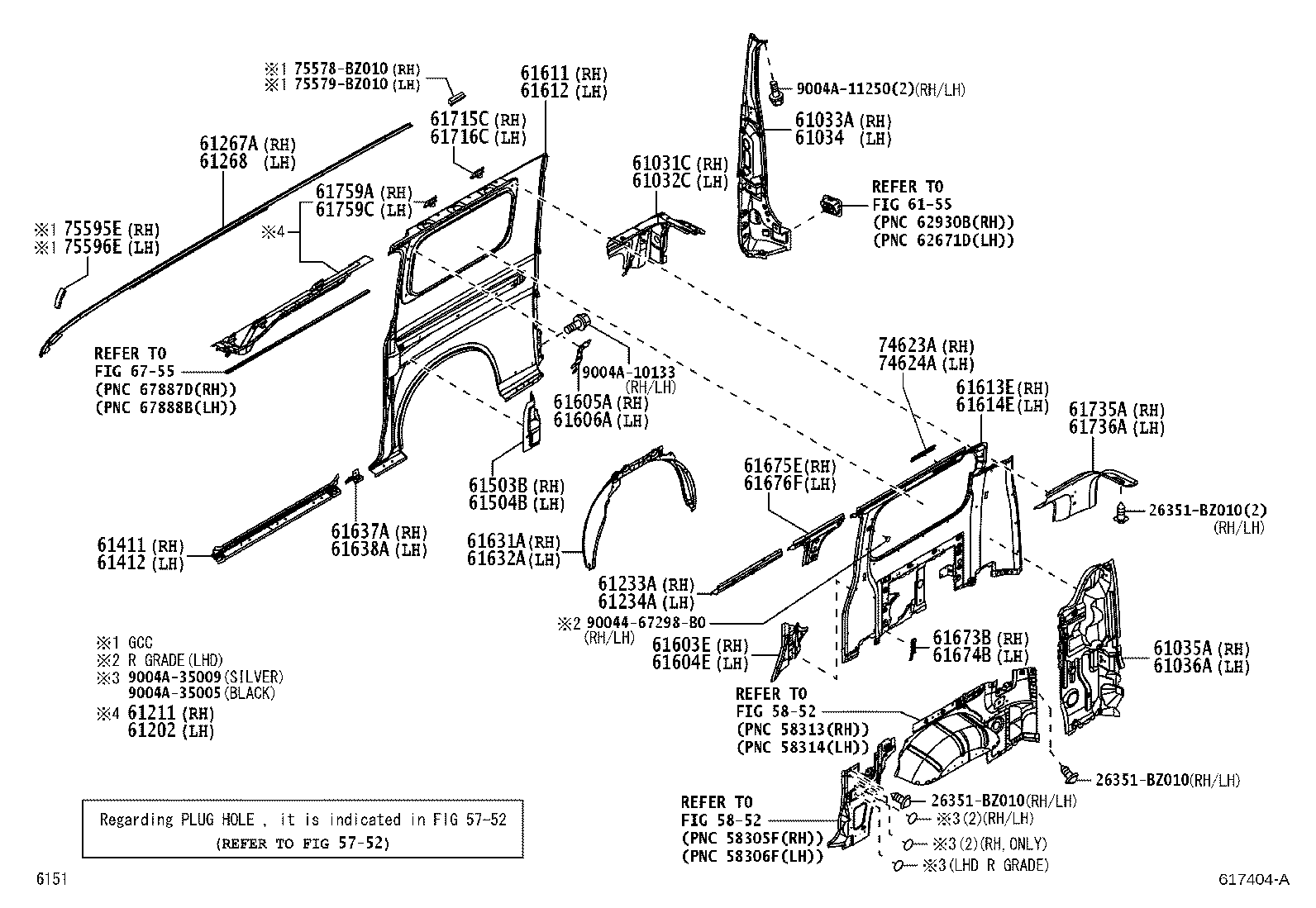

617404A 2022-05 → —

Part groups

PNC	Description
53803B	Bracket Sub-assy, Front Side Panel, RH
53804B	Bracket Sub-assy, Front Side Panel, LH
60131	Pillar Sub-assy, Center Body, NO.2 RH
60132	Pillar Sub-assy, Center Body, NO.2 LH
61011A	Pillar Sub-assy, NO.1 RH
61021A	Pillar Sub-assy, NO.1 LH
61031C	Extension Sub-assy, Quarter Panel, Rear RH
61032C	Extension Sub-assy, Quarter Panel, Rear LH
61033A	Reinforce Sub-assy, Back Door Opening Side
61034	Reinforce Sub-assy, Back Door Opening Side, LH
61035A	Reinforcement Sub-assy, Back Door Opening, RH
61036A	Reinforcement Sub-assy, Back Door Opening, LH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61047	Reinforce Sub-assy, Center Body Pillar, Center
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61111A	Panel, Front Side, Outer RH
61112A	Panel, Front Side, Outer LH
61135	Reinforcement, Front Body Pillar, Upper RH
61136	Reinforcement, Front Body Pillar, Upper LH
61159D	Retainer, Side Panel, NO.2 RH
61159E	Retainer, Side Panel, NO.2 LH
61161A	Pillar, Front Body, Inner RH
61162A	Pillar, Front Body, Inner LH
61163	Pillar, Front Body, Inner RH
61164	Pillar, Front Body, Inner LH
61173	Reinforcement, Front Body Pillar, Upper Inner
61174A	Reinforcement, Front Body Pillar, Upper Inner LH
61202	Rail Sub-assy, Roof Side, LH
61211	Rail, Roof Side, Outer RH
61231A	Rail, Roof Side, Inner RH
61232A	Rail, Roof Side, Inner LH
61233A	Rail, Roof Side, Inner NO.2 RH
61234A	Rail, Roof Side, Inner NO.2 LH
61267A	Channel, Roof Drip Side, Rear RH
61268	Channel, Roof Drip Side, Rear LH
61333	Plate, Center Pillar, RH
61343A	Pillar, Center Body, Inner RH
61344A	Pillar, Center Body, Inner LH
61365B	Reinforce, Belt Anchor TO Center Pillar, NO.3 RH
61366	Reinforce, Belt Anchor TO Center Piller, NO.3 LH
61403C	Reinforce Sub-assy, Rocker, Outer RH
61404E	Reinforce Sub-assy, Rocker, Outer LH
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61412C	Extension, Rocker, Outer LH
61415B	Extension, Rocker, Outer RH
61416B	Extension, Rocker, Outer LH
61503B	Reinforcement Sub-assy, Quarter Lock Pillar, RH
61504B	Reinforcement Sub-assy, Quarter Lock Pillar, LH
61603E	Reinforcement Sub-assy, Quater Panel, Inner RH
61604E	Reinforcement Sub-assy, Quater Panel, Inner LH
61605A	Reinforcement Sub-assy, Quarter Panel, RH
61606A	Reinforcement Sub-assy, Quarter Panel, LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61613E	Panel, Quarter, Inner RH
61614E	Panel, Quarter, Inner LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61637A	Brace, Quarter Panel, RH
61638A	Brace, Quarter Panel, LH
61673B	Reinforcement, Quarter Wheel House, Inner RH
61674B	Reinforcement, Quarter Wheel House, Inner LH
61675E	Reinforcement, Quarter Wheel House, Rear RH
61676F	Reinforcement, Quarter Wheel House, Rear LH
61715C	Bracket, Roof Side, RH
61716C	Bracket, Roof Side, LH
61725E	Box, Fuel Inlet
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61759A	Bracket, Roof Side Reinforcement
61759C	Bracket, Roof Side Reinforcement
62478	Patch, Center Pillar, RH
62479	Patch, Center Pillar, LH
74623A	Reinforcement, RR Assist Grip
74624A	Reinforcement, Rear Assist Grip, LH
75595E	Cover, Roof Drip Side Moulding End, Front RH
75596E	Cover, Roof Drip Side Moulding End, Front LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
