Toyota Liteace

2022-05 → present · chassis S403 · catalogue 641230 · General

Supported model Data version 2022-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

20 part groups · 2 illustrations

Illustrations

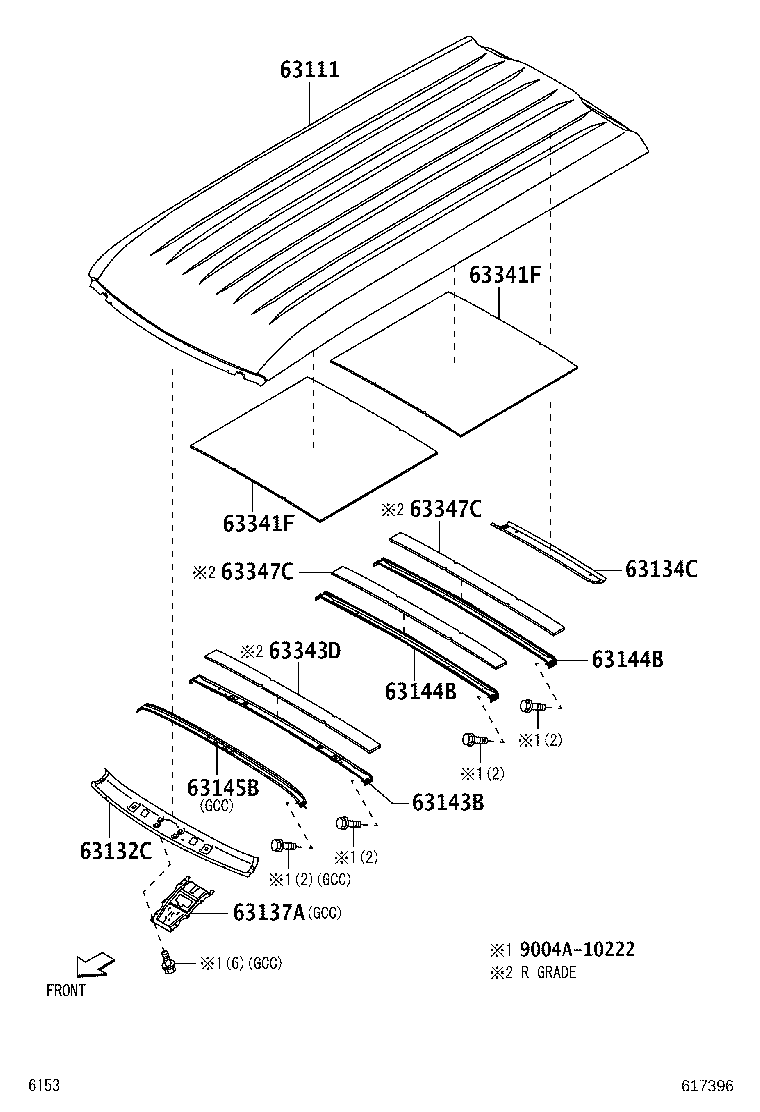

Figure 617395A 617395A 2022-05 → — Figure 617396 617396 2022-05 → —

Part groups

PNCDescription
58936C Baned, Engine Service Hole Cover Support
63111 Panel, Roof
63132C Panel, Windshield Header, Inner
63134C Frame, Back Door Opening, Inner
63137A Bracket, Dome Lamp, NO.1
63143B Reinforcement, Roof Panel, NO.3
63144B Reinforcement, Roof Panel, NO.4
63145B Reinforcement, Windshield Header Panel
63341F Pad, Roof Silencer, NO.1
63343D Pad, Roof Silencer, NO.3
63347C Pad, Roof Silencer, NO.7
64111A Panel, Back
64124 Panel, Back Corner, Inside, RH
64125 Panel, Back Corner, Inside, LH
64150A Cushion, Rubber(FOR BACK FRAME)
64153C Reinforcement, Back Frame
64175E Patch, Rear Mounting, RH
64176A Patch, Rear Mounting, LH
64811 Glass, Back Window
64831 Weatherstrip, Back Window Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
