Toyota Liteace
2022-05 → present · chassis S403 · catalogue 641230 · General
Supported model
Data version 2022-04

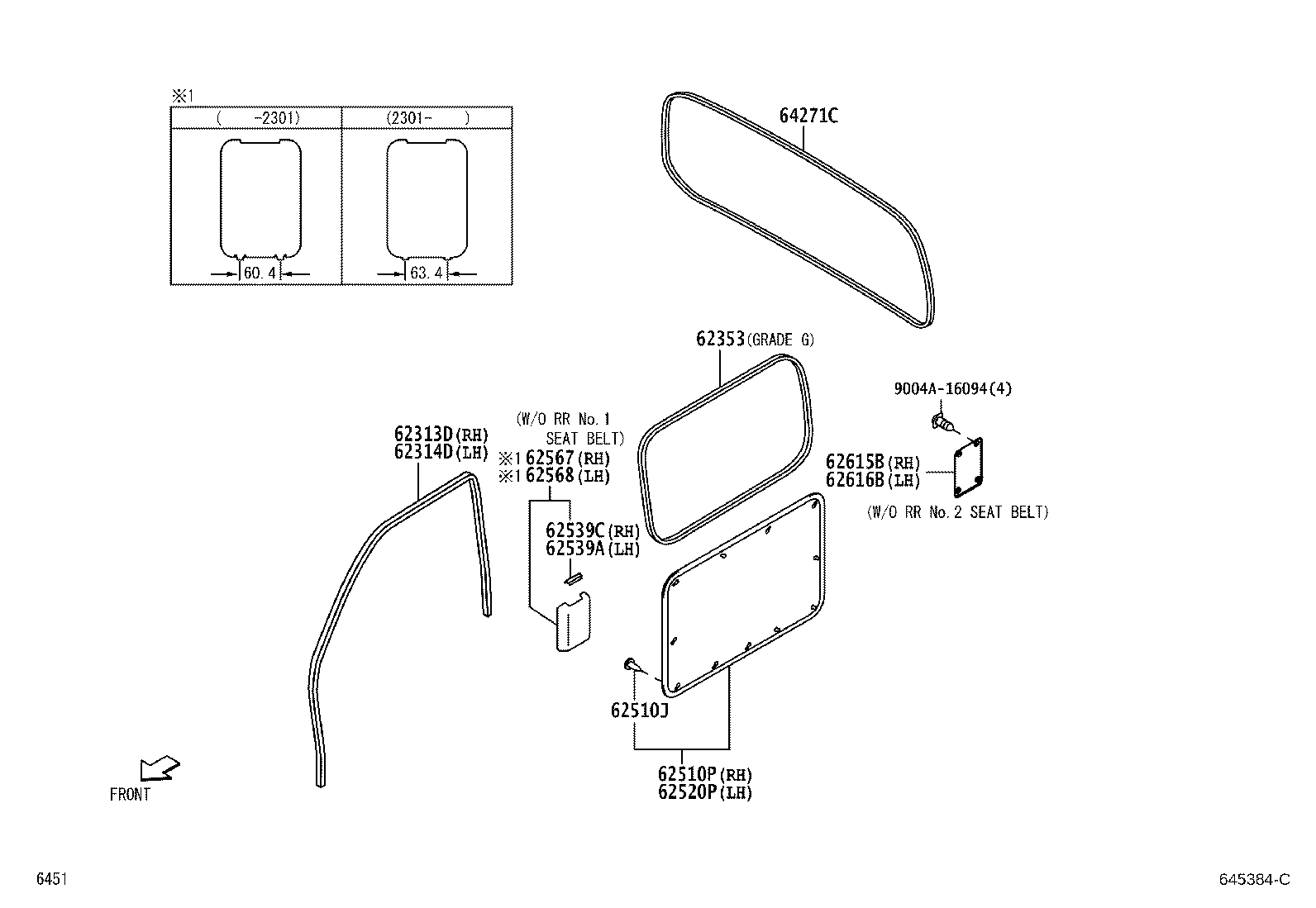

Inside Trim Board
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62353 | Trim, Quarter Window Inside, NO.1 |
| 62510J | Retainer, Quarter Trim |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62539A | Cover, Quarter Trim Upper Belt Hole |
| 62539C | Cover, Quarter Trim Upper Belt Hole, RH |
| 62567 | Cover, Quarter Trim, Rear Lower RH |
| 62568 | Cover, Quarter Trim, Rear Lower LH |
| 62615B | Cover, Quarter Wheel House, Inner RH |
| 62616B | Cover, Quarter Wheel House, Inner LH |
| 64271C | Trim, Back Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
