Toyota Liteace
2022-05 → present · chassis S403 · catalogue 641230 · General
Supported model
Data version 2022-04
Rear Door Panel & Glass

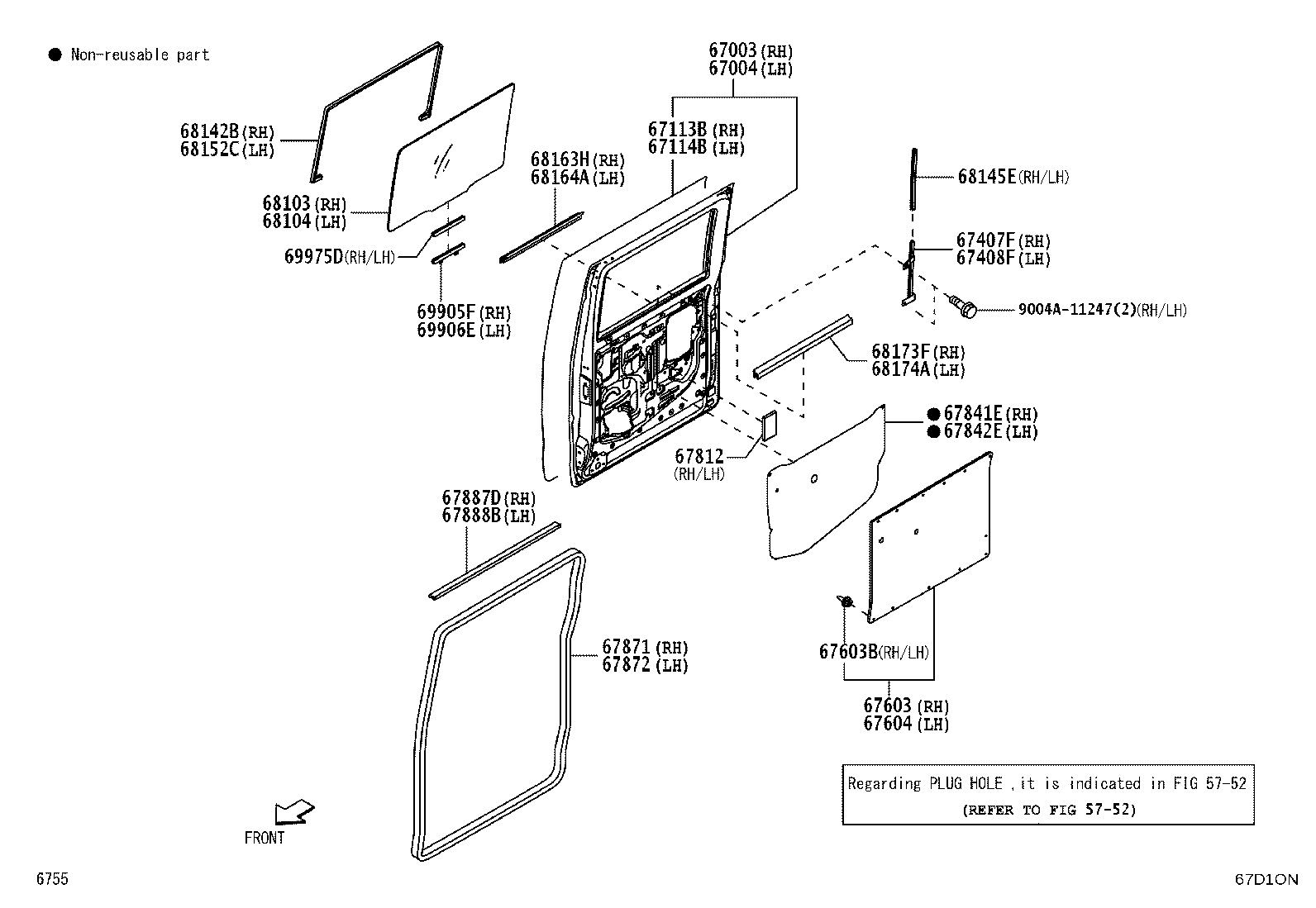

31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113B | Panel, Access Panel, Outside RH |
| 67114B | Panel, Access Panel, Outside LH |
| 67407F | Frame Sub-assy, Rear Door Window, Rear Lower RH |
| 67408F | Frame Sub-assy, Rear Door Window, Rear Lower LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67812 | Pad, Rear Door Silencer |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67859B | Cover, Rear Door Lower Hole |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 67887D | Weatherstrip, Slide Door, NO.2 RH |
| 67888B | Weatherstrip, Slide Door, NO.2 LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142B | Run, Rear Door Window, RH |
| 68145E | Run, Rear Door Glass, Lower Rear |
| 68152C | Run, Rear Door Glass, LH |
| 68163H | Weatherstrip, Rear Door Glass, Outer RH |
| 68164A | Weatherstrip, Rear Door Glass, Outer LH |
| 68173F | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 69417D | Cover, Slide Door Open Stop, RH |
| 69427B | Cover, Slide Door Open Stop, LH |
| 69905F | Channel Sub-assy, Rear Door Glass, RH |
| 69906E | Channel Sub-assy, Rear Door Glass, LH |
| 69975D | Filler, Rear Door Glass Channal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
