Toyota Liteace
2022-05 → present · chassis S403 · catalogue 641230 · General
Supported model
Data version 2022-04

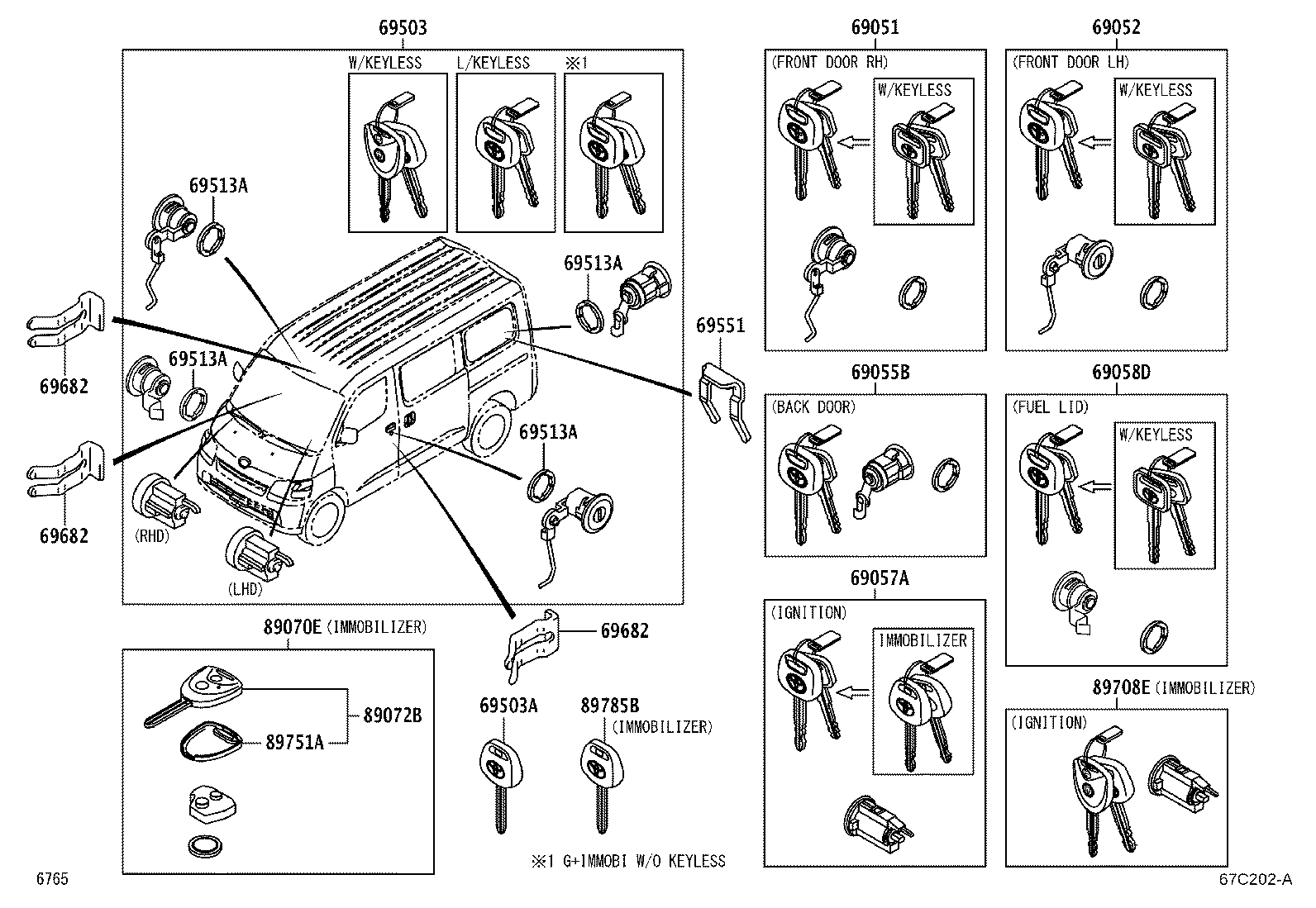

Lock Cylinder Set
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69055B | Cylinder & Key Set, Back Door Lock |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69058D | Cylinder & Key Set, Fuel Tank Filler |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69513A | Pad, Door Cylinder |
| 69551 | Retainer, Back Door Lock Cylinder |
| 69682 | Retainer, Lock Cylinder |
| 89070E | Transmitter Assy, Door Control |
| 89072B | Housing Set, Door Control Transmitter (FOR SMART KEY) |
| 89708E | Cylinder Set, Lock W/Transmitter |
| 89751A | Cover, Transmitter Housing |
| 89785B | Transmitter, Transponder Key Master |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
