Toyota Liteace

2022-05 → present · chassis S403 · catalogue 641230 · General

Supported model Data version 2022-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

150 part groups · 14 illustrations

Illustrations

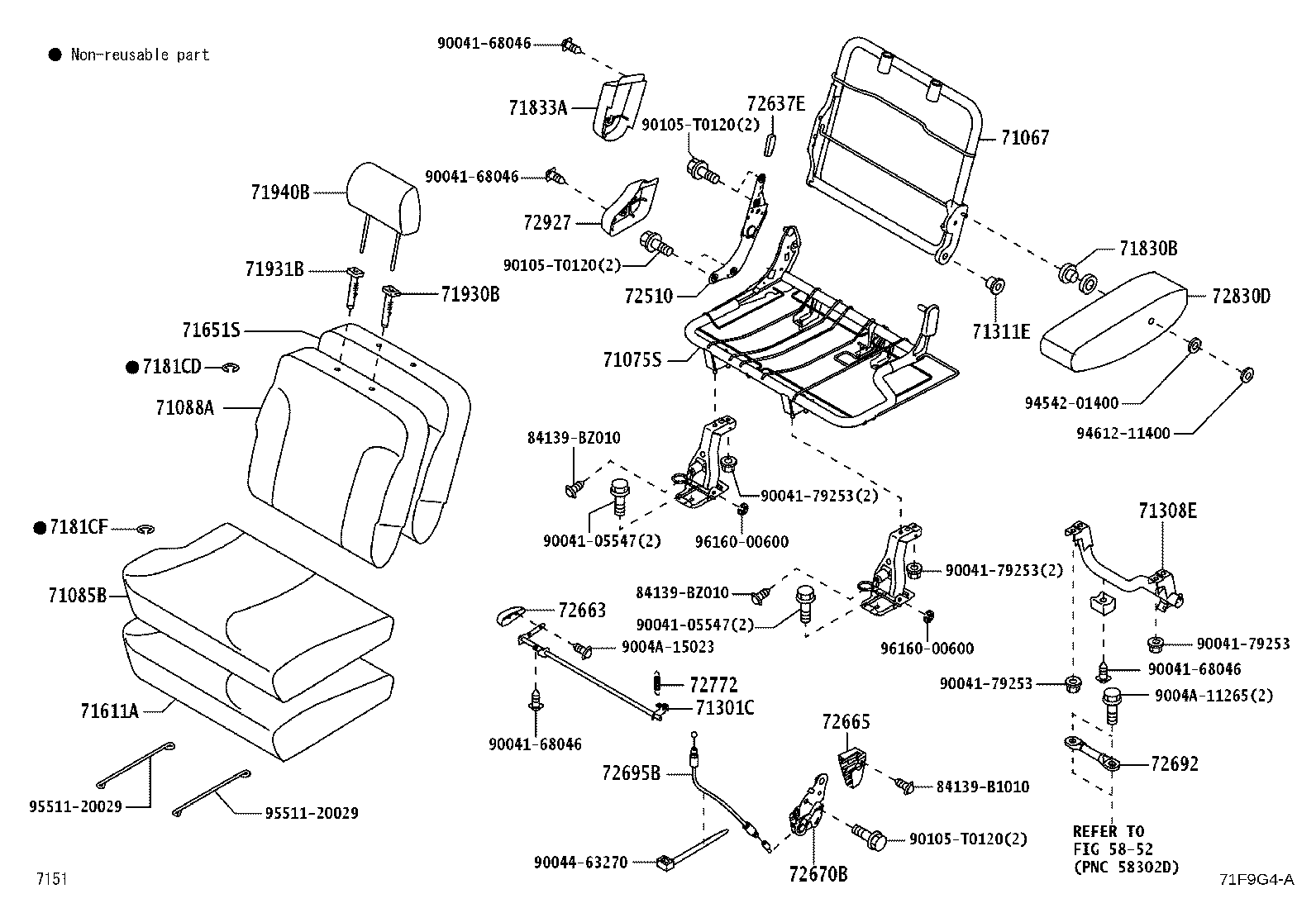

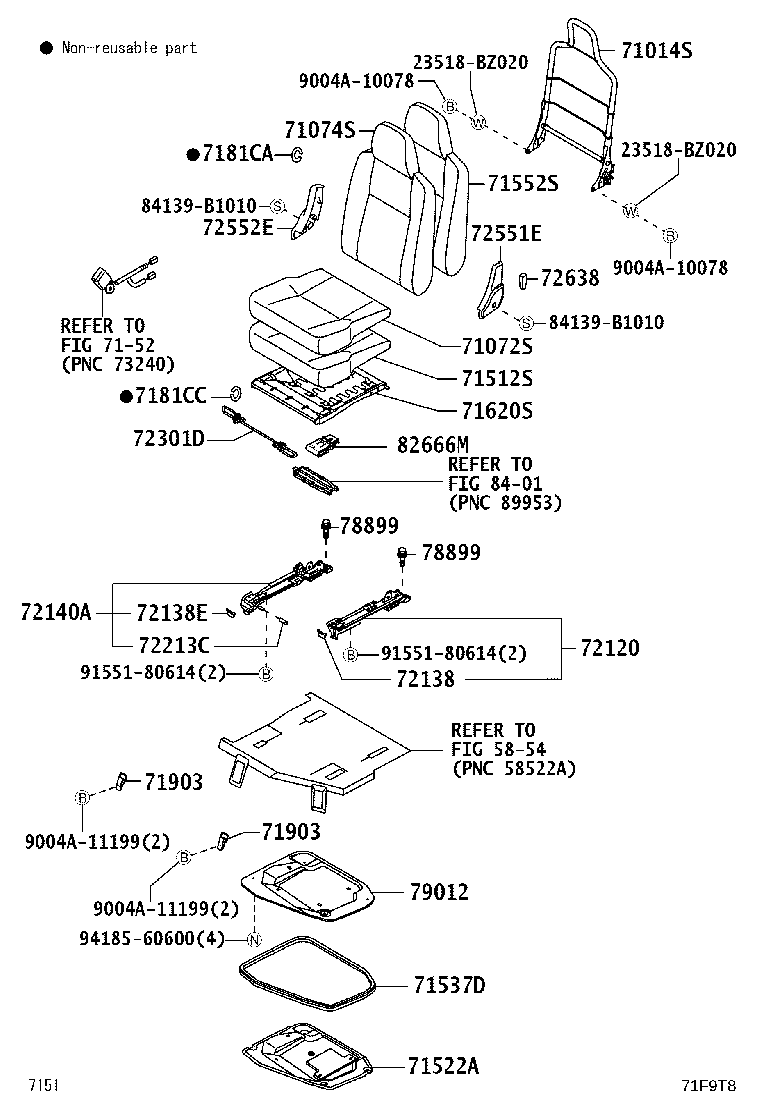

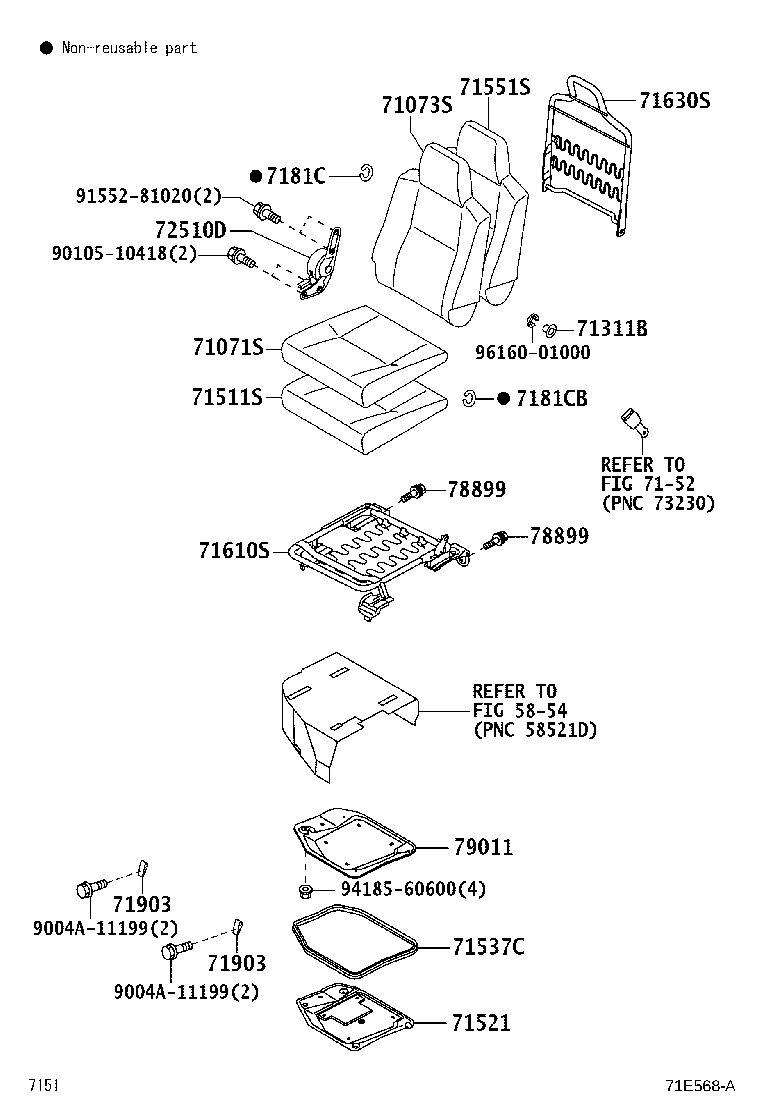

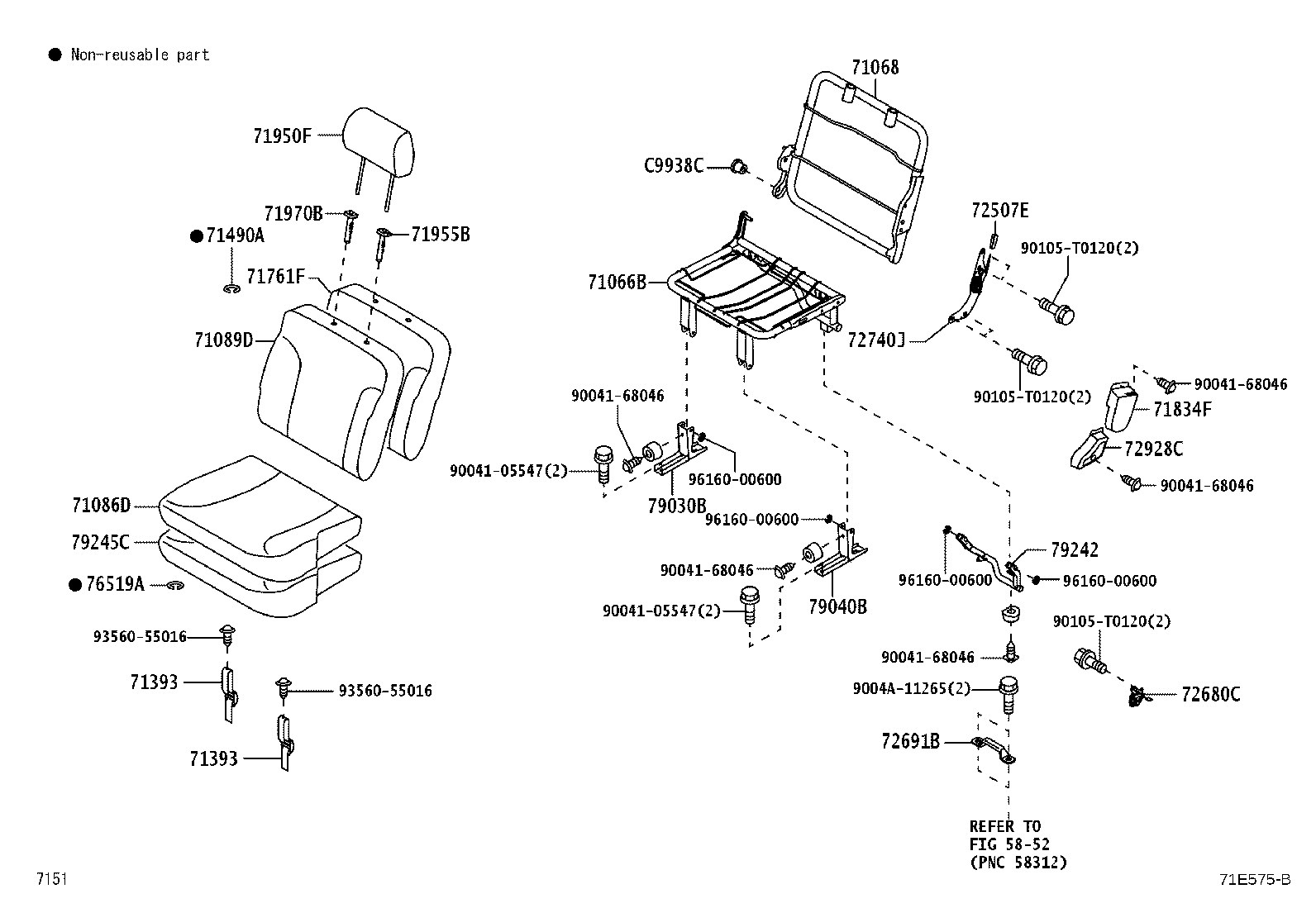

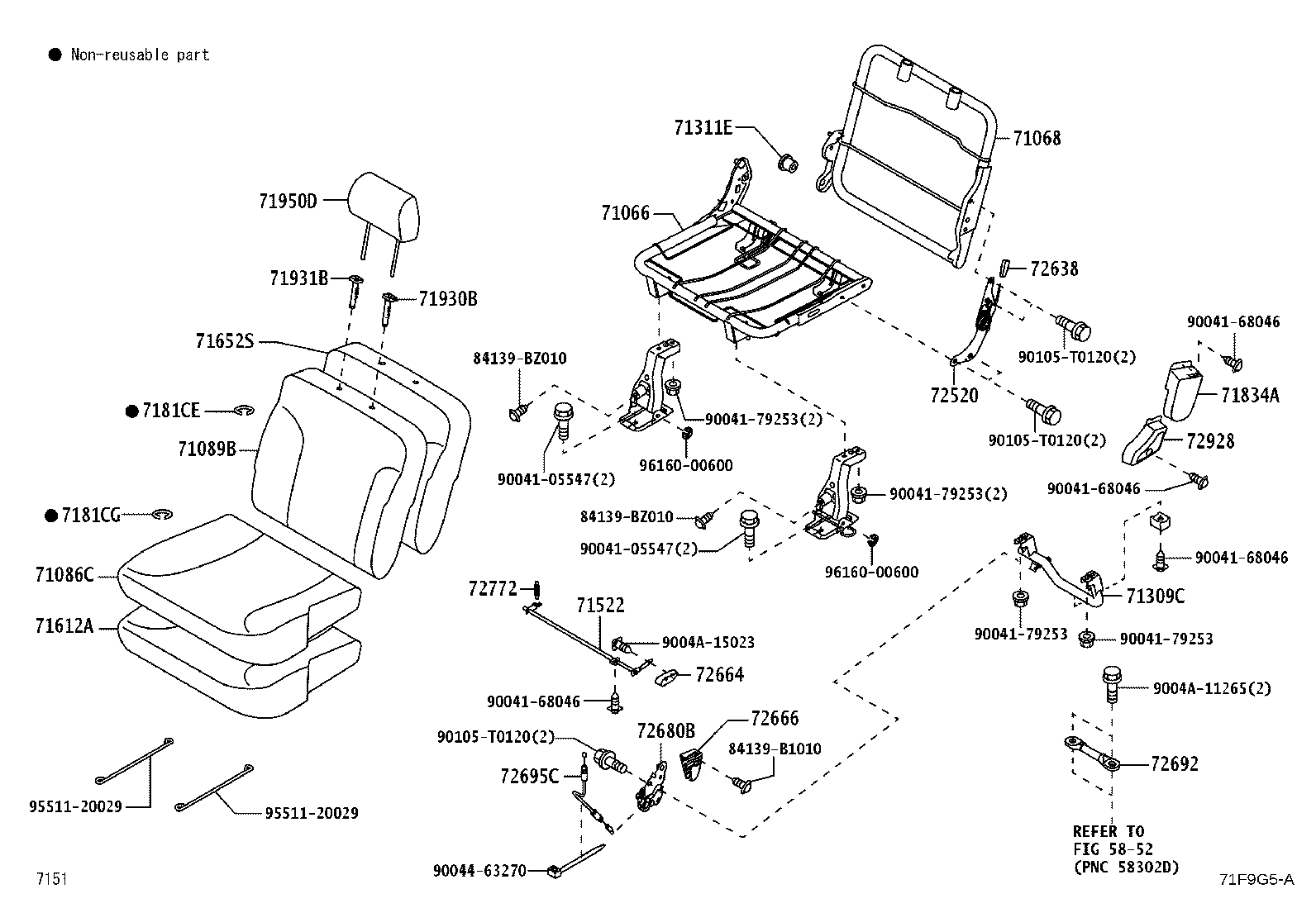

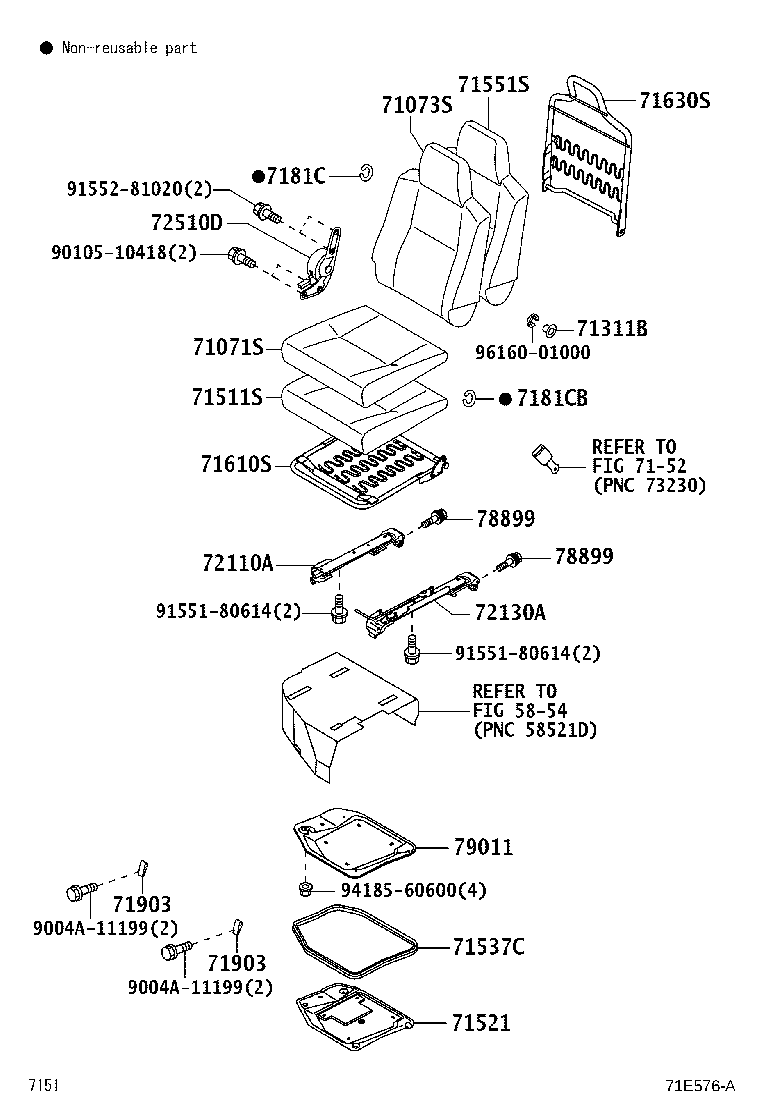

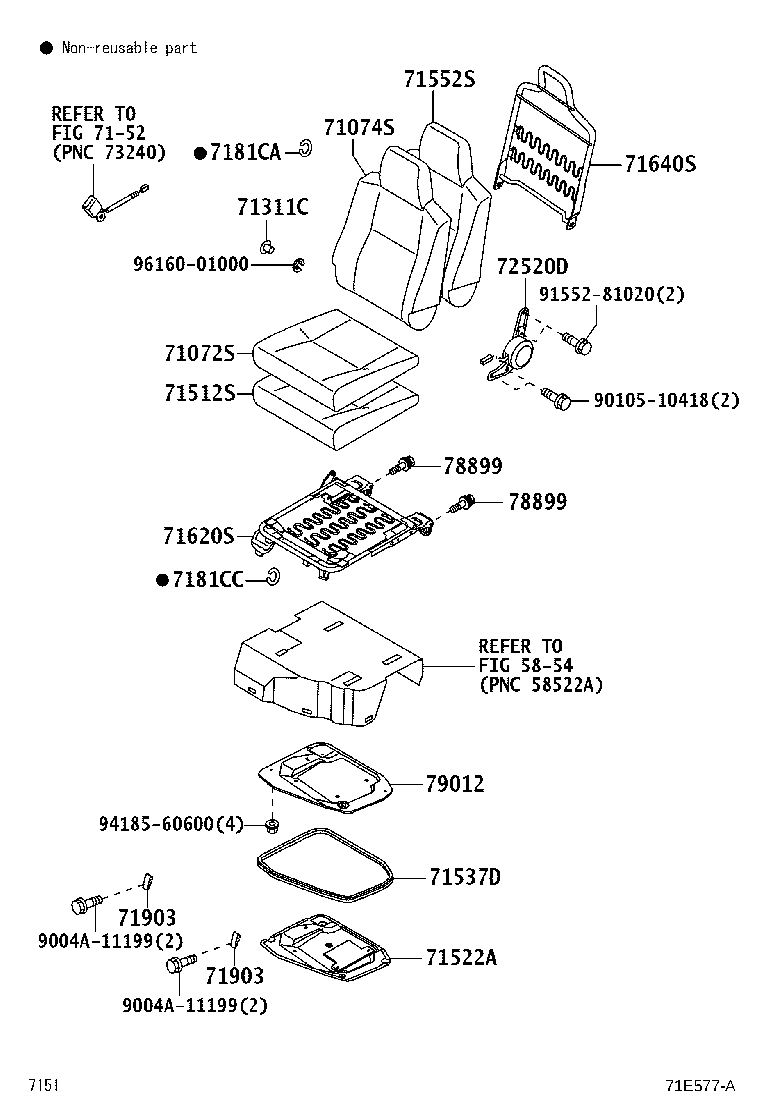

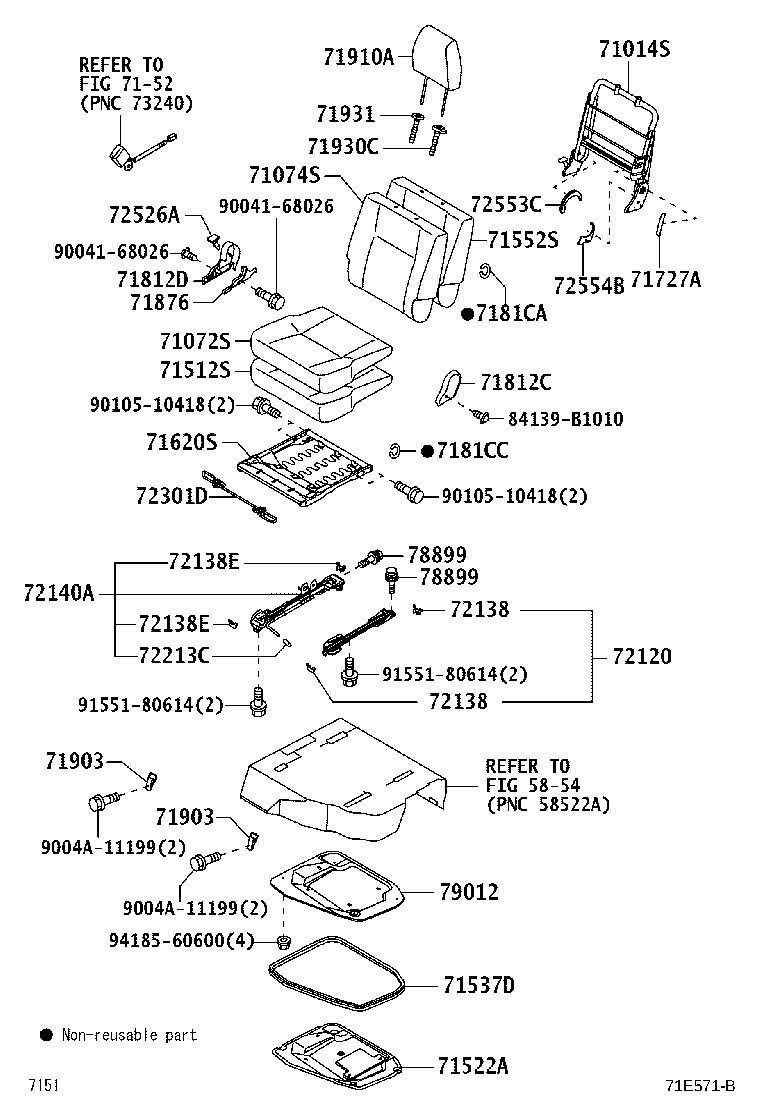

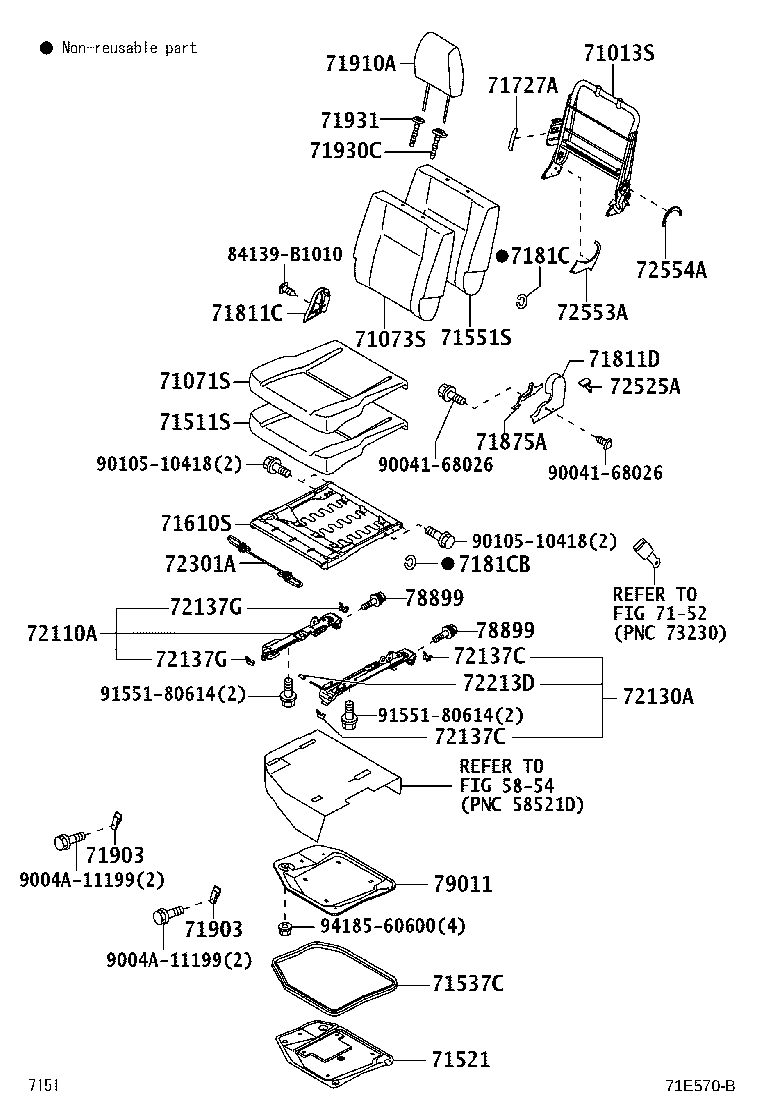

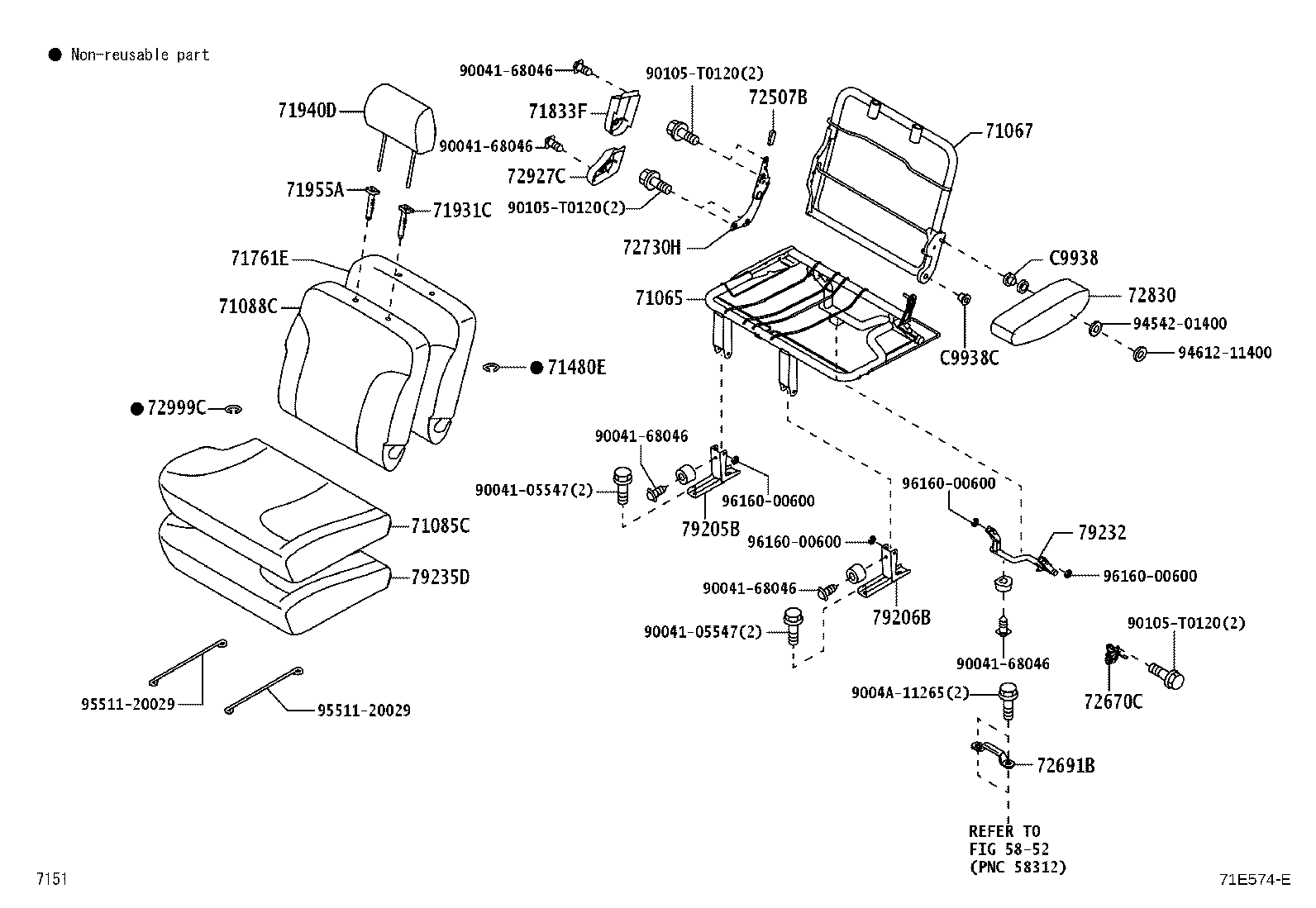

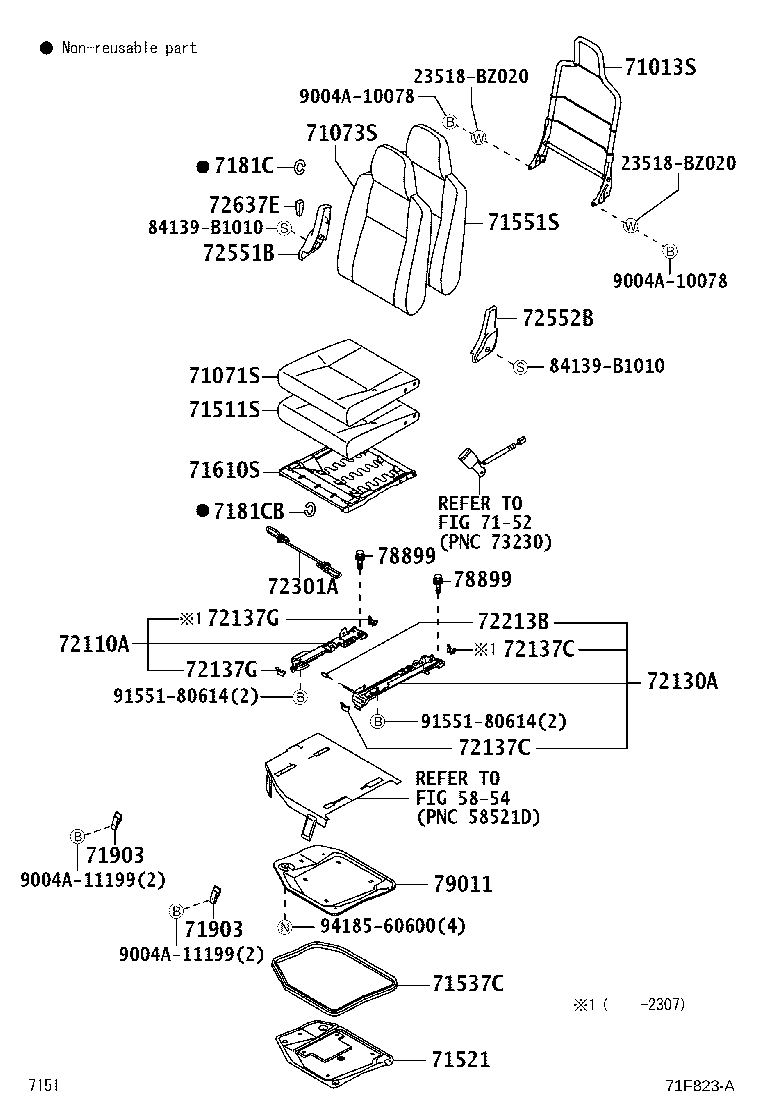

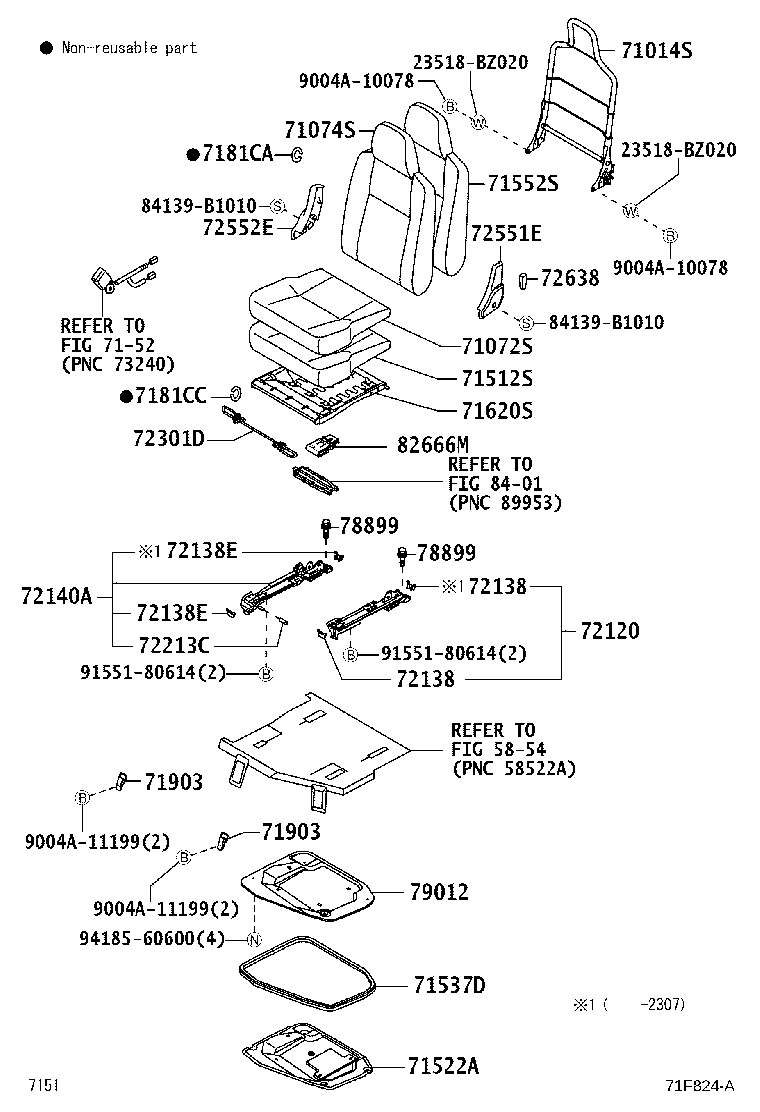

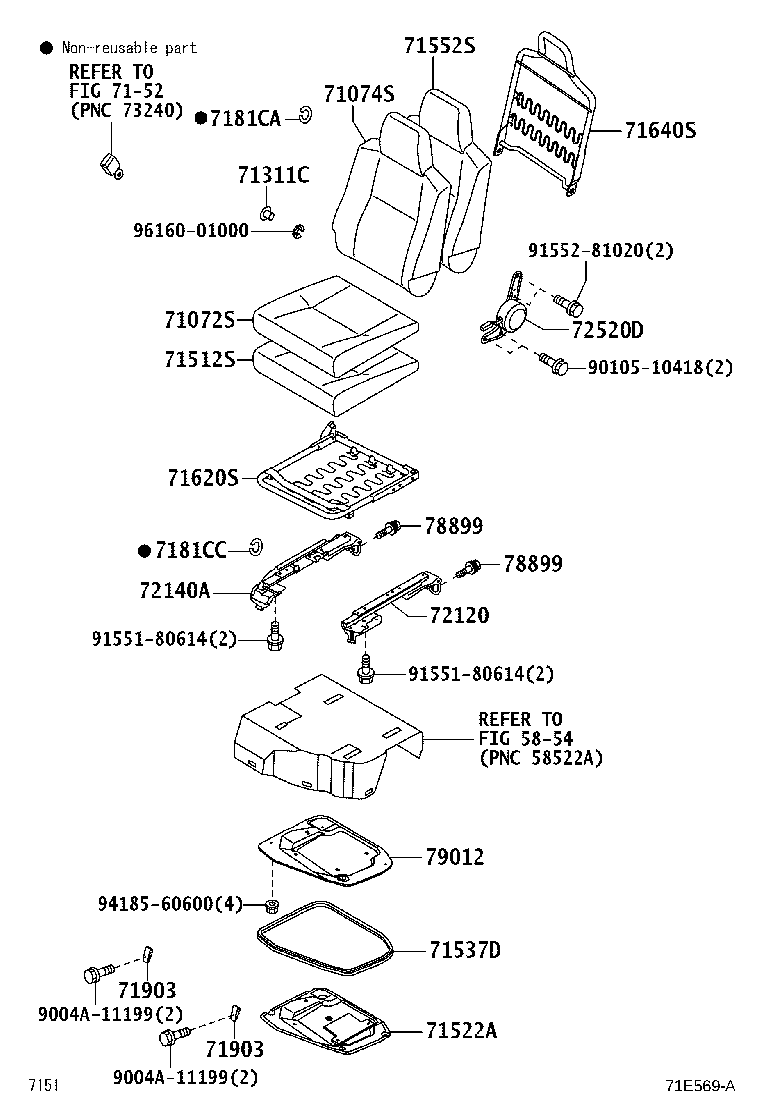

Figure 71F9T7 71F9T7 2022-05 → — Figure 71F9T8 71F9T8 2022-05 → — Figure 71F823A 71F823A 2022-05 → — Figure 71F824A 71F824A 2022-05 → — Figure 71E576A 71E576A 2022-05 → — Figure 71E577A 71E577A 2022-05 → — Figure 71E568A 71E568A 2022-05 → — Figure 71E569A 71E569A 2022-05 → — Figure 71E570B 71E570B 2022-05 → — Figure 71E571B 71E571B 2022-05 → — Figure 71F9G4A 71F9G4A 2022-05 → — Figure 71F9G5A 71F9G5A 2022-05 → — Figure 71E574E 71E574E 2022-05 → — Figure 71E575B 71E575B 2022-05 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71065 Frame Sub-assy, Rear Side Seat Cushion, RH
71066 Frame Sub-assy, Rear Side Seat Cushion, LH
71066B Frame Sub-assy, Rear NO.2 Side Seat Cushion LH
71067 Frame Sub-assy, Rear Side Seatback, RH
71068 Frame Sub-assy, Rear Side Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71085B Cover Sub-assy, Rear Side Seat Cushion, RH
71085C Cover Sub-assy, Rear Side Seat Cushion, NO.2 RH
71086C Cover Sub-assy, Rear Side Seat Cushion, LH
71086D Cover Sub-assy, Rear NO.2 Side Seat Cushion, LH
71088A Cover Sub-assy, Rear Side Seatback, RH
71088C Cover Sub-assy, Rear Side Seatback, NO.2 RH
71089B Cover Sub-assy, Rear Side Seatback, LH
71089D Cover Sub-assy, Rear NO.2 Side Seatback, LH
71301C Link Sub-assy, Rear Seat Cushion
71308E Leg Sub-assy, Rear Seat, RH
71309C Leg Sub-assy, Rear Seat, Rear LH
71311B Bush (FOR FRONT SEAT HINGE PIN)
71311C Bush (FOR FRONT SEAT HINGE PIN)
71311E Bush(FOR REAR SEAT HINGE PIN)
71393 Band, Rear Seat Cushion
71480E Clip, Rear Seatback, RH
71490A Clip, Rear Seatback, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71521 Pad, Front Seat Cushion Silencer, A
71522 Link, Rear Seat
71522A Pad, Front Seat Cushion Silencer, B
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71727A Trim, Seat Corner, NO.1
71761E Pad, Rear NO.2 Side Seatback, RH
71761F Pad, Rear NO.2 Side Seatback, LH
71811C Cover, Reclining Adjuster, RH
71811D Shield, Front Seat Cushion, RH
71812C Cover, Reclining Adjuster, LH
71812D Shield, Front Seat Cushion, LH
7181C Ring, Hog, Small (FOR FRONT SEATBACK)
7181CA Ring, Hog, Small (FOR FRONT SEATBACK)
7181CB Ring, Hog, Small (FOR FRONT SEAT CUSHION)
7181CC Ring, Hog, Small (FOR FRONT SEAT CUSHION)
7181CD Ring, Hog, Small (FOR REAR SEATBACK)
7181CE Ring, Hog, Small (FOR REAR SEATBACK)
7181CF Ring, Hog, Small (FOR REAR SEAT CUSHION)
7181CG Ring, Hog, Small (FOR REAR SEAT CUSHION)
71830B Bush(FOR REAR SEAT ARMREST)
71833A Cover, Rear Seat Reclining, NO.1 RH
71833F Cover, Rear NO.2 Seat Reclining, Outer RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71834F Cover, Rear NO.2 Seat Reclining, Outer LH
71875A Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71903 Catch Sub-assy, Seat Cushion, Front
71910A Headrest Assy, Front Seat
71930B Support Assy, Rear Seat Headrest
71930C Support, Front Seat Headrest, LH
71931 Support, Front Seat Headrest
71931B Support Assy, Rear NO.1 Seat Headrest
71931C Support Assy, Rear NO.2 Seat Headrest
71940B Headrest Assy, Rear Seat, RH
71940D Headrest Assy, Rear NO.2 Seat, RH
71950D Headrest Assy, Rear Seat, LH
71950F Headrest Assy, Rear NO.2 Seat, LH
71955A Support, Rear Seat Headrest
71955B Support, Rear Seat Headrest
71970B Support Assy, Rear Seat Headrest, RH
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72130A Track Assy, Front Seat, Inner RH
72137C Cover, Seat Track Inner, RH
72137G Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72138E Cover, Seat Track, Inner LH
72140A Track Assy, Front Seat,Inner LH
72213B Knob, Seat Track Adjusting Handle, RH
72213C Knob, Seat Track Adjusting Handle, LH
72213D Knob, Seat Track Adjusting Handle
72301A Wire Sub-assy, Seat Track Equalizing, RH
72301D Wire Sub-assy, Seat Track Equalizing, LH
72507B Handle Sub-assy, Reclining Release, RH
72507E Handle Sub-assy, Reclining Release, NO.1
72510 Adjuster Assy, Reclining Seatback, RH
72510D Adjuster Assy, Reclining Seat, Outer RH
72520 Adjuster Assy, Reclining Seatback, LH
72520D Adjuster Assy, Reclining Seat, Outer LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72551B Cover, Reclining Hinge, RH
72551E Cover, Reclining Hinge, RH
72552B Cover, Reclining Hinge, LH
72552E Cover, Reclining Hinge, LH
72553A Protector, Reclining Cover, RH
72553C Protector, Reclining Cover, RH
72554A Protector, Reclining Cover, LH
72554B Protector, Reclining Cover, LH
72637E Handle, Rear Seat Lock, RH
72638 Handle, Rear Seat Lock, LH
72663 Lever, Rear Seat Lock Control, NO.1
72664 Lever, Rear Seat Lock Control, LH
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72670B Lock Assy, Rear Seat Cushion, RH
72670C Lock Assy, Rear Seat Cushion, NO.2 RH
72680B Lock Assy, Rear Seat Cushion, LH
72680C Lock Assy, Rear Seat Cushion, NO.2 LH
72691B Striker, Rear Seat Cushion Lock
72692 Striker, Rear Seat Cushion Lock, NO.2
72695B Cable, Rear Seat Lock Control, RH
72695C Cable, Rear Seat Lock Control, LH
72730H Adjuster Assy, Rear Seat Reclining, RH
72740J Adjuster Assy, Rear Seat Reclining, LH
72772 Spring, Rear Seat Turn NO.2
72830 Armrest Assy, Rear Seat, Center
72830D Armrest Assy, Rear Seat, RH
72927 Cover, Rear Seat Cushion Under, RH
72927C Cover, Rear Seat Cushion Under RH
72928 Cover, Rear Seat Cushion Under, LH
72928C Cover, Rear Seat Cushion Under, LH
72999C Clip, Rear Seat Cushion Cover
76519A Clip, Rear Seat Cushion Cover
78899 Bolt, Front Seat
79011 Cover Sub-assy, NO.1 Seat Cushion, RH
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79030B Leg Assy, Rear NO.2 Seat, RH
79040B Leg Assy, Rear NO.2 Seat, LH
79205B Leg Sub-assy, NO.2 Seat, RH
79206B Leg Sub-assy, NO.2 Seat, LH
79232 Leg, Rear NO.2 Seat, RH
79235D Pad, NO.2 Seat Cushion, RH
79242 Leg, Rear NO.2 Seat, LH
79245C Pad, NO.2 Seat Cushion, LH
82666M Holder, Connector
C9938 Bush
C9938C Bush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
