Toyota Liteace
2022-05 → present · chassis S403 · catalogue 641230 · General
Supported model
Data version 2022-04
Caution Plate
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11293C | Label, Tune-up Specification Information |
| 11298B | Label, Emission Control Information |
| 16793E | Label, Cooling Fan Caution |

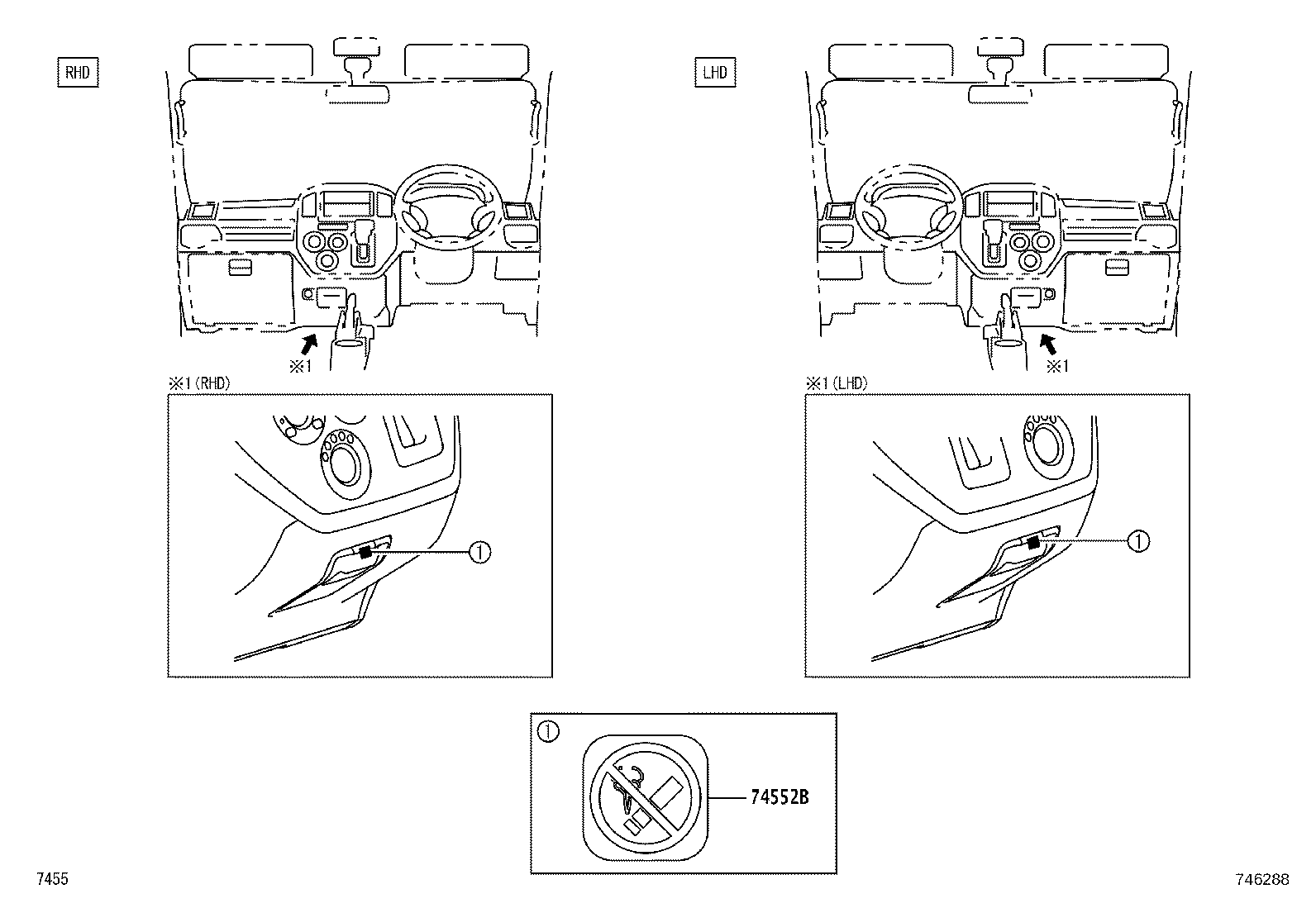

| 74552B | Label, Safety Caution |
| 74579A | Label, Unleaded Fuel Information |

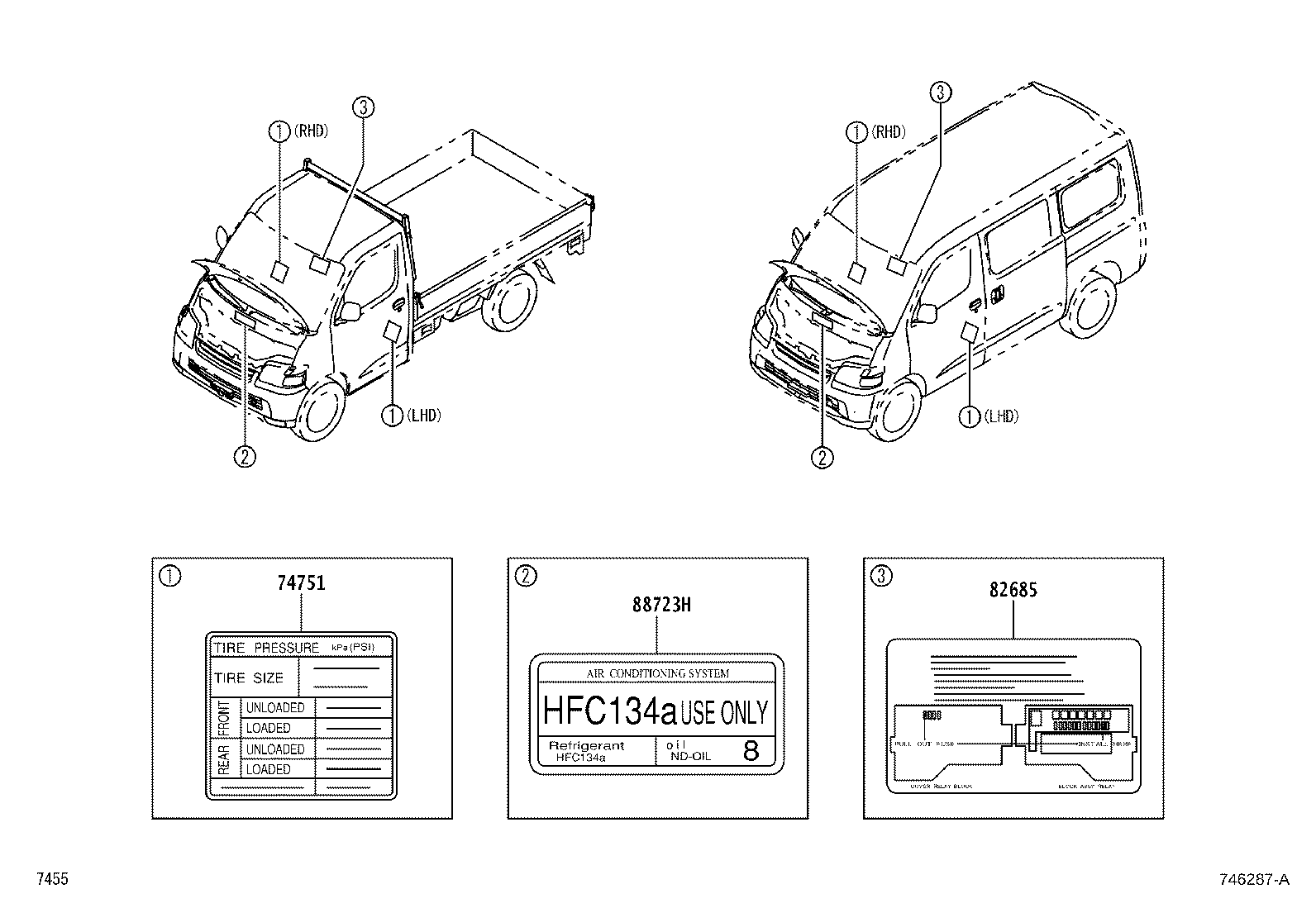

| 74751 | Label, Tire Pressure Information |
| 82685 | Plate, Caution |
| 88723H | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
