Toyota Liteace

2022-05 → present · chassis S403 · catalogue 641230 · General

Supported model Data version 2022-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

4 part groups · 2 illustrations

Illustrations

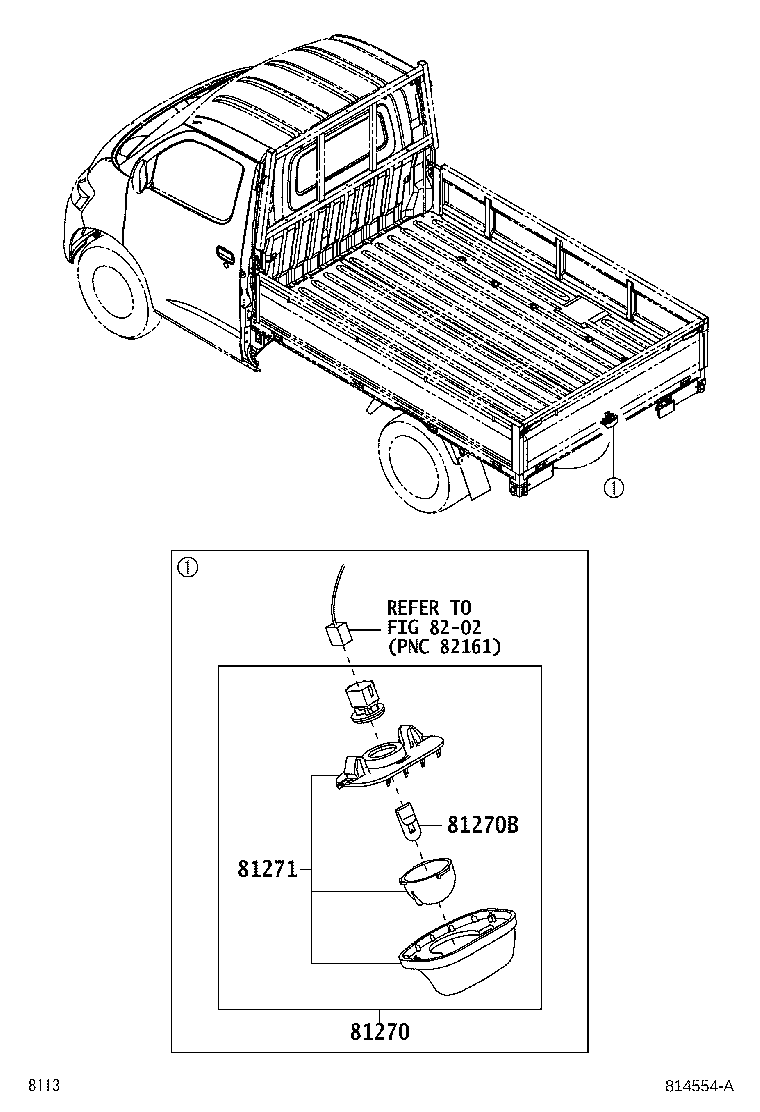

Figure 81A985 81A985 2022-05 → — Figure 814554A 814554A 2022-05 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81275 Socket And Wire, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
