Toyota Liteace

2022-05 → present · chassis S403 · catalogue 641230 · General

Supported model Data version 2022-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

48 part groups · 12 illustrations

Illustrations

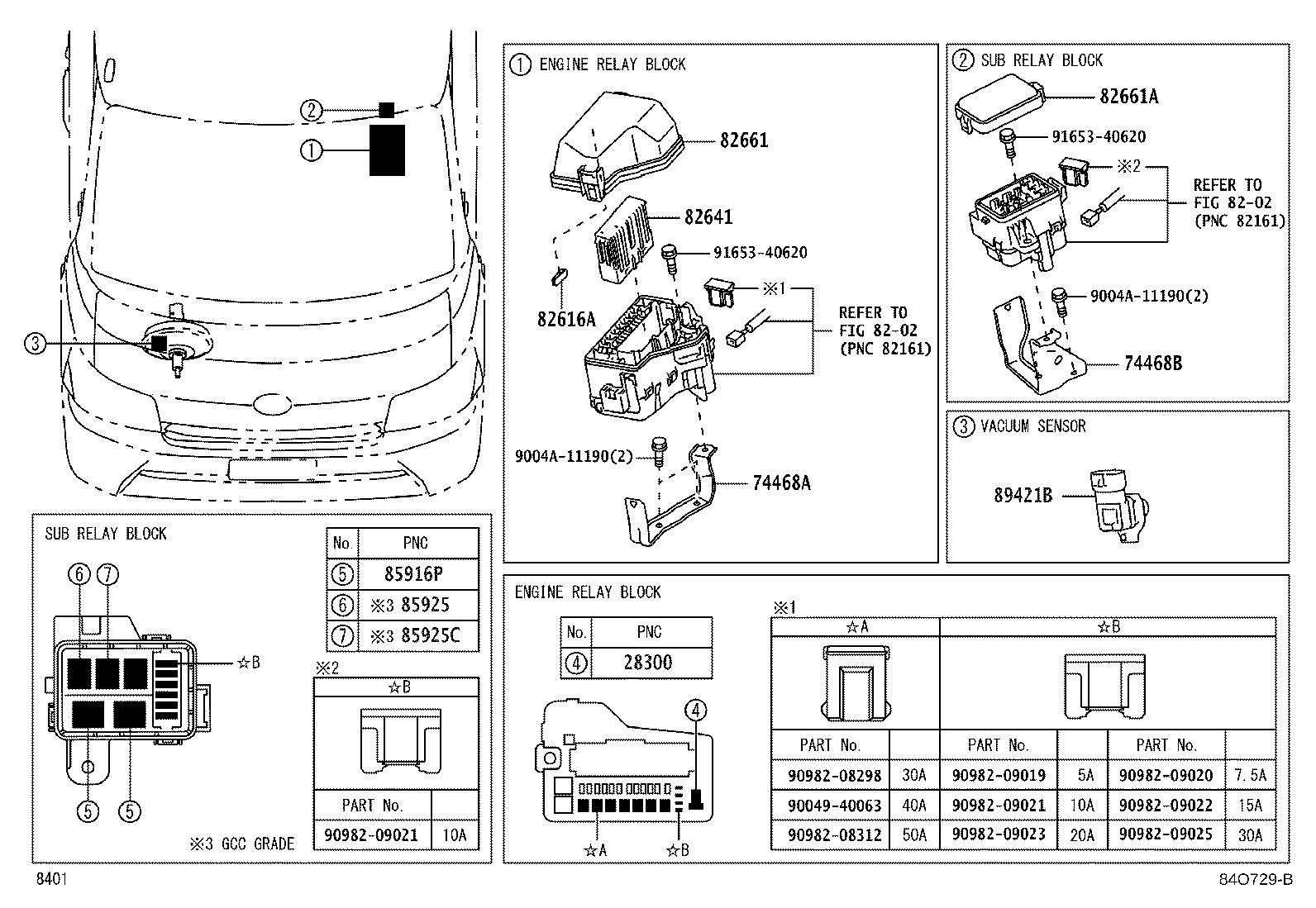

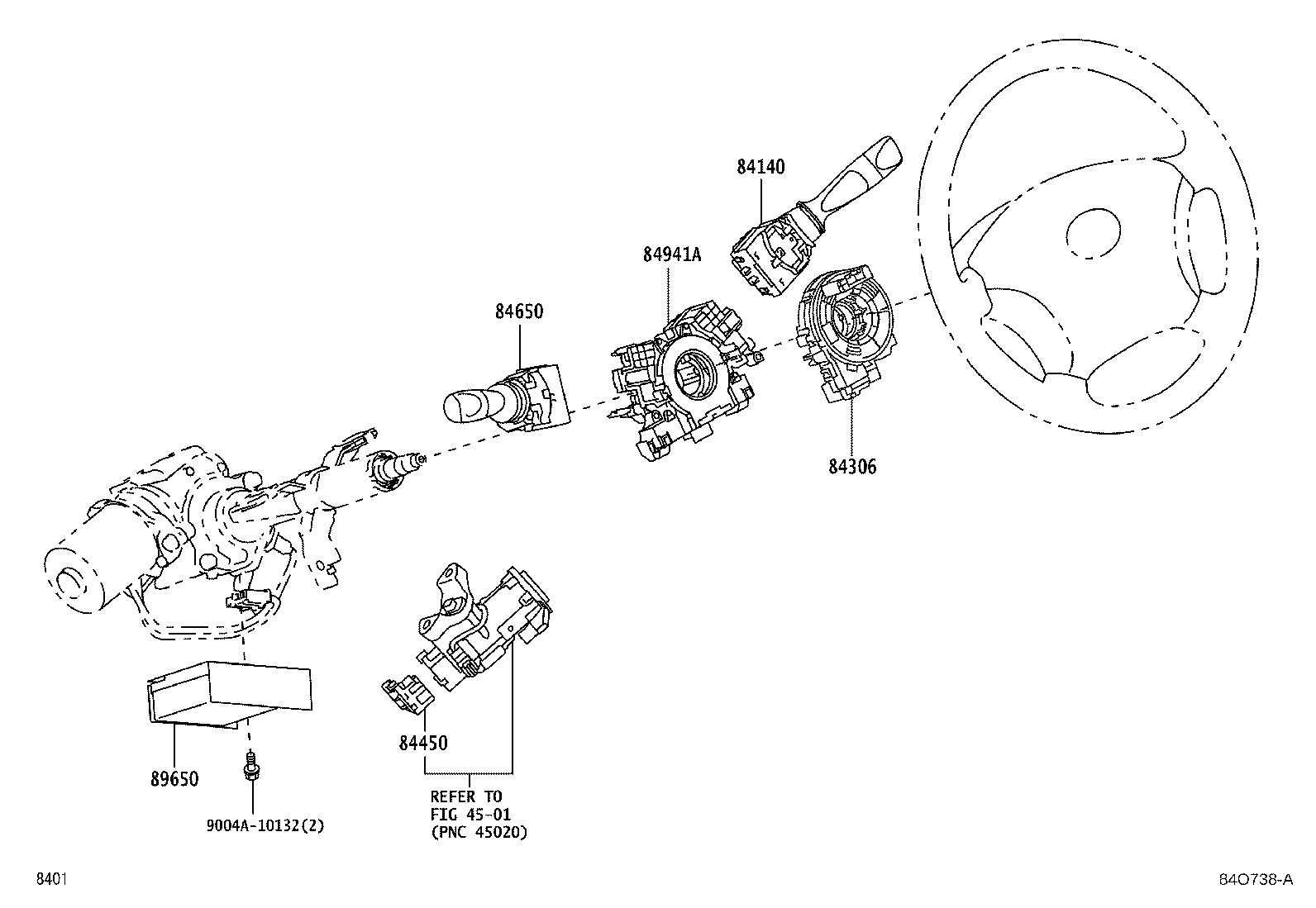

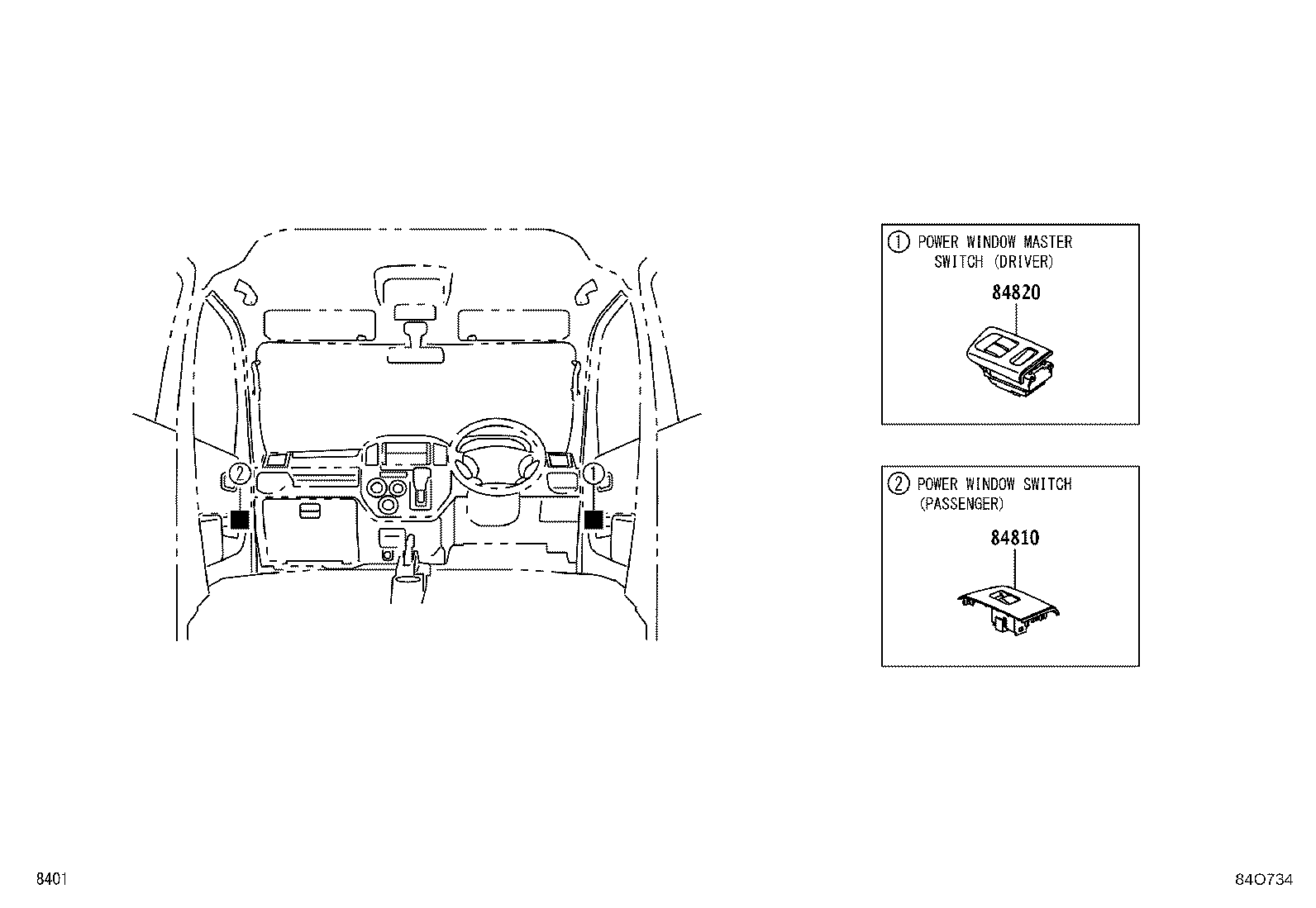

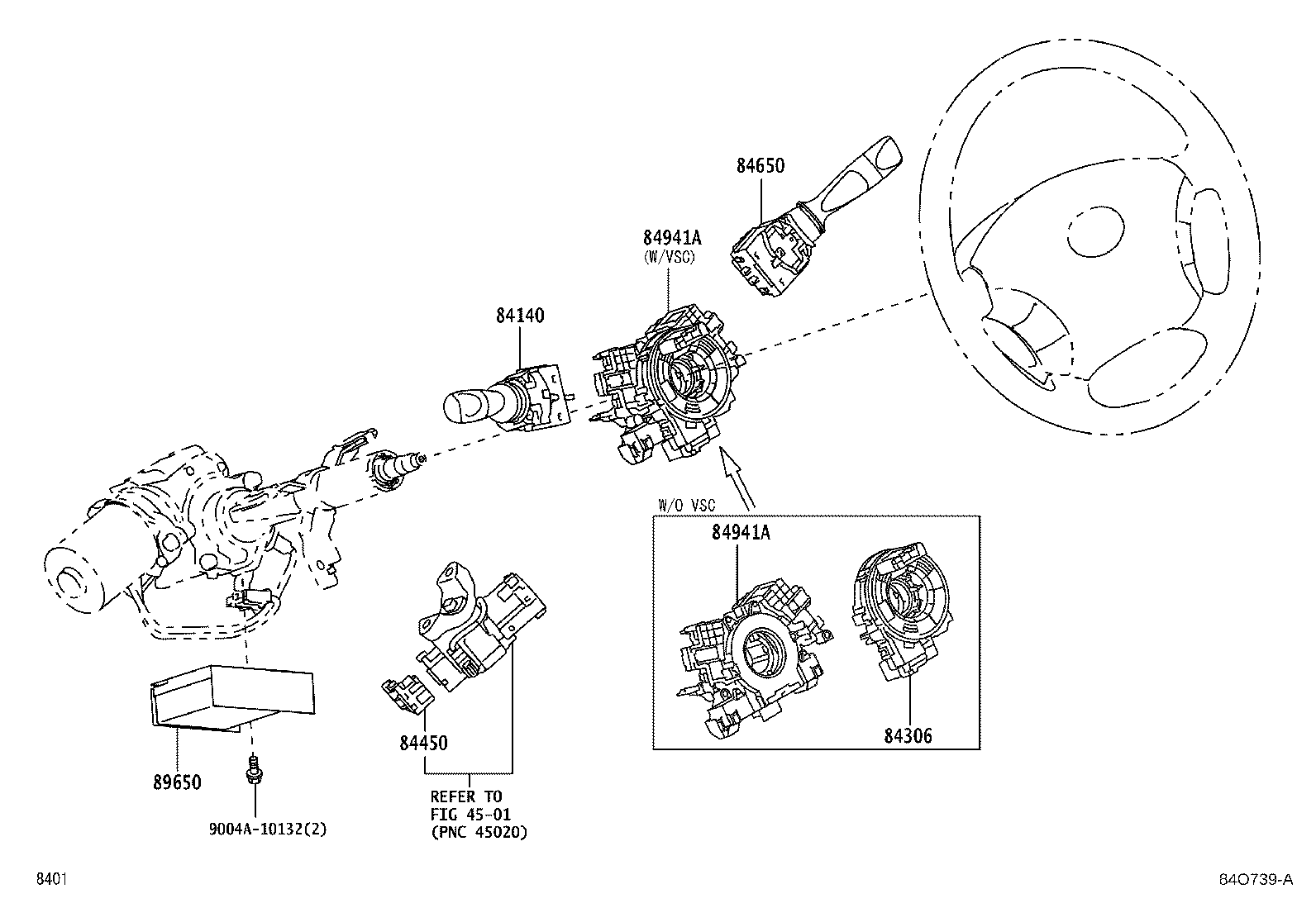

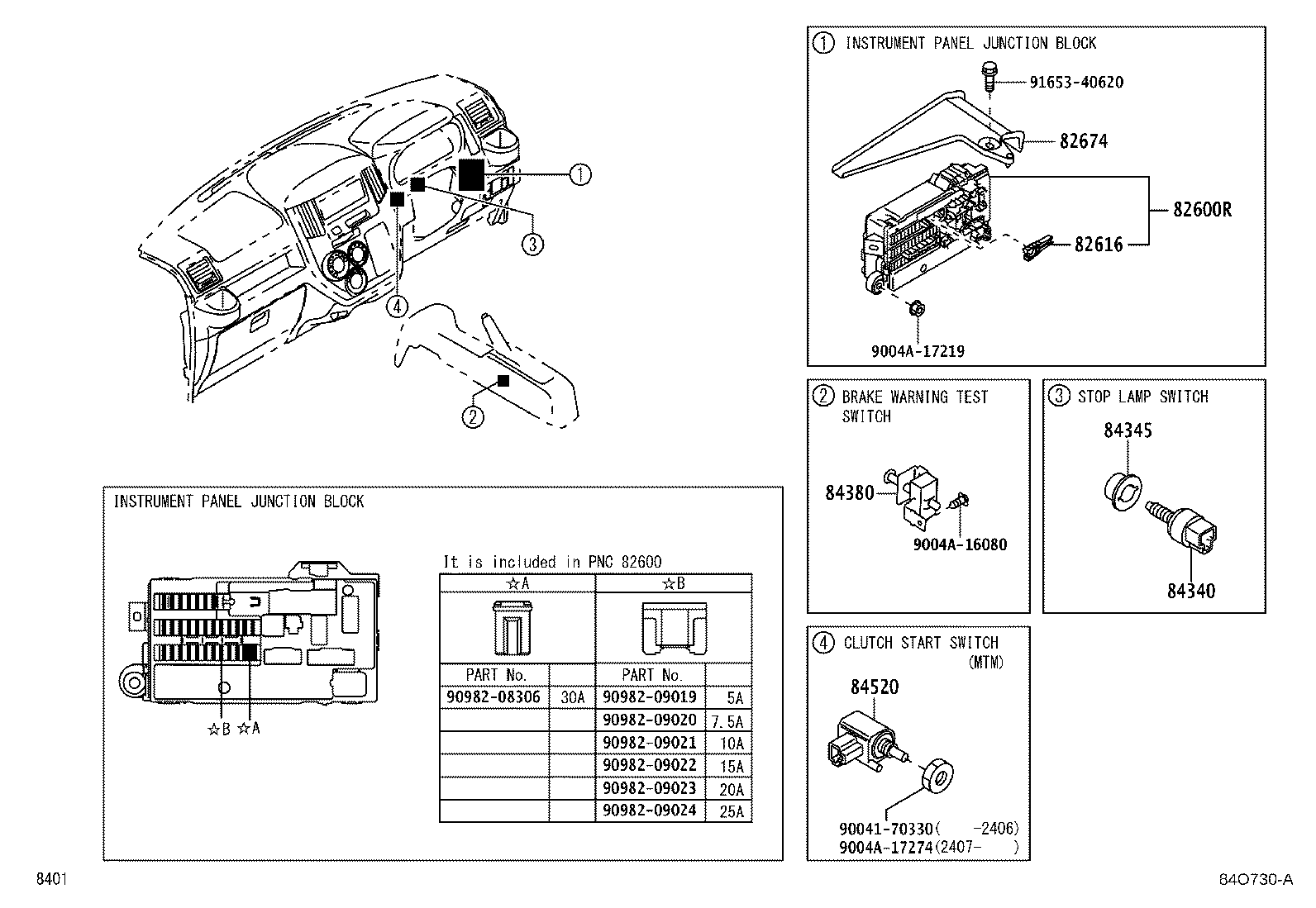

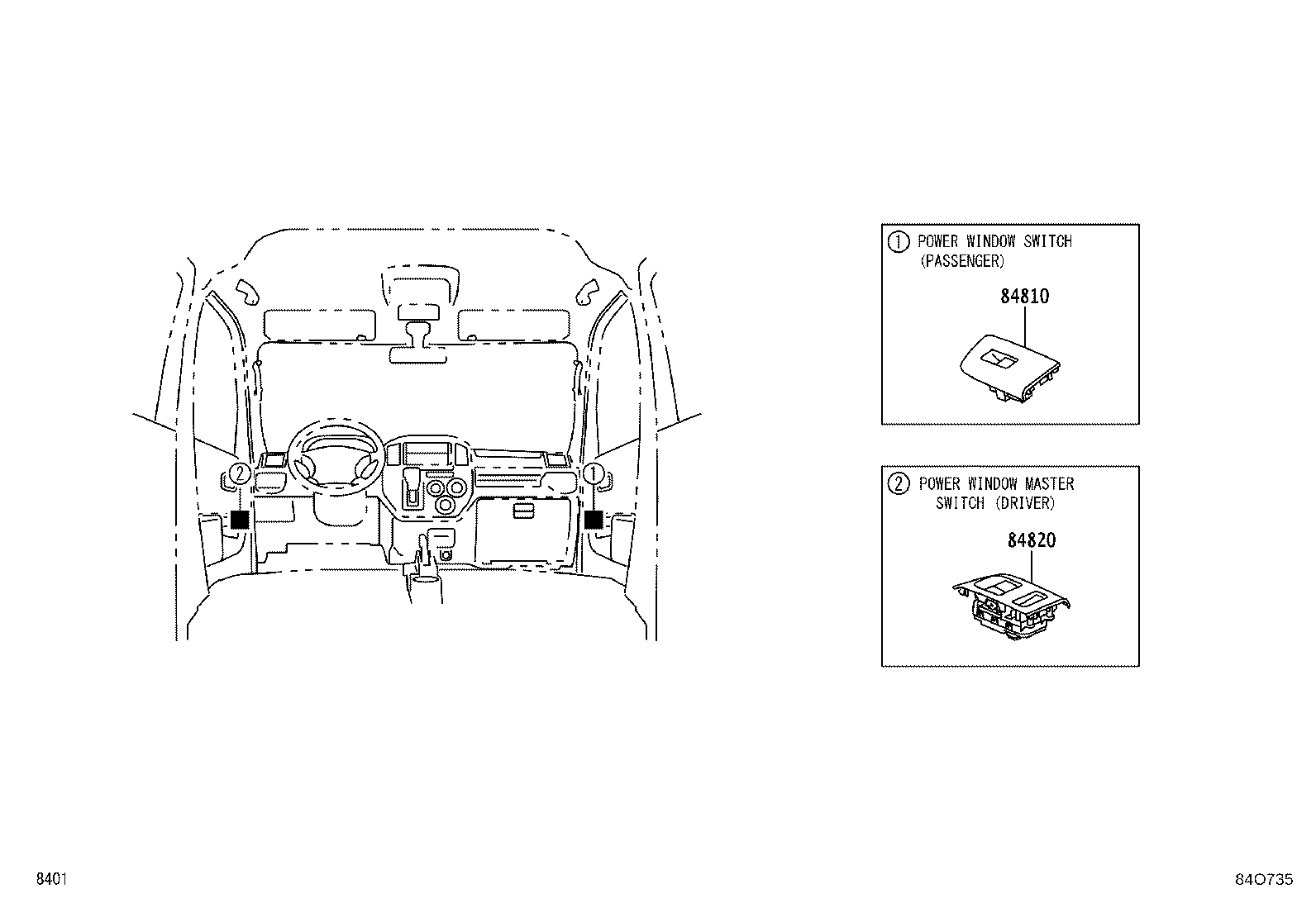

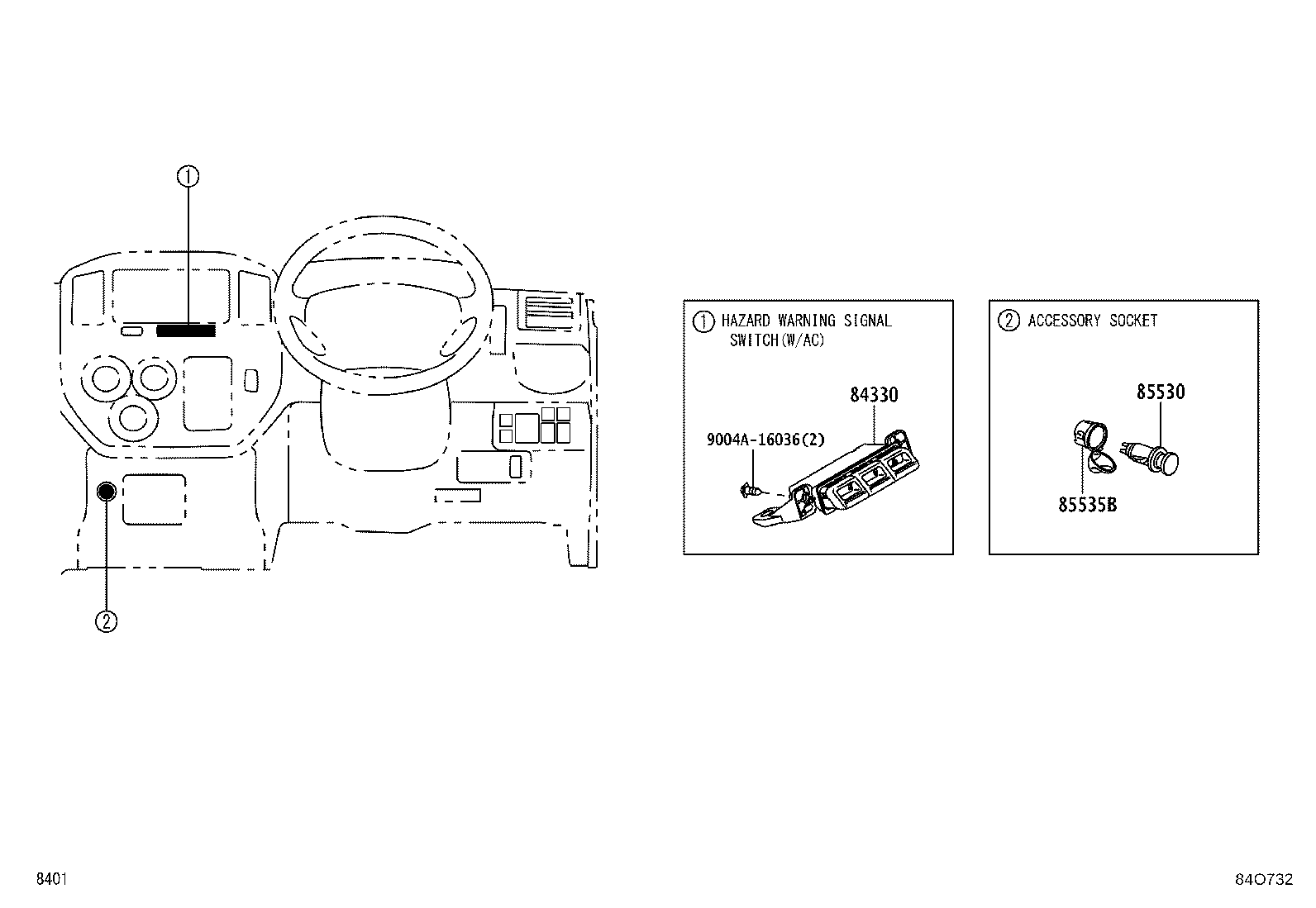

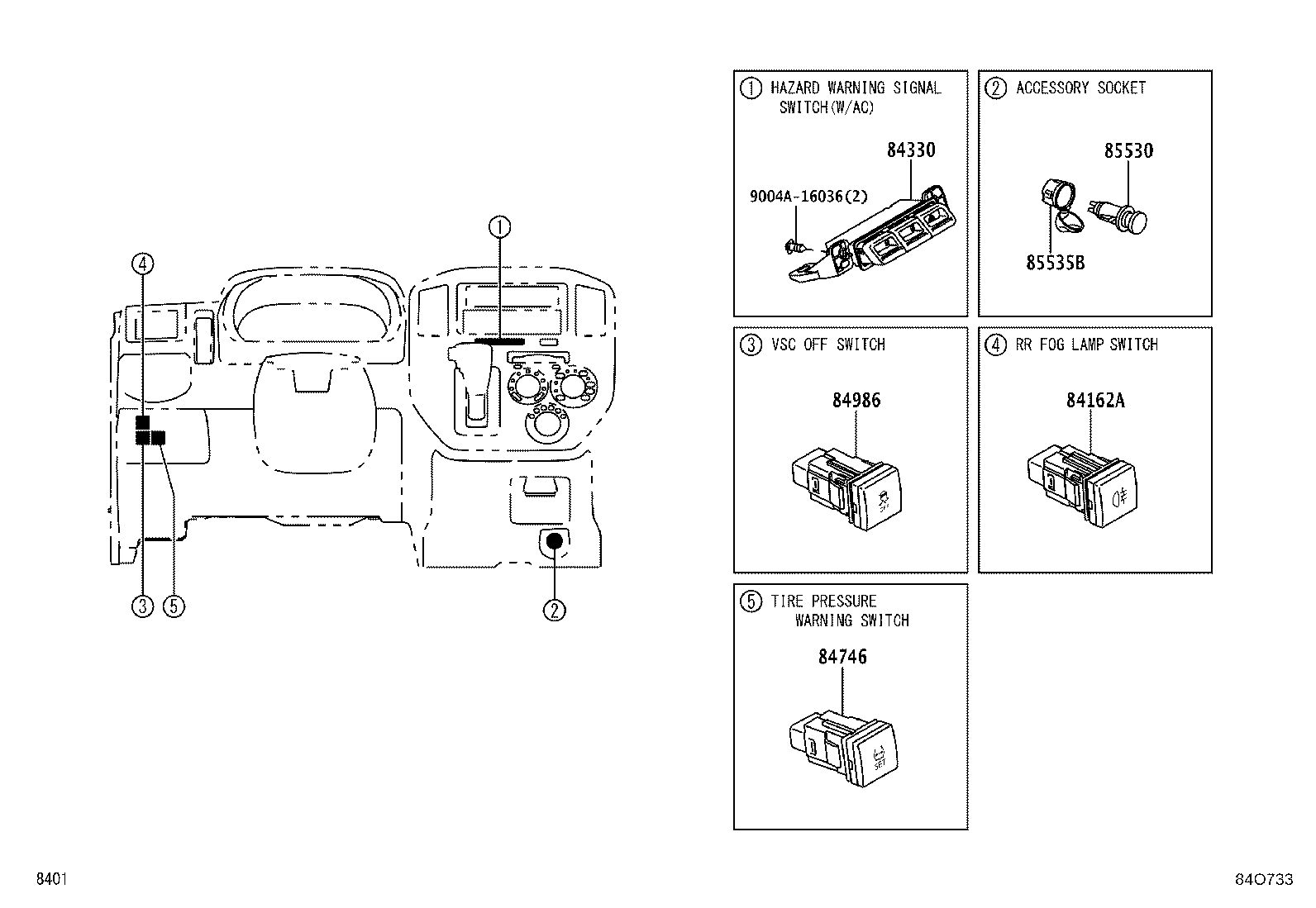

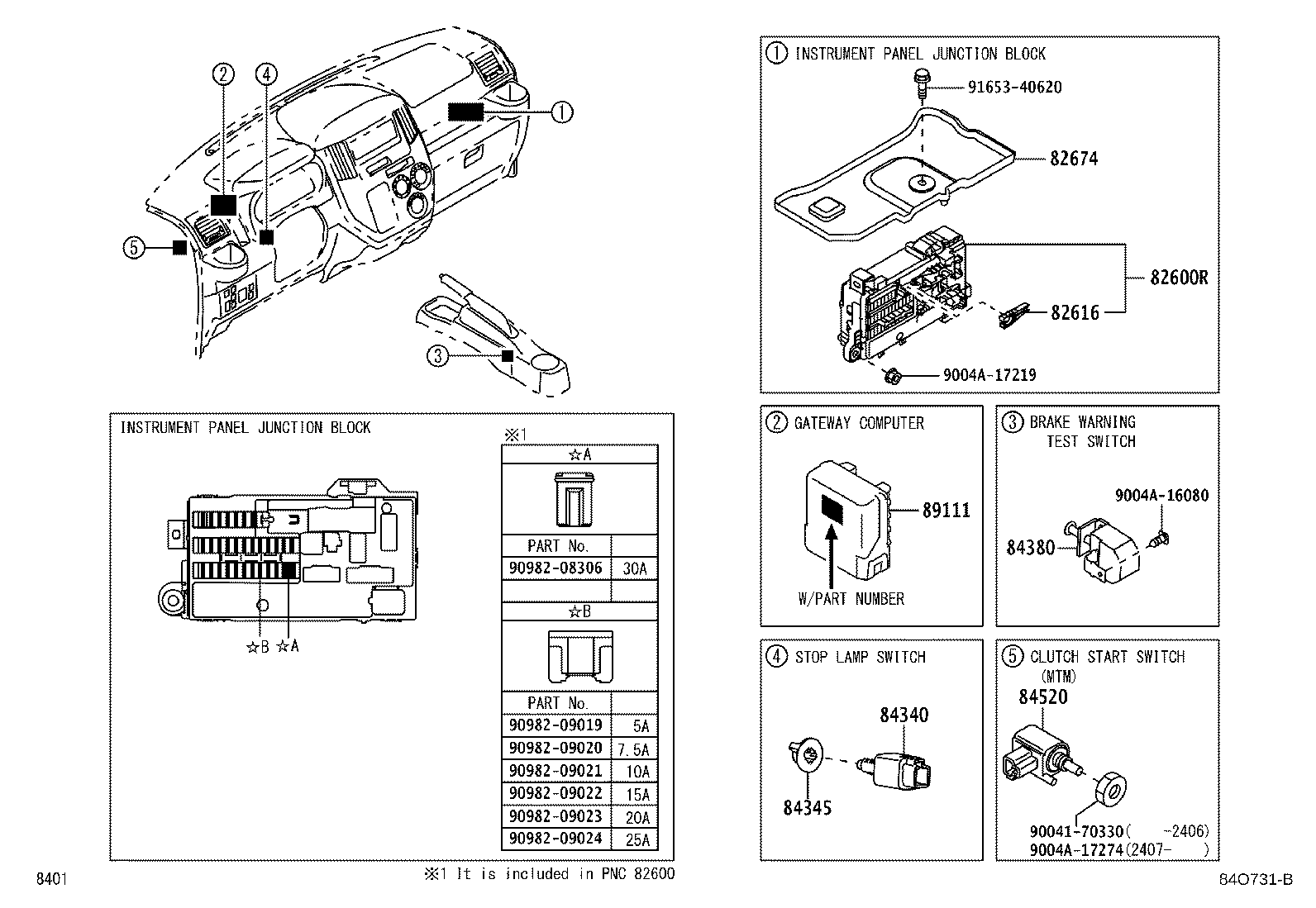

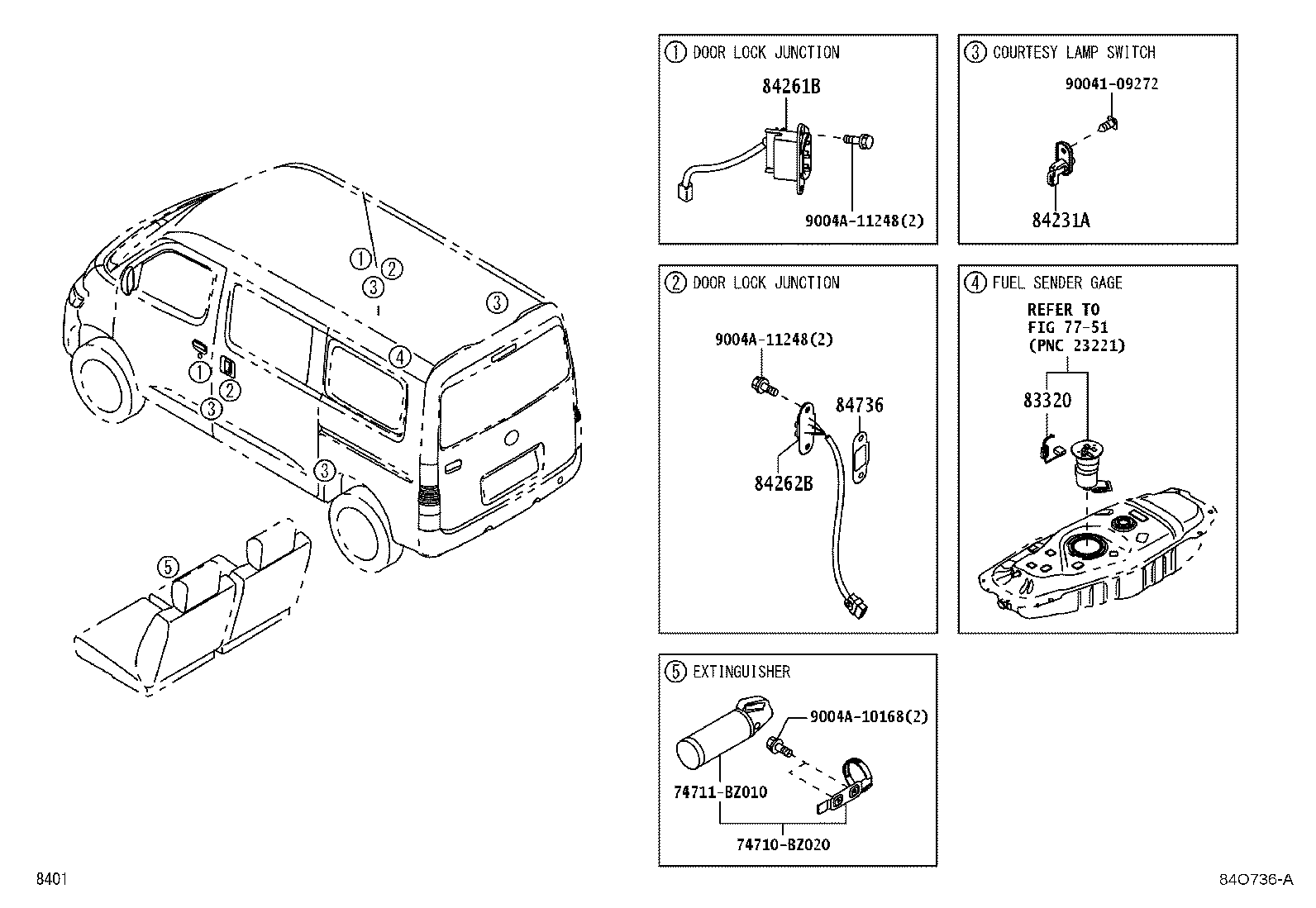

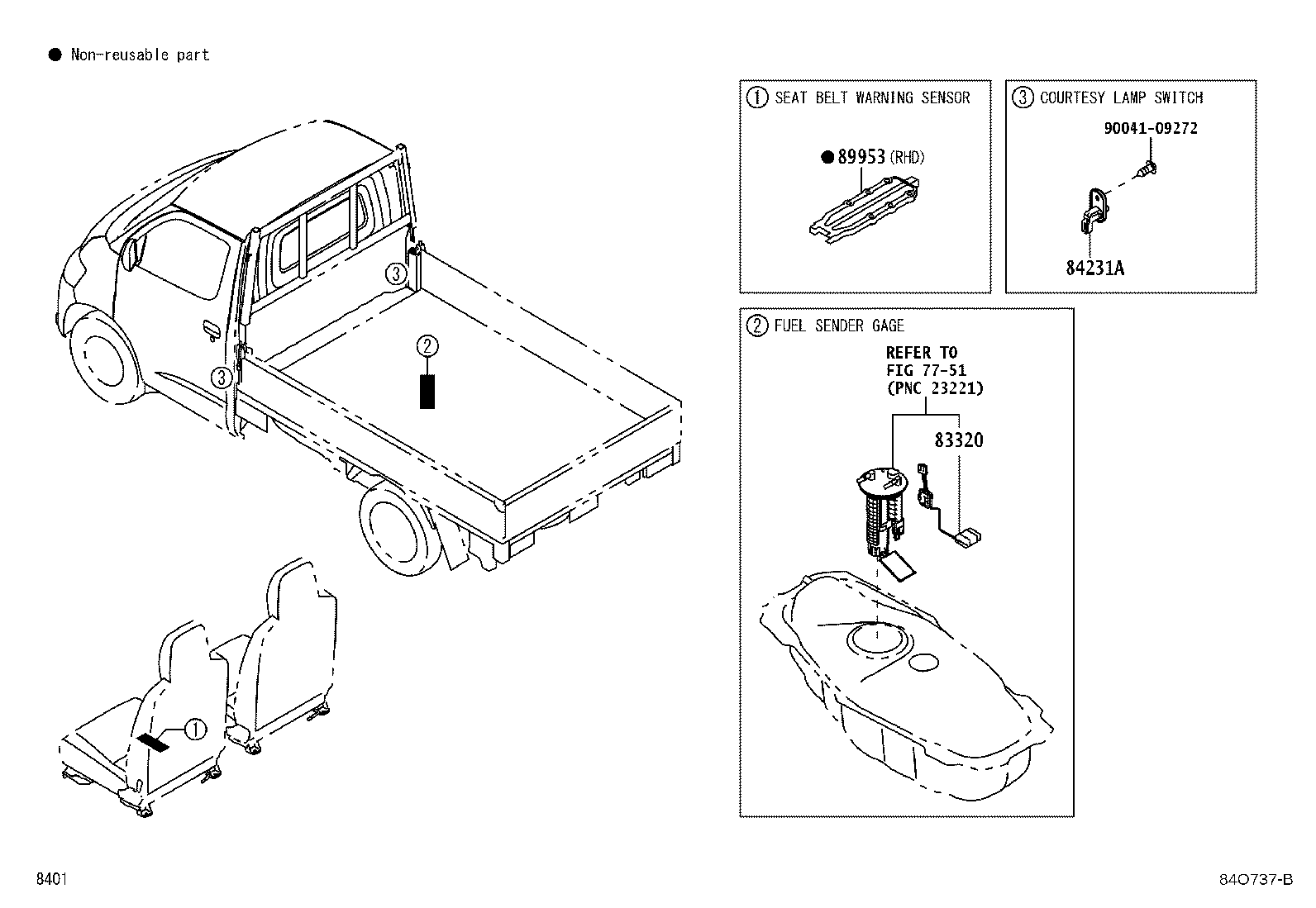

Figure 84O728A 84O728A 2022-05 → — Figure 84O729B 84O729B 2022-05 → — Figure 84O730A 84O730A 2022-05 → — Figure 84O731B 84O731B 2022-05 → — Figure 84O732 84O732 2022-05 → — Figure 84O733 84O733 2022-05 → — Figure 84O734 84O734 2022-05 → — Figure 84O735 84O735 2022-05 → — Figure 84O736A 84O736A 2022-05 → — Figure 84O737B 84O737B 2022-05 → — Figure 84O738A 84O738A 2022-05 → — Figure 84O739A 84O739A 2022-05 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
74468A Bracket, Relay Block
74468B Bracket, Relay Block, NO.2
82600R Block Assy, Fuse W/Main Body Computer
82616 Puller, Fuse
82616A Puller, Fuse, NO.2
82641 Relay, Integration NO.1
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82674 Cover, Junction Block Lower
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84140 Switch Assy, Headlamp Dimmer
84162A Switch, Rear Fog Lamp
84210 Switch Assy, Back-up Lamp
84210B Gasket, Back-up Lamp Switch
84231A Switch, Courtesy Lamp
84261B Junction, Slide Door Control,Male
84262B Junction, Slide Door Control, Female
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84380 Switch Assy, Brake Warning Test
84450 Switch Assy, Ignition OR Starter
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84650 Switch Assy, Windshield Wiper
84736 Spacer, Heater Blower Switch
84746 Switch, Tire Pressure Warning
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84941A Base, Switch
84986 Switch, Vehicle Stability Control
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85916P Relay, Headlamp
85925 Relay, Radiator Fan
85925C Relay, Radiator Fan, NO.2
89111 Computer, Network Gateway
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89439 Bracket, Sensor
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89953 Sensor, Belt Warning Occupant Detection
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
