Factory parts data · Europe

Toyota Liteace

2022-05 → present · chassis S403 · catalogue 641230 · General

Supported model Data version 2022-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

5 part groups · 2 illustrations

Illustrations

Figure 84O723

84O723 2022-05 → —

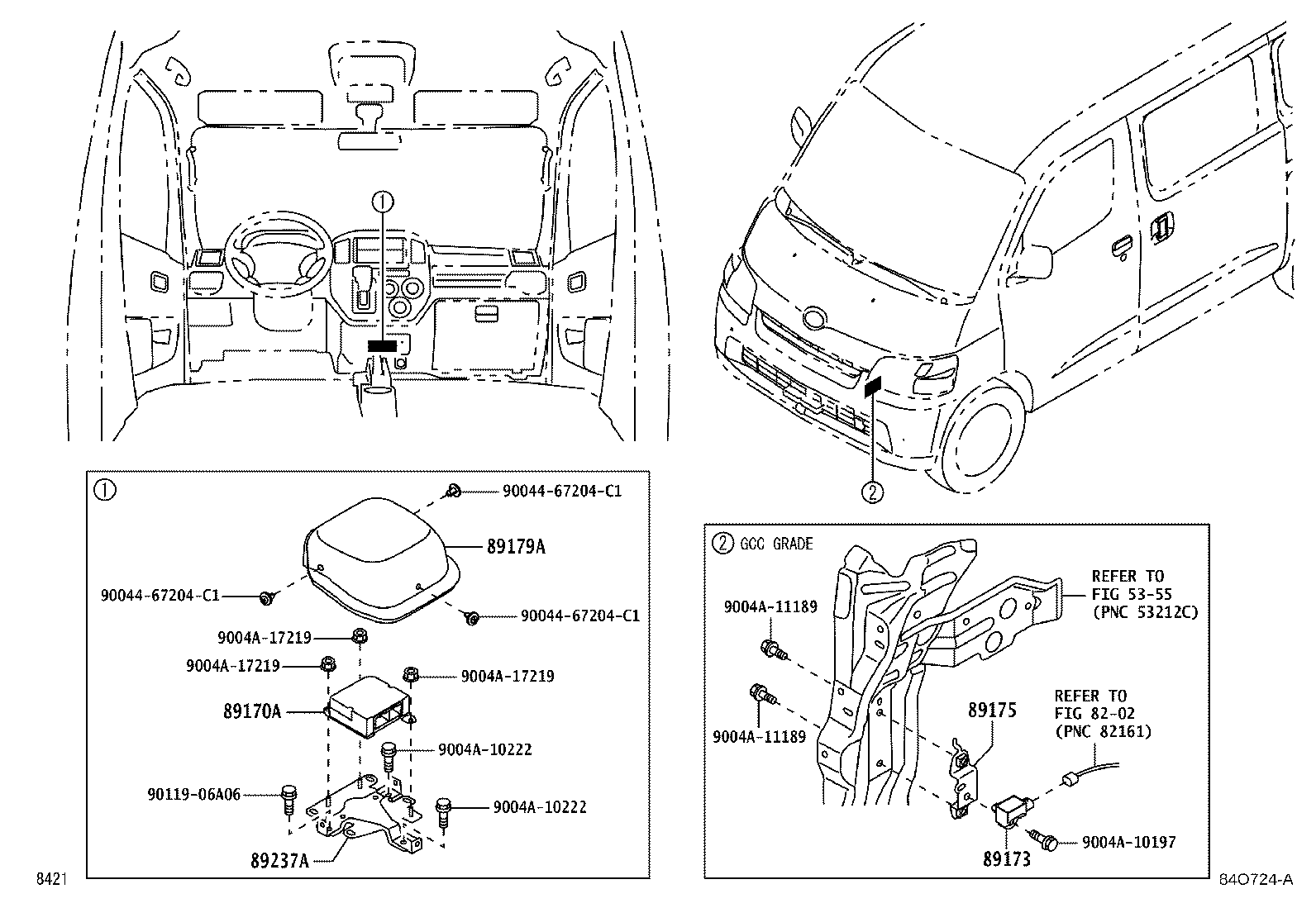

Figure 84O724A

84O724A 2022-05 → —

Part groups

PNC	Description
89170A	Computer Assy, Airbag
89173	Sensor, Airbag, Front
89175	Bracket, Airbag Sensor
89179A	Cover, Airbag Sensor
89237A	Bracket, Computer Unit

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
