Toyota Liteace

2022-05 → present · chassis S403 · catalogue 641230 · General

Supported model Data version 2022-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

8 part groups · 2 illustrations

Illustrations

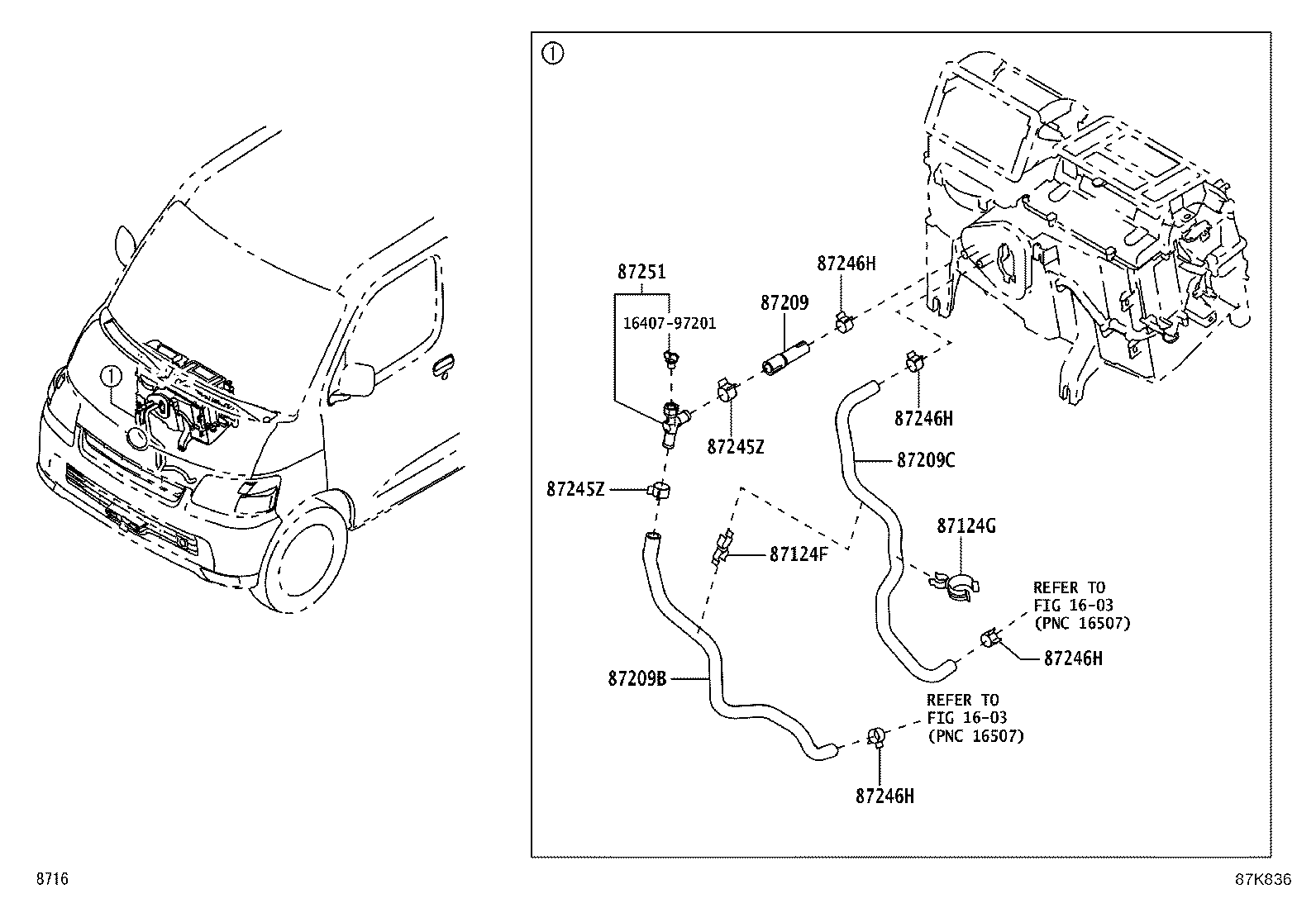

Figure 87K835 87K835 2022-05 → — Figure 87K836 87K836 2022-05 → —

Part groups

PNCDescription
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87209 Hose Sub-assy, Water
87209B Hose Sub-assy, Water, B
87209C Hose Sub-assy, Water, C
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246H Clip OR Clamp(FOR HEATER WATER HOSE)
87251 Joint OR Union, Water Hose Through
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
