Toyota Townace

2022-01 → present · chassis S403 · catalogue 642210 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

8 part groups · 2 illustrations

Illustrations

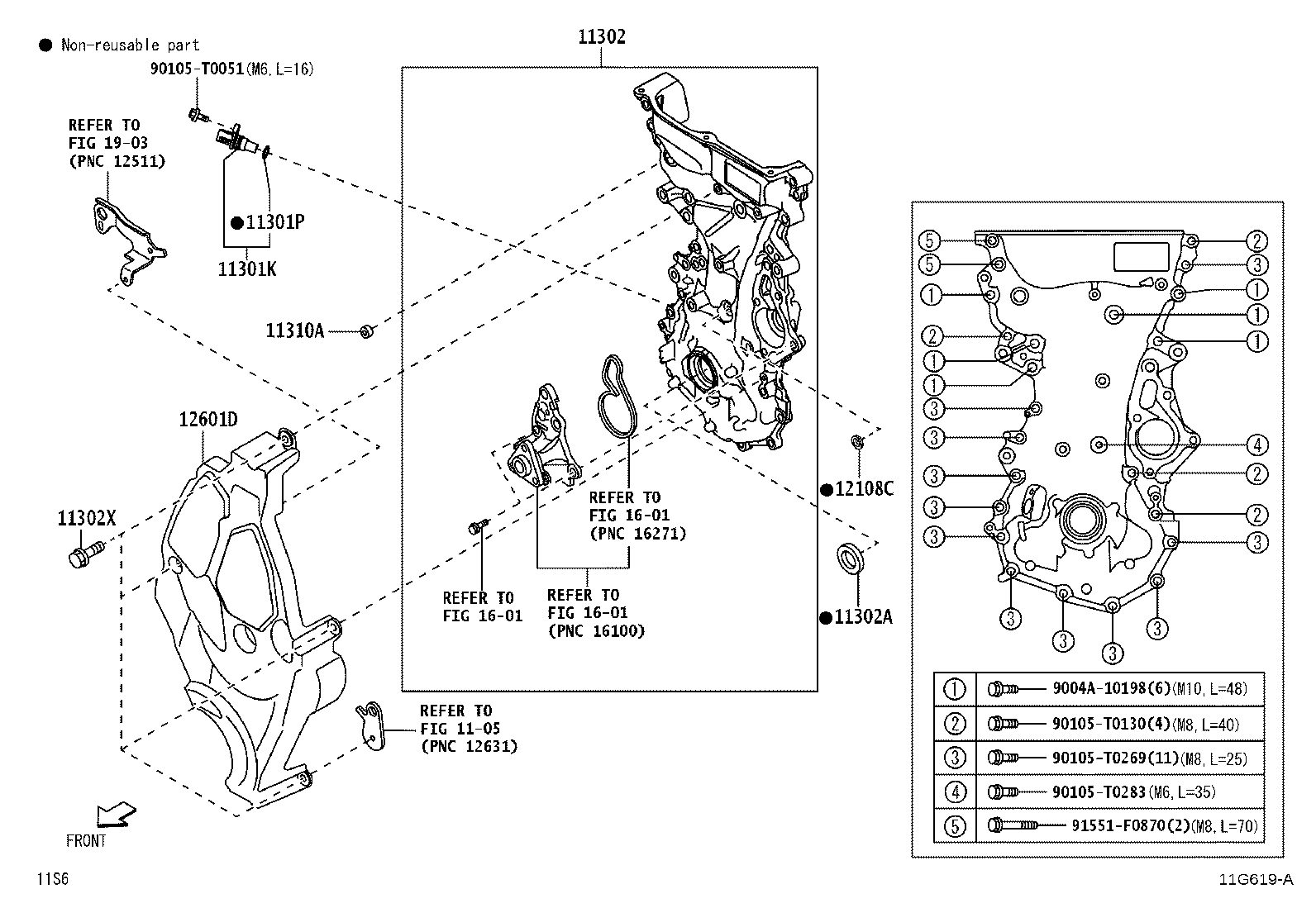

Figure 11F868B 11F868B 2022-01 → — Figure 11G619A 11G619A 2022-12 → —

Part groups

PNCDescription
11301K Sensor, Crank Position
11301P O Ring, Crank Position Sensor
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302X Bolt, Flange
11310A Plug, Taper Screw(FOR TIMING CHAIN COVER)
12108C Gasket
12601D Cover, Engine, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
