Toyota Townace
2022-01 → present · chassis S403 · catalogue 642210 · General
Supported model
Data version 2022-11

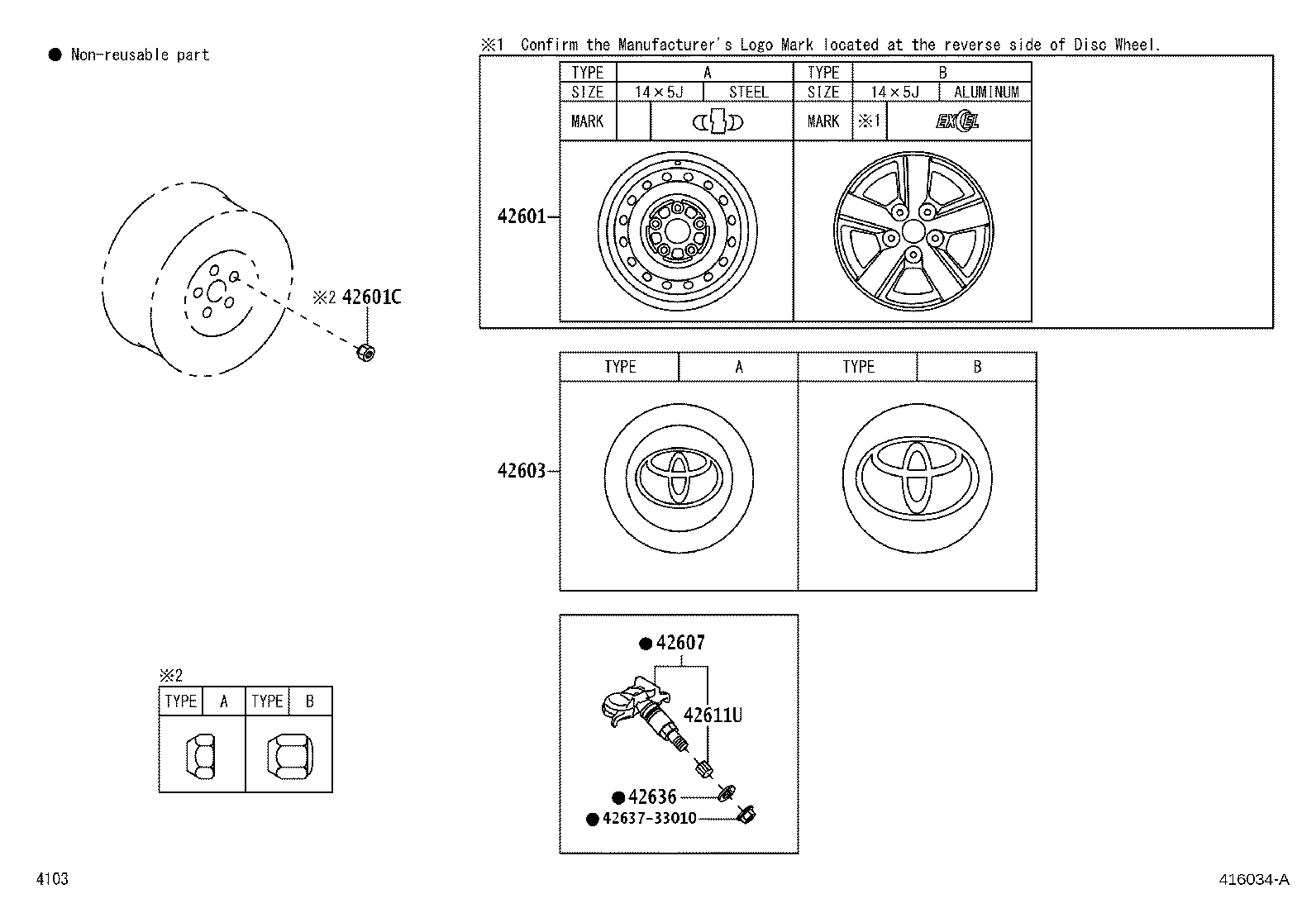

Disc Wheel & Wheel Cap
6 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 42601 | Wheel, Disc |
| 42601C | Nut, Hub (FOR AXLE) |
| 42603 | Ornament Sub-assy, Wheel Hub |
| 42607 | Valve Sub-assy, Tire Pressure Monitor |
| 42611U | Cap, Tire Valve |
| 42636 | Washer, Tire Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
