Toyota Townace

2022-01 → present · chassis S403 · catalogue 642210 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

13 part groups · 2 illustrations

Illustrations

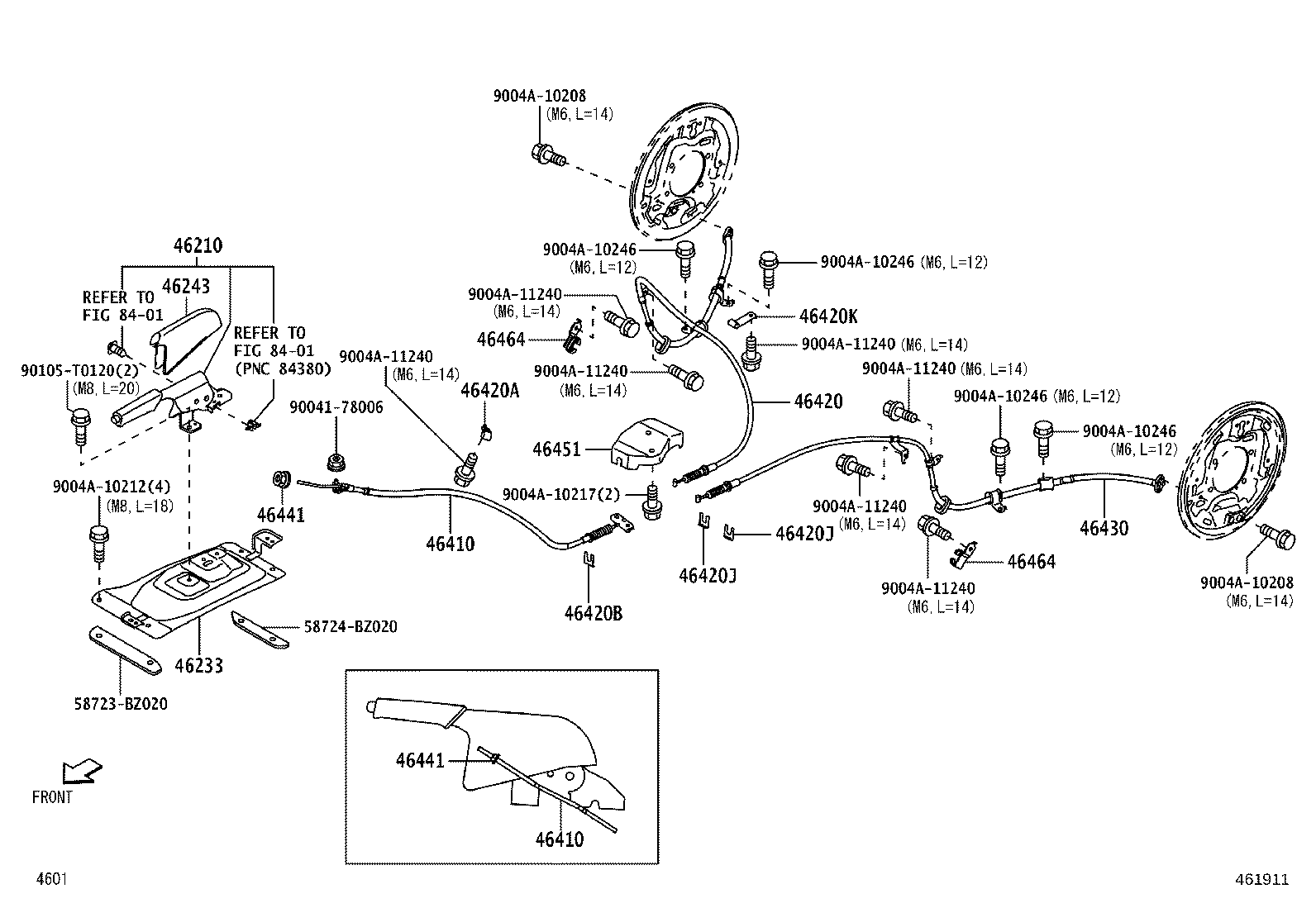

Figure 461840A 461840A 2022-01 → — Figure 461911 461911 2022-12 → —

Part groups

PNCDescription
46210 Lever Assy, Parking Brake
46233 Support, Parking Brake Center
46243 Cover, Parking Brake Lever
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46420J Clamp, NO.3(FOR PARKING BRAKE CABLE)
46420K Clamp, NO.4(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46451 Bracket, Cable Support
46464 Plate, Cable Clamp Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
