Toyota Townace

2022-01 → present · chassis S403 · catalogue 642210 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

8 part groups · 2 illustrations

Illustrations

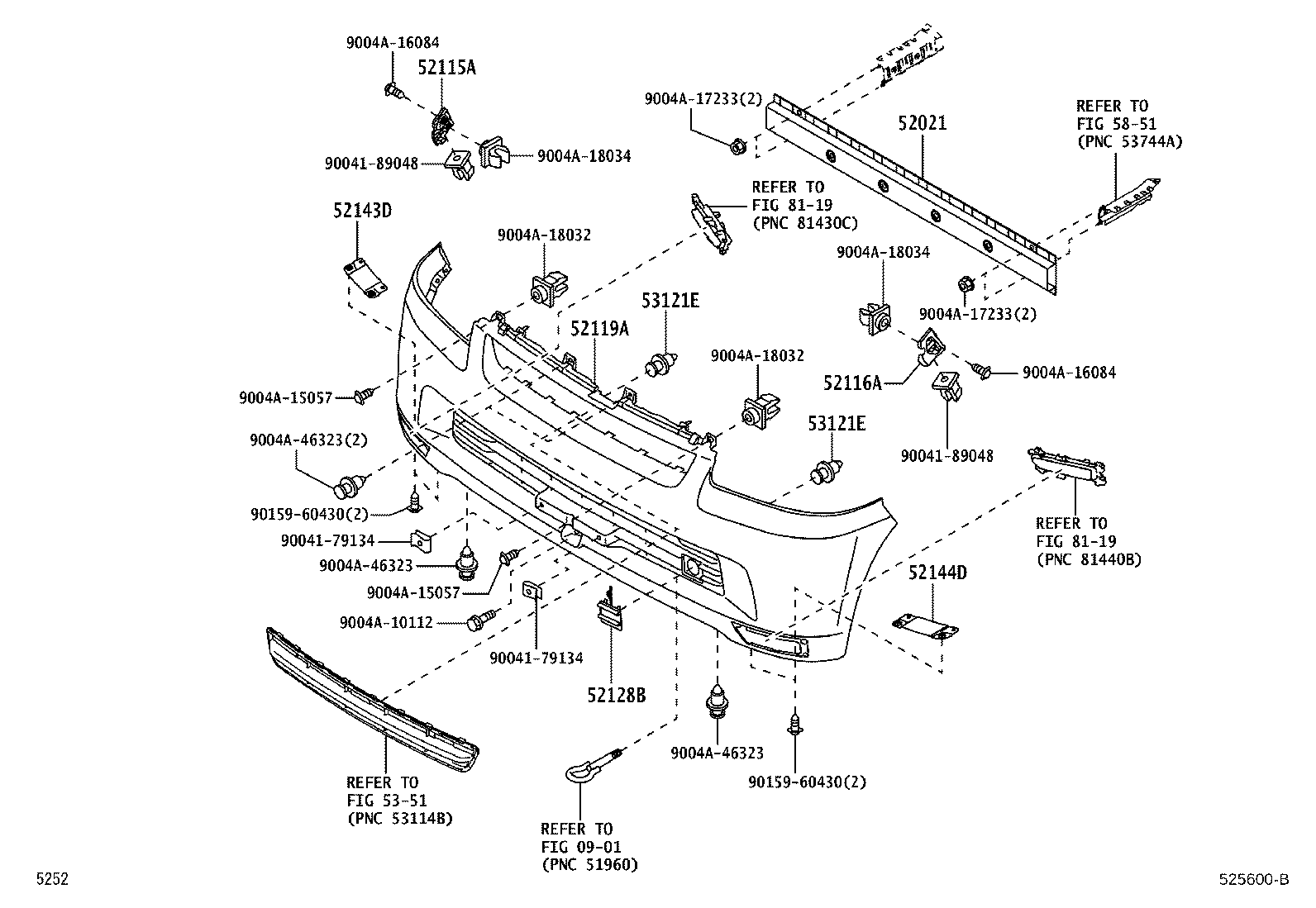

Figure 525239C 525239C 2022-01 → — Figure 525600B 525600B 2022-12 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52128B Cover, Front Bumper Hole, LH
52143D Bracket, Front Bumper Side, RH
52144D Bracket, Front Bumper Side, LH
53121E Clip(FOR FRONT BUMPER), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
