Toyota Townace

2022-01 → present · chassis S403 · catalogue 642210 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

8 part groups · 3 illustrations

Illustrations

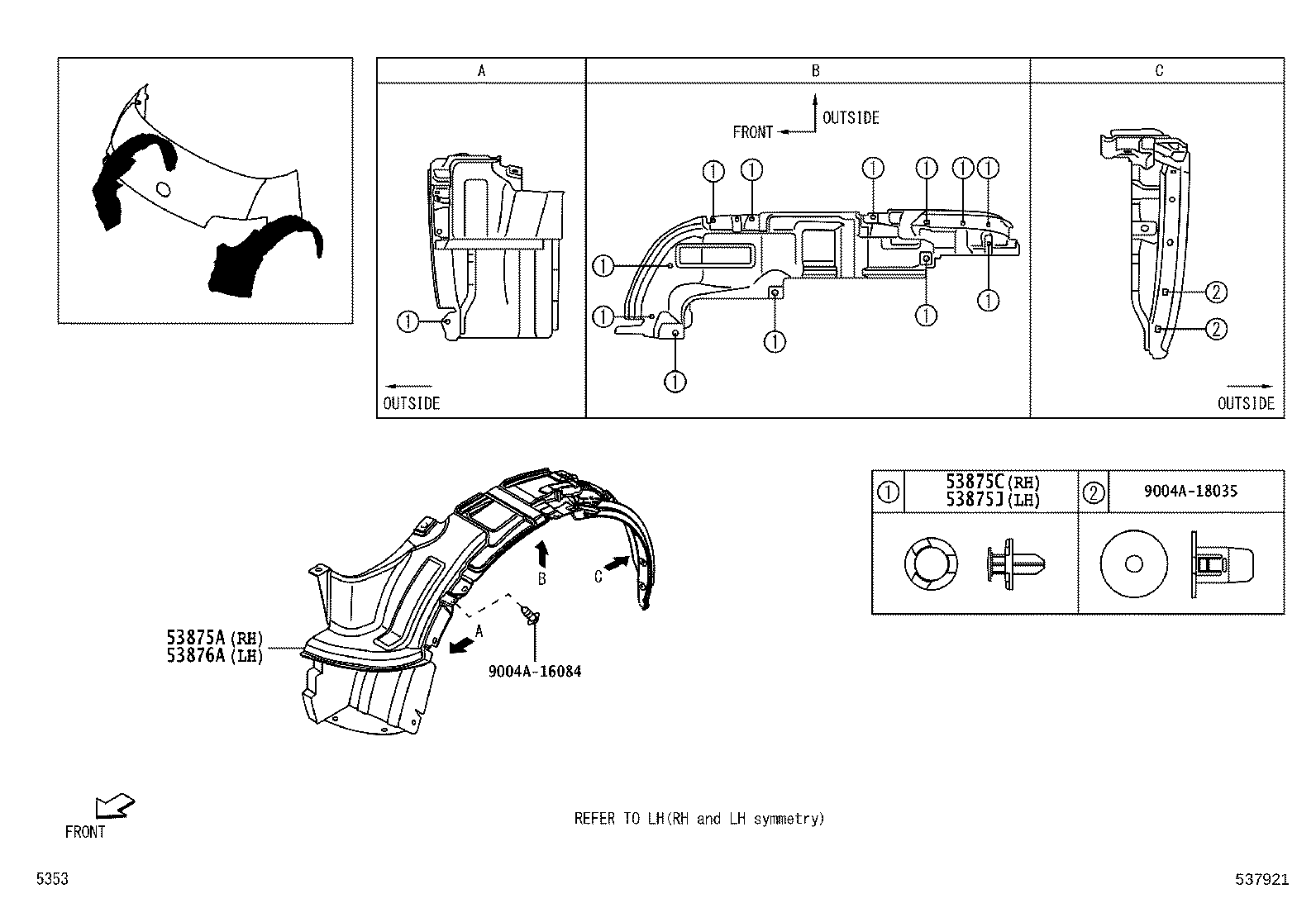

Figure 537920C 537920C 2022-01 → — Figure 537921 537921 2022-01 → — Figure 537922 537922 2022-01 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53384B Cushion, Hood, Center
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875J Clip, Front Fender Liner
53876A Liner, Front Fender, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
