Toyota Townace

2022-01 → present · chassis S403 · catalogue 642210 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

21 part groups · 2 illustrations

Illustrations

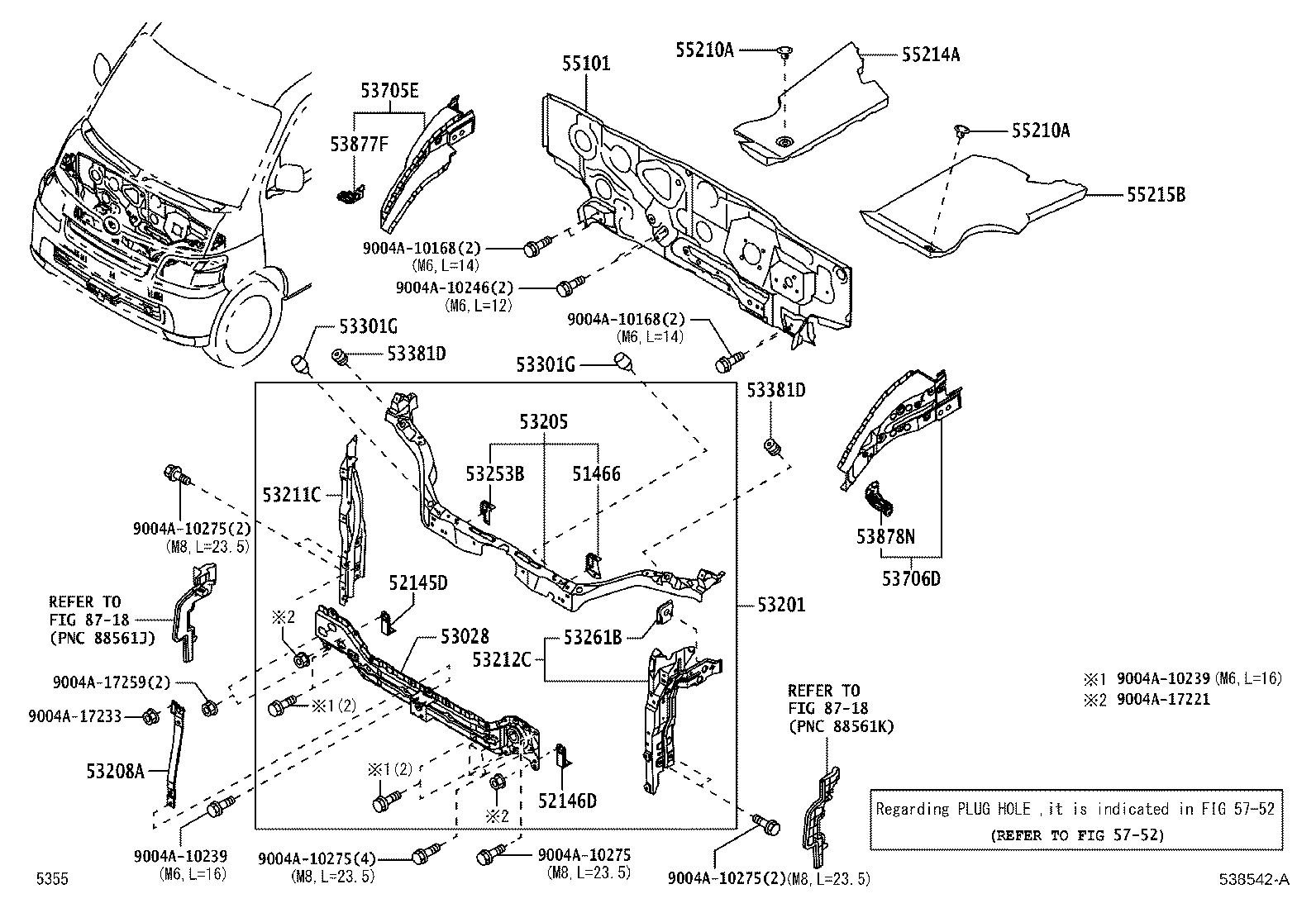

Figure 537927C 537927C 2022-01 → — Figure 538542A 538542A 2022-12 → —

Part groups

PNCDescription
51466 Brace, Radiator Support, Upper LH
52145D Bracket, Front Bumper Side Mounting, RH
52146D Bracket, Front Bumper Side Mounting, LH
53028 Support Sub-assy, Radiator, Lower
53201 Support Sub-assy, Radiator
53205 Support Sub-assy, Radiator, Upper
53208A Support Sub-assy, Hood Lock
53211C Support, Radiator, RH
53212C Support, Radiator, LH
53253B Bracket, Radiator Mounting, Upper
53261B Bracket, Radiator Reserve Tank Mounting
53301G Cushion, Hood Bumper
53381D Bumper, Hood TO Front Shroud
53705E Member Sub-assy, Front Apron TO Cowl Side, RH
53706D Member Sub-assy, Front Apron TO Cowl Side, LH
53877F Bracket, Front Fender Liner, RH
53878N Bracket, Front Fender Liner, LH
55101 Panel Sub-assy, Dash
55210A Clip
55214A Pad, Dash Panel Insulator, NO.2
55215B Pad, Dash Panel Insulator, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
