Toyota Townace
2022-01 → present · chassis S403 · catalogue 642210 · General
Supported model
Data version 2022-11

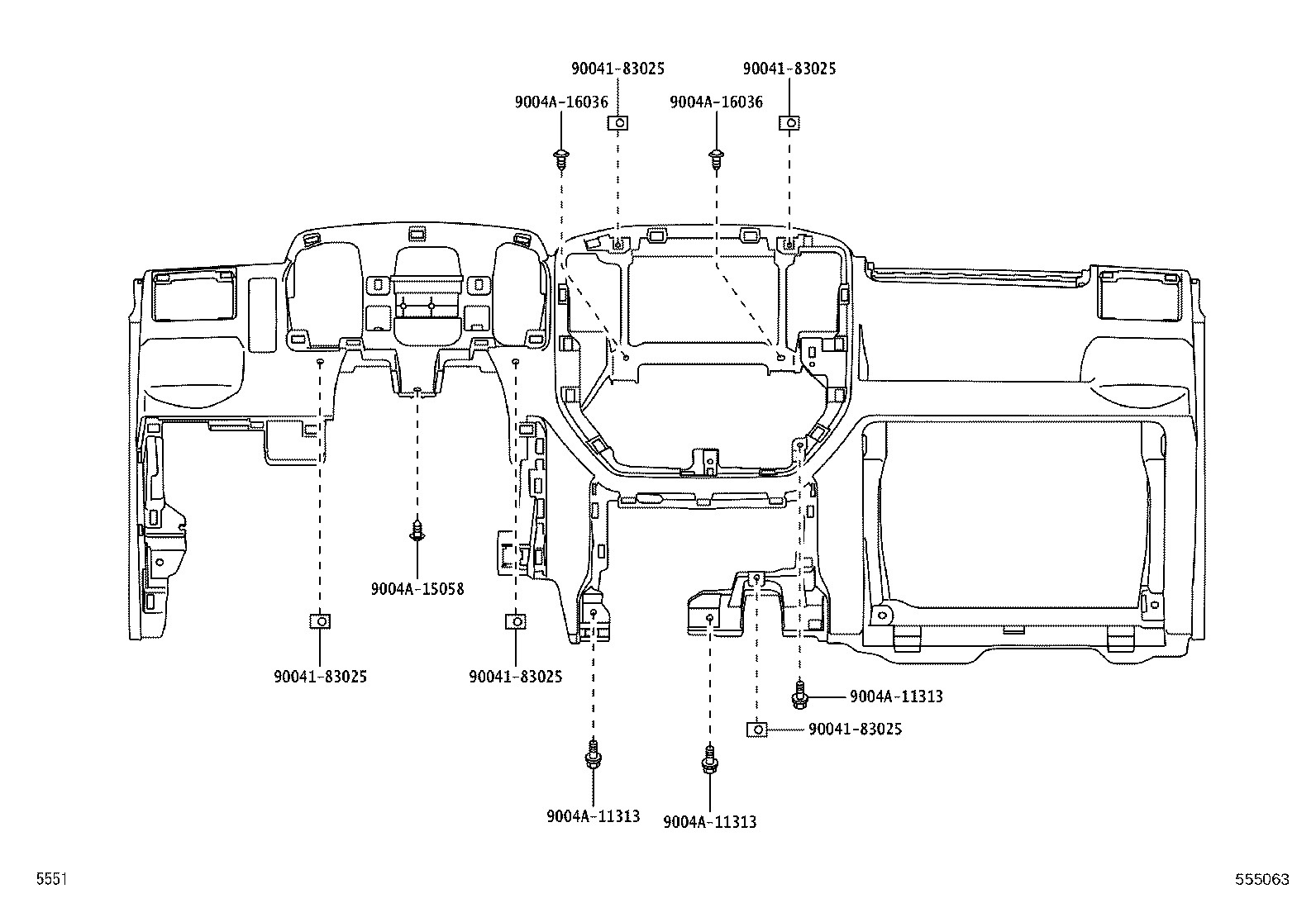

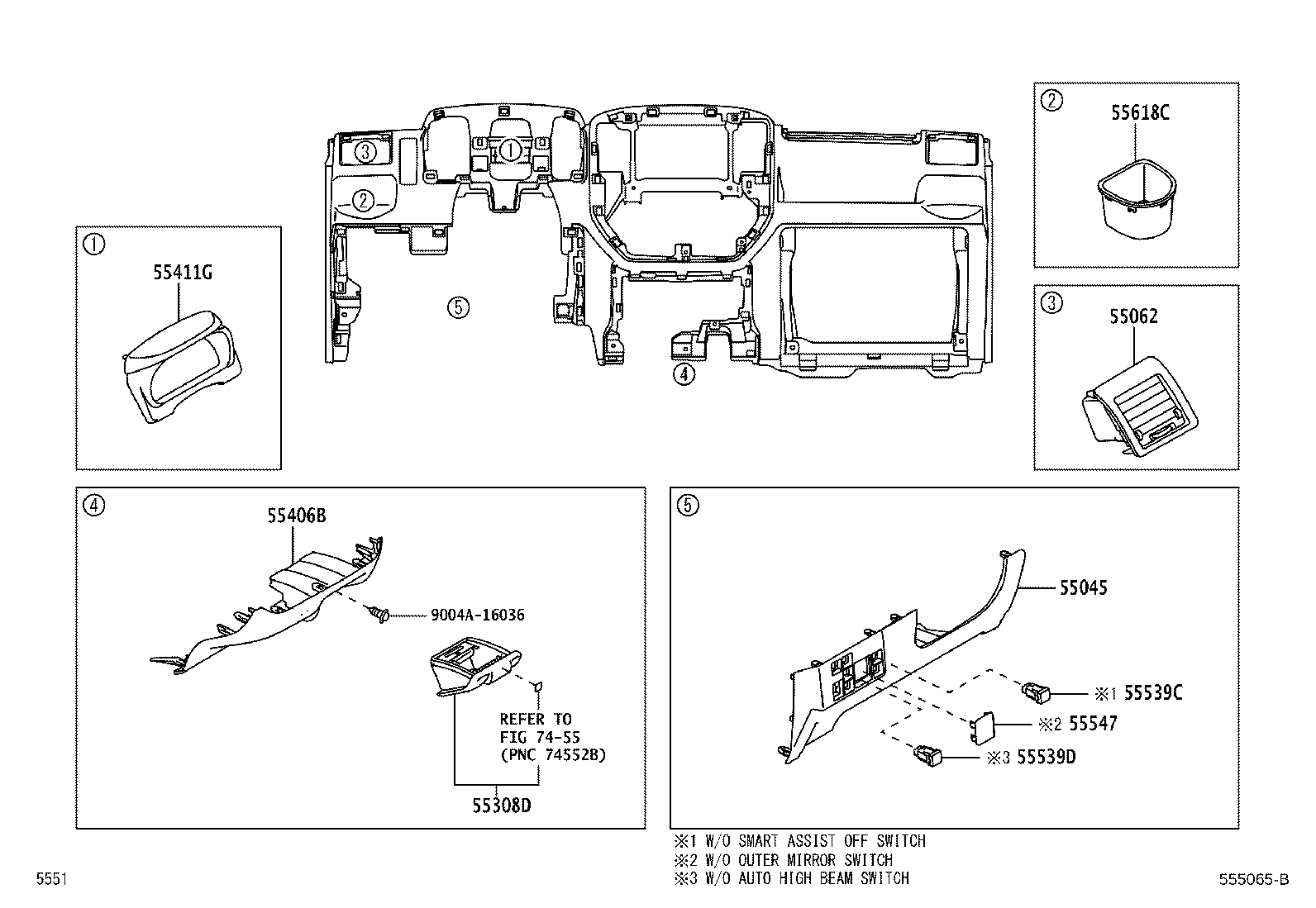

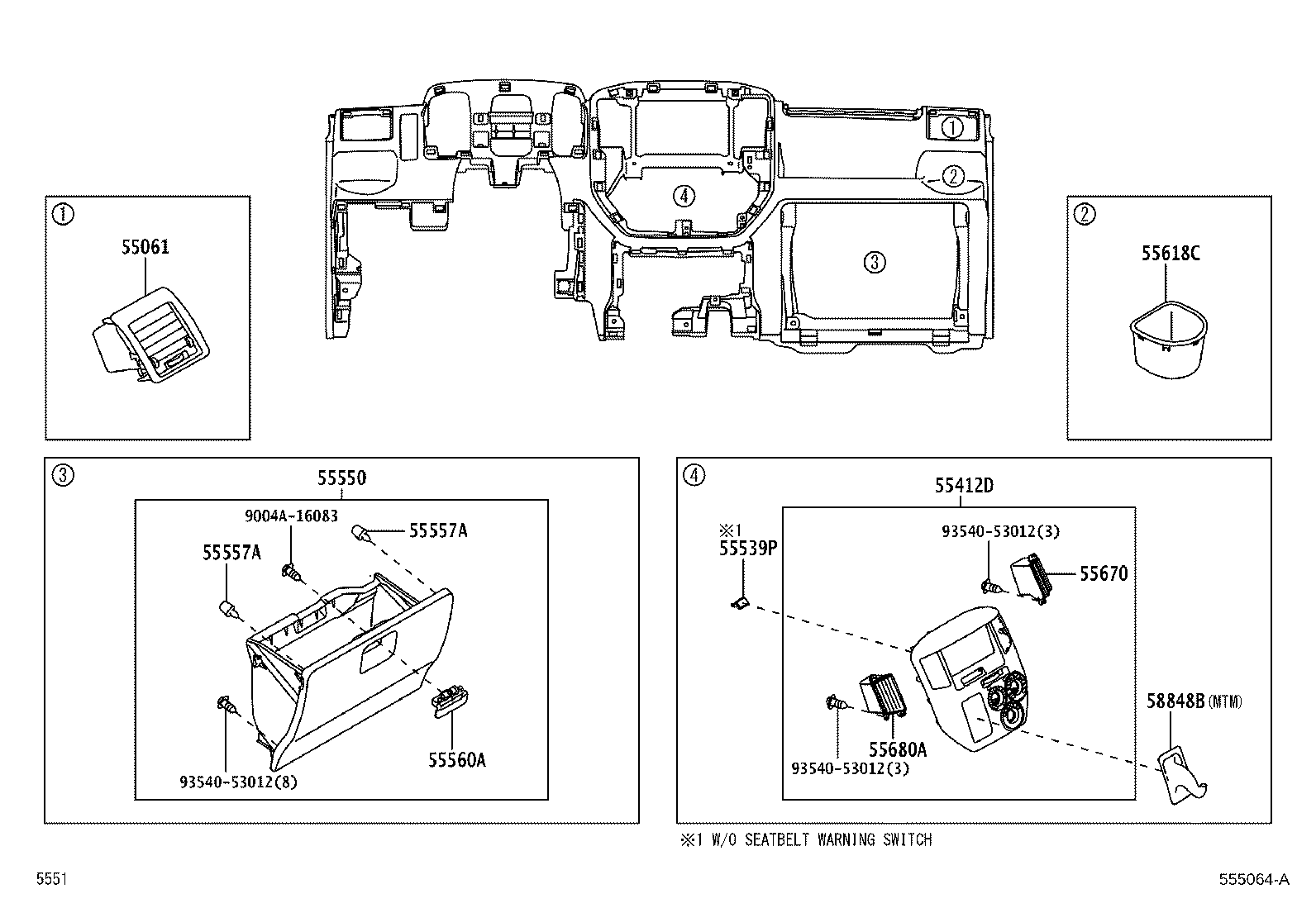

Instrument Panel & Glove Compartment
31 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55061 | Register Sub-assy, Instrument Panel, NO.1 |
| 55062 | Register Sub-assy, Instrument Panel, N0.2 |
| 55217B | Retainer, Dash Panel Silencer |
| 55301 | Panel Sub-assy, Instrument |
| 55308D | Box Sub-assy, Instrument Panel, Center |
| 55315A | Spacer, Instrument Panel, NO.1 |
| 55316 | Spacer, Instrument Panel, NO.2 |
| 55331 | Reinforcement, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55375B | Bracket, Instrument Panel Lower Mounting, NO.2 |
| 55394B | Bolt, Instrument Panel |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55453E | Pad, Instrument, Lower RH |
| 55454C | Pad, Instrument, Lower LH |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55539P | Cover, Spare Switch Hole |
| 55547 | Cover, Remote Control Mirror Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55618C | Holder, Instrument Panel Cup |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 58848B | Cover, Shift Lever Hole |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
