Toyota Townace
2022-01 → present · chassis S403 · catalogue 642210 · General
Supported model
Data version 2022-11

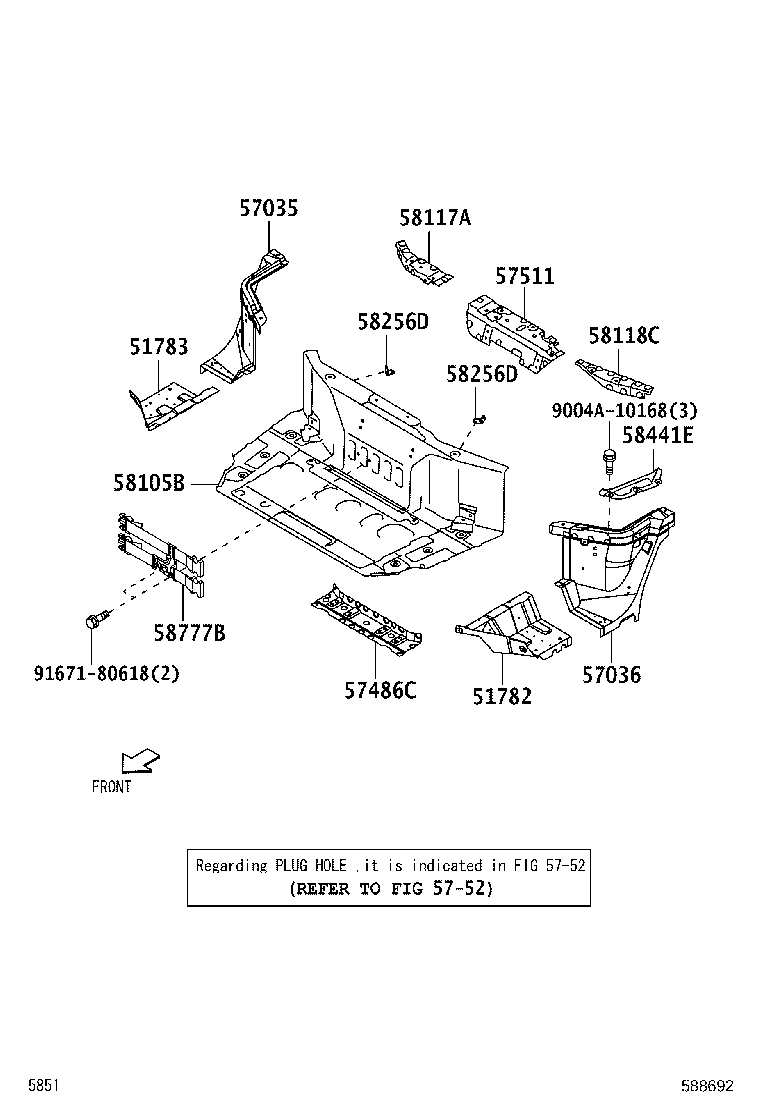

Front Floor Panel & Front Floor Member
56 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 51782 | Panel, Step, LH |
| 51783 | Panel, Step, Front RH |
| 52137C | Bracket, Front Bumper Arm Mounting, NO.3 |
| 53701H | Apron Sub-assy, Front Fender, RH |
| 53702H | Apron Sub-assy, Fender, LH |
| 53744A | Reinforcement, Front Fender Apron, Front LH |
| 57035 | Panel Sub-assy, Front Step, RH |
| 57036 | Panel Sub-assy, Front Step, LH |
| 57038 | Stay Sub-assy, Front Step, LH |
| 57051 | Member Sub-assy, Front Floor Cross, RH |
| 57052 | Member Sub-assy, Front Floor Cross, LH |
| 57107A | Plate Sub-assy, Front Side Member, NO.2 RH |
| 57108A | Plate Sub-assy, Front Side Member, NO.2 LH |
| 57111 | Member, Front Side, RH |
| 57112 | Member, Front Side, LH |
| 57114 | Extension, Front Side Member, LH |
| 57118A | Reinforcement, Front Bumper Mounting, LH |
| 57119A | Plate, Front Side Member, Front RH |
| 57119B | Plate, Front Side Member, Front LH |
| 57157C | Bracket, Flexible Hose, Front RH |
| 57158B | Bracket, Flexible Hose, Front LH |
| 57167C | Gusset, Front Crossmember Side, RH |
| 57171D | Plate, Front Side Member TO Floor, RH |
| 57172D | Plate, Front Side Member TO Floor, LH |
| 57188 | Reinforcement, Front Side Member Extension, RH |
| 57189 | Reinforcement, Front Side Member Extension, LH |
| 57201B | Extension Sub-assy, Front Side Member, RH |
| 57202C | Extension Sub-assy, Front Side Member, LH |
| 57405F | Member Sub-assy, Center Floor Cross, Rear |
| 57406 | Member Sub-assy, Main Floor Side, RH |
| 57407E | Member Sub-assy, Center Floor Cross |
| 57408C | Member Sub-assy, Front Floor Cross |
| 57409 | Member Sub-assy, Main Floor Side, LH |
| 57415A | Rail Sub-assy, Floor Side, Rear RH |
| 57416A | Rail Sub-assy, Floor Side, Rear LH |
| 57434 | Reinforcement, Step Panel, Lower LH |
| 57451 | Member, Front Floor Cross |
| 57457D | Patch, Floor Side Member, Rear RH |
| 57458B | Patch, Floor Side Member, Rear LH |
| 57486C | Reinforcement, Front Floor Cross, NO.2 |
| 57511 | Reinforcement, Front Floor, Center |
| 57653A | Member, Rear Floor Cross, NO.2 |
| 58013A | Panel Sub-assy, Front Floor, Rear Upper |
| 58014 | Panel Sub-assy, Front Floor, Rear Lower |
| 58105B | Panel Sub-assy, Front Floor Rear Upper Sub |
| 58117A | Reinforcement, Front Floor Side, RH |
| 58118C | Reinforcement, Front Floor Side, LH |
| 58131A | Bracket, Front Floor Heat Insulator, NO.1 |
| 58177A | Extension, Front Floor Panel, RH |
| 58178A | Extension, Front Floor Panel, LH |
| 58241E | Panel, Floor Side, Front RH |
| 58241F | Panel, Floor Side, RH |
| 58256D | Bracket, Front Floor Harness |
| 58396E | Bracket, Wire Harness Clamp |
| 58441E | Cover, Battery Service Hole |
| 58777B | Holder, Tool Bag |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
