Toyota Townace

2022-01 → present · chassis S403 · catalogue 642210 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

15 part groups · 2 illustrations

Illustrations

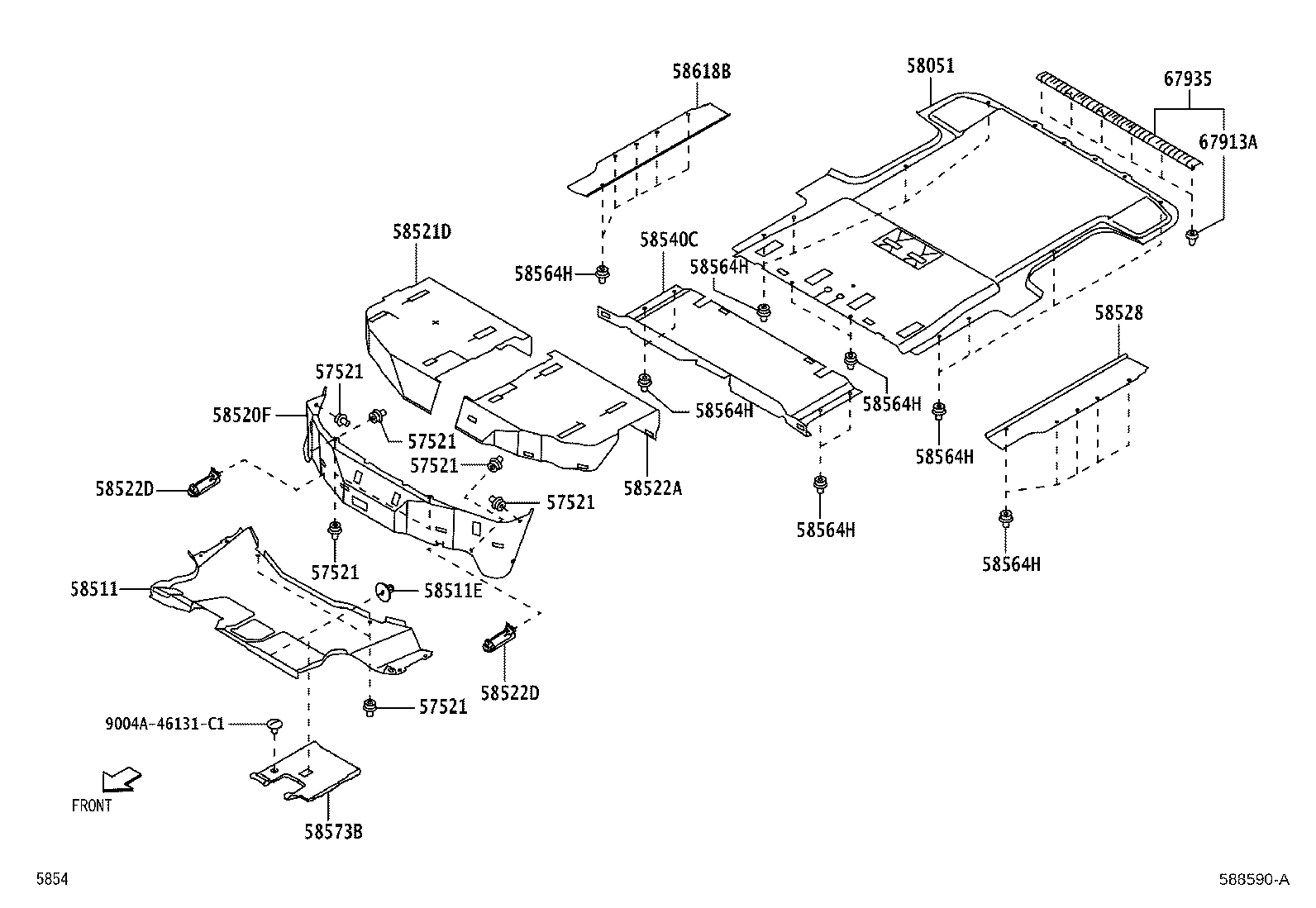

Figure 588020 588020 2022-01 → — Figure 588590A 588590A 2022-12 → —

Part groups

PNCDescription
57521 Fastener, Hook
58051 Mat Set, Floor
58511 Mat, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58520F Mat Assy, Engine Cover
58521D Mat, Engine Service Hole Cover
58522A Mat, Engine Service Hole Cover, LH
58522D Hook, Floor Carpet, NO.2
58528 Mat, Rear Door Step
58540C Mat Assy, Floor, Rear
58564H Clip(FOR REAR FLOOR CARPET)
58573B Pad, Front Floor Center
58618B Mat, Rear Door Step
67913A Clip(FOR SCUFF PLATE)
67935 Plate, Back Door Scuff
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
