Toyota Townace
2022-01 → present · chassis S403 · catalogue 642210 · General
Supported model
Data version 2022-11

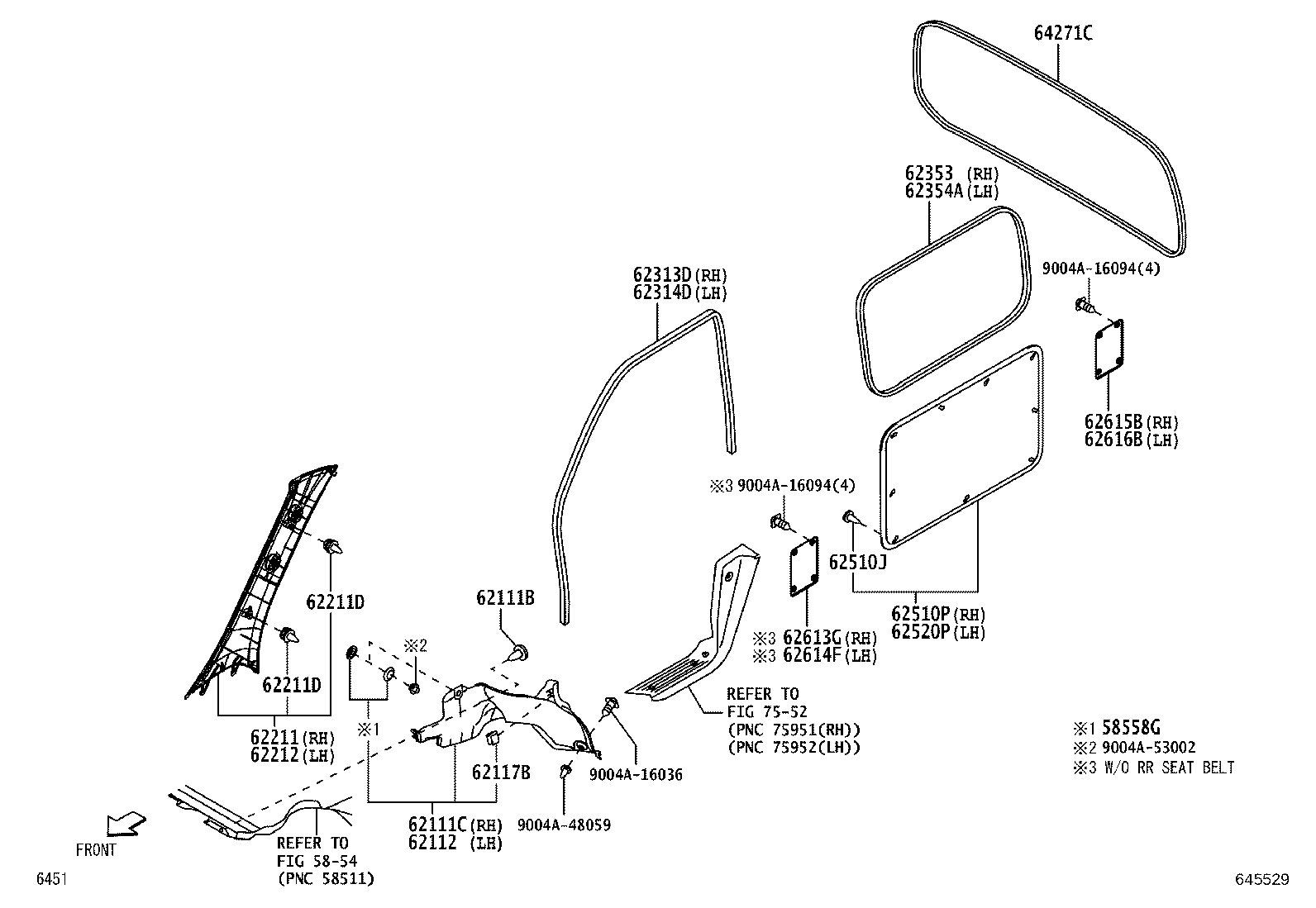

Inside Trim Board
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58558G | Fastener, Pile |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62353 | Trim, Quarter Window Inside, NO.1 |
| 62354A | Trim, Quarter Window Inside, LH |
| 62510J | Retainer, Quarter Trim |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62613G | Cover Assy, Quarter Wheel House, RH |
| 62614F | Cover Assy, Quarter Wheel House, LH |
| 62615B | Cover, Quarter Wheel House, Inner RH |
| 62616B | Cover, Quarter Wheel House, Inner LH |
| 64271C | Trim, Back Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
