Toyota Townace

2022-01 → present · chassis S403 · catalogue 642210 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

24 part groups · 3 illustrations

Illustrations

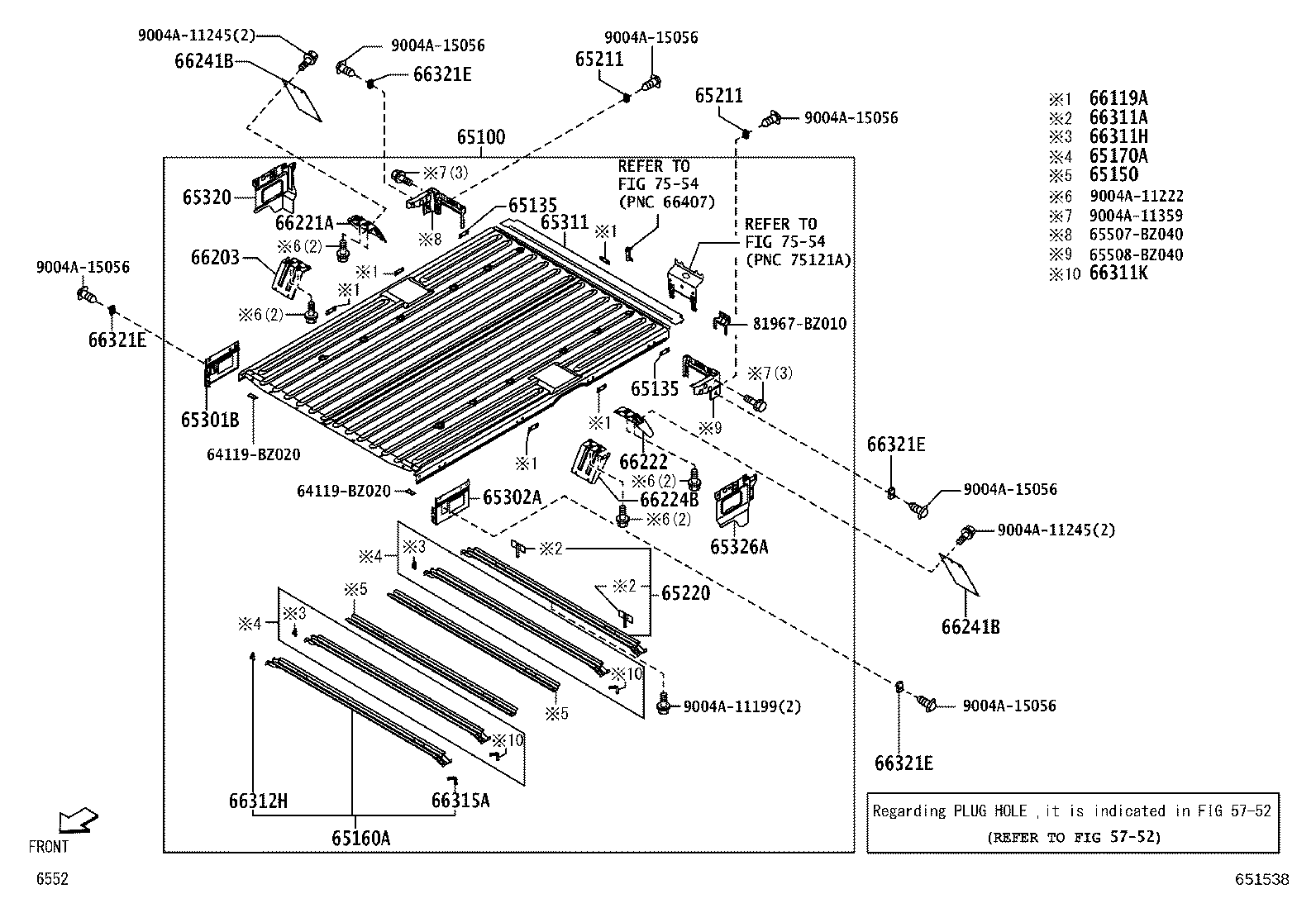

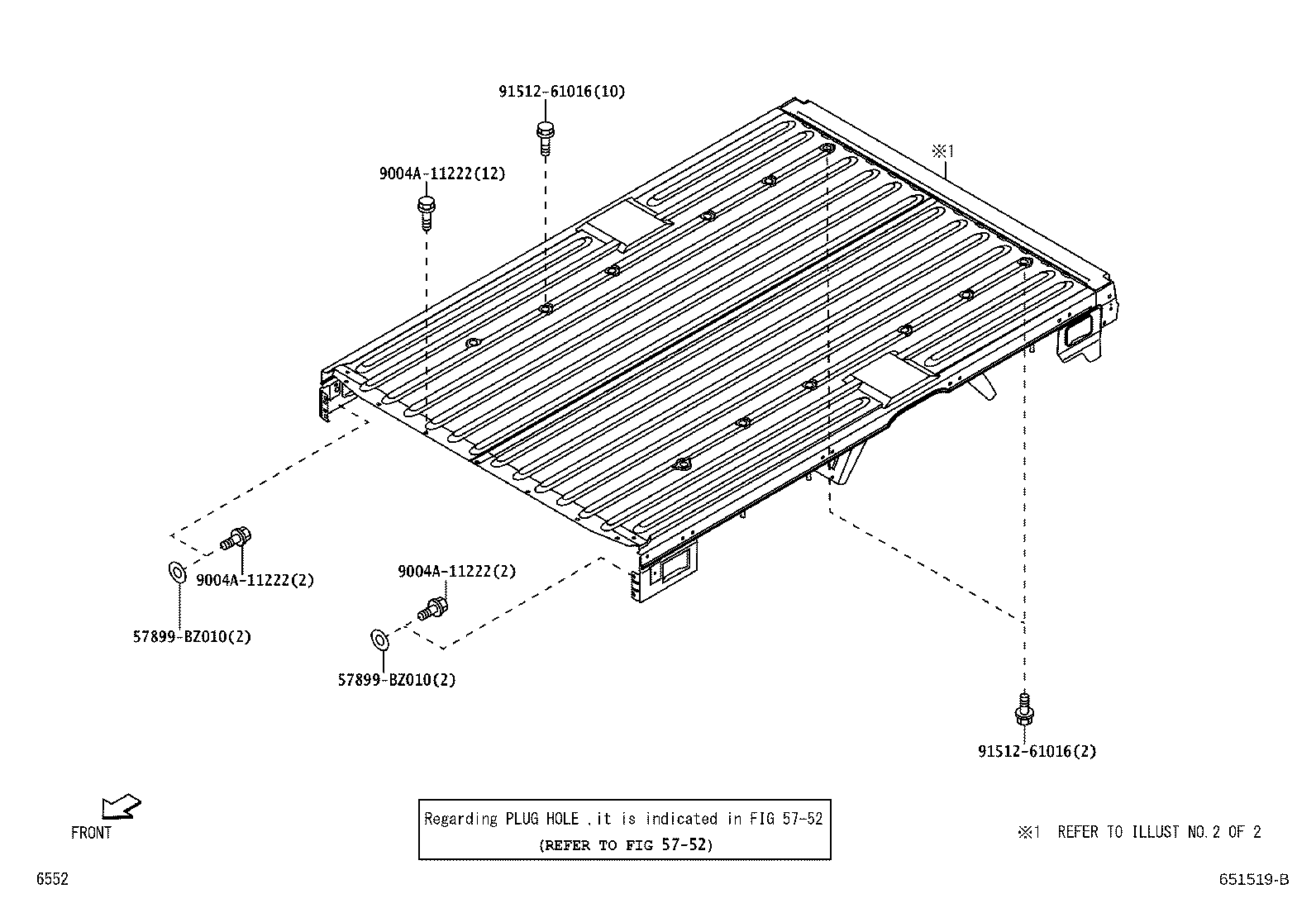

Figure 651518C 651518C 2022-01 → — Figure 651519B 651519B 2022-01 → — Figure 651538 651538 2022-01 → —

Part groups

PNCDescription
65100 Floor Assy, Rear Body
65135 Patch, Main Sill
65150 Sill Assy, Cross, NO.1
65160A Sill Assy, Cross, NO.2
65170A Sill Assy, Cross, NO.3
65211 Cushion, Rear Deck End
65220 Sill Assy, Cross, NO.4
65301B Panel Sub-assy, Floor Front Coner, RH
65302A Panel Sub-assy, Floor Front Coner, LH
65311 Panel, Floor, Center
65320 Plate, Rear Floor End
65326A Plate, Floor Board, RR
66119A Patch, Hinge Gate Male
66203 Plate Sub-assy, Rear Fender, RH
66221A Plate, Rear Fender, Rear RH
66222 Plate, Rear Fender, Rear LH
66224B Plate, Rear Fender, Front LH
66241B Baffle, Rubber
66311A Hook, Rope, NO.1
66311H Hook, Rope
66311K Hook, Rope
66312H Hook, Rope
66315A Hook, Rope
66321E Bumper, Gate Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
