Toyota Townace

2022-01 → present · chassis S403 · catalogue 642210 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

13 part groups · 2 illustrations

Illustrations

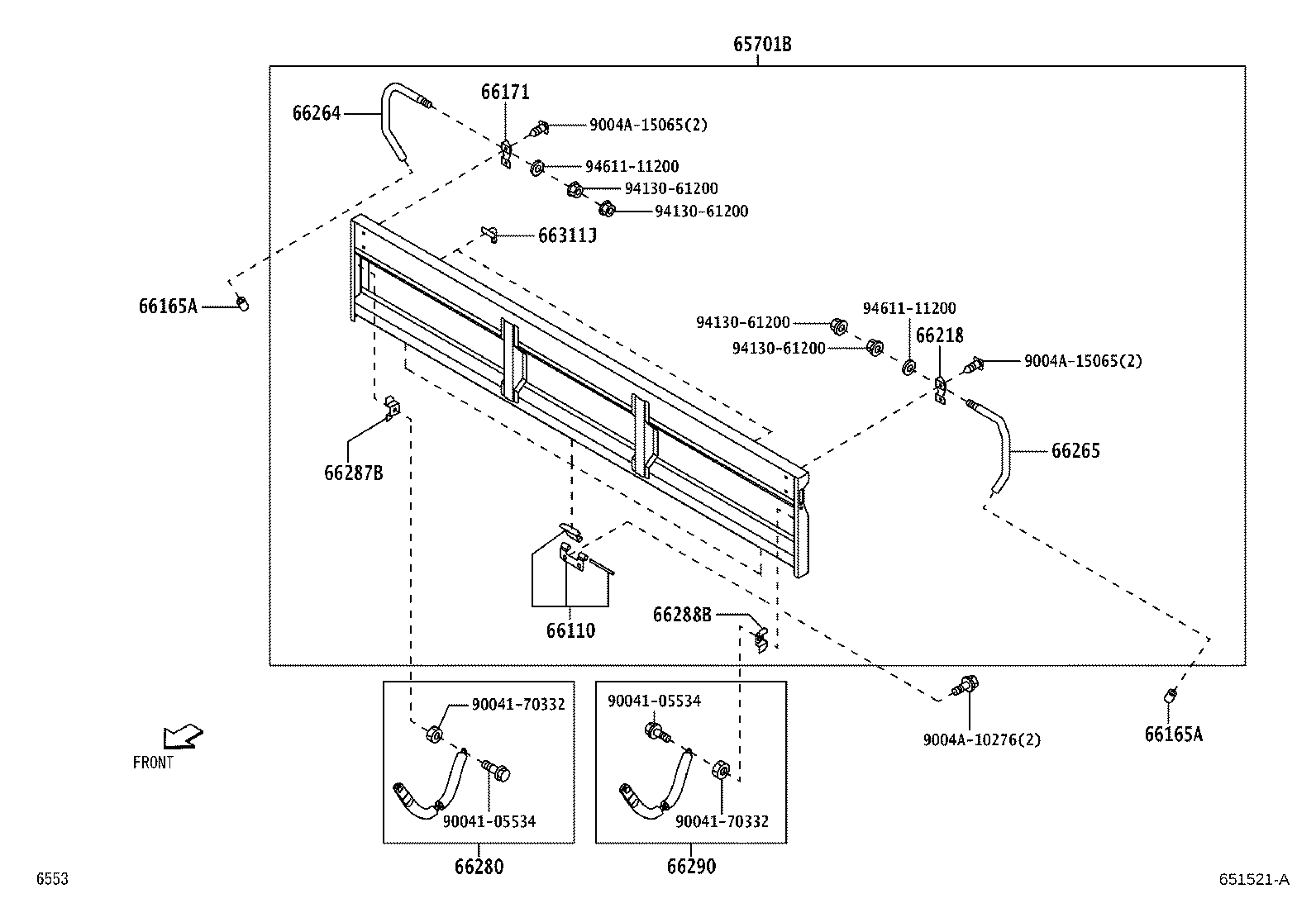

Figure 651522B 651522B 2022-01 → — Figure 651521A 651521A 2022-01 → —

Part groups

PNCDescription
65400A Guard Assy, Rear Body
65701B Gate Sub-assy, Rear Body Tail
66110 Hinge Assy, Tail Gate
66165A Cap, Gate Latch Handle
66171 Holder, Tail Gate
66218 Bracket, Tail Gate Latch Pin
66264 Handle, Tail Gate Latch, RH
66265 Handle, Tail Gate Latch, LH
66280 Chain Assy, Tail Gate, RH
66287B Bracket, Tail Gate Chain, RH
66288B Bracket, Tail Gate Chain, LH
66290 Chain Assy, Tail Gate, LH
66311J Hook, Rope
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
