Toyota Townace

2022-01 → present · chassis S403 · catalogue 642210 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

14 part groups · 2 illustrations

Illustrations

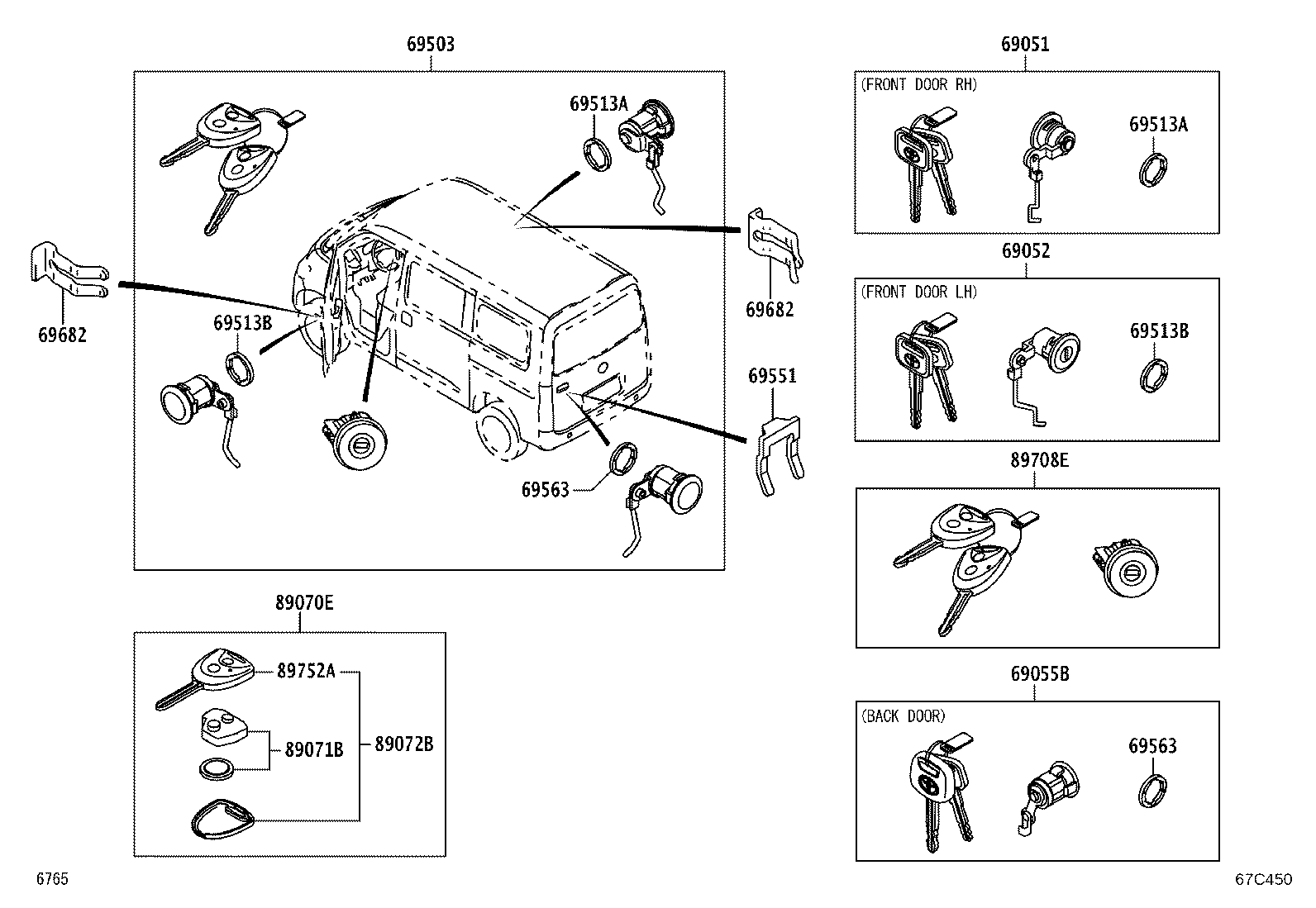

Figure 67B782A 67B782A 2022-01 → — Figure 67C450 67C450 2022-12 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055B Cylinder & Key Set, Back Door Lock
69503 Cylinder Set, Lock
69513A Pad, Door Cylinder
69513B Pad, Door Cylinder
69551 Retainer, Back Door Lock Cylinder
69563 Pad, Back Door Lock Cylinder
69682 Retainer, Lock Cylinder
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89072B Housing Set, Door Control Transmitter (FOR SMART KEY)
89708E Cylinder Set, Lock W/Transmitter
89752A Case, Transmitter Housing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
