Toyota Townace

2022-01 → present · chassis S403 · catalogue 642210 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

16 part groups · 3 illustrations

Illustrations

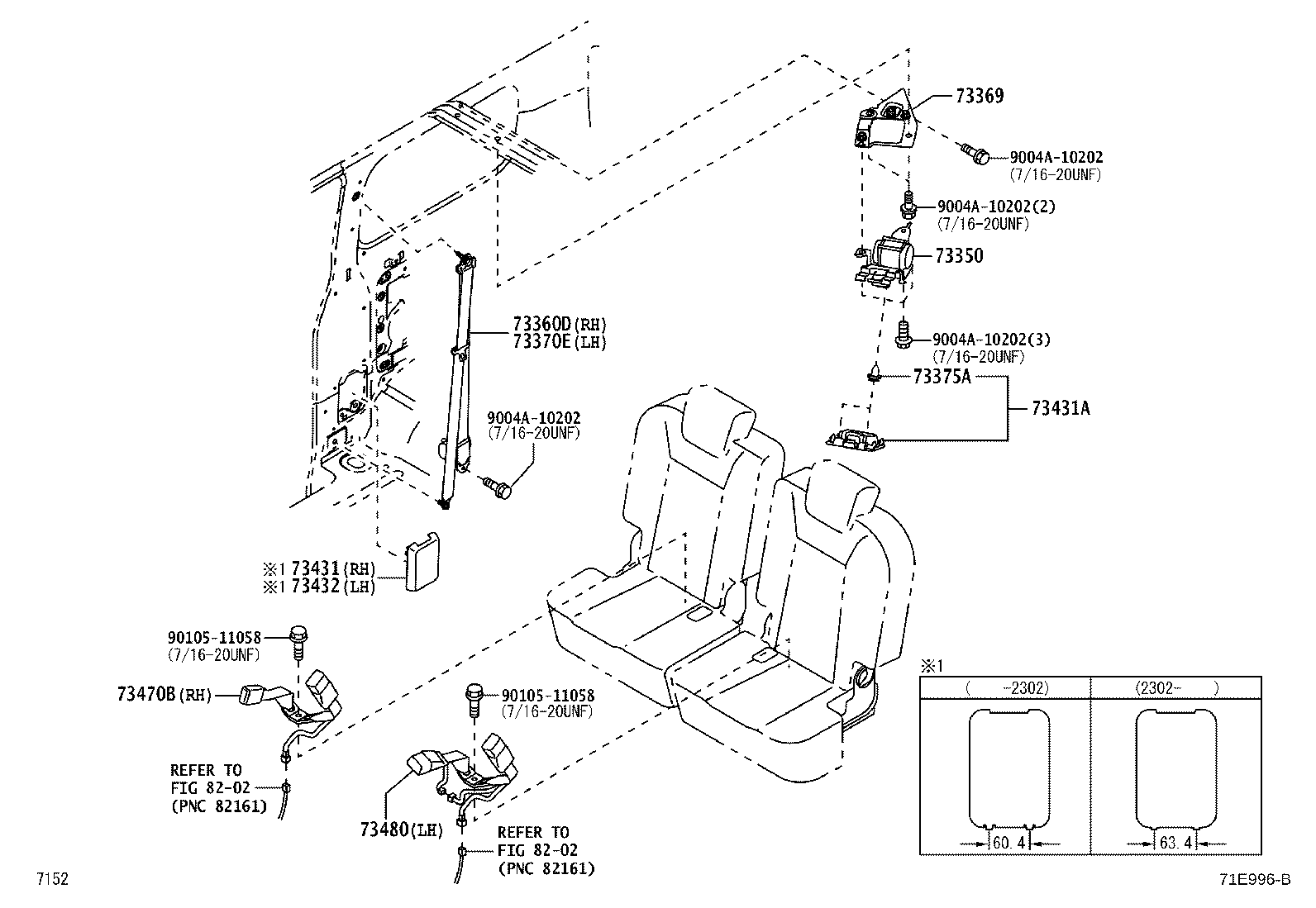

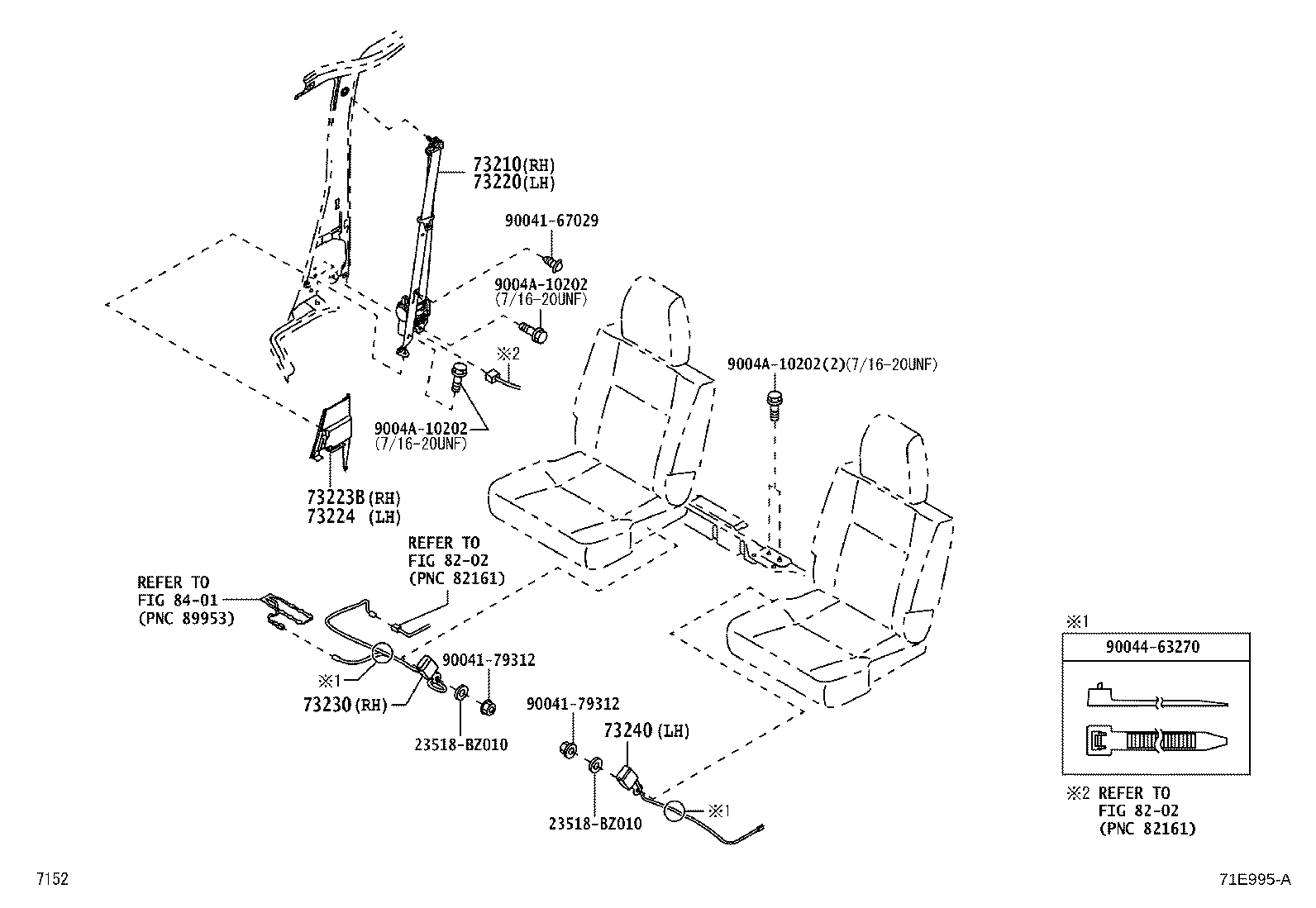

Figure 71D970C 71D970C 2022-01 → — Figure 71E995A 71E995A 2022-12 → — Figure 71E996B 71E996B 2022-12 → —

Part groups

PNCDescription
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73223B Cover, Front Seat Belt Retractor, RH
73224 Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360D Belt Assy, Rear Seat, Outer RH
73369 Plate, Rear Seat Belt Anchor
73370E Belt Assy, Rear Seat, Outer LH
73375A Clip, Rear Seat Belt Cover
73431 Cover, Rear Seat Belt Retractor, RH
73431A Cover, Rear Seat Belt Retractor
73432 Cover, Rear Seat Belt Retractor, LH
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
