Toyota Townace
2022-01 → present · chassis S403 · catalogue 642210 · General
Supported model
Data version 2022-11

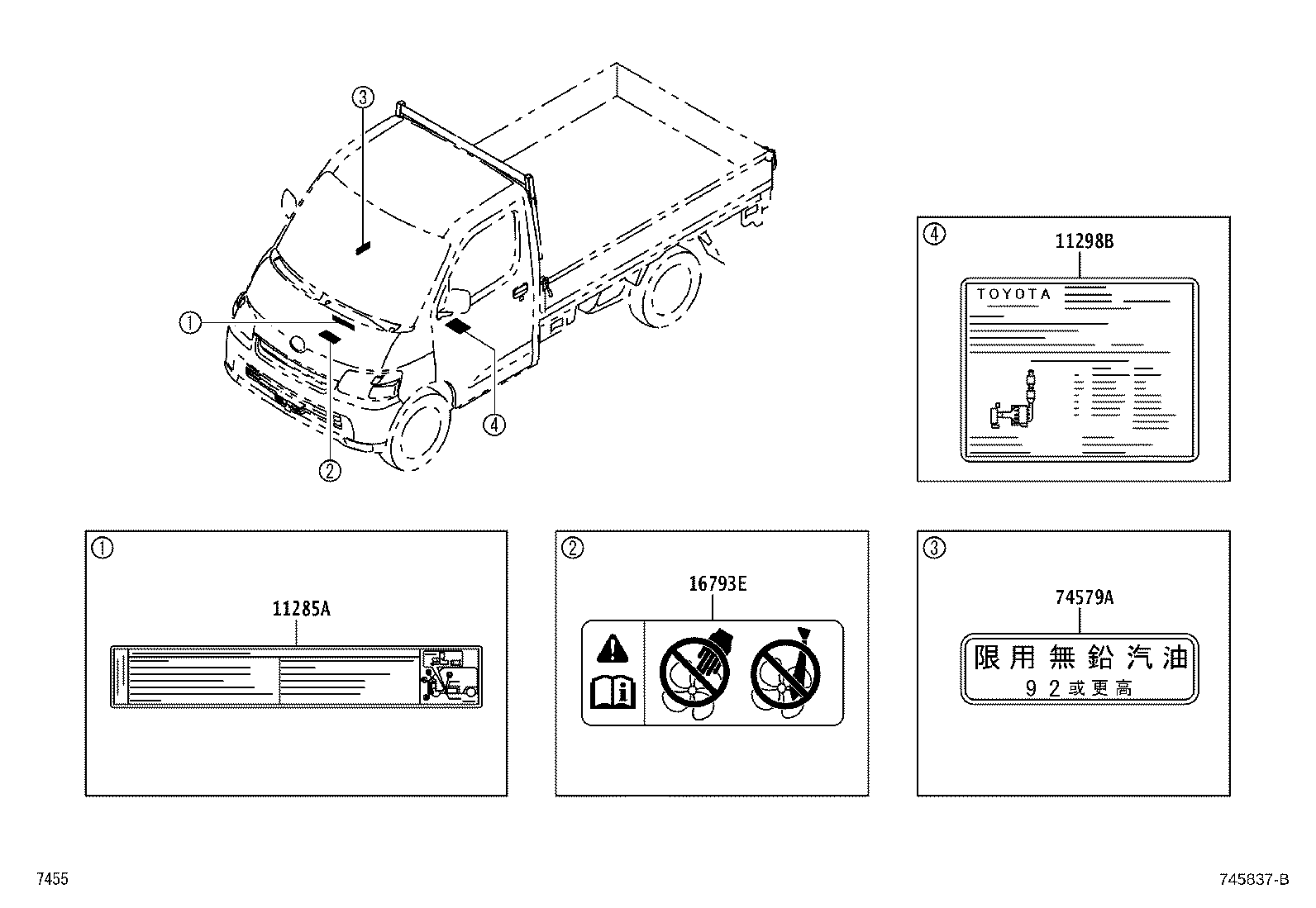

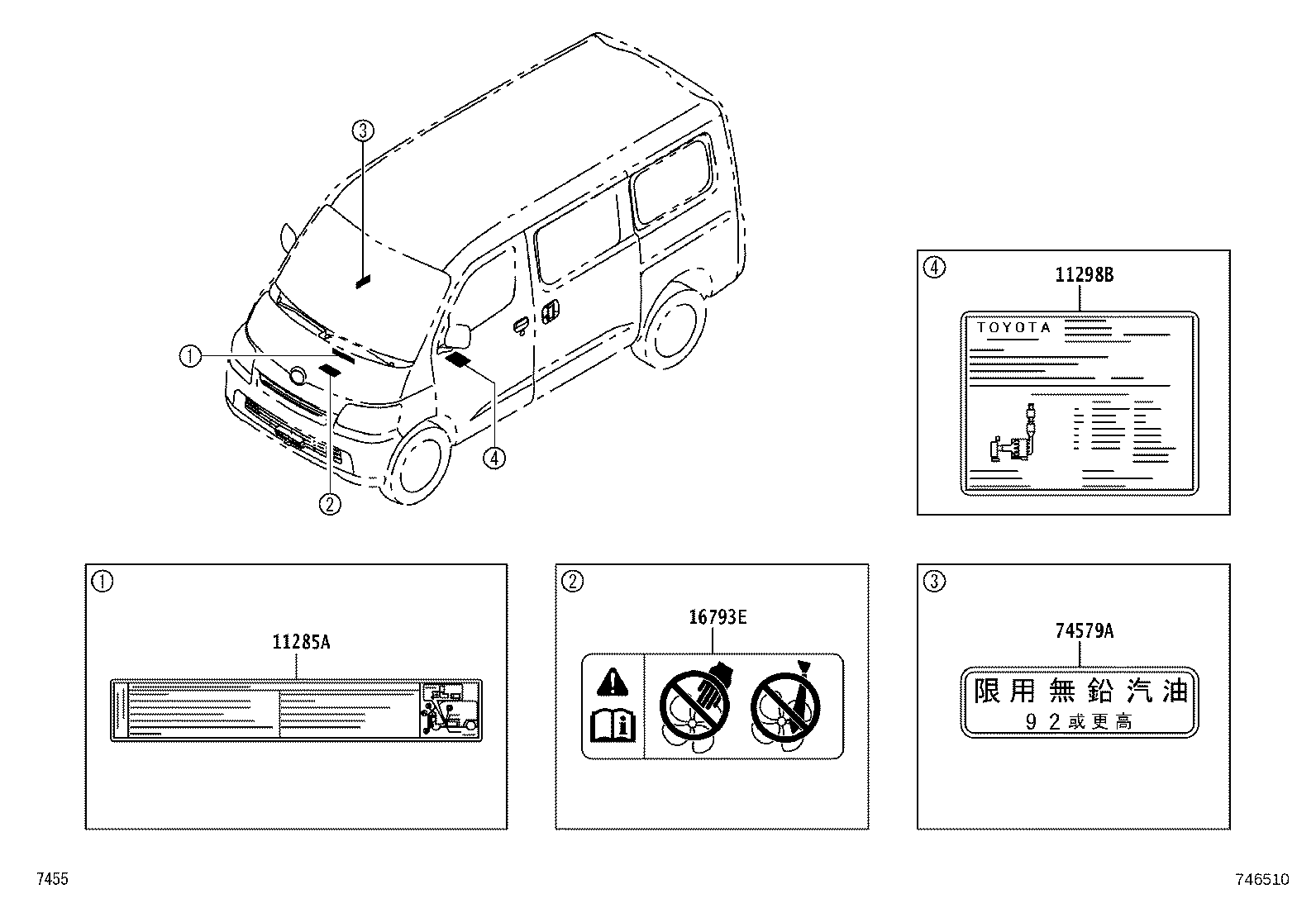

Caution Plate
7 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11298B | Label, Emission Control Information |
| 16793E | Label, Cooling Fan Caution |
| 42661 | Label, Tire Pressure Information |
| 74552B | Label, Safety Caution |
| 74579A | Label, Unleaded Fuel Information |
| 88723H | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
