Toyota Townace

2022-01 → present · chassis S403 · catalogue 642210 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

14 part groups · 2 illustrations

Illustrations

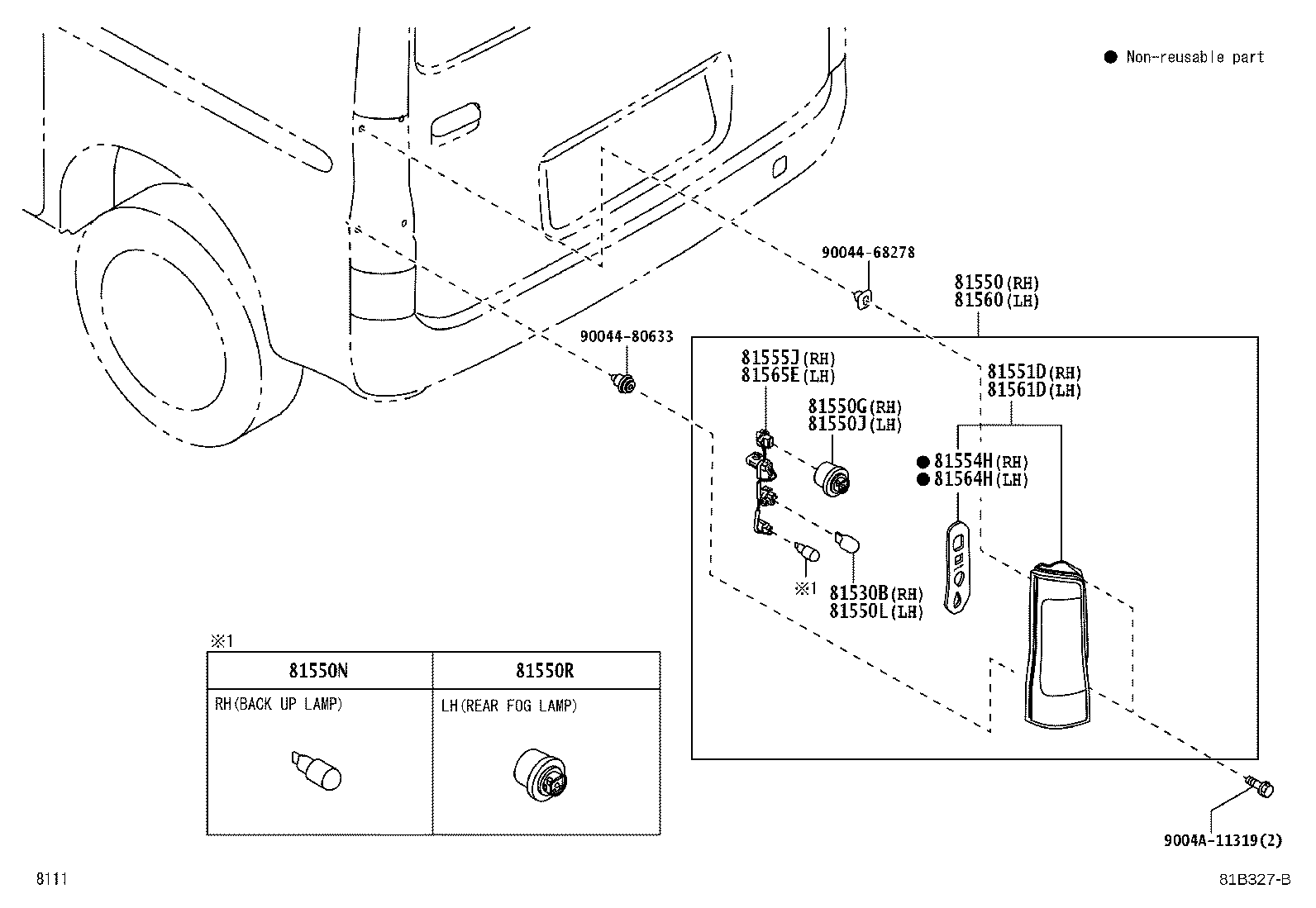

Figure 81A462B 81A462B 2022-01 → — Figure 81B327B 81B327B 2022-12 → —

Part groups

PNCDescription
81530B Bulb, Rear Turn Signal Lamp
81550 Lamp Assy, Rear Combination, RH
81550G Socket, Taillamp
81550J Socket, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550R Socket, Rear Fog Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81554H Packing, Rear Combination Lamp, RH
81555J Socket & Wire, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561D Lens & Body, Rear Combination Lamp, LH
81564H Packing, Rear Combination Lamp, LH
81565E Socket & Wire, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
