Toyota Townace

2022-01 → present · chassis S403 · catalogue 642210 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

17 part groups · 8 illustrations

Illustrations

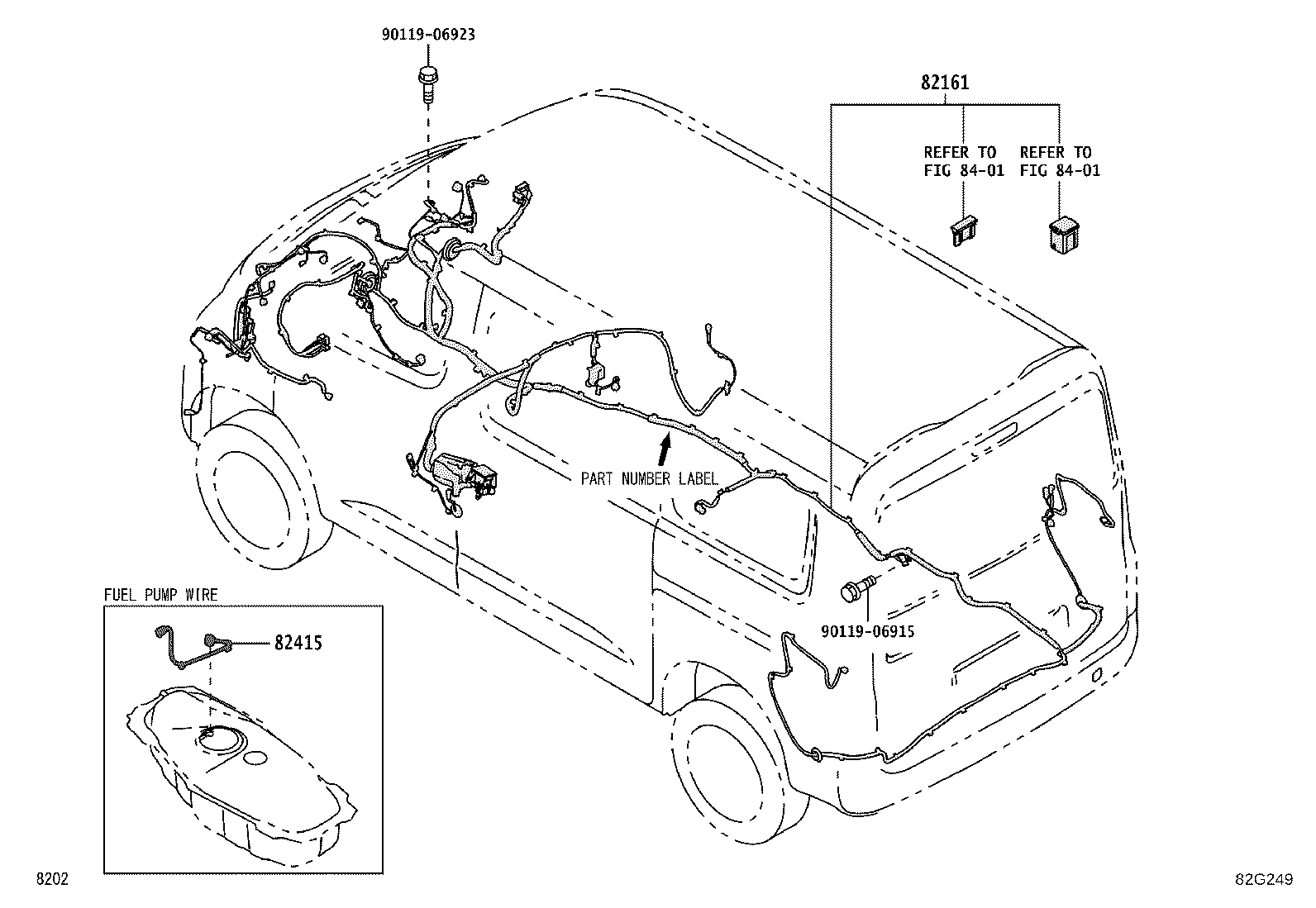

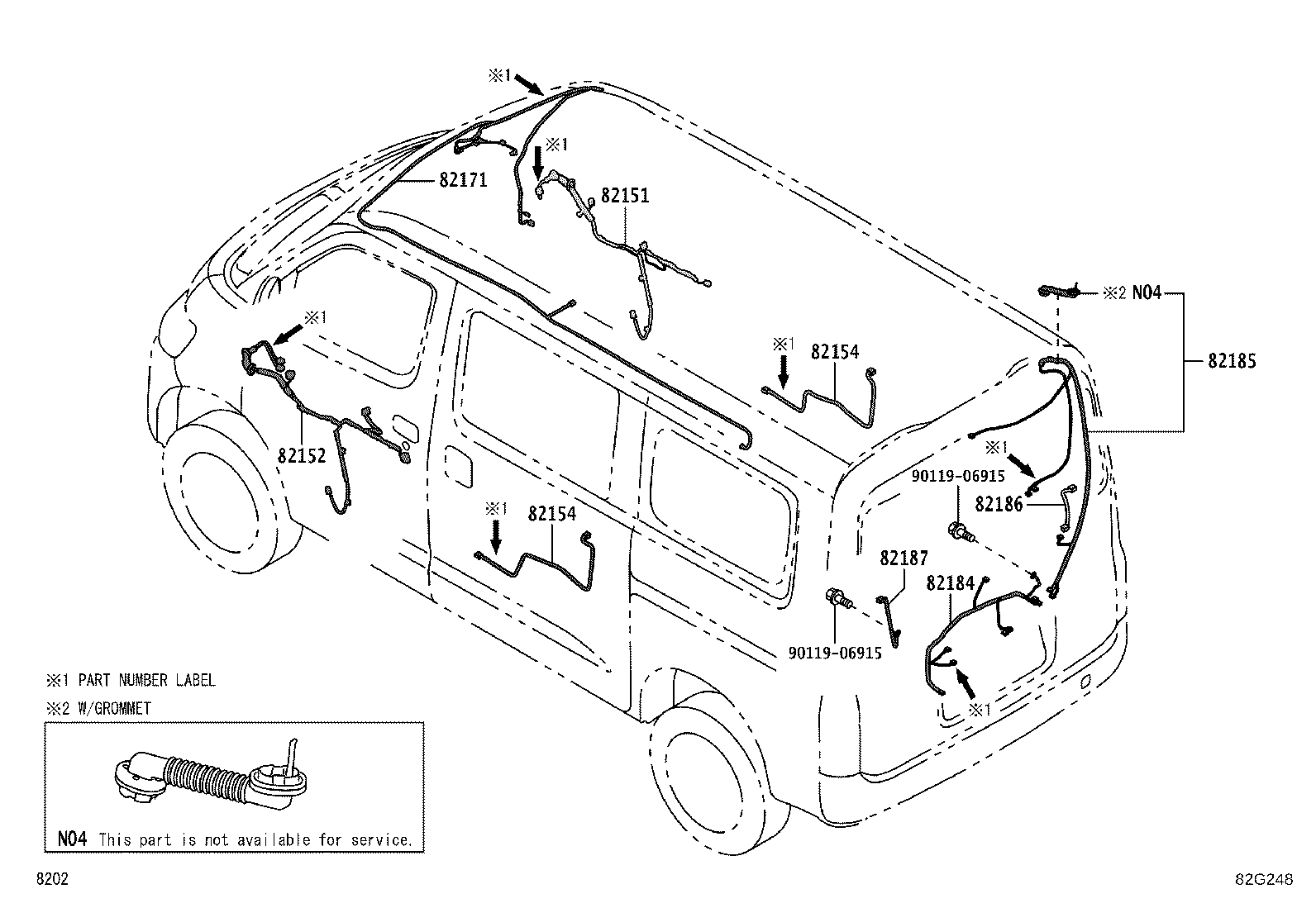

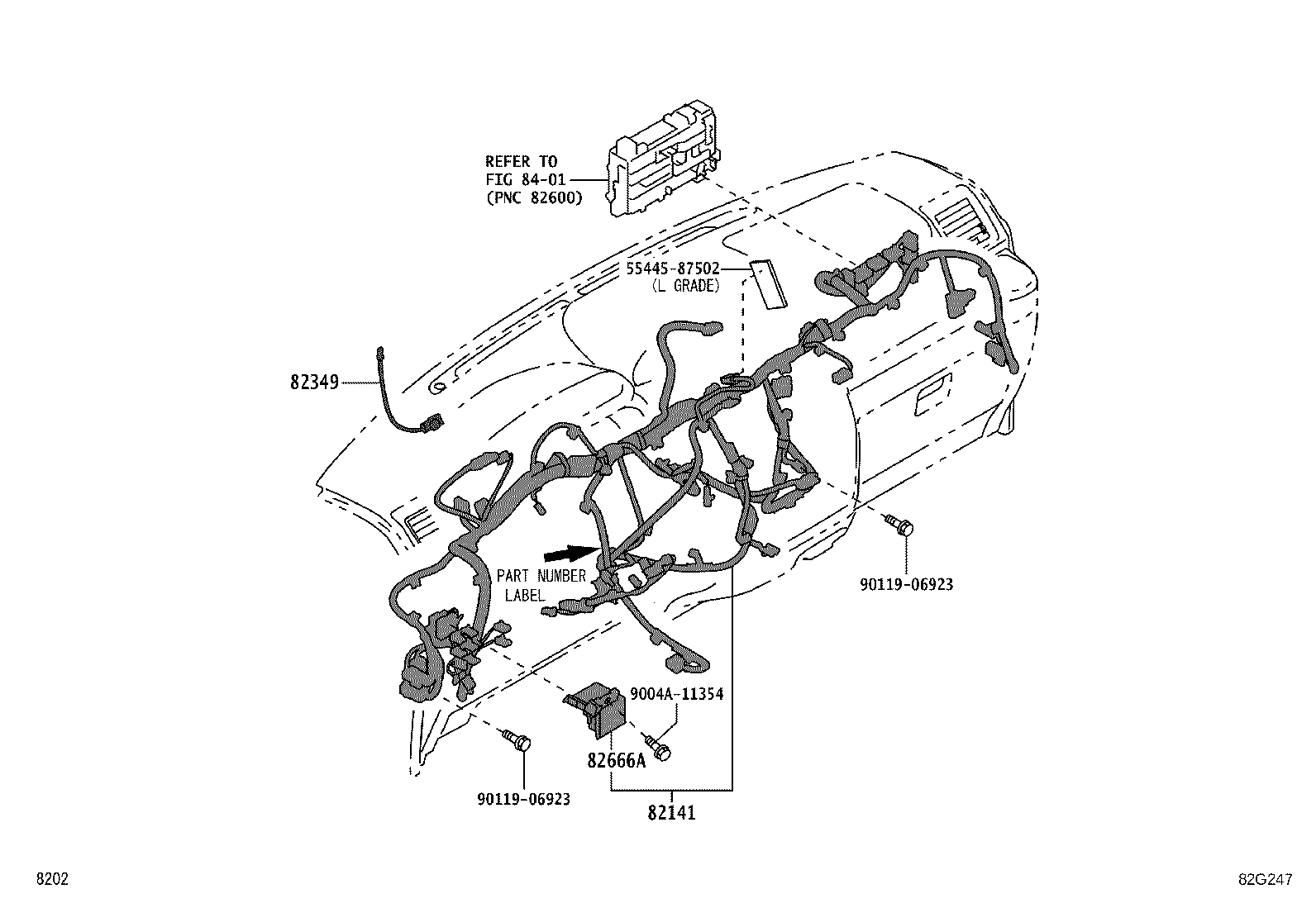

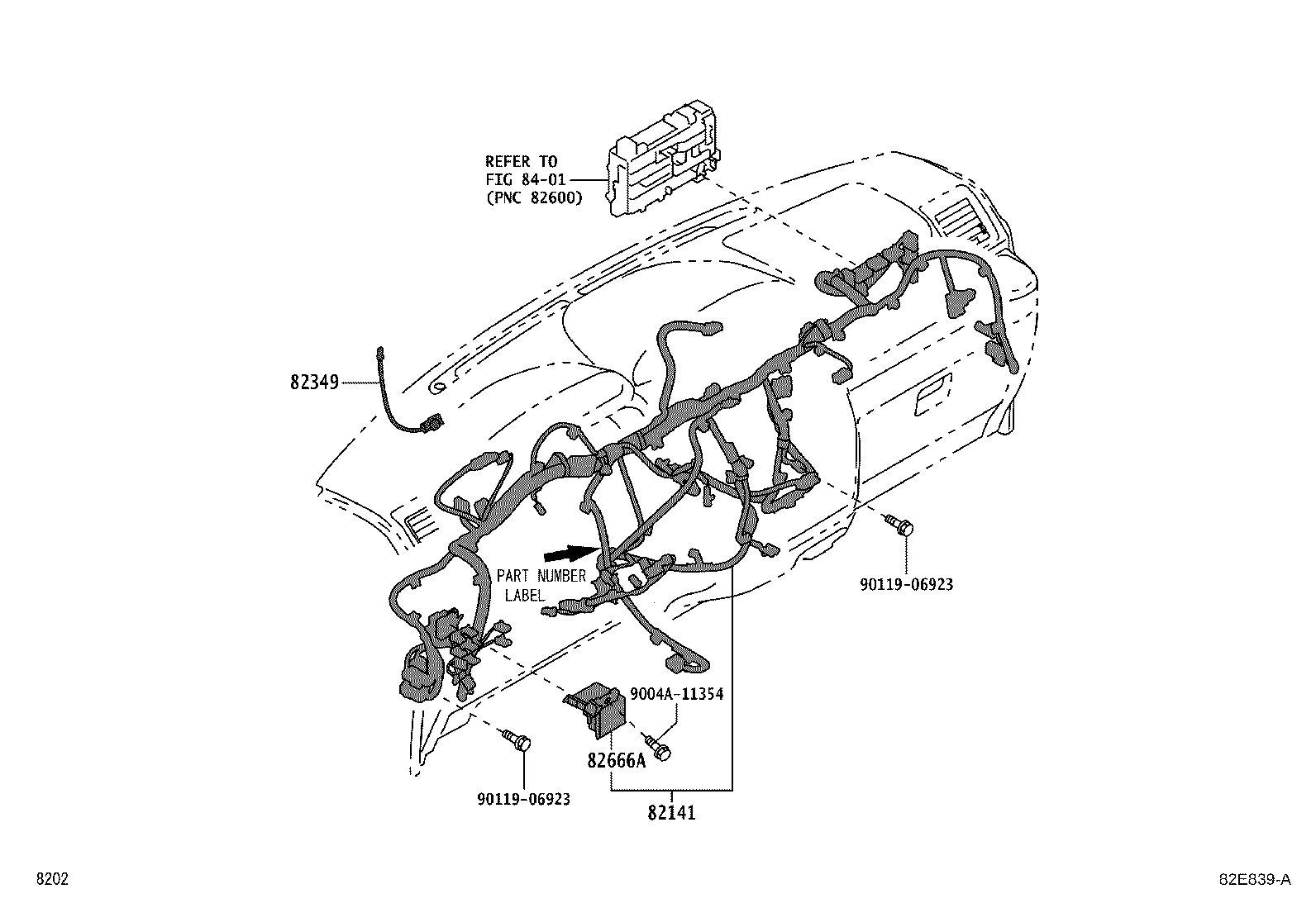

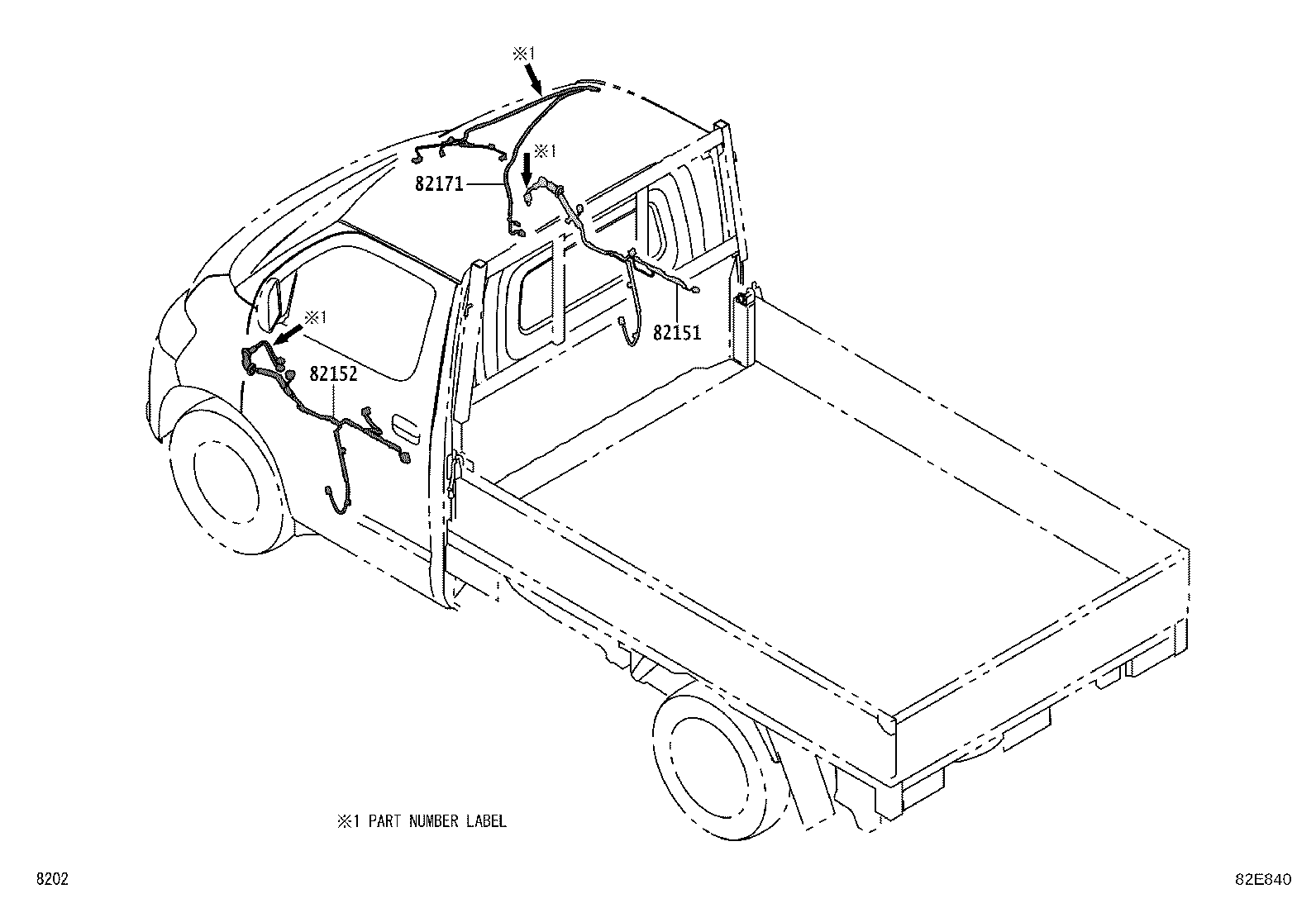

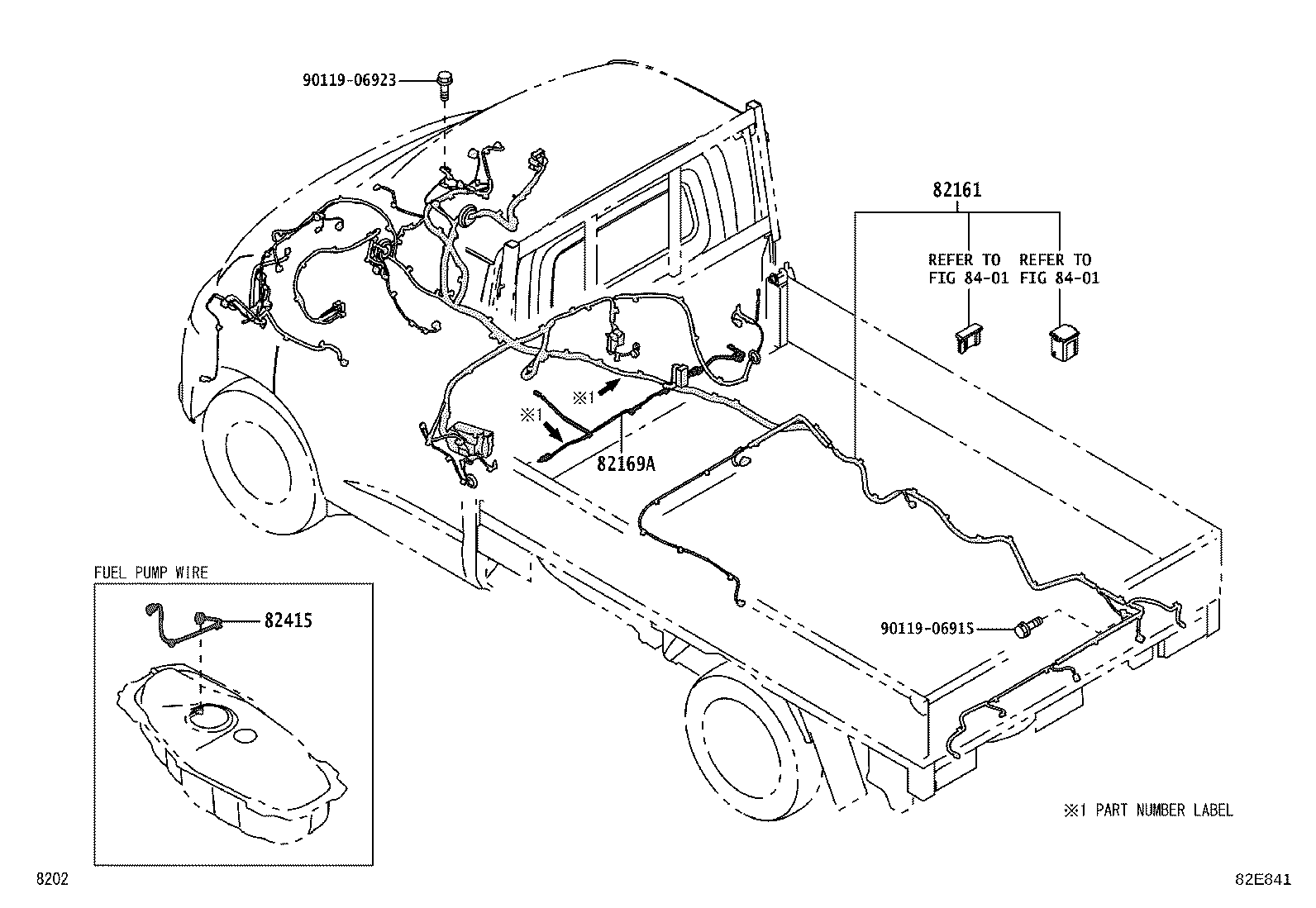

Figure 82E838 82E838 2022-01 → — Figure 82E839A 82E839A 2022-01 → — Figure 82G247 82G247 2022-12 → — Figure 82E840 82E840 2022-01 → — Figure 82G248 82G248 2022-12 → — Figure 82E841 82E841 2022-01 → — Figure 82G249 82G249 2022-12 → — Figure 82E842 82E842 2022-01 → —

Part groups

PNCDescription
82121 Wire, Engine
82126 Wire, Engine
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82169A Wire, Floor, NO.6
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82349 Wire, Light Control Rheostat
82415 Wire, Fuel Pump
82627A Wire, Fusible Link
82666A Holder, Connector NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
