Toyota Townace

2022-01 → present · chassis S403 · catalogue 642210 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

50 part groups · 10 illustrations

Illustrations

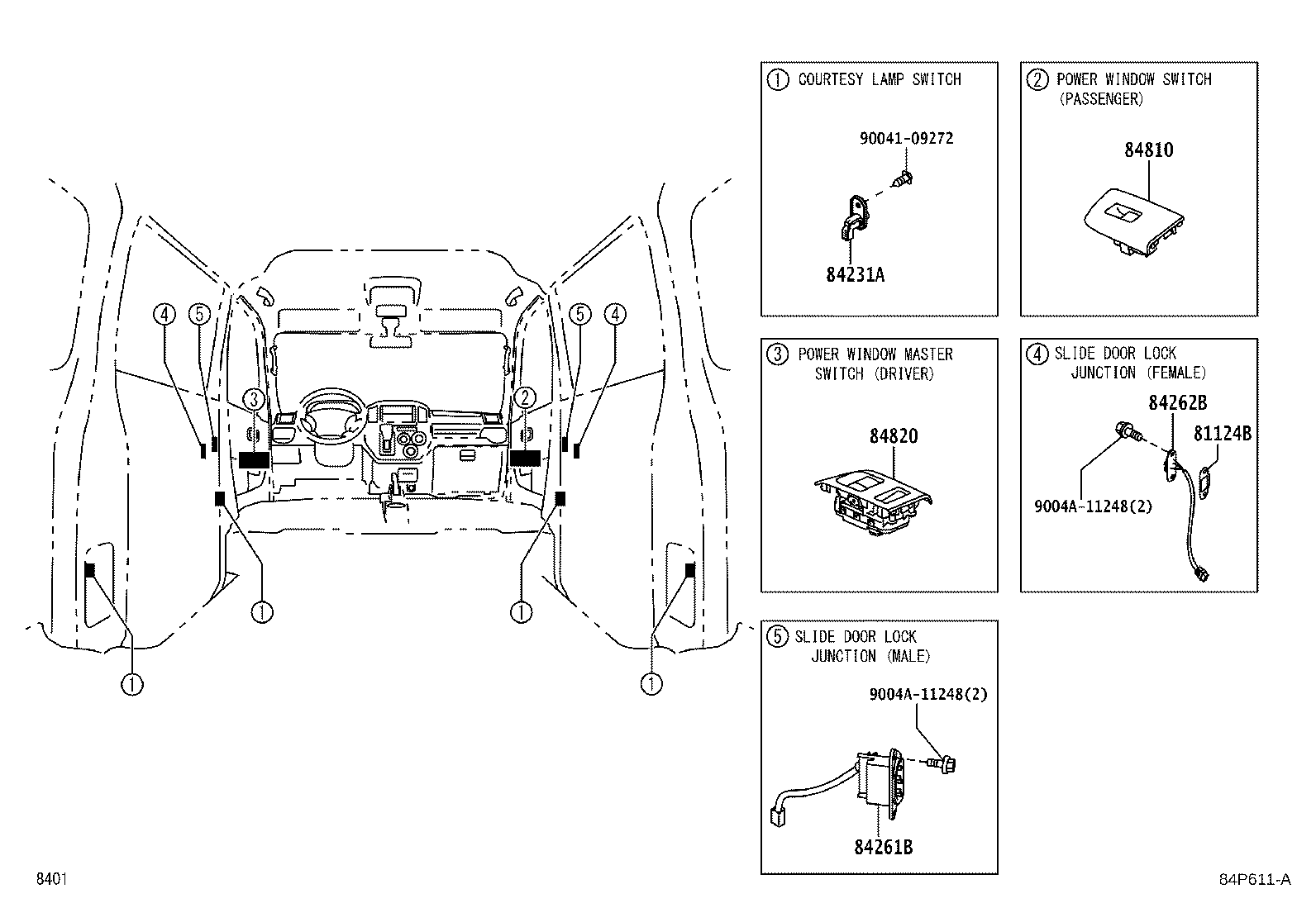

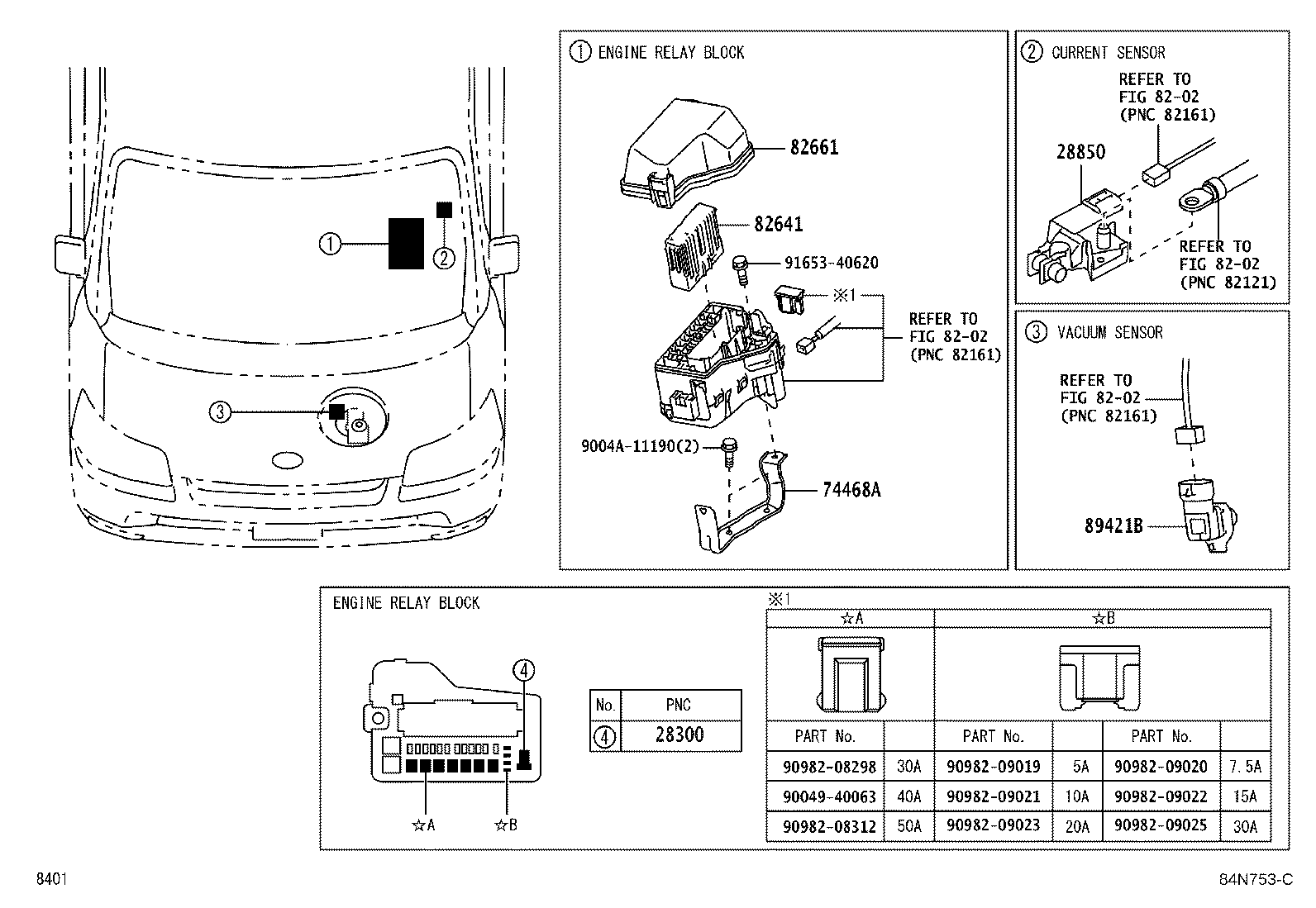

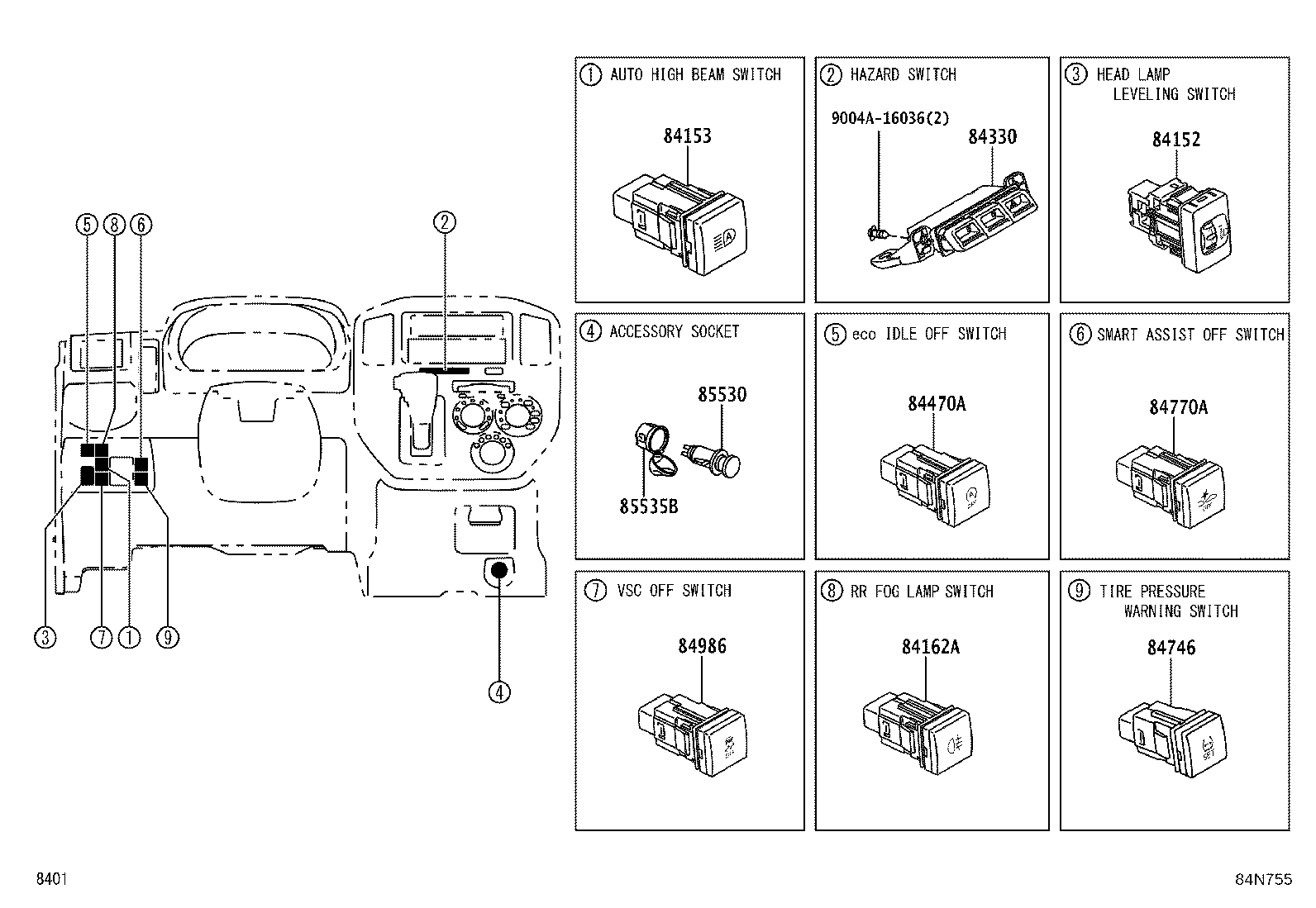

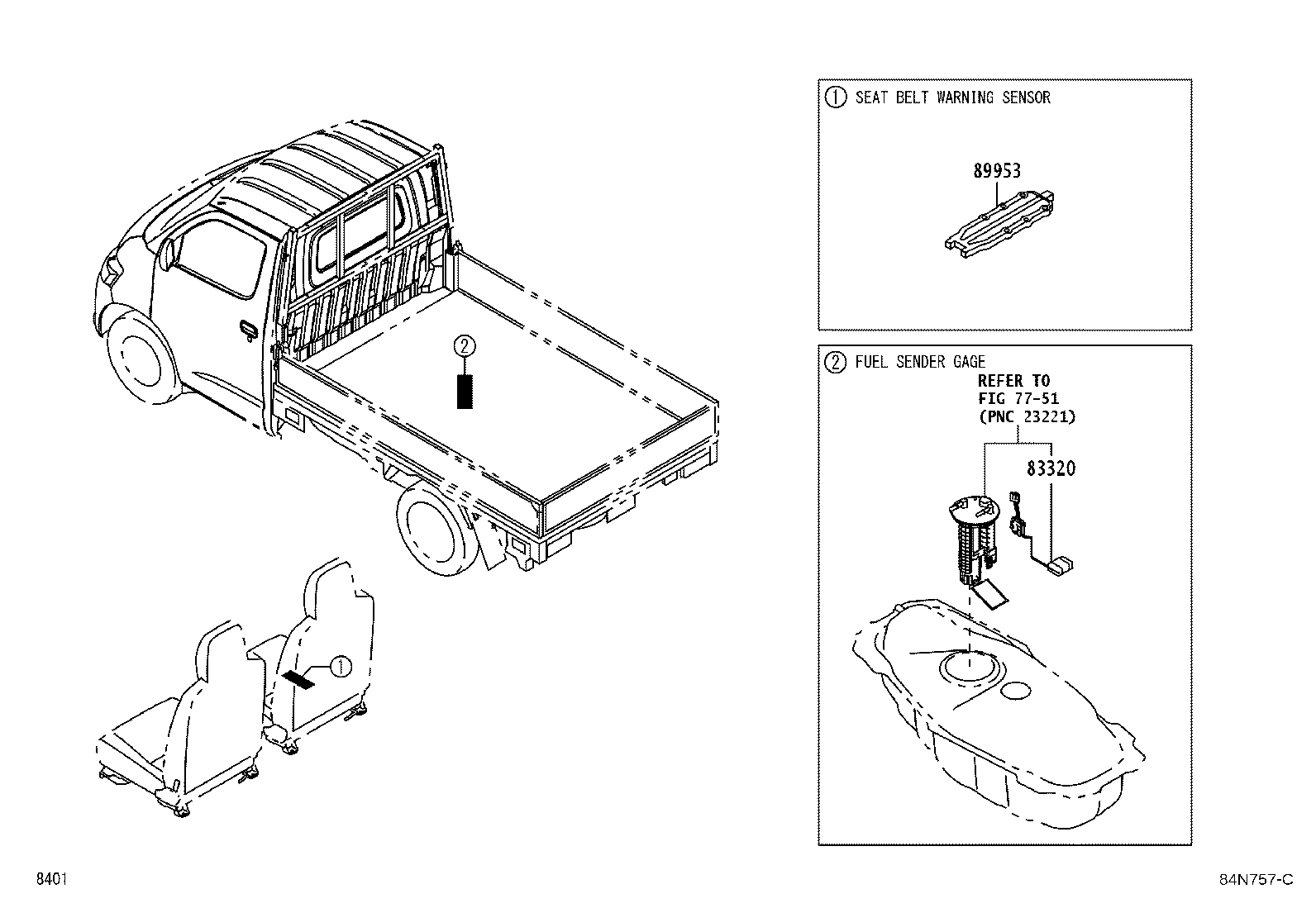

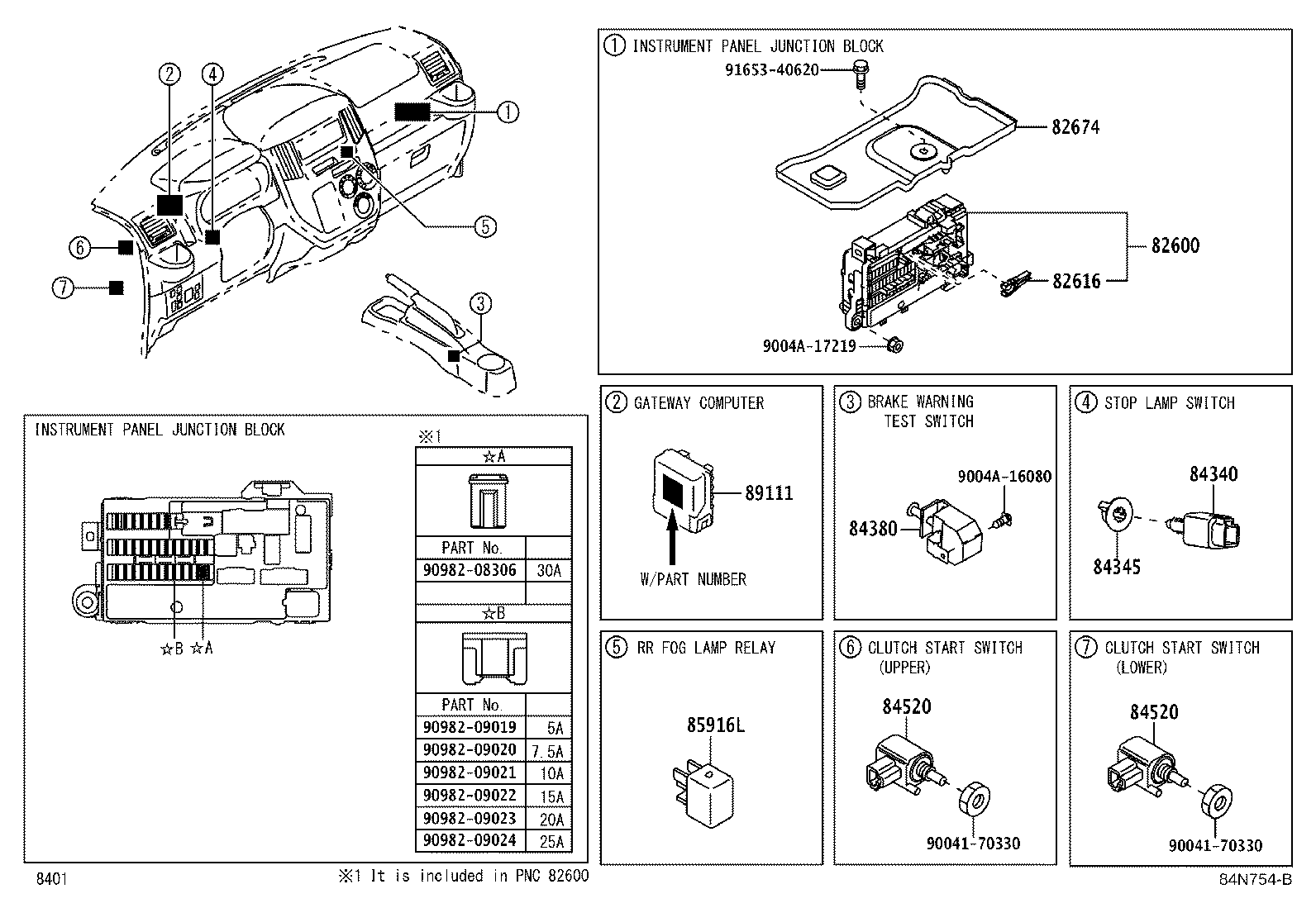

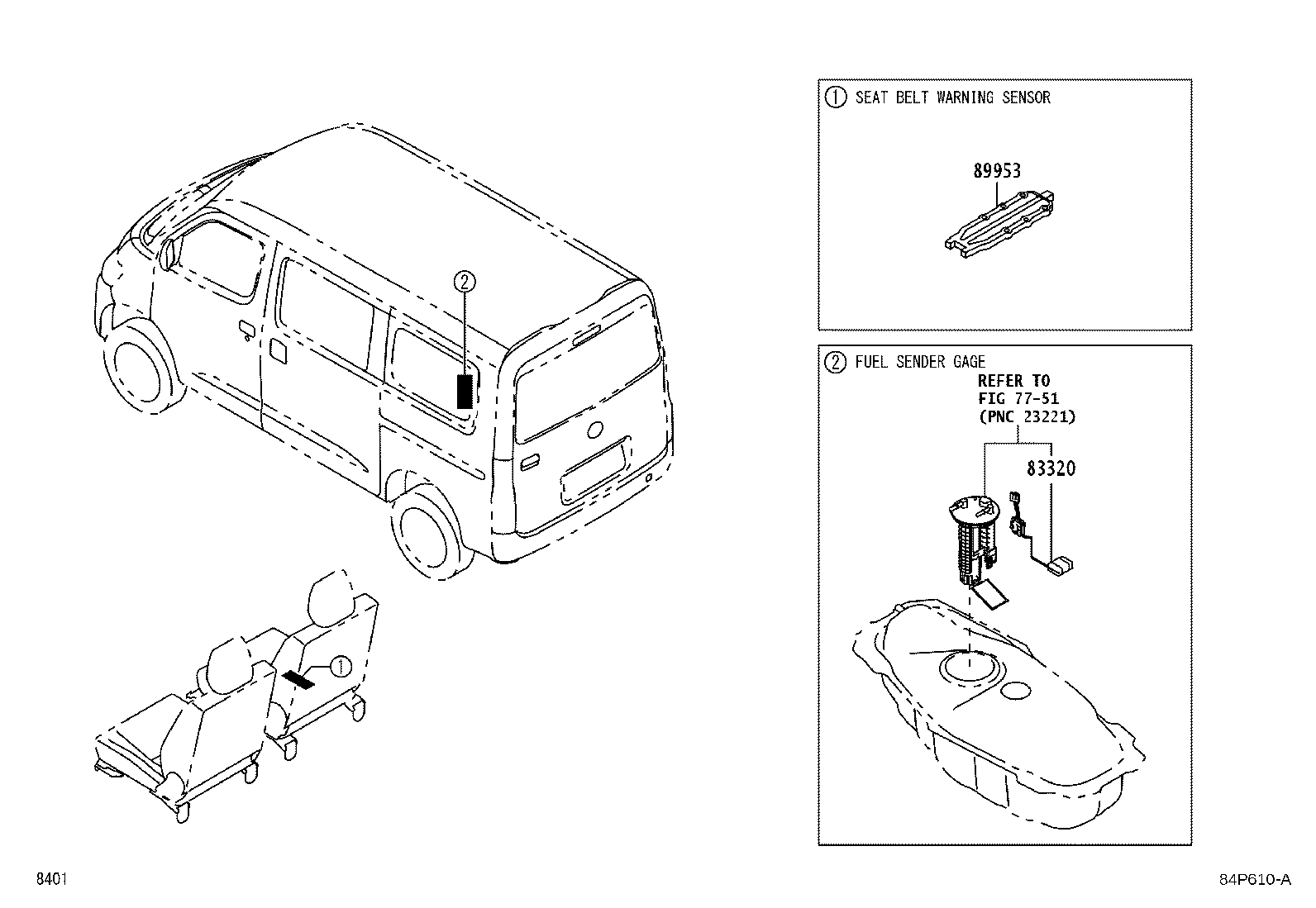

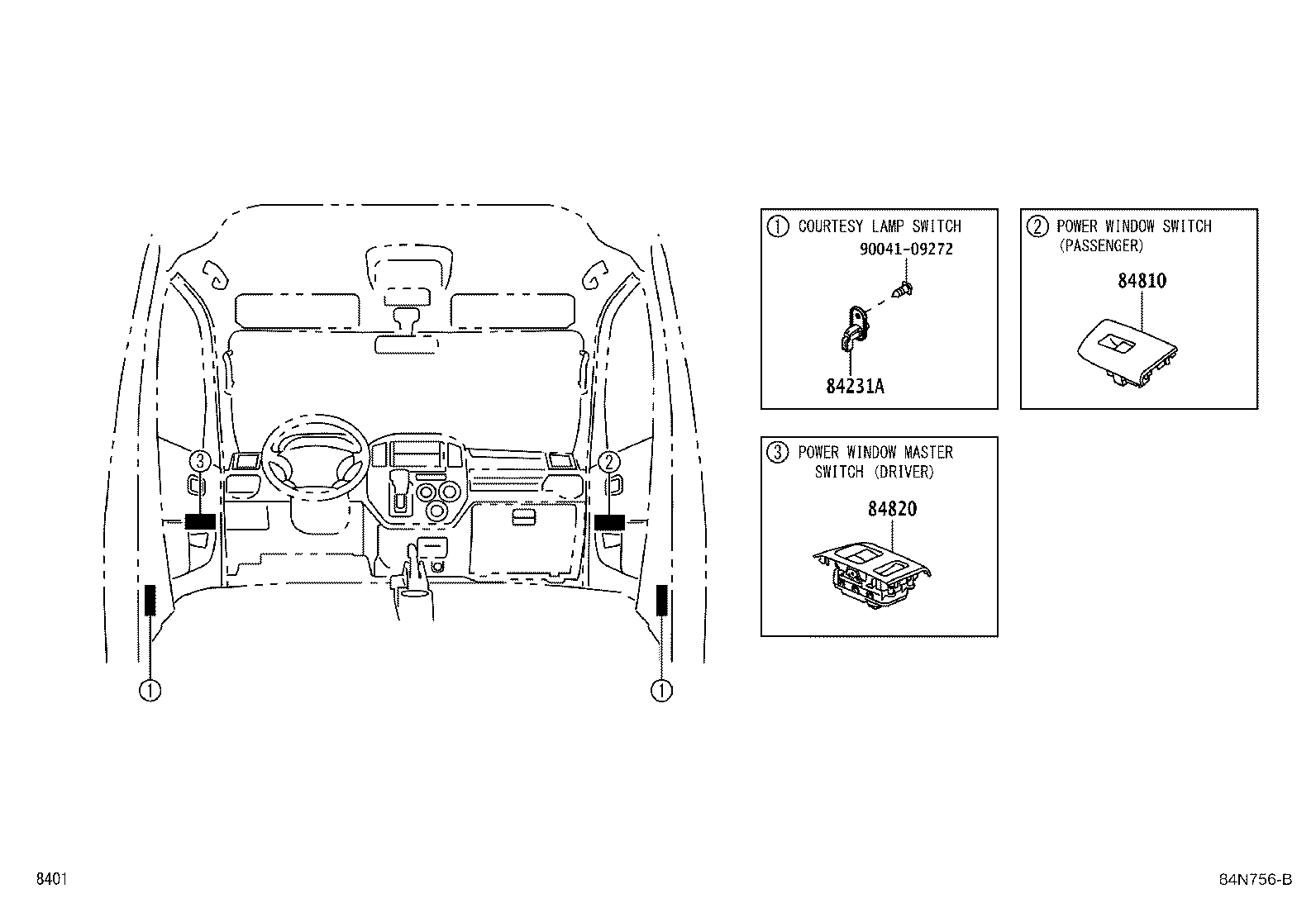

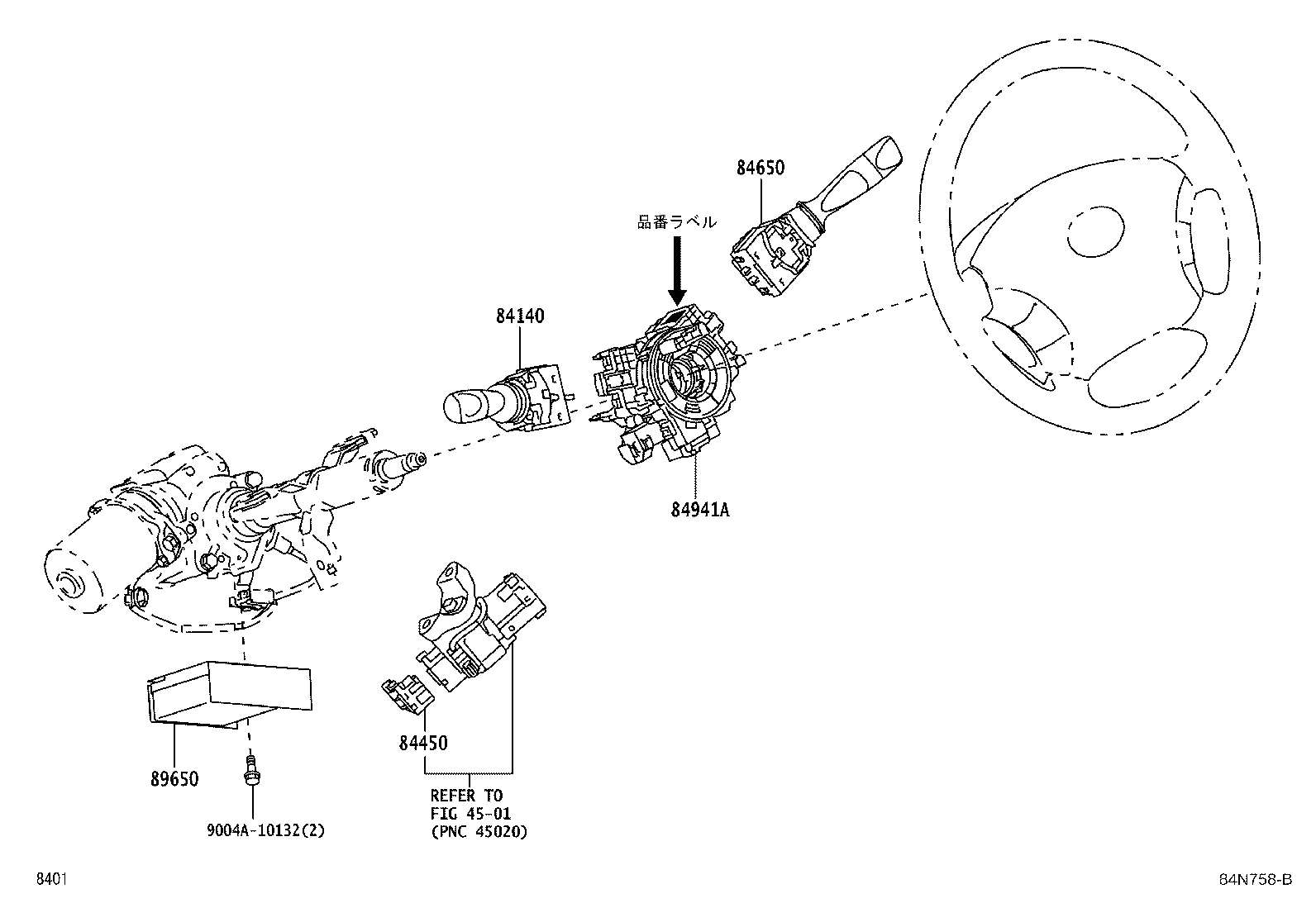

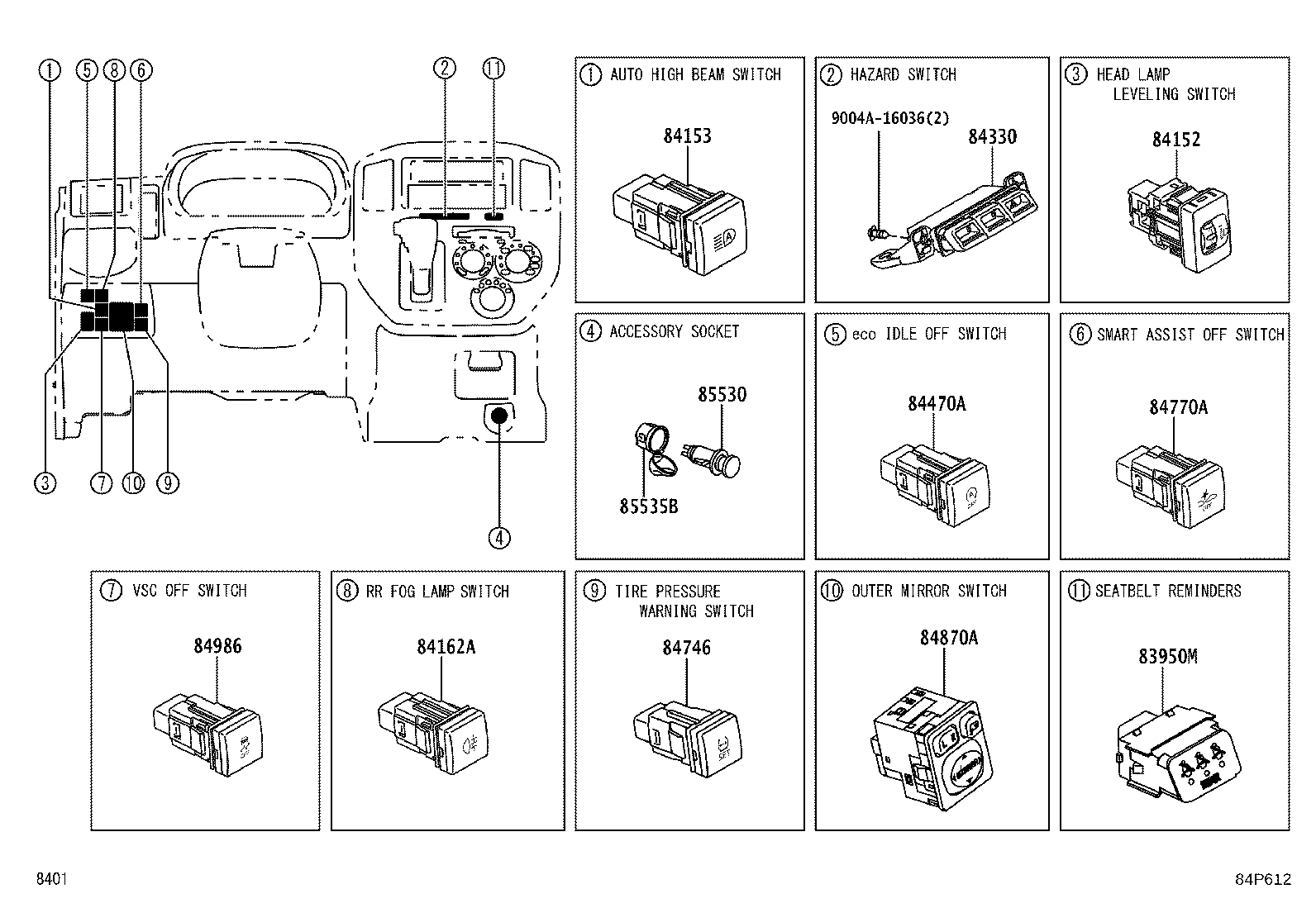

Figure 84N752A 84N752A 2022-01 → — Figure 84N753C 84N753C 2022-01 → — Figure 84N754B 84N754B 2022-01 → — Figure 84N755 84N755 2022-01 → — Figure 84P612 84P612 2022-12 → — Figure 84N756B 84N756B 2022-01 → — Figure 84P611A 84P611A 2022-12 → — Figure 84N757C 84N757C 2022-01 → — Figure 84P610A 84P610A 2022-12 → — Figure 84N758B 84N758B 2022-01 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28850 Sensor Assy, Battery Current
74468A Bracket, Relay Block
81124B Spacer
82600 Block Assy, Fuse
82616 Puller, Fuse
82641 Relay, Integration NO.1
82661 Cover, Relay Block, NO.1
82674 Cover, Junction Block Lower
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83950M Lamp Assy, Telltale
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84153 Switch, Auto High Beam
84162A Switch, Rear Fog Lamp
84210 Switch Assy, Back-up Lamp
84210B Gasket, Back-up Lamp Switch
84231A Switch, Courtesy Lamp
84261B Junction, Slide Door Control,Male
84262B Junction, Slide Door Control, Female
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84380 Switch Assy, Brake Warning Test
84450 Switch Assy, Ignition OR Starter
84470A Switch Assy, Ecorun Cancel
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84545 Switch, Neutral Position
84650 Switch Assy, Windshield Wiper
84746 Switch, Tire Pressure Warning
84770A Switch Assy, Pre-collision System Cancel
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84941A Base, Switch
84986 Switch, Vehicle Stability Control
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85916L Relay, Rear Fog Lamp
89111 Computer, Network Gateway
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89439 Bracket, Sensor
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89953 Sensor, Belt Warning Occupant Detection
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
