Factory parts data · Europe

Toyota Townace

2022-01 → present · chassis S403 · catalogue 642210 · General

Supported model Data version 2022-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

5 part groups · 2 illustrations

Illustrations

Figure 84N703C

84N703C 2022-01 → —

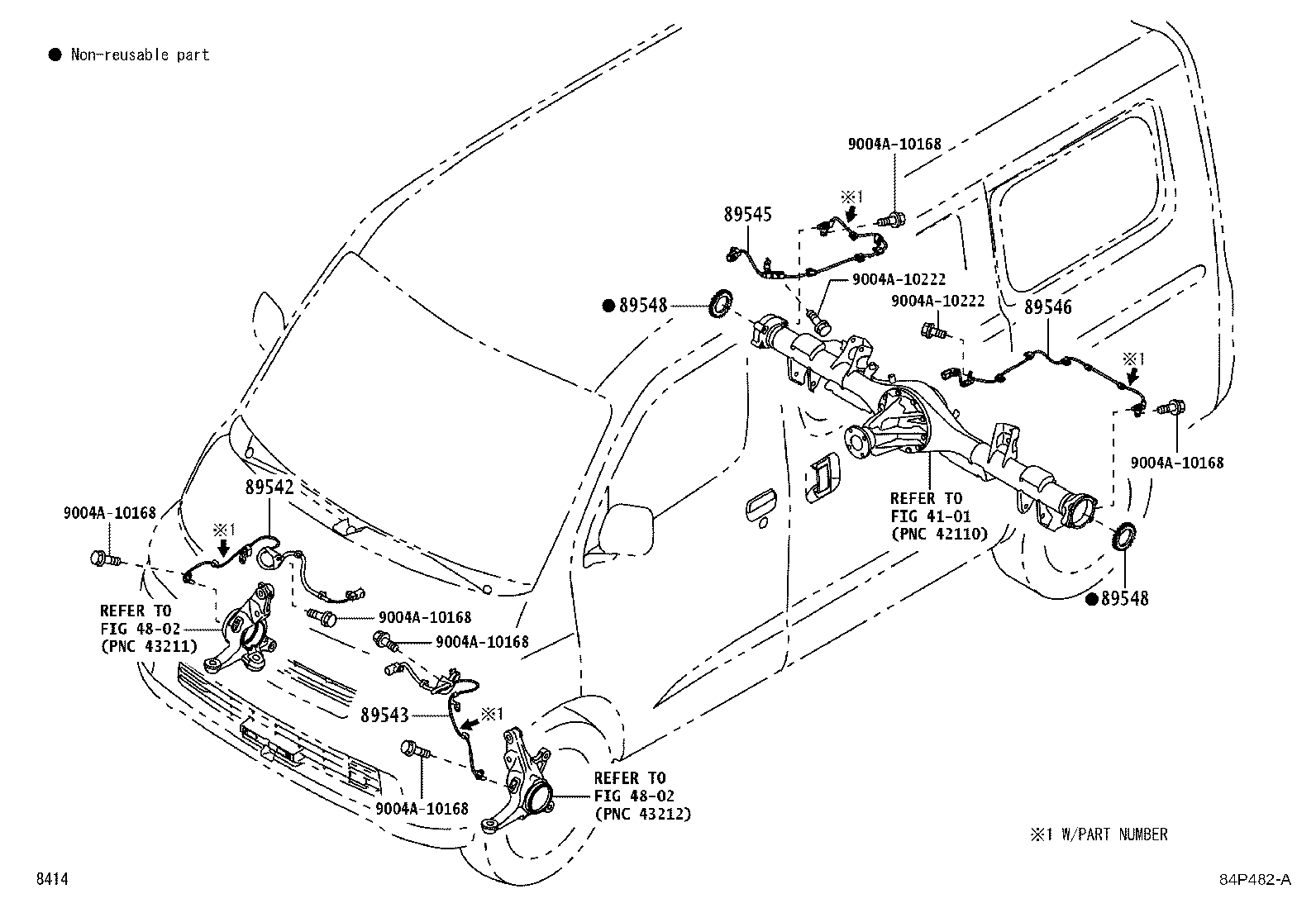

Figure 84P482A

84P482A 2022-12 → —

Part groups

PNC	Description
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH
89548	Rotor, Skid Control Sensor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
