Toyota Townace

2022-01 → present · chassis S403 · catalogue 642210 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

10 part groups · 2 illustrations

Illustrations

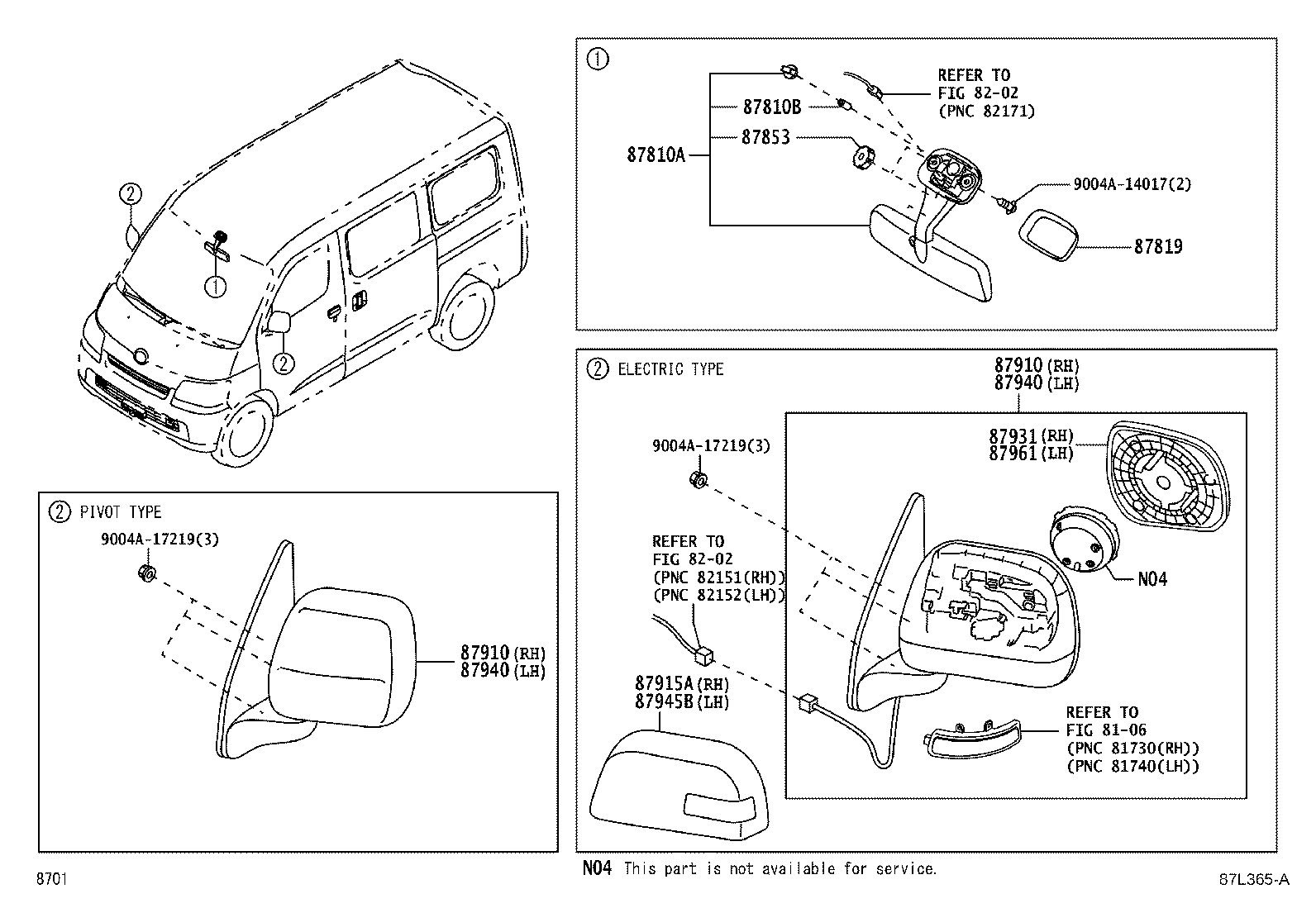

Figure 87K147B 87K147B 2022-01 → — Figure 87L365A 87L365A 2022-12 → —

Part groups

PNCDescription
87810A Mirror Assy Inner Rear View, NO.2
87810B Bulb, Inner Rear View Mirror Lamp
87819 Lens, Inner RR View Mirror Room Lamp
87853 Base, Inner Rear View Mirror
87910 Mirror Assy, Outer Rear View, RH
87915A Cover, Outer Mirror, RH
87931 Outer Mirror, RH
87940 Mirror Assy, Outer Rear View, LH
87945B Cover, Outer Mirror, LH
87961 Mirror Outer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
