Toyota Townace

2022-01 → present · chassis S403 · catalogue 642210 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

34 part groups · 3 illustrations

Illustrations

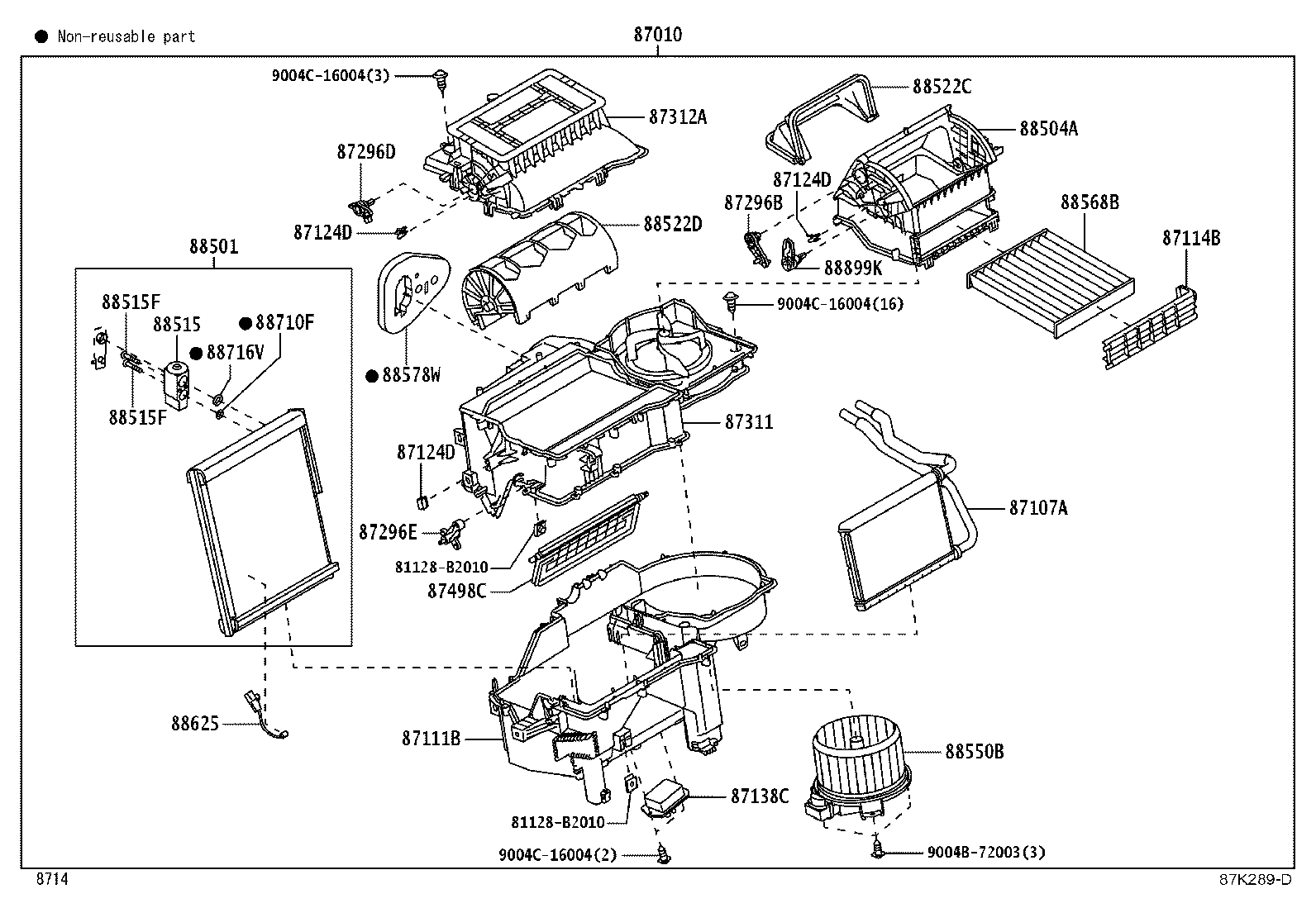

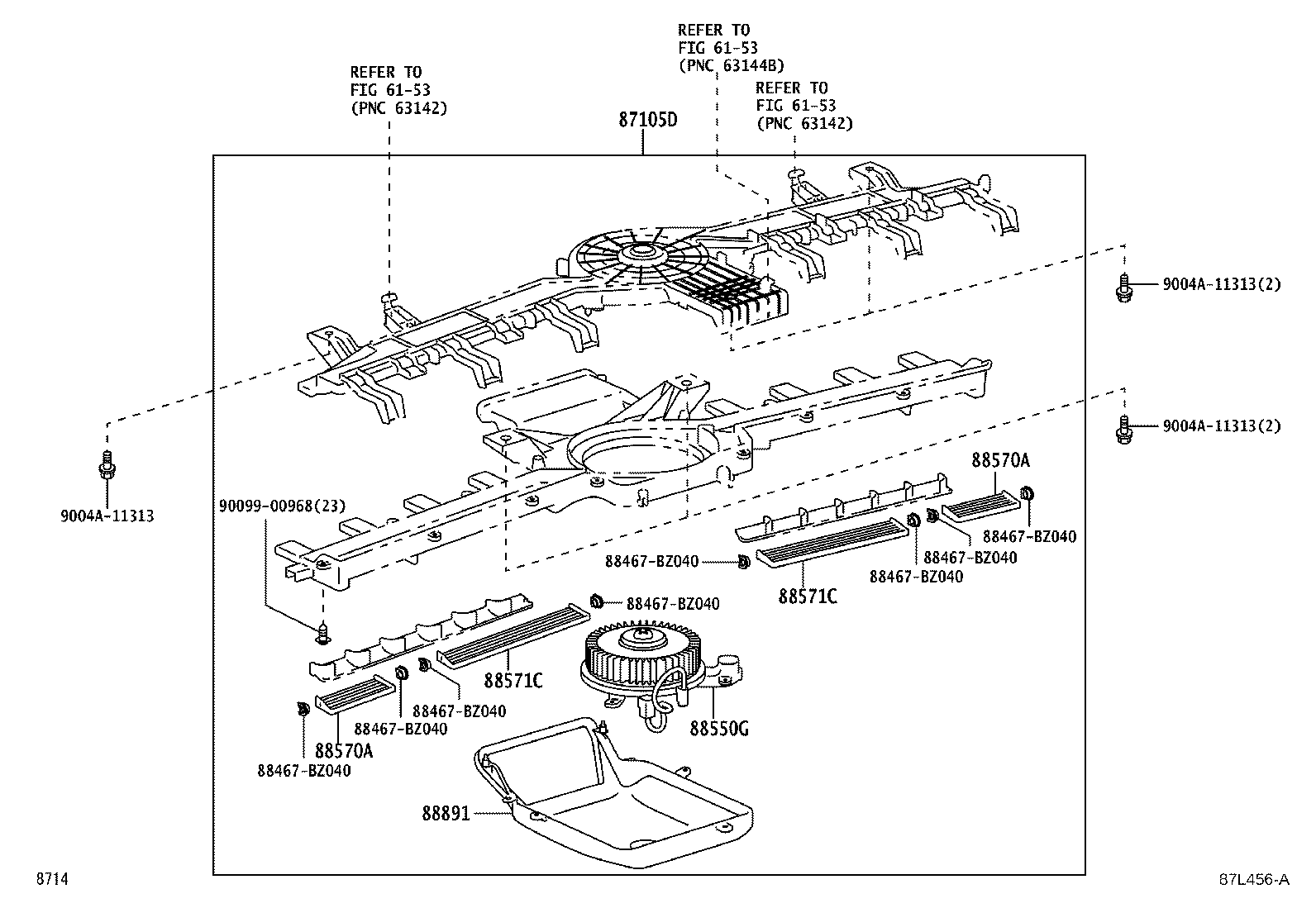

Figure 87K288A 87K288A 2022-01 → — Figure 87K289D 87K289D 2022-01 → — Figure 87L456A 87L456A 2022-12 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87105D Fan Sub-assy, Blower
87107A Unit Sub-assy, Heater Radiator
87111B Case, Heater
87114B Cover, Heater
87124D Clamp, Heater, NO.3
87138C Resistor, Blower
87296B Lever, Heater Air Damper Control
87296D Lever, Heater Air Damper Control, NO.2
87296E Lever, Heater Air Damper Control, NO.3
87311 Case, Heater, NO.1
87312A Case, Heater,NO.2
87498C Door, Air Mix
88501 Evaporator Sub-assy, Cooler, NO.1
88504A Case Sub-assy, Blower
88515 Valve, Cooler Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88522C Door, Air Inlet
88522D Door, Mode
88539J Hose, Drain Cooler
88550B Motor Assy, Blower
88550G Motor Assy, Blower, Rear
88568B Filter, Air
88569F Clamp
88570A Grille Assy, Air Outlet
88571C Grille, Cooler Air Outlet
88578W Packing, Cooling Unit, NO.4
88625 Thermistor, Cooler, NO.1
88688Z Bracket
88710F Ring, O
88716V Ring, O(FOR COOLER UNIT)
88891 Packing (FOR COOLER)
88897L Grommet (FOR DRAIN HOSE)
88899K Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
