Toyota Townace

2022-01 → present · chassis S403 · catalogue 642210 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

21 part groups · 4 illustrations

Illustrations

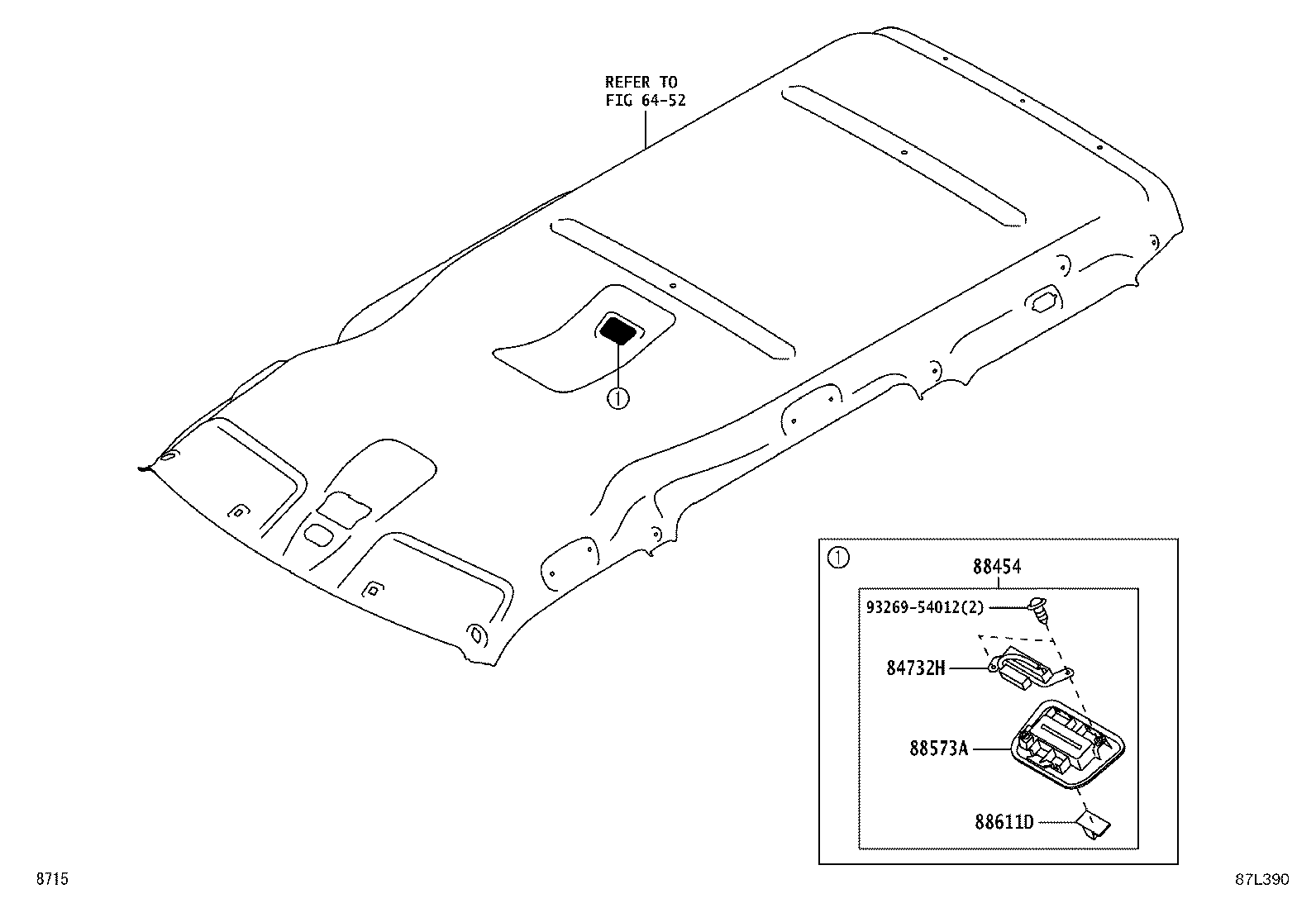

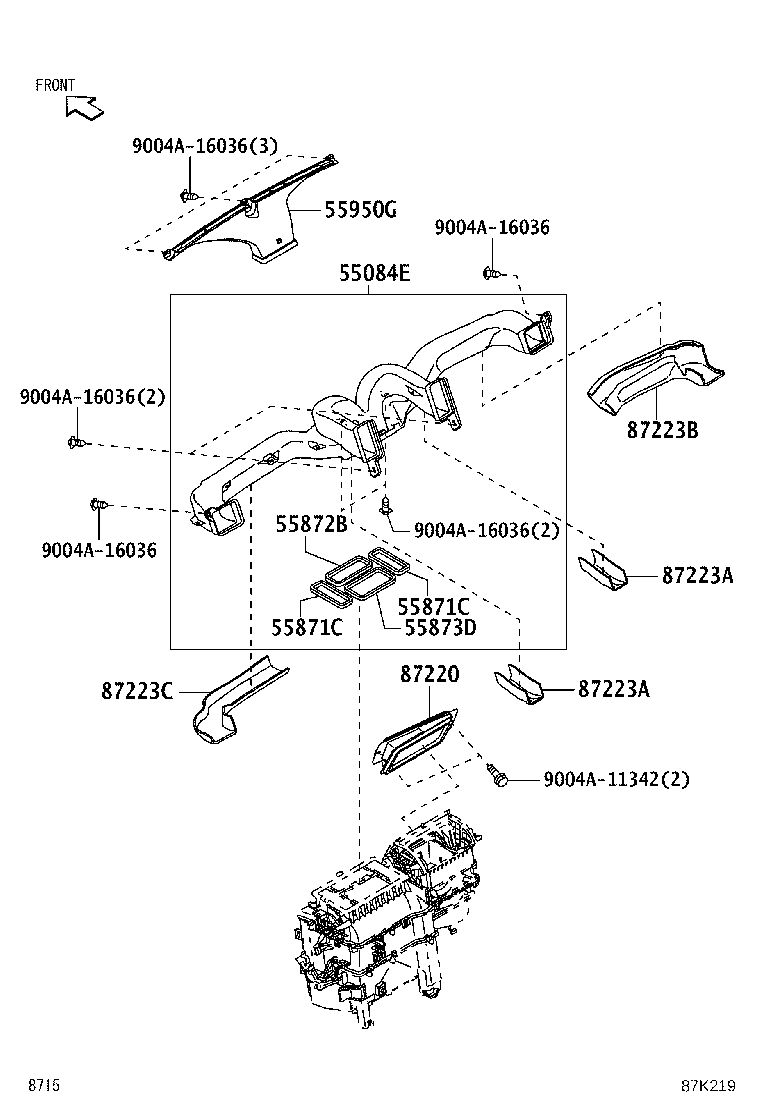

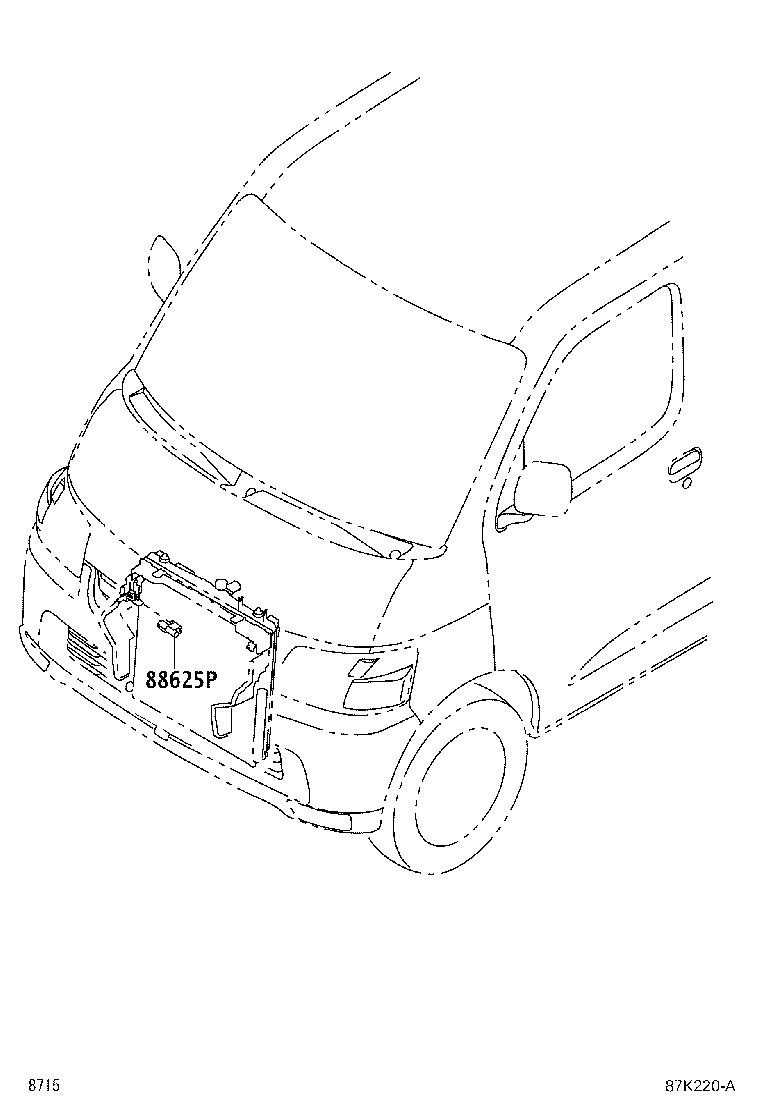

Figure 87K218 87K218 2022-01 → — Figure 87K219 87K219 2022-01 → — Figure 87K220A 87K220A 2022-01 → — Figure 87L390 87L390 2022-12 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55871C Seal, Air Duct
55872B Seal, Air Duct,NO.2
55873D Seal, Air Duct, Center
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55910R Control Assy, Heater
55950G Nozzle Assy, Defroster
84732H Switch, Heater Blower
87220 Duct Assy, Air
87223A Pad, Air Duct
87223B Pad, Air Duct, NO.2
87223C Pad, Air Duct, NO.3
88454 Grille, Air Grille Holder Base
88573A Base, Grille
88611D Knob, Cooler Control
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
