Toyota Model-f
1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · General
Discontinued model
Data version 1988-12

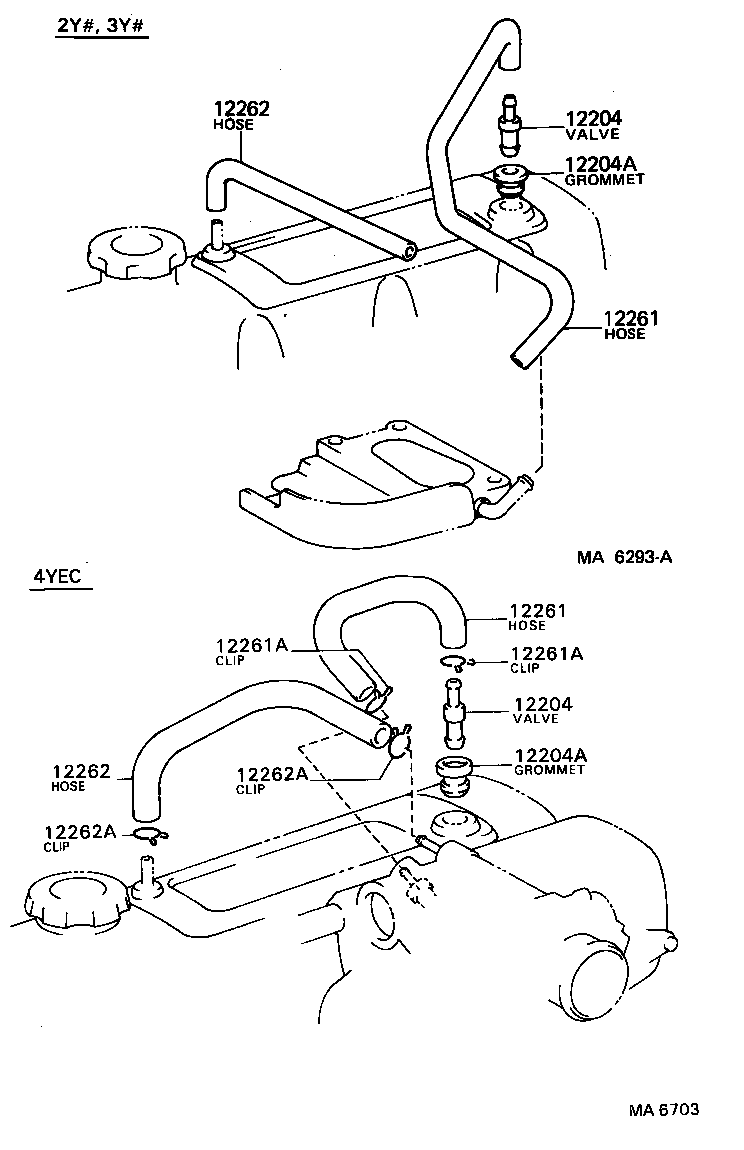

Ventilation Hose
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12204A | Grommet(FOR VENTILATION SYSTEM) |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
