Toyota Model-f
1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · General
Discontinued model
Data version 1988-12

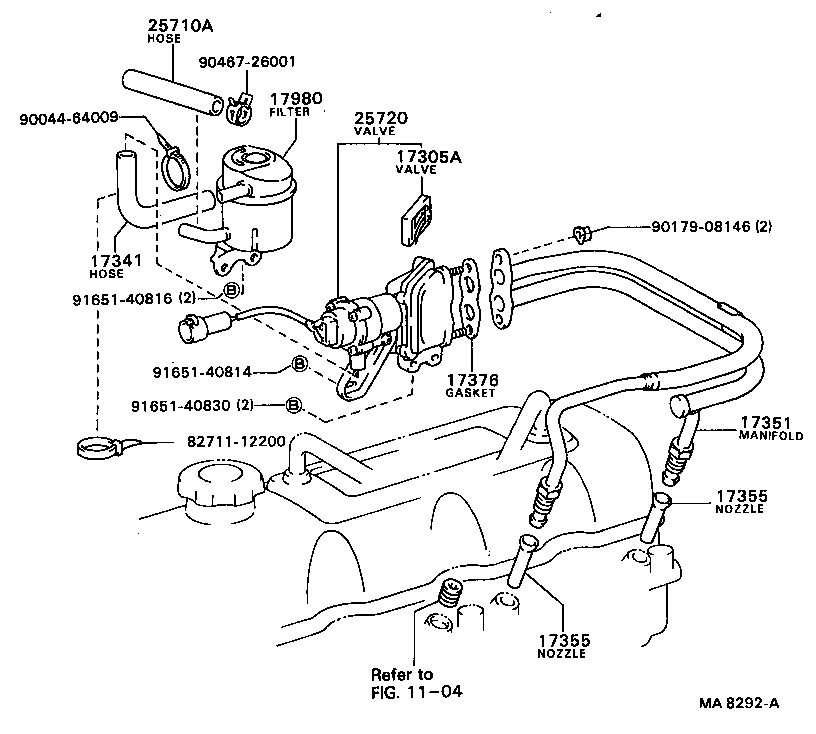

Manifold Air Injection System
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17305A | Valve Sub-assy, Reed |
| 17341 | Hose, NO.1(FOR AIR INJECTION SYSTEM) |
| 17350 | Valve Assy, Reed |
| 17351 | Manifold, Air Injection |
| 17355 | Nozzle, Air Injection |
| 17376 | Gasket, Air Tube, NO.1 |
| 17980 | Filter Assy, Air Suction |
| 25710A | Hose(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE) |
| 25720 | Valve Assy, Electric Air Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
